1. Protein Identity and Related Structures Protein Identity & Related Structures

Hemagglutinin HA1

Influenza A virus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Homooligomer	Protein 6 其他Polymer 3	oligosaccharide × 3 2-acetamido-2-deoxy-beta-D-glucopyranose × 9 (4R)-N-cyclohexyl-2-(4-fluorophenyl)imidazo[1,2-a]pyrimidin-3-amine × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A067Y6L0_9INFA
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 1–335； UniProt 1–335 Author chain B； PDBConstruct 1–335； UniProt 1–335 Author chain C； PDBConstruct 1–335； UniProt 1–335 Author chain D； PDBConstruct 1–172； UniProt 340–511 Author chain E； PDBConstruct 1–172； UniProt 340–511 Author chain F； PDBConstruct 1–172； UniProt 340–511

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9onz
Deposition date deposition_date	2025-05-15
Structure title title	Influenza A Virus Group 2 Hemagglutinin (H7, Strain SH13) in Complex with the Potent Small-Molecule Entry Inhibitor SA-67
Keywords keywords	Influenza A Virus, Hemagglutinin, Complex, Small-Molecule Inhibitor, Entry, SA-67, VIRAL PROTEIN-INHIBITOR complex; VIRAL PROTEIN/INHIBITOR
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9onz__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9onz__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

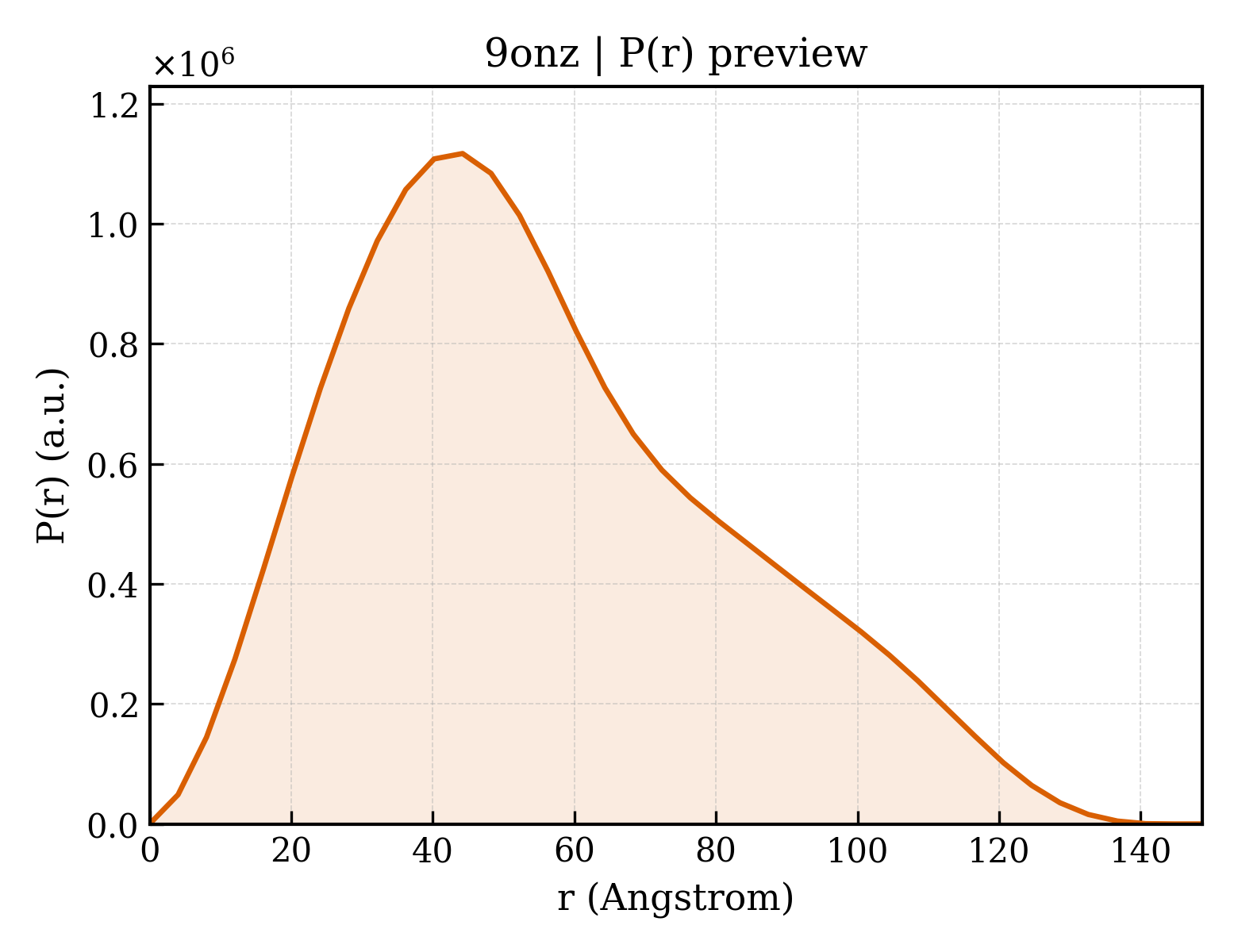

9onz__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	43.41 Å
Rg (electron density)	43.01 Å
Total Rg	43.18 Å
Atom count	11769
Residues	1470
Excluded volume	206170 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9onz__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Hemagglutinin HA1
Molecular weight formula_weight	36526.3 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	11769

MNTQILVFALIAIIPTNADKICLGHHAVSNGTKVNTLCERGVEVVNATETVERTNIPRICSKGKRTVDLGQCGLLGTITGPPQCDQFLEFSADLIIERREGSDVCYPGKFVNEEALRQILRESGGIDKEAMGFTYSGIRTNGATSSCRRSGSSFYAEMKWLLSNTDNAAFPQMTKSYKNTRKNPALIVWGIHHSGSTAEQTKLYGSGNKLVTVGSSNYQQSFVPSPGARTQVNGQSGRIDFHWLMLNPNDTVTFSFNGAFIAPDRASFLRGKSMGIQSGVQVDADCEGDCYYSGGTIISNLPFQNIDSRAVGKCPRYVKQRSLLLATGMKNVPEI

Source Source

Source organism organism	Influenza A virus
NCBI taxonomy ID ncbi_taxonomy_id	11320
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Hemagglutinin HA2
Molecular weight formula_weight	19850.8 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,E,F

GLFGAIAGFIENGWEGLIDGWYGFRHQNAQGEGTAADYKSTQSAIDCITGKLNRLIEKTNQQFELIDNEFTEVEKQIGNVINWTRDSITEVWSYNAELLVAMENQHTIDLADSEMDKLYERVKRQLRENAEEDGTGCFEIFHKCDDDCMASIRNNTYDHSKYREEAMQNRIQ

Source Source

Source organism organism	Influenza A virus
NCBI taxonomy ID ncbi_taxonomy_id	11320
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 branched

Description description	oligosaccharide
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	9

Entity 5 Entity 5 non-polymer

Description description	(4R)-N-cyclohexyl-2-(4-fluorophenyl)imidazo[1,2-a]pyrimidin-3-amine
Molecular weight formula_weight	310.4 kDa
Source method src_method	syn
Copy count entity_count	3

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.77 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	155278
