SAXSdb — 8to5

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

C-phycocyanin alpha subunit

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 14	C-phycocyanin beta subunit × 6 （Q54714） Phycobilisome 32.1 kDa linker polypeptide, phycocyanin-associated, rod 1 × 1 （P73203） Phycobilisome 32.1 kDa linker polypeptide, phycocyanin-associated, rod 2 × 1 （P73204） PHYCOCYANOBILIN × 18 water × 14	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PHCA_SYNY3
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain M； PDBConstruct 1–162； UniProt 1–162 Author chain O； PDBConstruct 1–162； UniProt 1–162 Author chain Q； PDBConstruct 1–162； UniProt 1–162 Author chain S； PDBConstruct 1–162； UniProt 1–162 Author chain U； PDBConstruct 1–162； UniProt 1–162 Author chain W； PDBConstruct 1–162； UniProt 1–162

C-phycocyanin beta subunit

OrganismNot specified

UniProt Q54714

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 14	C-phycocyanin alpha subunit × 6 （Q54715） Phycobilisome 32.1 kDa linker polypeptide, phycocyanin-associated, rod 1 × 1 （P73203） Phycobilisome 32.1 kDa linker polypeptide, phycocyanin-associated, rod 2 × 1 （P73204） PHYCOCYANOBILIN × 18 water × 14	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PHCB_SYNY3
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain N； PDBConstruct 1–172； UniProt 1–172 Author chain P； PDBConstruct 1–172； UniProt 1–172 Author chain R； PDBConstruct 1–172； UniProt 1–172 Author chain T； PDBConstruct 1–172； UniProt 1–172 Author chain V； PDBConstruct 1–172； UniProt 1–172 Author chain X； PDBConstruct 1–172； UniProt 1–172

Phycobilisome 32.1 kDa linker polypeptide, phycocyanin-associated, rod 1

OrganismNot specified

UniProt P73203

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 14	C-phycocyanin alpha subunit × 6 （Q54715） C-phycocyanin beta subunit × 6 （Q54714） Phycobilisome 32.1 kDa linker polypeptide, phycocyanin-associated, rod 2 × 1 （P73204） PHYCOCYANOBILIN × 18 water × 14	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PYR1_SYNY3
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain b； PDBConstruct 1–291； UniProt 1–291

Phycobilisome 32.1 kDa linker polypeptide, phycocyanin-associated, rod 2

OrganismNot specified

UniProt P73204

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 14	C-phycocyanin alpha subunit × 6 （Q54715） C-phycocyanin beta subunit × 6 （Q54714） Phycobilisome 32.1 kDa linker polypeptide, phycocyanin-associated, rod 1 × 1 （P73203） PHYCOCYANOBILIN × 18 water × 14	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PYR2_SYNY3
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain c； PDBConstruct 1–273； UniProt 1–273

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8to5
Deposition date deposition_date	2023-08-02
Last revision last_revision	2024-04-17
Structure title title	Central rod disk in C1 symmetry of high-resolution phycobilisome quenched by OCP (local refinement)
Keywords keywords	Complex, light harvesting, pigment, PHOTOSYNTHESIS; PHOTOSYNTHESIS
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8to5__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

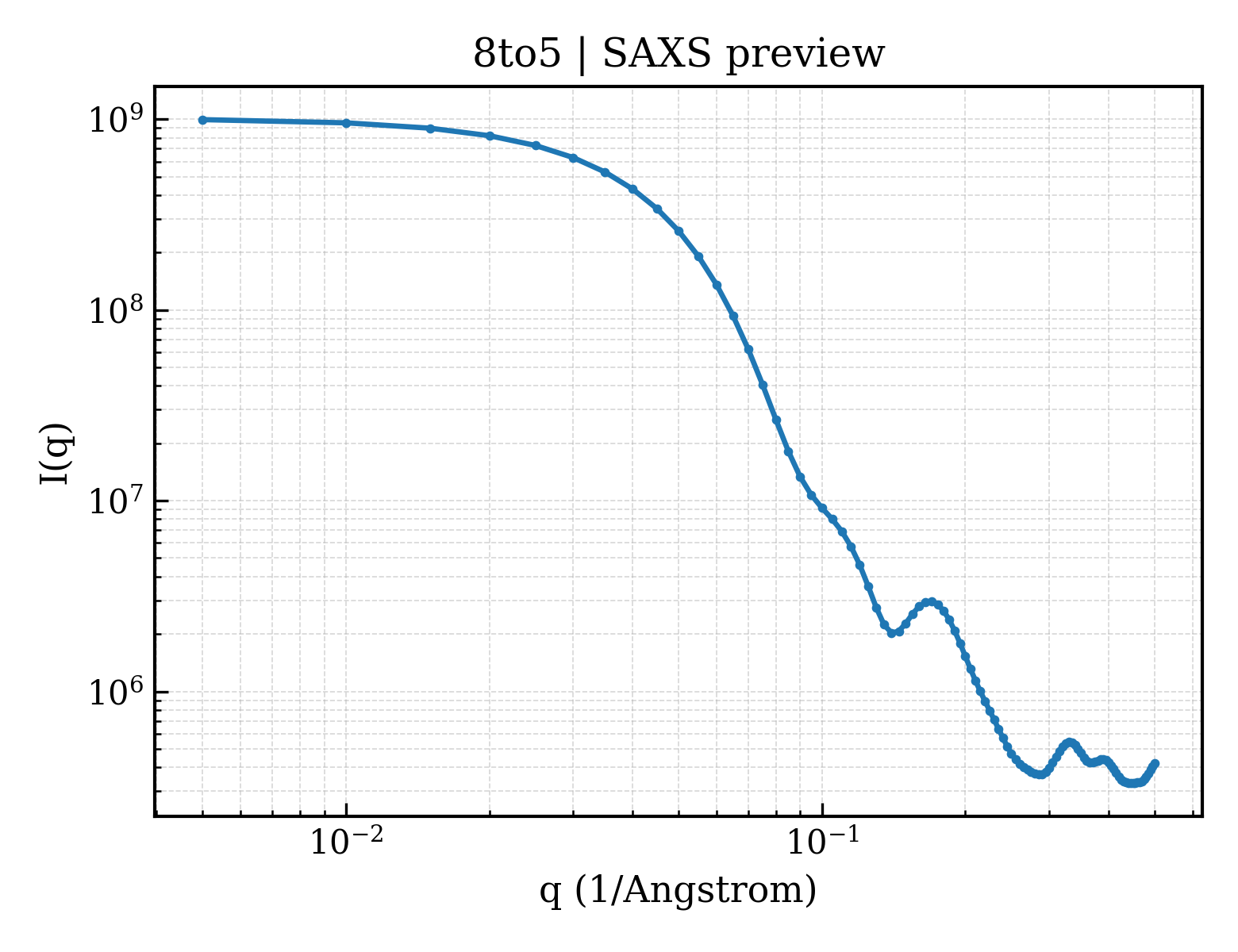

8to5__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

8to5__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	39.47 Å
Rg (electron density)	38.57 Å
Total Rg	38.98 Å
Atom count	35887
Residues	2289
Excluded volume	320910 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8to5__assembly_1__model_1`	tetradecameric （14）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	C-phycocyanin alpha subunit
Molecular weight formula_weight	17602.5 kDa
Source method src_method	nat
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M,O,Q,S,U,W
Atom count atom_count	37853

MKTPLTEAVSTADSQGRFLSSTELQIAFGRLRQANAGLQAAKALTDNAQSLVNGAAQAVYNKFPYTTQTQGNNFAADQRGKDKCARDIGYYLRIVTYCLVAGGTGPLDEYLIAGIDEINRTFDLSPSWYVEALKYIKANHGLSGDARDEANSYLDYAINALS

Entity 2 Entity 2 polymer

Description description	C-phycocyanin beta subunit
Molecular weight formula_weight	18156.5 kDa
Source method src_method	nat
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N,P,R,T,V,X

MFDVFTRVVSQADARGEYLSGSQLDALSATVAEGNKRIDSVNRITGNASAIVSNAARALFAEQPQLIQPGGNAYTSRRMAACLRDMEIILRYVTYATFTGDASVLEDRCLNGLRETYVALGVPGASVAAGVQKMKEAALDIVNDPNGITRGDCSAIVAEIAGYFDRAAAAVA

Entity 3 Entity 3 polymer

Description description	Phycobilisome 32.1 kDa linker polypeptide, phycocyanin-associated, rod 1
Molecular weight formula_weight	32558.6 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	b

MAITTAASRLGVAPYNESRPVELRPDFSLDDAKMVIRAVYRQVLGNDYIMDSERLKGAESLLTNGSISVREFVRTVAKSELYKKKFLYNNFQTRVIELNYKHLLGRAPFSEDEVIFHLDLYENQGFDADIDSYIDSVEYQENFGENIVPYYRFNNQVGDRTVGFTRMFRLYRGYANSDRSQLERSSSRLATELGQNTVSAIVGPSGSNAGWAYRPSRAGNTPAKALGGTVPFGQASKLFRVEITAISAPGYPKVRRSNKAVIVPFEQLNQTLQQINRLGGKVASITPASLS

Entity 4 Entity 4 polymer

Description description	Phycobilisome 32.1 kDa linker polypeptide, phycocyanin-associated, rod 2
Molecular weight formula_weight	30836.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	c

MTSLVSAQRLGIVAVDEAIPLELRSRSTEEEVDAVILAVYRQVLGNDHLMSQERLTSAESLLRGREISVRDFVRAVALSEVYRQKFFHSNPQNRFIELNYKHLLGRAPYDQSEIAFHTDLYHQGGYEAEINSYIDSVEYTENFGDWVVPYFRGFATQRNQKTVGFSRSFQVYRGYATSDRSQGNGSRSRLTRELARNTASPVYAGSTAESLRGTSAGSRNQMYRLQVIQGAAPGRGTRVRRGKAEYLVSYDNLSAKLQQINRQGDTVTMISLA

Entity 5 Entity 5 non-polymer

Description description	PHYCOCYANOBILIN
Molecular weight formula_weight	588.7 kDa
Source method src_method	syn
Copy count entity_count	18

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1933

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	1.87 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	435854
