SAXSdb — 8tqz

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Translation initiation factor eIF-2B subunit alpha

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	Translation initiation factor eIF-2B subunit epsilon × 2 （Q13144） Translation initiation factor eIF-2B subunit beta × 2 （P49770） Translation initiation factor eIF-2B subunit delta × 2 （Q9UI10） Translation initiation factor eIF-2B subunit gamma × 2 （Q9NR50）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EI2BA_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain G； PDBConstruct 19–322； UniProt 2–305 Author chain H； PDBConstruct 19–322； UniProt 2–305

Translation initiation factor eIF-2B subunit epsilon

Homo sapiens

UniProt Q13144

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	Translation initiation factor eIF-2B subunit alpha × 2 （Q14232） Translation initiation factor eIF-2B subunit beta × 2 （P49770） Translation initiation factor eIF-2B subunit delta × 2 （Q9UI10） Translation initiation factor eIF-2B subunit gamma × 2 （Q9NR50）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EI2BE_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–721； UniProt 1–721 Author chain B； PDBConstruct 1–721； UniProt 1–721

Translation initiation factor eIF-2B subunit beta

Homo sapiens

UniProt P49770

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	Translation initiation factor eIF-2B subunit alpha × 2 （Q14232） Translation initiation factor eIF-2B subunit epsilon × 2 （Q13144） Translation initiation factor eIF-2B subunit delta × 2 （Q9UI10） Translation initiation factor eIF-2B subunit gamma × 2 （Q9NR50）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EI2BB_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 19–368； UniProt 2–351 Author chain D； PDBConstruct 19–368； UniProt 2–351

Translation initiation factor eIF-2B subunit delta

Homo sapiens

UniProt Q9UI10

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	Translation initiation factor eIF-2B subunit alpha × 2 （Q14232） Translation initiation factor eIF-2B subunit epsilon × 2 （Q13144） Translation initiation factor eIF-2B subunit beta × 2 （P49770） Translation initiation factor eIF-2B subunit gamma × 2 （Q9NR50）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EI2BD_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain E； PDBConstruct 1–523； UniProt 1–523 Author chain F； PDBConstruct 1–523； UniProt 1–523

Translation initiation factor eIF-2B subunit gamma

Homo sapiens

UniProt Q9NR50

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	Translation initiation factor eIF-2B subunit alpha × 2 （Q14232） Translation initiation factor eIF-2B subunit epsilon × 2 （Q13144） Translation initiation factor eIF-2B subunit beta × 2 （P49770） Translation initiation factor eIF-2B subunit delta × 2 （Q9UI10）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EI2BG_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain I； PDBConstruct 1–452； UniProt 1–452 Author chain J； PDBConstruct 1–452； UniProt 1–452

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8tqz
Deposition date deposition_date	2023-08-08
Structure title title	Eukaryotic translation initiation factor 2B with a mutation (L516A) in the delta subunit
Keywords keywords	Protein translation, eIF2B, integrated stress response, TRANSLATION; TRANSLATION
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8tqz__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

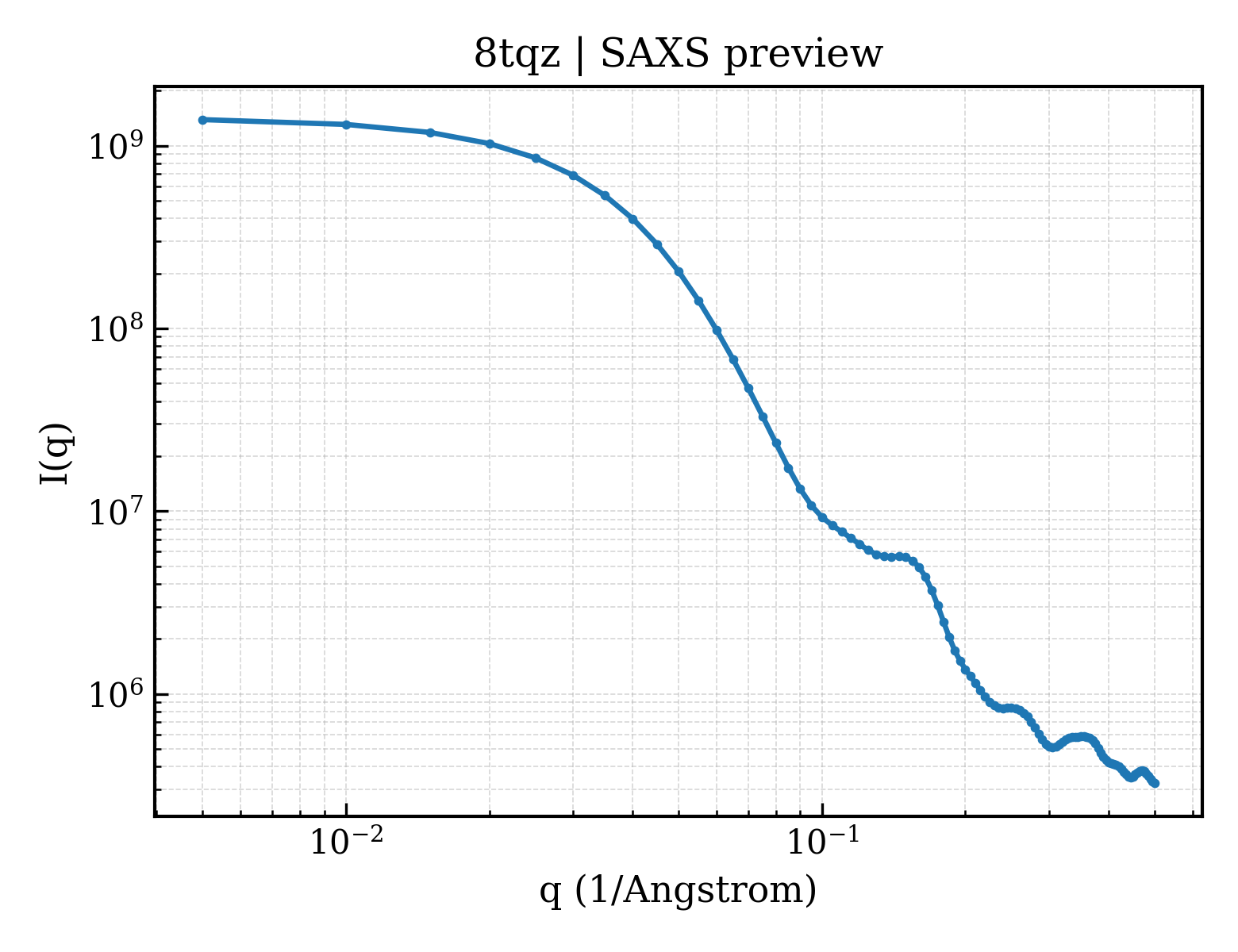

8tqz__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

8tqz__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	49.08 Å
Rg (electron density)	48.90 Å
Total Rg	49.02 Å
Atom count	22334
Residues	2863
Excluded volume	400370 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8tqz__assembly_1__model_1`	decameric （10）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Translation initiation factor eIF-2B subunit alpha
Molecular weight formula_weight	35723.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,H
Atom count atom_count	22334

MHHHHHHGGGSENLYFQSDDKELIEYFKSQMKEDPDMASAVAAIRTLLEFLKRDKGETIQGLRANLTSAIETLCGVDSSVAVSSGGELFLRFISLASLEYSDYSKCKKIMIERGELFLRRISLSRNKIADLCHTFIKDGATILTHAYSRVVLRVLEAAVAAKKRFSVYVTESQPDLSGKKMAKALCHLNVPVTVVLDAAVGYIMEKADLVIVGAEGVVENGGIINKIGTNQMAVCAKAQNKPFYVVAESFKFVRLFPLNQQDVPDKFKYKADTLKVAQTGQDLKEEHPWVDYTAPSLITLLFTDLGVLTPSAVSDELIKLYL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Translation initiation factor eIF-2B subunit epsilon
Molecular weight formula_weight	80452.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B

MAAPVVAPPGVVVSRANKRSGAGPGGSGGGGARGAEEEPPPPLQAVLVADSFDRRFFPISKDQPRVLLPLANVALIDYTLEFLTATGVQETFVFCCWKAAQIKEHLLKSKWCRPTSLNVVRIITSELYRSLGDVLRDVDAKALVRSDFLLVYGDVISNINITRALEEHRLRRKLEKNVSVMTMIFKESSPSHPTRCHEDNVVVAVDSTTNRVLHFQKTQGLRRFAFPLSLFQGSSDGVEVRYDLLDCHISICSPQVAQLFTDNFDYQTRDDFVRGLLVNEEILGNQIHMHVTAKEYGARVSNLHMYSAVCADVIRRWVYPLTPEANFTDSTTQSCTHSRHNIYRGPEVSLGHGSILEENVLLGSGTVIGSNCFITNSVIGPGCHIGDNVVLDQTYLWQGVRVAAGAQIHQSLLCDNAEVKERVTLKPRSVLTSQVVVGPNITLPEGSVISLHPPDAEEDEDDGEFSDDSGADQEKDKVKMKGYNPAEVGAAGKGYLWKAAGMNMEEEEELQQNLWGLKINMEEESESESEQSMDSEEPDSRGGSPQMDDIKVFQNEVLGTLQRGKEENISCDNLVLEINSLKYAYNVSLKEVMQVLSHVVLEFPLQQMDSPLDSSRYCALLLPLLKAWSPVFRNYIKRAADHLEALAAIEDFFLEHEALGISMAKVLMAFYQLEILAEETILSWFSQRDTTDKGQQLRKNQQLQRFIQWLKEAEEESSEDD

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Translation initiation factor eIF-2B subunit beta
Molecular weight formula_weight	41008.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,C

MHHHHHHGGGSENLYFQSPGSAAKGSELSERIESFVETLKRGGGPRSSEEMARETLGLLRQIITDHRWSNAGELMELIRREGRRMTAAQPSETTVGNMVRRVLKIIREEYGRLHGRSDESDQQESLHKLLTSGGLNEDFSFHYAQLQSNIIEAINELLVELEGTMENIAAQALEHIHSNEVIMTIGFSRTVEAFLKEAARKRKFHVIVAECAPFCQGHEMAVNLSKAGIETTVMTDAAIFAVMSRVNKVIIGTKTILANGALRAVTGTHTLALAAKHHSTPLIVCAPMFKLSPQFPNEEDSFHKFVAPEEVLPFTEGDILEKVSVHCPVFDYVPPELITLFISNIGGNAPSYIYRLMSELYHPDDHVL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Translation initiation factor eIF-2B subunit delta
Molecular weight formula_weight	57598.1 kDa
Mutation mutation	L516A
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F

MAAVAVAVREDSGSGMKAELPPGPGAVGREMTKEEKLQLRKEKKQQKKKRKEEKGAEPETGSAVSAAQCQVGPTRELPESGIQLGTPREKVPAGRSKAELRAERRAKQEAERALKQARKGEQGGPPPKASPSTAGETPSGVKRLPEYPQVDDLLLRRLVKKPERQQVPTRKDYGSKVSLFSHLPQYSRQNSLTQFMSIPSSVIHPAMVRLGLQYSQGLVSGSNARCIALLRALQQVIQDYTTPPNEELSRDLVNKLKPYMSFLTQCRPLSASMHNAIKFLNKEITSVGSSKREEEAKSELRAAIDRYVQEKIVLAAQAISRFAYQKISNGDVILVYGCSSLVSRILQEAWTEGRRFRVVVVDSRPWLEGRHTLRSLVHAGVPASYLLIPAASYVLPEVSKVLLGAHALLANGSVMSRVGTAQLALVARAHNVPVLVCCETYKFCERVQTDAFVSNELDDPDDLQCKRGEHVALANWQNHASLRLLNLVYDVTPPELVDLVITELGMIPCSSVPVVARVKSSDQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	Translation initiation factor eIF-2B subunit gamma
Molecular weight formula_weight	50304.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I,J

MEFQAVVMAVGGGSRMTDLTSSIPKPLLPVGNKPLIWYPLNLLERVGFEEVIVVTTRDVQKALCAEFKMKMKPDIVCIPDDADMGTADSLRYIYPKLKTDVLVLSCDLITDVALHEVVDLFRAYDASLAMLMRKGQDSIEPVPGQKGKKKAVEQRDFIGVDSTGKRLLFMANEADLDEELVIKGSILQKHPRIRFHTGLVDAHLYCLKKYIVDFLMENGSITSIRSELIPYLVRKQFSSASSQQGQEEKEEDLKKKELKSLDIYSFIKEANTLNLAPYDACWNACRGDRWEDLSRSQVRCYVHIMKEGLCSRVSTLGLYMEANRQVPKLLSALCPEEPPVHSSAQIVSKHLVGVDSLIGPETQIGEKSSIKRSVIGSSCLIKDRVTITNCLLMNSVTVEEGSNIQGSVICNNAVIEKGADIKDCLIGSGQRIEAKAKRVNEVIVGNDQLMEI

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.90 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	327000
