1. Protein Identity and Related Structures Protein Identity & Related Structures

Translation initiation factor eIF-2B subunit alpha

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 11	Translation initiation factor eIF-2B subunit beta × 2 （P49770） Translation initiation factor eIF-2B subunit gamma × 2 （Q9NR50） Translation initiation factor eIF-2B subunit delta × 2 （Q9UI10） Translation initiation factor eIF-2B subunit epsilon × 2 （Q13144） Eukaryotic translation initiation factor 2 subunit 1 × 1 （P05198）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EI2BA_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–305； UniProt 1–305 Author chain B； PDBConstruct 1–305； UniProt 1–305

Translation initiation factor eIF-2B subunit beta

Homo sapiens

UniProt P49770

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 11	Translation initiation factor eIF-2B subunit alpha × 2 （Q14232） Translation initiation factor eIF-2B subunit gamma × 2 （Q9NR50） Translation initiation factor eIF-2B subunit delta × 2 （Q9UI10） Translation initiation factor eIF-2B subunit epsilon × 2 （Q13144） Eukaryotic translation initiation factor 2 subunit 1 × 1 （P05198）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EI2BB_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–351； UniProt 1–351 Author chain D； PDBConstruct 1–351； UniProt 1–351

Translation initiation factor eIF-2B subunit gamma

Homo sapiens

UniProt Q9NR50

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 11	Translation initiation factor eIF-2B subunit alpha × 2 （Q14232） Translation initiation factor eIF-2B subunit beta × 2 （P49770） Translation initiation factor eIF-2B subunit delta × 2 （Q9UI10） Translation initiation factor eIF-2B subunit epsilon × 2 （Q13144） Eukaryotic translation initiation factor 2 subunit 1 × 1 （P05198）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EI2BG_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain E； PDBConstruct 1–452； UniProt 1–452 Author chain F； PDBConstruct 1–452； UniProt 1–452

Translation initiation factor eIF-2B subunit delta

Homo sapiens

UniProt Q9UI10

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 11	Translation initiation factor eIF-2B subunit alpha × 2 （Q14232） Translation initiation factor eIF-2B subunit beta × 2 （P49770） Translation initiation factor eIF-2B subunit gamma × 2 （Q9NR50） Translation initiation factor eIF-2B subunit epsilon × 2 （Q13144） Eukaryotic translation initiation factor 2 subunit 1 × 1 （P05198）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EI2BD_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain G； PDBConstruct 1–523； UniProt 1–523 Author chain H； PDBConstruct 1–523； UniProt 1–523

Translation initiation factor eIF-2B subunit epsilon

Homo sapiens

UniProt Q13144

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 11	Translation initiation factor eIF-2B subunit alpha × 2 （Q14232） Translation initiation factor eIF-2B subunit beta × 2 （P49770） Translation initiation factor eIF-2B subunit gamma × 2 （Q9NR50） Translation initiation factor eIF-2B subunit delta × 2 （Q9UI10） Eukaryotic translation initiation factor 2 subunit 1 × 1 （P05198）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EI2BE_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain I； PDBConstruct 1–721； UniProt 1–721 Author chain J； PDBConstruct 1–721； UniProt 1–721

Eukaryotic translation initiation factor 2 subunit 1

Homo sapiens

UniProt P05198

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 11	Translation initiation factor eIF-2B subunit alpha × 2 （Q14232） Translation initiation factor eIF-2B subunit beta × 2 （P49770） Translation initiation factor eIF-2B subunit gamma × 2 （Q9NR50） Translation initiation factor eIF-2B subunit delta × 2 （Q9UI10） Translation initiation factor eIF-2B subunit epsilon × 2 （Q13144）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IF2A_HUMAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain K； PDBConstruct 1–315； UniProt 1–315

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7d45
Deposition date deposition_date	2020-09-22
Structure title title	eIF2B-eIF2(aP), aP1 complex
Keywords keywords	Complex, Translational control, TRANSLATION; TRANSLATION
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7d45__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

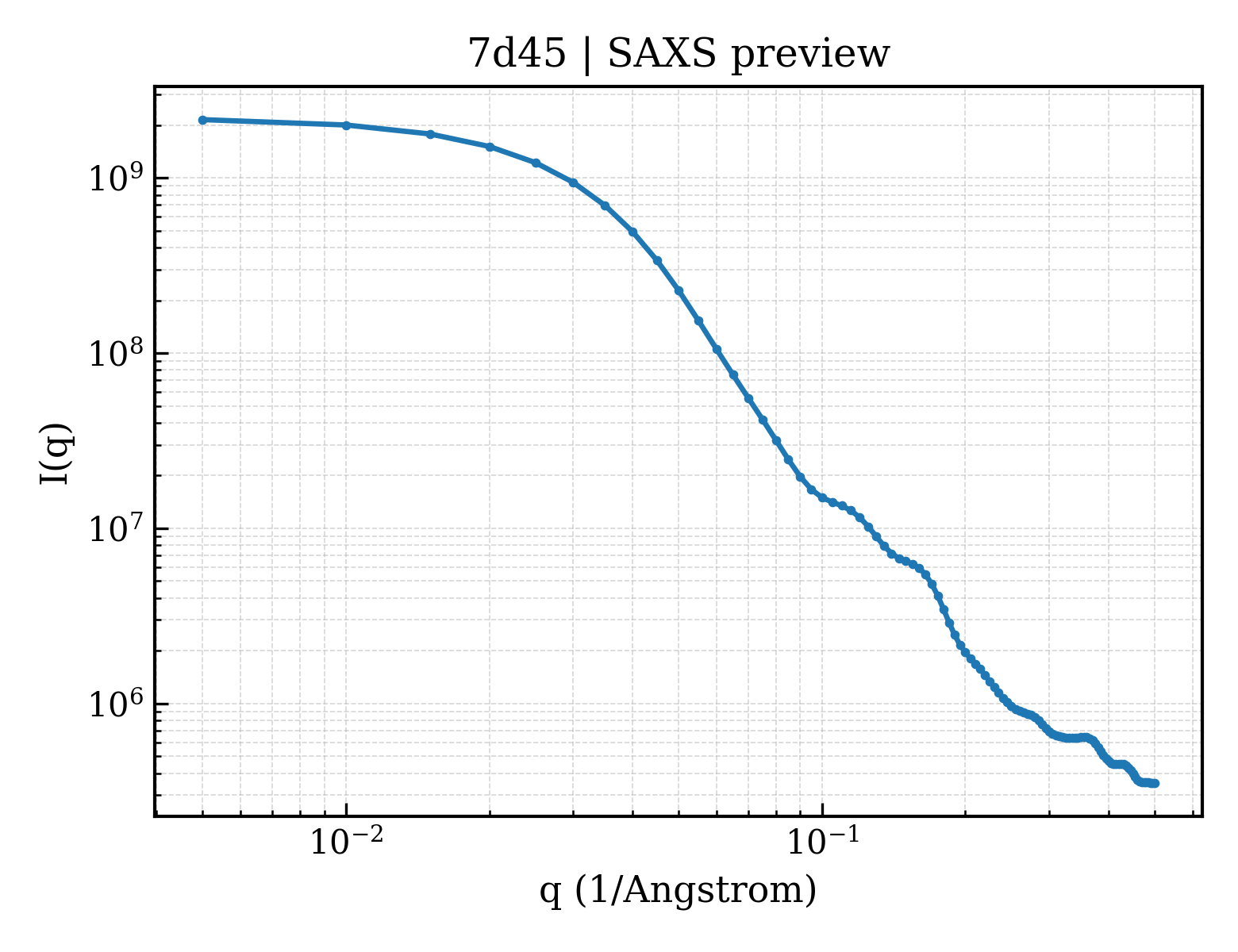

7d45__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

7d45__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	53.07 Å
Rg (electron density)	52.13 Å
Total Rg	51.99 Å
Atom count	27529
Residues	3658
Excluded volume	489510 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7d45__assembly_1__model_1`	undecameric （11）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Translation initiation factor eIF-2B subunit alpha
Molecular weight formula_weight	33754.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	27529

MDDKELIEYFKSQMKEDPDMASAVAAIRTLLEFLKRDKGETIQGLRANLTSAIETLCGVDSSVAVSSGGELFLRFISLASLEYSDYSKCKKIMIERGELFLRRISLSRNKIADLCHTFIKDGATILTHAYSRVVLRVLEAAVAAKKRFSVYVTESQPDLSGKKMAKALCHLNVPVTVVLDAAVGYIMEKADLVIVGAEGVVENGGIINKIGTNQMAVCAKAQNKPFYVVAESFKFVRLFPLNQQDVPDKFKYKADTLKVAQTGQDLKEEHPWVDYTAPSLITLLFTDLGVLTPSAVSDELIKLYL

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Translation initiation factor eIF-2B subunit beta
Molecular weight formula_weight	39039.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

MPGSAAKGSELSERIESFVETLKRGGGPRSSEEMARETLGLLRQIITDHRWSNAGELMELIRREGRRMTAAQPSETTVGNMVRRVLKIIREEYGRLHGRSDESDQQESLHKLLTSGGLNEDFSFHYAQLQSNIIEAINELLVELEGTMENIAAQALEHIHSNEVIMTIGFSRTVEAFLKEAARKRKFHVIVAECAPFCQGHEMAVNLSKAGIETTVMTDAAIFAVMSRVNKVIIGTKTILANGALRAVTGTHTLALAAKHHSTPLIVCAPMFKLSPQFPNEEDSFHKFVAPEEVLPFTEGDILEKVSVHCPVFDYVPPELITLFISNIGGNAPSYIYRLMSELYHPDDHVL

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Translation initiation factor eIF-2B subunit gamma
Molecular weight formula_weight	50304.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F

MEFQAVVMAVGGGSRMTDLTSSIPKPLLPVGNKPLIWYPLNLLERVGFEEVIVVTTRDVQKALCAEFKMKMKPDIVCIPDDADMGTADSLRYIYPKLKTDVLVLSCDLITDVALHEVVDLFRAYDASLAMLMRKGQDSIEPVPGQKGKKKAVEQRDFIGVDSTGKRLLFMANEADLDEELVIKGSILQKHPRIRFHTGLVDAHLYCLKKYIVDFLMENGSITSIRSELIPYLVRKQFSSASSQQGQEEKEEDLKKKELKSLDIYSFIKEANTLNLAPYDACWNACRGDRWEDLSRSQVRCYVHIMKEGLCSRVSTLGLYMEANRQVPKLLSALCPEEPPVHSSAQIVSKHLVGVDSLIGPETQIGEKSSIKRSVIGSSCLIKDRVTITNCLLMNSVTVEEGSNIQGSVICNNAVIEKGADIKDCLIGSGQRIEAKAKRVNEVIVGNDQLMEI

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Translation initiation factor eIF-2B subunit delta
Molecular weight formula_weight	57640.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,H

MAAVAVAVREDSGSGMKAELPPGPGAVGREMTKEEKLQLRKEKKQQKKKRKEEKGAEPETGSAVSAAQCQVGPTRELPESGIQLGTPREKVPAGRSKAELRAERRAKQEAERALKQARKGEQGGPPPKASPSTAGETPSGVKRLPEYPQVDDLLLRRLVKKPERQQVPTRKDYGSKVSLFSHLPQYSRQNSLTQFMSIPSSVIHPAMVRLGLQYSQGLVSGSNARCIALLRALQQVIQDYTTPPNEELSRDLVNKLKPYMSFLTQCRPLSASMHNAIKFLNKEITSVGSSKREEEAKSELRAAIDRYVQEKIVLAAQAISRFAYQKISNGDVILVYGCSSLVSRILQEAWTEGRRFRVVVVDSRPWLEGRHTLRSLVHAGVPASYLLIPAASYVLPEVSKVLLGAHALLANGSVMSRVGTAQLALVARAHNVPVLVCCETYKFCERVQTDAFVSNELDDPDDLQCKRGEHVALANWQNHASLRLLNLVYDVTPPELVDLVITELGMIPCSSVPVVLRVKSSDQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	Translation initiation factor eIF-2B subunit epsilon
Molecular weight formula_weight	80466.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I,J

MAAPVVAPPGVVVSRANKRSGAGPGGSGGGGARGAEEEPPPPLQAVLVADSFDRRFFPISKDQPRVLLPLANVALIDYTLEFLTATGVQETFVFCCWKAAQIKEHLLKSKWCRPTSLNVVRIITSELYRSLGDVLRDVDAKALVRSDFLLVYGDVISNINITRALEEHRLRRKLEKNVSVMTMIFKESSPSHPTRCHEDNVVVAVDSTTNRVLHFQKTQGLRRFAFPLSLFQGSSDGVEVRYDLLDCHISICSPQVAQLFTDNFDYQTRDDFVRGLLVNEEILGNQIHMHVTAKEYGARVSNLHMYSAVCADVIRRWVYPLTPEANFTDSTTQSCTHSRHNIYRGPEVSLGHGSILEENVLLGSGTVIGSNCFITNSVIGPGCHIGDNVVLDQTYLWQGVRVAAGAQIHQSLLCDNAEVKERVTLKPRSVLTSQVVVGPNITLPEGSVISLHPPDAEEDEDDGEFSDDSGADQEKDKVKMKGYNPAEVGAAGKGYLWKAAGMNMEEEEELQQNLWGLKINMEEESESESEQSMDSEEPDSRGGSPQMDDIKVFQNEVLGTLQRGKEENISCDNLVLEINSLKYAYNISLKEVMQVLSHVVLEFPLQQMDSPLDSSRYCALLLPLLKAWSPVFRNYIKRAADHLEALAAIEDFFLEHEALGISMAKVLMAFYQLEILAEETILSWFSQRDTTDKGQQLRKNQQLQRFIQWLKEAEEESSEDD

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 6 Entity 6 polymer

Description description	Eukaryotic translation initiation factor 2 subunit 1
Molecular weight formula_weight	36241.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

MPGLSCRFYQHKFPEVEDVVMVNVRSIAEMGAYVSLLEYNNIEGMILLSELSRRRIRSINKLIRIGRNECVVVIRVDKEKGYIDLSKRRVSPEEAIKCEDKFTKSKTVYSILRHVAEVLEYTKDEQLESLFQRTAWVFDDKYKRPGYGAYDAFKHAVSDPSILDSLDLNEDEREVLINNINRRLTPQAVKIRADIEVACYGYEGIDAVKEALRAGLNCSTENMPIKINLIAPPRYVMTTTTLERTEGLSVLSQAMAVIKEKIEEKRGVFNVQMEPKVVTDTDETELARQMERLERENAEVDGDDDAEEMEAKAED

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

▼

6. Fold Classification (SCOP + CATH) 9 domains

CATH v4.4 (9 domains)

Domain ID domain_id	7d45A01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	1070 — Translation initiation factor eIF-2B, N-terminal domain

Domain ID domain_id	7d45A02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10470 — Translation initiation factor eif-2b; domain 2

Domain ID domain_id	7d45B01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	1070 — Translation initiation factor eIF-2B, N-terminal domain

Domain ID domain_id	7d45B02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10470 — Translation initiation factor eif-2b; domain 2

Domain ID domain_id	7d45C01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10470 — Translation initiation factor eif-2b; domain 2

Domain ID domain_id	7d45D01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10470 — Translation initiation factor eif-2b; domain 2

Domain ID domain_id	7d45E01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
Homologous superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

Domain ID domain_id	7d45F01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
Homologous superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

Domain ID domain_id	7d45I01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
Homologous superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.80 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	208728

eIF2B-eIF2(aP), aP1 complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

Translation initiation factor eIF-2B subunit alpha

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Translation initiation factor eIF-2B subunit beta

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Translation initiation factor eIF-2B subunit gamma

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Translation initiation factor eIF-2B subunit delta

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Translation initiation factor eIF-2B subunit epsilon

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Eukaryotic translation initiation factor 2 subunit 1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

7d45__assembly_1__model_1

7d45__assembly_1__model_1 | I(q)

7d45__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 polymer

Polymer Polymer

Source Source

Entity 4 Entity 4 polymer

Polymer Polymer

Source Source

Entity 5 Entity 5 polymer

Polymer Polymer

Source Source

Entity 6 Entity 6 polymer

Polymer Polymer

Source Source

6. Fold Classification (SCOP + CATH) 9 domains

CATH v4.4 (9 domains)
