7kma

Crystal structure of eif2Balpha with a ligand.

Method: X-RAY DIFFRACTION D_max: 155.7 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Translation initiation factor eIF-2B subunit alpha

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–305 Chain C； UniProt 1–305	Not recorded	M6P 6-O-phosphono-alpha-D-mannopyranose × 2 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 4.6；291 K；12% PEG 4000, 100 mM sodium acetate, 100 mM ammonium sulfate, 0.5% octyl-beta-glucoside, pH 4.6	Resolution 2.70 Å R-free 0.238
2	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 1–305 Chain H； UniProt 1–305	Not recorded	M6P 6-O-phosphono-alpha-D-mannopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 4.6；291 K；12% PEG 4000, 100 mM sodium acetate, 100 mM ammonium sulfate, 0.5% octyl-beta-glucoside, pH 4.6	Resolution 2.70 Å R-free 0.238
3	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 1–305 Chain E； UniProt 1–305	Not recorded	M6P 6-O-phosphono-alpha-D-mannopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 4.6；291 K；12% PEG 4000, 100 mM sodium acetate, 100 mM ammonium sulfate, 0.5% octyl-beta-glucoside, pH 4.6	Resolution 2.70 Å R-free 0.238
4	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain F； UniProt 1–305 Chain G； UniProt 1–305	Not recorded	M6P 6-O-phosphono-alpha-D-mannopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 4.6；291 K；12% PEG 4000, 100 mM sodium acetate, 100 mM ammonium sulfate, 0.5% octyl-beta-glucoside, pH 4.6	Resolution 2.70 Å R-free 0.238

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7KMA	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3ECS Crystal structure of human eIF2B alpha Deposited 2008-09-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–305（305 aa） Chain B 1–305（305 aa） Chain C 1–305（305 aa） Chain D 1–305（305 aa） Chain E 1–305（305 aa） Chain F 1–305（305 aa） Chain G 1–305（305 aa） Chain H 1–305（305 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 10 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；293 K；0.1M Sodium Citrate buffer(pH 4.5), 0.1M Ammonium Sulfate, 13% polyethylene glycol(PEG) 4000, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.65 Å R-free 0.273
6CAJ Electron cryo-microscopy of the eukaryotic translation initiation factor 2B from Homo sapiens Deposited 2018-01-31	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain G 1–305（305 aa） Chain H 1–305（305 aa）	Not recorded	C7B 2-(4-chloranylphenoxy)-~{N}-[4-[2-(4-chloranylphenoxy)ethanoylamino]cyclohexyl]ethanamide × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
6EZO Eukaryotic initiation factor EIF2B in complex with ISRIB Deposited 2017-11-16	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain A 1–305（305 aa） Chain B 1–305（305 aa）	Not recorded	C7B 2-(4-chloranylphenoxy)-~{N}-[4-[2-(4-chloranylphenoxy)ethanoylamino]cyclohexyl]ethanamide × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
6K71 eIF2 - eIF2B complex Deposited 2019-06-05	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric	Chain A 1–305（305 aa） Chain B 1–305（305 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.30 Å
6K72 eIF2(aP) - eIF2B complex Deposited 2019-06-05	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric	Chain A 1–305（305 aa） Chain B 1–305（305 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.60 Å
6O81 Electron cryo-microscopy of the eukaryotic translation initiation factor 2B bound to translation initiation factor 2 from Homo sapiens Deposited 2019-03-08	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain G 1–305（305 aa） Chain H 1–305（305 aa）	Not recorded	C7B 2-(4-chloranylphenoxy)-~{N}-[4-[2-(4-chloranylphenoxy)ethanoylamino]cyclohexyl]ethanamide × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.21 Å
6O85 Electron cryo-microscopy of the eukaryotic translation initiation factor 2B bound to eukaryotic translation initiation factor 2 from Homo sapiens Deposited 2019-03-08	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric	Chain G 1–305（305 aa） Chain H 1–305（305 aa）	Not recorded	C7B 2-(4-chloranylphenoxy)-~{N}-[4-[2-(4-chloranylphenoxy)ethanoylamino]cyclohexyl]ethanamide × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.03 Å
6O9Z Electron cryo-microscopy of the eukaryotic translation initiation factor 2B bound to eukaryotic translation initiation factor 2 from Homo sapiens Deposited 2019-03-15	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain G 1–305（305 aa） Chain H 1–305（305 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.03 Å
7D43 eIF2B-eIF2(aP), aPg complex Deposited 2020-09-22	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric	Chain A 1–305（305 aa） Chain B 1–305（305 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.30 Å
7D44 eIF2B-eIF2(aP), aP2 complex Deposited 2020-09-22	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 1–305（305 aa） Chain B 1–305（305 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
7D45 eIF2B-eIF2(aP), aP1 complex Deposited 2020-09-22	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain A 1–305（305 aa） Chain B 1–305（305 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
7D46 eIF2B apo Deposited 2020-09-22	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain A 1–305（305 aa） Chain B 1–305（305 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
7F64 eIF2B-SFSV NSs Deposited 2021-06-24	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 1–305（305 aa） Chain B 1–305（305 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.42 Å
7F66 eIF2B-SFSV NSs-1-eIF2 Deposited 2021-06-24	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric	Chain A 1–305（305 aa） Chain B 1–305（305 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.76 Å
7F67 eIF2B-SFSV NSs-2-eIF2 Deposited 2021-06-24	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric	Chain A 1–305（305 aa） Chain B 1–305（305 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.59 Å
7KMF Sugar phosphate activation of the stress sensor eIF2B Deposited 2020-11-02	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain G 1–305（305 aa） Chain H 1–305（305 aa）	Not recorded	F6P 6-O-phosphono-beta-D-fructofuranose × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；Prior to grid preparation, the protein mixture was diluted with 25 mM HEPES, 100 mM KCl, 2 mM 446 MgCl2, 1 mM DTT, pH 7.5 to cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.91 Å
7L70 The eukaryotic translation initiation factor 2B from Homo sapiens in its apo form Deposited 2020-12-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain G 2–305（304 aa） Chain H 2–305（304 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
7L7G Electron cryo-microscopy of the eukaryotic translation initiation factor 2B from Homo sapiens (updated model of PDB ID: 6CAJ) Deposited 2020-12-28	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain G 1–305（305 aa） Chain H 1–305（305 aa）	Not recorded	C7B 2-(4-chloranylphenoxy)-~{N}-[4-[2-(4-chloranylphenoxy)ethanoylamino]cyclohexyl]ethanamide × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
7RLO Structure of the human eukaryotic translation initiation factor 2B (eIF2B) in complex with a viral protein NSs Deposited 2021-07-26	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain G 1–305（305 aa） Chain H 1–305（305 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.60 Å
7TRJ The eukaryotic translation initiation factor 2B from Homo sapiens with a H160D mutation in the beta subunit Deposited 2022-01-29	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain G 1–305（305 aa） Chain H 1–305（305 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
7VLK eIF2B-SFSV NSs C2-imposed Deposited 2021-10-04	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 1–305（305 aa） Chain B 1–305（305 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.27 Å
8TQZ Eukaryotic translation initiation factor 2B with a mutation (L516A) in the delta subunit Deposited 2023-08-08	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain G 2–305（304 aa） Chain H 2–305（304 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
9HVD Native human P-eIF2-eIF2B complex Deposited 2024-12-27	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric	Chain A 1–305（305 aa） Chain B 1–305（305 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.04 Å
9HVE Native human eIF2-eIF2B complex Deposited 2024-12-27	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain A 1–305（305 aa） Chain B 1–305（305 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å
9QC6 Structure of eIF2B decamer bound to (P)eIF2 alpha and Compound A-(S) Deposited 2025-03-04	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: 11-meric	Chain A 1–305（305 aa） Chain B 1–305（305 aa）	Not recorded	A1I5O ~{N}-[(1~{S})-7-[3-[[ethanoyl(methyl)amino]methyl]phenyl]-5-(trifluoromethyl)-1,2,3,4-tetrahydronaphthalen-1-yl]-2-[[(3~{R},4~{S})-3-fluoranylpiperidin-4-yl]methoxy]-~{N}-methyl-ethanamide × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.83 Å
9ZUZ Translation Initiation Factor eIF-2B complex with the Isohexide Diamine GSK735 Deposited 2025-12-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–305（305 aa）	Not recorded	PRO PROLINE × 2 SO4 SULFATE ION × 4 EDO 1,2-ETHANEDIOL × 2 A1C32 1,4:3,6-dianhydro-2,5-bis[2-(4-chlorophenoxy)acetamido]-2,5-dideoxy-D-glucitol × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；0.2 M Proline, 0.1 M hepes pH 7.5, 8.6 % Peg3350	Resolution 2.25 Å R-free 0.237

26 other PDB entries and 26 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	EI2BA_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–305； UniProt 1–305 Author chain B； PDBConstruct 1–305； UniProt 1–305 Author chain C； PDBConstruct 1–305； UniProt 1–305 Author chain D； PDBConstruct 1–305； UniProt 1–305 Author chain E； PDBConstruct 1–305； UniProt 1–305 Author chain F； PDBConstruct 1–305； UniProt 1–305 Author chain G； PDBConstruct 1–305； UniProt 1–305 Author chain H； PDBConstruct 1–305； UniProt 1–305

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

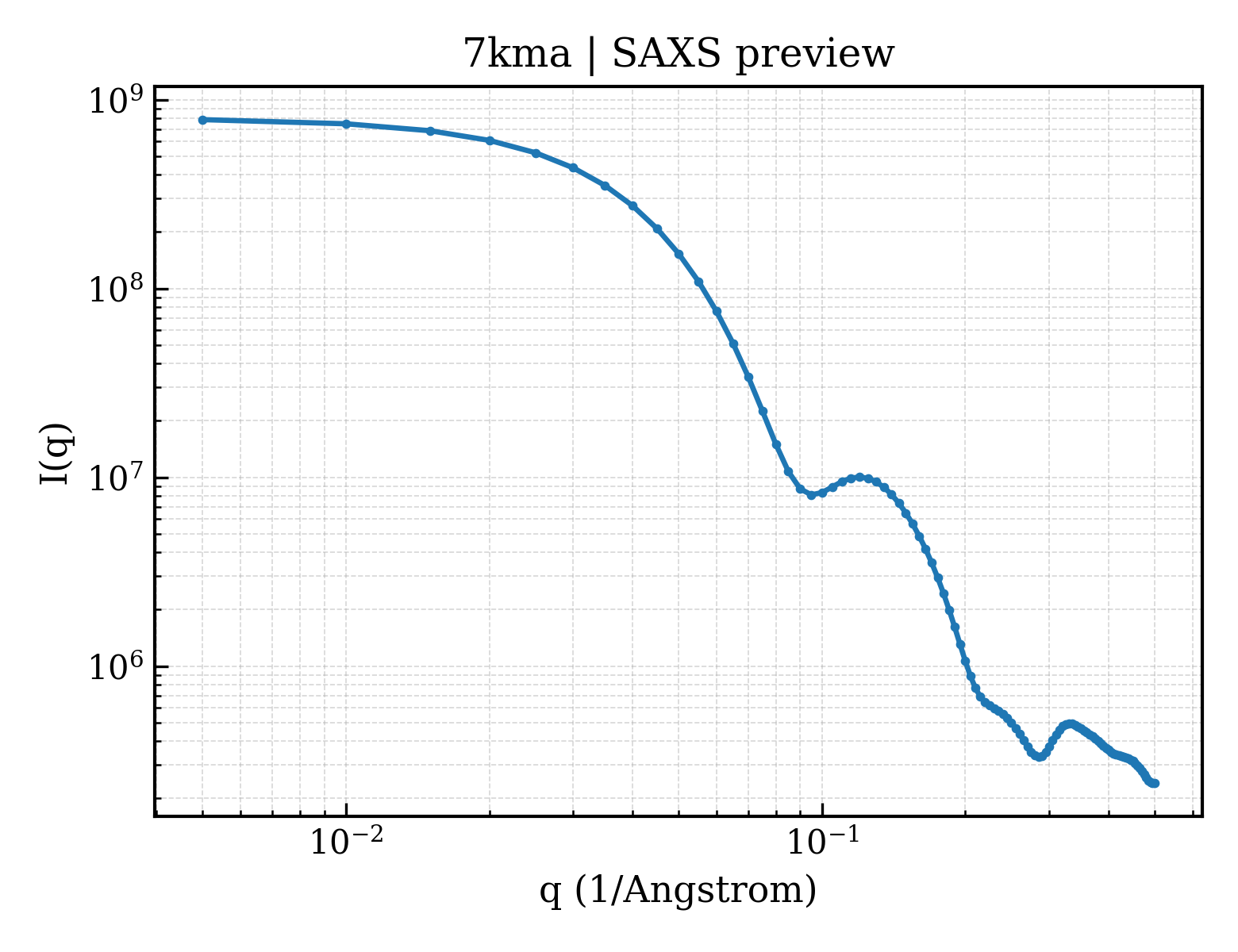

SAXS scattering curve SAXS Profile

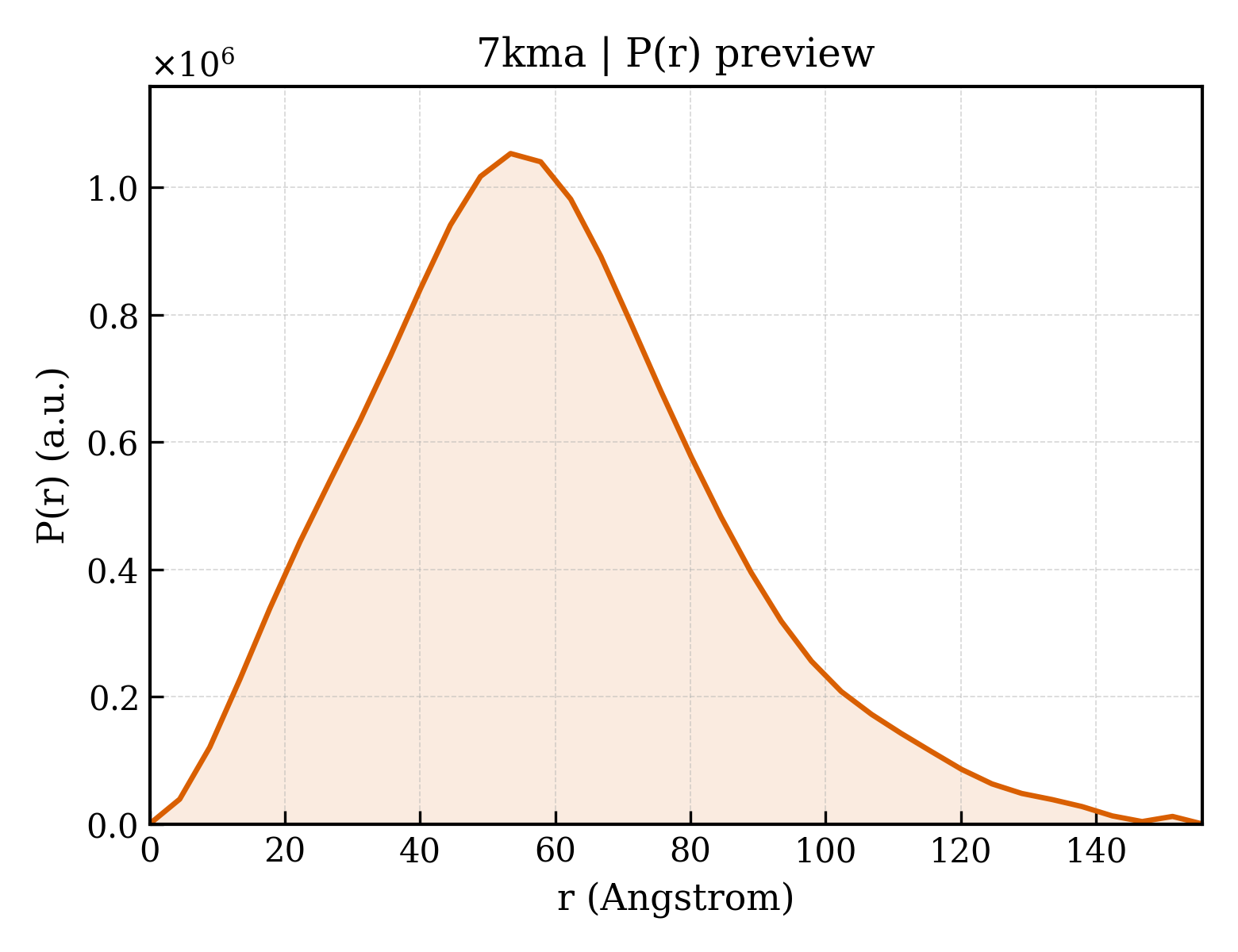

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7kma
Deposition date deposition_date	2020-11-02
Structure title title	Crystal structure of eif2Balpha with a ligand.
Keywords keywords	;Translation initiation factor eif-2b, translation factor activity, RNA binding, translation regulator activity, nucleic acid binding, SUGAR BINDING PROTEIN ;; SUGAR BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	44.96 Å
Radius of gyration Rg (electron density) rg_electron	44.56 Å
Forward intensity I(0) i0	797214000.00
Molecular weight molecular_weight	241420.0 kDa
Excluded volume excluded_volume	305770 Å³
Envelope volume envelope_volume	407040 Å³
Hydration-shell volume shell_volume	76279 Å³
Envelope diameter envelope_diameter	166.4 Å
Shell Rg shell_rg	49.26 Å
Envelope Rg envelope_rg	44.21 Å
Shape Rg shape_rg	44.56 Å
Total Rg total_rg	44.76 Å
Total atoms total_atoms	17063
Residues n_residues	2277
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	155.7 Å
Rg (real space) rg_real	45.03 Å
Rg uncertainty (real space) rg_real_error	1.61 Å
I(0) (real space) i0_real	7.9720e+08
I(0) uncertainty (real space) i0_real_error	1.5380e+07
Rg (reciprocal space) rg_reciprocal	44.96 Å
I(0) (reciprocal space) i0_reciprocal	797200000.0000
Solution quality estimate total_estimate	0.6209
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	53.4 Å
Skewness Skewness skewness	0.482
Kurtosis Kurtosis kurtosis	0.137
Angular range angular_range	— – 0.1750 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	49000000.0000
Real-space data points n_real_points	36
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.688; Stabil: 1.000; Sysdev: 0.062; Positv: 1.000; Valcen: 0.999; Smooth: 0.820

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Translation initiation factor eIF-2B subunit alpha
Molecular weight formula_weight	34663.1 kDa
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H
Atom count atom_count	17263

MDDKELIEYFKSQMKEDPDMASAVAAIRTLLEFLKRDKGETIQGLRANLTSAIETLCGVDSSVAVSSGGELFLRFISLASLEYSDYSKCKKIMIERGELFLRRISLSRNKIADLCHTFIKDGATILTHAYSRVVLRVLEAAVAAKKRFSVYVTESQPDLSGKKMAKALCHLNVPVTVVLDAAVGYIMEKADLVIVGAEGVVENGGIINKIGTNQMAVCAKAQNKPFYVVAESFKFVRLFPLNQQDVPDKFKYKADTLKVAQTGQDLKEEHPWVDYTAPSLITLLFTDLGVLTPSAVSDELIKLYLGGENLYFQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	6-O-phosphono-alpha-D-mannopyranose
Molecular weight formula_weight	260.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 3 Entity 3 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	153

▼

7. Fold Classification (SCOP + CATH) 16 domains

CATH v4.4 (16 domains)

Domain ID domain_id	7kmaA01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	1070 — Translation initiation factor eIF-2B, N-terminal domain

Domain ID domain_id	7kmaA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10470 — Translation initiation factor eif-2b; domain 2

Domain ID domain_id	7kmaB01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	1070 — Translation initiation factor eIF-2B, N-terminal domain

Domain ID domain_id	7kmaB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10470 — Translation initiation factor eif-2b; domain 2

Domain ID domain_id	7kmaC01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	1070 — Translation initiation factor eIF-2B, N-terminal domain

Domain ID domain_id	7kmaC02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10470 — Translation initiation factor eif-2b; domain 2

Domain ID domain_id	7kmaD01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	1070 — Translation initiation factor eIF-2B, N-terminal domain

Domain ID domain_id	7kmaD02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10470 — Translation initiation factor eif-2b; domain 2

Domain ID domain_id	7kmaE01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	1070 — Translation initiation factor eIF-2B, N-terminal domain

Domain ID domain_id	7kmaE02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10470 — Translation initiation factor eif-2b; domain 2

Domain ID domain_id	7kmaF01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	1070 — Translation initiation factor eIF-2B, N-terminal domain

Domain ID domain_id	7kmaF02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10470 — Translation initiation factor eif-2b; domain 2

Domain ID domain_id	7kmaG01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	1070 — Translation initiation factor eIF-2B, N-terminal domain

Domain ID domain_id	7kmaG02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10470 — Translation initiation factor eif-2b; domain 2

Domain ID domain_id	7kmaH01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	1070 — Translation initiation factor eIF-2B, N-terminal domain

Domain ID domain_id	7kmaH02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10470 — Translation initiation factor eif-2b; domain 2

▶

8. Citations (1)

▶

Unit-cell length a length_a	71.200 Å
Unit-cell length b length_b	155.540 Å
Unit-cell length c length_c	140.110 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	103.89 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	monoclinic

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	55.610 Å
R factor r_factor	0.1933
R_work r_work	0.1909
R_free r_free	0.2382
