7f66

eIF2B-SFSV NSs-1-eIF2

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Translation initiation factor eIF-2B subunit alpha

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 15	Translation initiation factor eIF-2B subunit beta × 2 （P49770） Translation initiation factor eIF-2B subunit gamma × 2 （Q9NR50） Translation initiation factor eIF-2B subunit delta × 2 （Q9UI10） Translation initiation factor eIF-2B subunit epsilon × 2 （Q13144） Non-structural protein NS-S × 2 （P12792） Eukaryotic translation initiation factor 2 subunit 1 × 1 （P05198） eIF2beta × 1 Eukaryotic translation initiation factor 2 subunit 3 × 1 （P41091）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EI2BA_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–307； UniProt 1–305 Author chain B； PDBConstruct 3–307； UniProt 1–305

Translation initiation factor eIF-2B subunit beta

Homo sapiens

UniProt P49770

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 15	Translation initiation factor eIF-2B subunit alpha × 2 （Q14232） Translation initiation factor eIF-2B subunit gamma × 2 （Q9NR50） Translation initiation factor eIF-2B subunit delta × 2 （Q9UI10） Translation initiation factor eIF-2B subunit epsilon × 2 （Q13144） Non-structural protein NS-S × 2 （P12792） Eukaryotic translation initiation factor 2 subunit 1 × 1 （P05198） eIF2beta × 1 Eukaryotic translation initiation factor 2 subunit 3 × 1 （P41091）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EI2BB_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–351； UniProt 1–351 Author chain D； PDBConstruct 1–351； UniProt 1–351

Translation initiation factor eIF-2B subunit gamma

Homo sapiens

UniProt Q9NR50

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 15	Translation initiation factor eIF-2B subunit alpha × 2 （Q14232） Translation initiation factor eIF-2B subunit beta × 2 （P49770） Translation initiation factor eIF-2B subunit delta × 2 （Q9UI10） Translation initiation factor eIF-2B subunit epsilon × 2 （Q13144） Non-structural protein NS-S × 2 （P12792） Eukaryotic translation initiation factor 2 subunit 1 × 1 （P05198） eIF2beta × 1 Eukaryotic translation initiation factor 2 subunit 3 × 1 （P41091）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EI2BG_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain E； PDBConstruct 1–452； UniProt 1–452 Author chain F； PDBConstruct 1–452； UniProt 1–452

Translation initiation factor eIF-2B subunit delta

Homo sapiens

UniProt Q9UI10

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 15	Translation initiation factor eIF-2B subunit alpha × 2 （Q14232） Translation initiation factor eIF-2B subunit beta × 2 （P49770） Translation initiation factor eIF-2B subunit gamma × 2 （Q9NR50） Translation initiation factor eIF-2B subunit epsilon × 2 （Q13144） Non-structural protein NS-S × 2 （P12792） Eukaryotic translation initiation factor 2 subunit 1 × 1 （P05198） eIF2beta × 1 Eukaryotic translation initiation factor 2 subunit 3 × 1 （P41091）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EI2BD_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain G； PDBConstruct 1–523； UniProt 1–523 Author chain H； PDBConstruct 1–523； UniProt 1–523

Translation initiation factor eIF-2B subunit epsilon

Homo sapiens

UniProt Q13144

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 15	Translation initiation factor eIF-2B subunit alpha × 2 （Q14232） Translation initiation factor eIF-2B subunit beta × 2 （P49770） Translation initiation factor eIF-2B subunit gamma × 2 （Q9NR50） Translation initiation factor eIF-2B subunit delta × 2 （Q9UI10） Non-structural protein NS-S × 2 （P12792） Eukaryotic translation initiation factor 2 subunit 1 × 1 （P05198） eIF2beta × 1 Eukaryotic translation initiation factor 2 subunit 3 × 1 （P41091）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EI2BE_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain I； PDBConstruct 1–721； UniProt 1–721 Author chain J； PDBConstruct 1–721； UniProt 1–721

Non-structural protein NS-S

Sandfly fever sicilian virus

UniProt P12792

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 15	Translation initiation factor eIF-2B subunit alpha × 2 （Q14232） Translation initiation factor eIF-2B subunit beta × 2 （P49770） Translation initiation factor eIF-2B subunit gamma × 2 （Q9NR50） Translation initiation factor eIF-2B subunit delta × 2 （Q9UI10） Translation initiation factor eIF-2B subunit epsilon × 2 （Q13144） Eukaryotic translation initiation factor 2 subunit 1 × 1 （P05198） eIF2beta × 1 Eukaryotic translation initiation factor 2 subunit 3 × 1 （P41091）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NSS_SFSV
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain K； PDBConstruct 1–261； UniProt 7–267 Author chain L； PDBConstruct 1–261； UniProt 7–267

Eukaryotic translation initiation factor 2 subunit 1

Homo sapiens

UniProt P05198

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 15	Translation initiation factor eIF-2B subunit alpha × 2 （Q14232） Translation initiation factor eIF-2B subunit beta × 2 （P49770） Translation initiation factor eIF-2B subunit gamma × 2 （Q9NR50） Translation initiation factor eIF-2B subunit delta × 2 （Q9UI10） Translation initiation factor eIF-2B subunit epsilon × 2 （Q13144） Non-structural protein NS-S × 2 （P12792） eIF2beta × 1 Eukaryotic translation initiation factor 2 subunit 3 × 1 （P41091）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IF2A_HUMAN
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain N； PDBConstruct 1–315； UniProt 1–315

Eukaryotic translation initiation factor 2 subunit 3

Homo sapiens

UniProt P41091

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 15	Translation initiation factor eIF-2B subunit alpha × 2 （Q14232） Translation initiation factor eIF-2B subunit beta × 2 （P49770） Translation initiation factor eIF-2B subunit gamma × 2 （Q9NR50） Translation initiation factor eIF-2B subunit delta × 2 （Q9UI10） Translation initiation factor eIF-2B subunit epsilon × 2 （Q13144） Non-structural protein NS-S × 2 （P12792） Eukaryotic translation initiation factor 2 subunit 1 × 1 （P05198） eIF2beta × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IF2G_HUMAN
Isoform	—
PDB entities	9
Chains and sequence ranges	Author chain S； PDBConstruct 1–472； UniProt 1–472

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7f66
Deposition date deposition_date	2021-06-24
Structure title title	eIF2B-SFSV NSs-1-eIF2
Keywords keywords	translation initiation factor, viral protein, TRANSLATION; TRANSLATION
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7f66__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

7f66__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

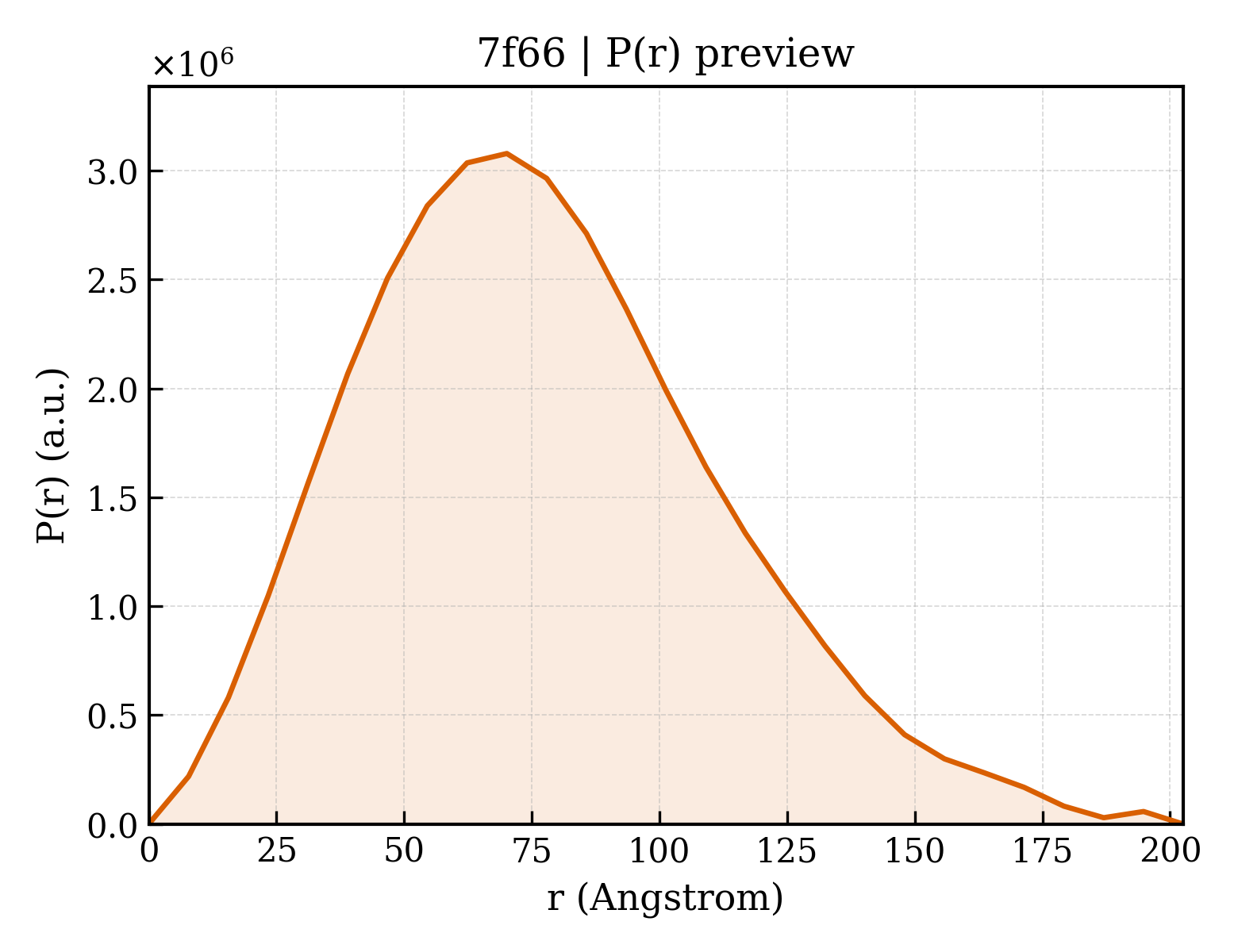

7f66__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	59.37 Å
Rg (electron density)	58.45 Å
Total Rg	58.01 Å
Atom count	33739
Residues	4561
Excluded volume	598090 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7f66__assembly_1__model_1`	pentadecameric （15）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	Translation initiation factor eIF-2B subunit alpha
Molecular weight formula_weight	33908.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	33739

GPMDDKELIEYFKSQMKEDPDMASAVAAIRTLLEFLKRDKGETIQGLRANLTSAIETLCGVDSSVAVSSGGELFLRFISLASLEYSDYSKCKKIMIERGELFLRRISLSRNKIADLCHTFIKDGATILTHAYSRVVLRVLEAAVAAKKRFSVYVTESQPDLSGKKMAKALCHLNVPVTVVLDAAVGYIMEKADLVIVGAEGVVENGGIINKIGTNQMAVCAKAQNKPFYVVAESFKFVRLFPLNQQDVPDKFKYKADTLKVAQTGQDLKEEHPWVDYTAPSLITLLFTDLGVLTPSAVSDELIKLYL

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Translation initiation factor eIF-2B subunit beta
Molecular weight formula_weight	39039.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

MPGSAAKGSELSERIESFVETLKRGGGPRSSEEMARETLGLLRQIITDHRWSNAGELMELIRREGRRMTAAQPSETTVGNMVRRVLKIIREEYGRLHGRSDESDQQESLHKLLTSGGLNEDFSFHYAQLQSNIIEAINELLVELEGTMENIAAQALEHIHSNEVIMTIGFSRTVEAFLKEAARKRKFHVIVAECAPFCQGHEMAVNLSKAGIETTVMTDAAIFAVMSRVNKVIIGTKTILANGALRAVTGTHTLALAAKHHSTPLIVCAPMFKLSPQFPNEEDSFHKFVAPEEVLPFTEGDILEKVSVHCPVFDYVPPELITLFISNIGGNAPSYIYRLMSELYHPDDHVL

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Translation initiation factor eIF-2B subunit gamma
Molecular weight formula_weight	50304.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F

MEFQAVVMAVGGGSRMTDLTSSIPKPLLPVGNKPLIWYPLNLLERVGFEEVIVVTTRDVQKALCAEFKMKMKPDIVCIPDDADMGTADSLRYIYPKLKTDVLVLSCDLITDVALHEVVDLFRAYDASLAMLMRKGQDSIEPVPGQKGKKKAVEQRDFIGVDSTGKRLLFMANEADLDEELVIKGSILQKHPRIRFHTGLVDAHLYCLKKYIVDFLMENGSITSIRSELIPYLVRKQFSSASSQQGQEEKEEDLKKKELKSLDIYSFIKEANTLNLAPYDACWNACRGDRWEDLSRSQVRCYVHIMKEGLCSRVSTLGLYMEANRQVPKLLSALCPEEPPVHSSAQIVSKHLVGVDSLIGPETQIGEKSSIKRSVIGSSCLIKDRVTITNCLLMNSVTVEEGSNIQGSVICNNAVIEKGADIKDCLIGSGQRIEAKAKRVNEVIVGNDQLMEI

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Translation initiation factor eIF-2B subunit delta
Molecular weight formula_weight	57640.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,H

MAAVAVAVREDSGSGMKAELPPGPGAVGREMTKEEKLQLRKEKKQQKKKRKEEKGAEPETGSAVSAAQCQVGPTRELPESGIQLGTPREKVPAGRSKAELRAERRAKQEAERALKQARKGEQGGPPPKASPSTAGETPSGVKRLPEYPQVDDLLLRRLVKKPERQQVPTRKDYGSKVSLFSHLPQYSRQNSLTQFMSIPSSVIHPAMVRLGLQYSQGLVSGSNARCIALLRALQQVIQDYTTPPNEELSRDLVNKLKPYMSFLTQCRPLSASMHNAIKFLNKEITSVGSSKREEEAKSELRAAIDRYVQEKIVLAAQAISRFAYQKISNGDVILVYGCSSLVSRILQEAWTEGRRFRVVVVDSRPWLEGRHTLRSLVHAGVPASYLLIPAASYVLPEVSKVLLGAHALLANGSVMSRVGTAQLALVARAHNVPVLVCCETYKFCERVQTDAFVSNELDDPDDLQCKRGEHVALANWQNHASLRLLNLVYDVTPPELVDLVITELGMIPCSSVPVVLRVKSSDQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	Translation initiation factor eIF-2B subunit epsilon
Molecular weight formula_weight	80466.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I,J

MAAPVVAPPGVVVSRANKRSGAGPGGSGGGGARGAEEEPPPPLQAVLVADSFDRRFFPISKDQPRVLLPLANVALIDYTLEFLTATGVQETFVFCCWKAAQIKEHLLKSKWCRPTSLNVVRIITSELYRSLGDVLRDVDAKALVRSDFLLVYGDVISNINITRALEEHRLRRKLEKNVSVMTMIFKESSPSHPTRCHEDNVVVAVDSTTNRVLHFQKTQGLRRFAFPLSLFQGSSDGVEVRYDLLDCHISICSPQVAQLFTDNFDYQTRDDFVRGLLVNEEILGNQIHMHVTAKEYGARVSNLHMYSAVCADVIRRWVYPLTPEANFTDSTTQSCTHSRHNIYRGPEVSLGHGSILEENVLLGSGTVIGSNCFITNSVIGPGCHIGDNVVLDQTYLWQGVRVAAGAQIHQSLLCDNAEVKERVTLKPRSVLTSQVVVGPNITLPEGSVISLHPPDAEEDEDDGEFSDDSGADQEKDKVKMKGYNPAEVGAAGKGYLWKAAGMNMEEEEELQQNLWGLKINMEEESESESEQSMDSEEPDSRGGSPQMDDIKVFQNEVLGTLQRGKEENISCDNLVLEINSLKYAYNISLKEVMQVLSHVVLEFPLQQMDSPLDSSRYCALLLPLLKAWSPVFRNYIKRAADHLEALAAIEDFFLEHEALGISMAKVLMAFYQLEILAEETILSWFSQRDTTDKGQQLRKNQQLQRFIQWLKEAEEESSEDD

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 6 Entity 6 polymer

Description description	Non-structural protein NS-S
Molecular weight formula_weight	29695.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K,L

MNSQYMFDYPAINIDVRCHRLLSSVSYVAYNKFHTHDVSTYEHCEIPLEKLRLGFGRRNSLADFYSLGELPASWGPACYFSSVKPMMYTFQGMASDLSRFDLTSFSRKGLPNVLKALSWPLGIPDCEIFSICSDRFVRGLQTRDQLMSYILRMGDSHSLDECIVQAHKKILQEARRLGLSDEHYNGYDLFREIGSLVCLRLINAEPFDTASSGEALDVRTVIRSYRASDPSTGLTEYGNSLWTPIHSHVDENDESSSDSDF

Source Source

Source organism organism	Sandfly fever sicilian virus
Common name common_name	SFS
NCBI taxonomy ID ncbi_taxonomy_id	28292
Host organism host_organism	Escherichia coli

Entity 7 Entity 7 polymer

Description description	Eukaryotic translation initiation factor 2 subunit 1
Molecular weight formula_weight	36161.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N

MPGLSCRFYQHKFPEVEDVVMVNVRSIAEMGAYVSLLEYNNIEGMILLSELSRRRIRSINKLIRIGRNECVVVIRVDKEKGYIDLSKRRVSPEEAIKCEDKFTKSKTVYSILRHVAEVLEYTKDEQLESLFQRTAWVFDDKYKRPGYGAYDAFKHAVSDPSILDSLDLNEDEREVLINNINRRLTPQAVKIRADIEVACYGYEGIDAVKEALRAGLNCSTENMPIKINLIAPPRYVMTTTTLERTEGLSVLSQAMAVIKEKIEEKRGVFNVQMEPKVVTDTDETELARQMERLERENAEVDGDDDAEEMEAKAED

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 8 Entity 8 polymer

Description description	eIF2beta
Molecular weight formula_weight	1209.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	O

XXXXXXXXXXXXXX

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 9 Entity 9 polymer

Description description	Eukaryotic translation initiation factor 2 subunit 3
Molecular weight formula_weight	51178.4 kDa
EC 编号 ec_number	3.6.5.3
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S

MAGGEAGVTLGQPHLSRQDLTTLDVTKLTPLSHEVISRQATINIGTIGHVAHGKSTVVKAISGVHTVRFKNELERNITIKLGYANAKIYKLDDPSCPRPECYRSCGSSTPDEFPTDIPGTKGNFKLVRHVSFVDCPGHDILMATMLNGAAVMDAALLLIAGNESCPQPQTSEHLAAIEIMKLKHILILQNKIDLVKESQAKEQYEQILAFVQGTVAEGAPIIPISAQLKYNIEVVCEYIVKKIPVPPRDFTSEPRLIVIRSFDVNKPGCEVDDLKGGVAGGSILKGVLKVGQEIEVRPGIVSKDSEGKLMCKPIFSKIVSLFAEHNDLQYAAPGGLIGVGTKIDPTLCRADRMVGQVLGAVGALPEIFTELEISYFLLRRLLGVRTEGDKKAAKVQKLSKNEVLMVNIGSLSTGGRVSAVKADLGKIVLTNPVCTEVGEKIALSRRVEKHWRLIGWGQIRRGVTIKPTVDDD

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

▼

6. Fold Classification (SCOP + CATH) 13 domains

CATH v4.4 (13 domains)

Domain ID domain_id	7f66A01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	1070 — Translation initiation factor eIF-2B, N-terminal domain

Domain ID domain_id	7f66A02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10470 — Translation initiation factor eif-2b; domain 2

Domain ID domain_id	7f66B01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	1070 — Translation initiation factor eIF-2B, N-terminal domain

Domain ID domain_id	7f66B02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10470 — Translation initiation factor eif-2b; domain 2

Domain ID domain_id	7f66C01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10470 — Translation initiation factor eif-2b; domain 2

Domain ID domain_id	7f66D01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10470 — Translation initiation factor eif-2b; domain 2

Domain ID domain_id	7f66E01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
Homologous superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

Domain ID domain_id	7f66F01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
Homologous superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

Domain ID domain_id	7f66I01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
Homologous superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

Domain ID domain_id	7f66J01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
Homologous superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

Domain ID domain_id	7f66N01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	140 — Nucleic acid-binding proteins

Domain ID domain_id	7f66N02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	190 — Translation initiation factor 2; subunit 1; domain 2

Domain ID domain_id	7f66N03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1130 — EIF_2_alpha

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.76 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	114377

eIF2B-SFSV NSs-1-eIF2

1. Protein Identity and Related Structures Protein Identity & Related Structures

Translation initiation factor eIF-2B subunit alpha

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Translation initiation factor eIF-2B subunit beta

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Translation initiation factor eIF-2B subunit gamma

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Translation initiation factor eIF-2B subunit delta

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Translation initiation factor eIF-2B subunit epsilon

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Non-structural protein NS-S

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Eukaryotic translation initiation factor 2 subunit 1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Eukaryotic translation initiation factor 2 subunit 3

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

7f66__assembly_1__model_1

7f66__assembly_1__model_1 | I(q)

7f66__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer
