9hve

Native human eIF2-eIF2B complex

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Translation initiation factor eIF-2B subunit gamma

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	Eukaryotic translation initiation factor 2 subunit 1 × 2 （P05198） Translation initiation factor eIF2B subunit epsilon × 2 （Q13144） Eukaryotic translation initiation factor 2 subunit 3 × 2 （P41091） Translation initiation factor eIF2B subunit beta × 2 （P49770） Translation initiation factor eIF-2B subunit alpha × 2 （Q14232） Translation initiation factor eIF-2B subunit delta × 2 （Q9UI10） Eukaryotic translation initiation factor 2 subunit 2 × 2 （P20042） GUANOSINE-5'-TRIPHOSPHATE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EI2BG_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain E； PDBConstruct 1–452； UniProt 1–452 Author chain F； PDBConstruct 1–452； UniProt 1–452

Eukaryotic translation initiation factor 2 subunit 1

OrganismNot specified

UniProt P05198

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	Translation initiation factor eIF-2B subunit gamma × 2 （Q9NR50） Translation initiation factor eIF2B subunit epsilon × 2 （Q13144） Eukaryotic translation initiation factor 2 subunit 3 × 2 （P41091） Translation initiation factor eIF2B subunit beta × 2 （P49770） Translation initiation factor eIF-2B subunit alpha × 2 （Q14232） Translation initiation factor eIF-2B subunit delta × 2 （Q9UI10） Eukaryotic translation initiation factor 2 subunit 2 × 2 （P20042） GUANOSINE-5'-TRIPHOSPHATE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IF2A_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain K； PDBConstruct 1–315； UniProt 1–315 Author chain L； PDBConstruct 1–315； UniProt 1–315

Translation initiation factor eIF2B subunit epsilon

OrganismNot specified

UniProt Q13144

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	Translation initiation factor eIF-2B subunit gamma × 2 （Q9NR50） Eukaryotic translation initiation factor 2 subunit 1 × 2 （P05198） Eukaryotic translation initiation factor 2 subunit 3 × 2 （P41091） Translation initiation factor eIF2B subunit beta × 2 （P49770） Translation initiation factor eIF-2B subunit alpha × 2 （Q14232） Translation initiation factor eIF-2B subunit delta × 2 （Q9UI10） Eukaryotic translation initiation factor 2 subunit 2 × 2 （P20042） GUANOSINE-5'-TRIPHOSPHATE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EI2BE_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain I； PDBConstruct 1–721； UniProt 1–721 Author chain J； PDBConstruct 1–721； UniProt 1–721

Eukaryotic translation initiation factor 2 subunit 3

OrganismNot specified

UniProt P41091

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	Translation initiation factor eIF-2B subunit gamma × 2 （Q9NR50） Eukaryotic translation initiation factor 2 subunit 1 × 2 （P05198） Translation initiation factor eIF2B subunit epsilon × 2 （Q13144） Translation initiation factor eIF2B subunit beta × 2 （P49770） Translation initiation factor eIF-2B subunit alpha × 2 （Q14232） Translation initiation factor eIF-2B subunit delta × 2 （Q9UI10） Eukaryotic translation initiation factor 2 subunit 2 × 2 （P20042） GUANOSINE-5'-TRIPHOSPHATE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IF2G_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain O； PDBConstruct 1–472； UniProt 1–472 Author chain P； PDBConstruct 1–472； UniProt 1–472

Translation initiation factor eIF2B subunit beta

OrganismNot specified

UniProt P49770

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	Translation initiation factor eIF-2B subunit gamma × 2 （Q9NR50） Eukaryotic translation initiation factor 2 subunit 1 × 2 （P05198） Translation initiation factor eIF2B subunit epsilon × 2 （Q13144） Eukaryotic translation initiation factor 2 subunit 3 × 2 （P41091） Translation initiation factor eIF-2B subunit alpha × 2 （Q14232） Translation initiation factor eIF-2B subunit delta × 2 （Q9UI10） Eukaryotic translation initiation factor 2 subunit 2 × 2 （P20042） GUANOSINE-5'-TRIPHOSPHATE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EI2BB_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain C； PDBConstruct 1–351； UniProt 1–351 Author chain D； PDBConstruct 1–351； UniProt 1–351

Translation initiation factor eIF-2B subunit alpha

OrganismNot specified

UniProt Q14232

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	Translation initiation factor eIF-2B subunit gamma × 2 （Q9NR50） Eukaryotic translation initiation factor 2 subunit 1 × 2 （P05198） Translation initiation factor eIF2B subunit epsilon × 2 （Q13144） Eukaryotic translation initiation factor 2 subunit 3 × 2 （P41091） Translation initiation factor eIF2B subunit beta × 2 （P49770） Translation initiation factor eIF-2B subunit delta × 2 （Q9UI10） Eukaryotic translation initiation factor 2 subunit 2 × 2 （P20042） GUANOSINE-5'-TRIPHOSPHATE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EI2BA_HUMAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain A； PDBConstruct 1–305； UniProt 1–305 Author chain B； PDBConstruct 1–305； UniProt 1–305

Translation initiation factor eIF-2B subunit delta

OrganismNot specified

UniProt Q9UI10

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	Translation initiation factor eIF-2B subunit gamma × 2 （Q9NR50） Eukaryotic translation initiation factor 2 subunit 1 × 2 （P05198） Translation initiation factor eIF2B subunit epsilon × 2 （Q13144） Eukaryotic translation initiation factor 2 subunit 3 × 2 （P41091） Translation initiation factor eIF2B subunit beta × 2 （P49770） Translation initiation factor eIF-2B subunit alpha × 2 （Q14232） Eukaryotic translation initiation factor 2 subunit 2 × 2 （P20042） GUANOSINE-5'-TRIPHOSPHATE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EI2BD_HUMAN
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain G； PDBConstruct 1–523； UniProt 1–523 Author chain H； PDBConstruct 1–523； UniProt 1–523

Eukaryotic translation initiation factor 2 subunit 2

OrganismNot specified

UniProt P20042

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	Translation initiation factor eIF-2B subunit gamma × 2 （Q9NR50） Eukaryotic translation initiation factor 2 subunit 1 × 2 （P05198） Translation initiation factor eIF2B subunit epsilon × 2 （Q13144） Eukaryotic translation initiation factor 2 subunit 3 × 2 （P41091） Translation initiation factor eIF2B subunit beta × 2 （P49770） Translation initiation factor eIF-2B subunit alpha × 2 （Q14232） Translation initiation factor eIF-2B subunit delta × 2 （Q9UI10） GUANOSINE-5'-TRIPHOSPHATE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IF2B_HUMAN
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain M； PDBConstruct 1–333； UniProt 1–333 Author chain N； PDBConstruct 1–333； UniProt 1–333

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9hve
Deposition date deposition_date	2024-12-27
Structure title title	Native human eIF2-eIF2B complex
Keywords keywords	Phosphorylation, Eukaryotic Initiation Factor-2B, Eukaryotic Initiation Factor-2, Translation Complex Catalytic Native, TRANSLATION; TRANSLATION
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9hve__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9hve__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

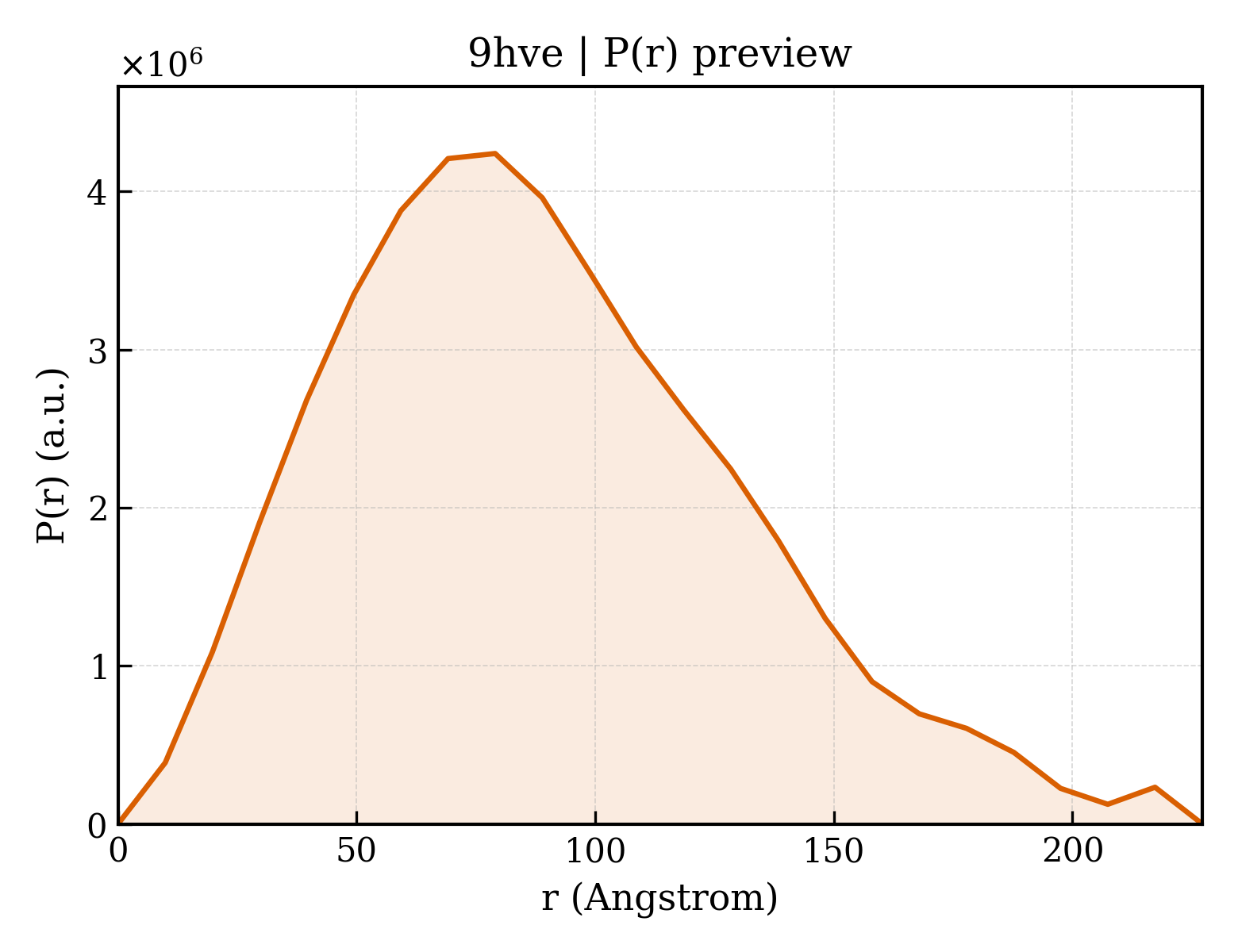

9hve__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	69.39 Å
Rg (electron density)	69.74 Å
Total Rg	69.68 Å
Atom count	44088
Residues	5630
Excluded volume	789870 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9hve__assembly_1__model_1`	hexadecameric （16）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	Translation initiation factor eIF-2B subunit gamma
Molecular weight formula_weight	50304.2 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F,E
Atom count atom_count	44088

MEFQAVVMAVGGGSRMTDLTSSIPKPLLPVGNKPLIWYPLNLLERVGFEEVIVVTTRDVQKALCAEFKMKMKPDIVCIPDDADMGTADSLRYIYPKLKTDVLVLSCDLITDVALHEVVDLFRAYDASLAMLMRKGQDSIEPVPGQKGKKKAVEQRDFIGVDSTGKRLLFMANEADLDEELVIKGSILQKHPRIRFHTGLVDAHLYCLKKYIVDFLMENGSITSIRSELIPYLVRKQFSSASSQQGQEEKEEDLKKKELKSLDIYSFIKEANTLNLAPYDACWNACRGDRWEDLSRSQVRCYVHIMKEGLCSRVSTLGLYMEANRQVPKLLSALCPEEPPVHSSAQIVSKHLVGVDSLIGPETQIGEKSSIKRSVIGSSCLIKDRVTITNCLLMNSVTVEEGSNIQGSVICNNAVIEKGADIKDCLIGSGQRIEAKAKRVNEVIVGNDQLMEI

Entity 2 Entity 2 polymer

Description description	Eukaryotic translation initiation factor 2 subunit 1
Molecular weight formula_weight	36161.2 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K,L

MPGLSCRFYQHKFPEVEDVVMVNVRSIAEMGAYVSLLEYNNIEGMILLSELSRRRIRSINKLIRIGRNECVVVIRVDKEKGYIDLSKRRVSPEEAIKCEDKFTKSKTVYSILRHVAEVLEYTKDEQLESLFQRTAWVFDDKYKRPGYGAYDAFKHAVSDPSILDSLDLNEDEREVLINNINRRLTPQAVKIRADIEVACYGYEGIDAVKEALRAGLNCSTENMPIKINLIAPPRYVMTTTTLERTEGLSVLSQAMAVIKEKIEEKRGVFNVQMEPKVVTDTDETELARQMERLERENAEVDGDDDAEEMEAKAED

Entity 3 Entity 3 polymer

Description description	Translation initiation factor eIF2B subunit epsilon
Molecular weight formula_weight	80466.6 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I,J

MAAPVVAPPGVVVSRANKRSGAGPGGSGGGGARGAEEEPPPPLQAVLVADSFDRRFFPISKDQPRVLLPLANVALIDYTLEFLTATGVQETFVFCCWKAAQIKEHLLKSKWCRPTSLNVVRIITSELYRSLGDVLRDVDAKALVRSDFLLVYGDVISNINITRALEEHRLRRKLEKNVSVMTMIFKESSPSHPTRCHEDNVVVAVDSTTNRVLHFQKTQGLRRFAFPLSLFQGSSDGVEVRYDLLDCHISICSPQVAQLFTDNFDYQTRDDFVRGLLVNEEILGNQIHMHVTAKEYGARVSNLHMYSAVCADVIRRWVYPLTPEANFTDSTTQSCTHSRHNIYRGPEVSLGHGSILEENVLLGSGTVIGSNCFITNSVIGPGCHIGDNVVLDQTYLWQGVRVAAGAQIHQSLLCDNAEVKERVTLKPRSVLTSQVVVGPNITLPEGSVISLHPPDAEEDEDDGEFSDDSGADQEKDKVKMKGYNPAEVGAAGKGYLWKAAGMNMEEEEELQQNLWGLKINMEEESESESEQSMDSEEPDSRGGSPQMDDIKVFQNEVLGTLQRGKEENISCDNLVLEINSLKYAYNISLKEVMQVLSHVVLEFPLQQMDSPLDSSRYCALLLPLLKAWSPVFRNYIKRAADHLEALAAIEDFFLEHEALGISMAKVLMAFYQLEILAEETILSWFSQRDTTDKGQQLRKNQQLQRFIQWLKEAEEESSEDD

Entity 4 Entity 4 polymer

Description description	Eukaryotic translation initiation factor 2 subunit 3
Molecular weight formula_weight	51178.4 kDa
EC 编号 ec_number	3.6.5.3
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	O,P

MAGGEAGVTLGQPHLSRQDLTTLDVTKLTPLSHEVISRQATINIGTIGHVAHGKSTVVKAISGVHTVRFKNELERNITIKLGYANAKIYKLDDPSCPRPECYRSCGSSTPDEFPTDIPGTKGNFKLVRHVSFVDCPGHDILMATMLNGAAVMDAALLLIAGNESCPQPQTSEHLAAIEIMKLKHILILQNKIDLVKESQAKEQYEQILAFVQGTVAEGAPIIPISAQLKYNIEVVCEYIVKKIPVPPRDFTSEPRLIVIRSFDVNKPGCEVDDLKGGVAGGSILKGVLKVGQEIEVRPGIVSKDSEGKLMCKPIFSKIVSLFAEHNDLQYAAPGGLIGVGTKIDPTLCRADRMVGQVLGAVGALPEIFTELEISYFLLRRLLGVRTEGDKKAAKVQKLSKNEVLMVNIGSLSTGGRVSAVKADLGKIVLTNPVCTEVGEKIALSRRVEKHWRLIGWGQIRRGVTIKPTVDDD

Entity 5 Entity 5 polymer

Description description	Translation initiation factor eIF2B subunit beta
Molecular weight formula_weight	39039.5 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,C

MPGSAAKGSELSERIESFVETLKRGGGPRSSEEMARETLGLLRQIITDHRWSNAGELMELIRREGRRMTAAQPSETTVGNMVRRVLKIIREEYGRLHGRSDESDQQESLHKLLTSGGLNEDFSFHYAQLQSNIIEAINELLVELEGTMENIAAQALEHIHSNEVIMTIGFSRTVEAFLKEAARKRKFHVIVAECAPFCQGHEMAVNLSKAGIETTVMTDAAIFAVMSRVNKVIIGTKTILANGALRAVTGTHTLALAAKHHSTPLIVCAPMFKLSPQFPNEEDSFHKFVAPEEVLPFTEGDILEKVSVHCPVFDYVPPELITLFISNIGGNAPSYIYRLMSELYHPDDHVL

Entity 6 Entity 6 polymer

Description description	Translation initiation factor eIF-2B subunit alpha
Molecular weight formula_weight	33754.1 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B

MDDKELIEYFKSQMKEDPDMASAVAAIRTLLEFLKRDKGETIQGLRANLTSAIETLCGVDSSVAVSSGGELFLRFISLASLEYSDYSKCKKIMIERGELFLRRISLSRNKIADLCHTFIKDGATILTHAYSRVVLRVLEAAVAAKKRFSVYVTESQPDLSGKKMAKALCHLNVPVTVVLDAAVGYIMEKADLVIVGAEGVVENGGIINKIGTNQMAVCAKAQNKPFYVVAESFKFVRLFPLNQQDVPDKFKYKADTLKVAQTGQDLKEEHPWVDYTAPSLITLLFTDLGVLTPSAVSDELIKLYL

Entity 7 Entity 7 polymer

Description description	Translation initiation factor eIF-2B subunit delta
Molecular weight formula_weight	57640.2 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,G

MAAVAVAVREDSGSGMKAELPPGPGAVGREMTKEEKLQLRKEKKQQKKKRKEEKGAEPETGSAVSAAQCQVGPTRELPESGIQLGTPREKVPAGRSKAELRAERRAKQEAERALKQARKGEQGGPPPKASPSTAGETPSGVKRLPEYPQVDDLLLRRLVKKPERQQVPTRKDYGSKVSLFSHLPQYSRQNSLTQFMSIPSSVIHPAMVRLGLQYSQGLVSGSNARCIALLRALQQVIQDYTTPPNEELSRDLVNKLKPYMSFLTQCRPLSASMHNAIKFLNKEITSVGSSKREEEAKSELRAAIDRYVQEKIVLAAQAISRFAYQKISNGDVILVYGCSSLVSRILQEAWTEGRRFRVVVVDSRPWLEGRHTLRSLVHAGVPASYLLIPAASYVLPEVSKVLLGAHALLANGSVMSRVGTAQLALVARAHNVPVLVCCETYKFCERVQTDAFVSNELDDPDDLQCKRGEHVALANWQNHASLRLLNLVYDVTPPELVDLVITELGMIPCSSVPVVLRVKSSDQ

Entity 8 Entity 8 polymer

Description description	Eukaryotic translation initiation factor 2 subunit 2
Molecular weight formula_weight	38454.5 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M,N

MSGDEMIFDPTMSKKKKKKKKPFMLDEEGDTQTEETQPSETKEVEPEPTEDKDLEADEEDTRKKDASDDLDDLNFFNQKKKKKKTKKIFDIDEAEEGVKDLKIESDVQEPTEPEDDLDIMLGNKKKKKKNVKFPDEDEILEKDEALEDEDNKKDDGISFSNQTGPAWAGSERDYTYEELLNRVFNIMREKNPDMVAGEKRKFVMKPPQVVRVGTKKTSFVNFTDICKLLHRQPKHLLAFLLAELGTSGSIDGNNQLVIKGRFQQKQIENVLRRYIKEYVTCHTCRSPDTILQKDTRLYFLQCETCHSRCSVASIKTGFQAVTGKRAQLRAKAN

Entity 9 Entity 9 non-polymer

Description description	GUANOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.70 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	256000
