8ubi

Cryo-EM structure of NRCAM nucleosome aided by scFv (Class_A)

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Histone H3

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 10 DNA 2	Histone H4 × 2 （A0A9J8D176） Histone H2A × 2 （L8IQP7） Histone H2B type 1-J × 2 （P06899） NRCAM DNA (162-MER) × 1 NRCAM DNA (162-MER) × 1 scFv × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H2PI50_PONAB
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–97； UniProt 38–134 Author chain E； PDBConstruct 1–97； UniProt 38–134

Histone H4

Homo sapiens

UniProt A0A9J8D176

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 10 DNA 2	Histone H3 × 2 （H2PI50） Histone H2A × 2 （L8IQP7） Histone H2B type 1-J × 2 （P06899） NRCAM DNA (162-MER) × 1 NRCAM DNA (162-MER) × 1 scFv × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A9J8D176_CYPCA
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–83； UniProt 10–92 Author chain F； PDBConstruct 1–83； UniProt 10–92

Histone H2A

Homo sapiens

UniProt L8IQP7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 10 DNA 2	Histone H3 × 2 （H2PI50） Histone H4 × 2 （A0A9J8D176） Histone H2B type 1-J × 2 （P06899） NRCAM DNA (162-MER) × 1 NRCAM DNA (162-MER) × 1 scFv × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	L8IQP7_9CETA
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–109； UniProt 11–119 Author chain G； PDBConstruct 1–109； UniProt 11–119

Histone H2B type 1-J

Homo sapiens

UniProt P06899

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 10 DNA 2	Histone H3 × 2 （H2PI50） Histone H4 × 2 （A0A9J8D176） Histone H2A × 2 （L8IQP7） NRCAM DNA (162-MER) × 1 NRCAM DNA (162-MER) × 1 scFv × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H2B1J_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–95； UniProt 31–125 Author chain H； PDBConstruct 1–95； UniProt 31–125

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8ubi
Deposition date deposition_date	2023-09-23
Structure title title	Cryo-EM structure of NRCAM nucleosome aided by scFv (Class_A)
Keywords keywords	nucleosome, pioneer transcription factors, DNA binding proteins, transcription, NUCLEAR PROTEIN; NUCLEAR PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8ubi__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8ubi__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

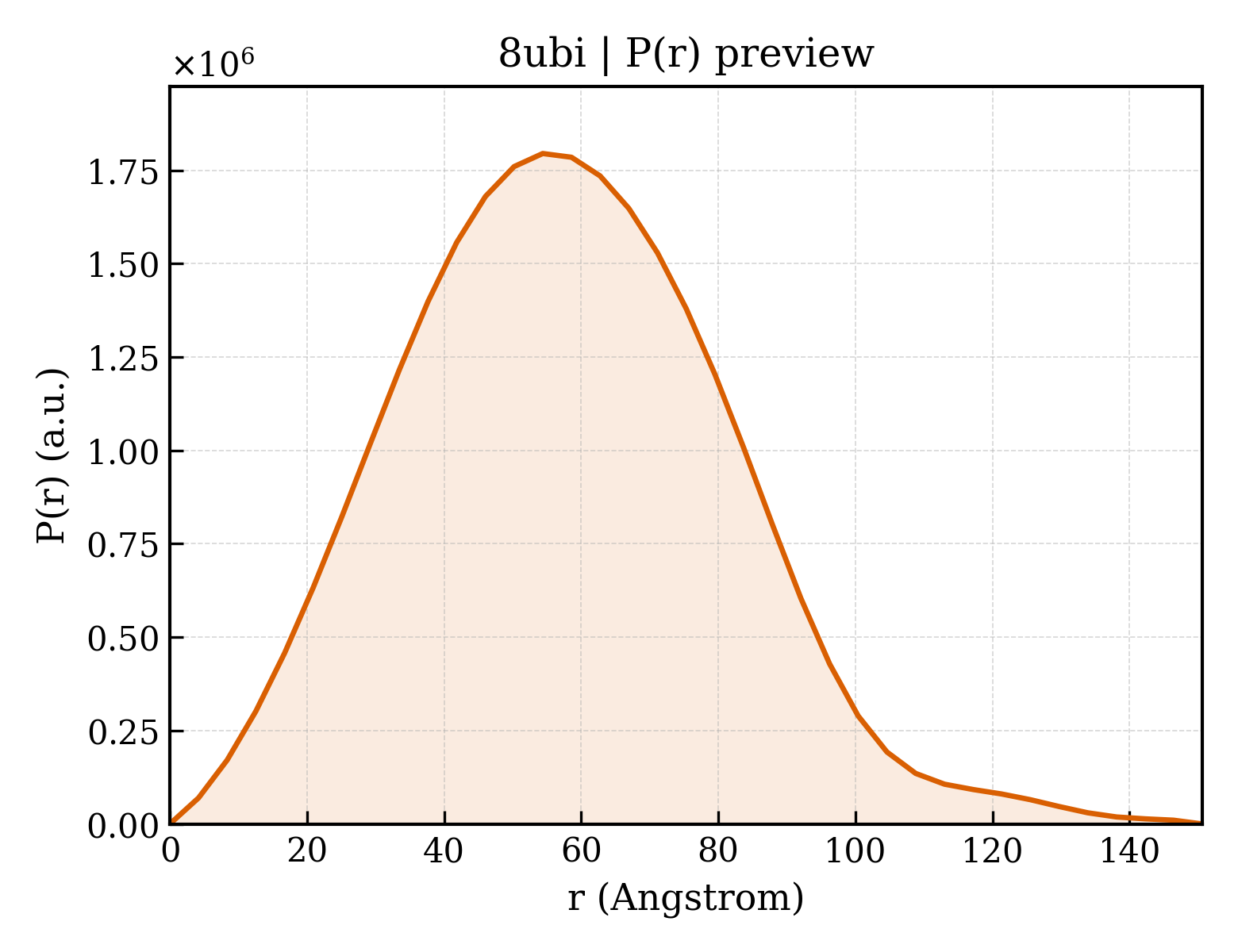

8ubi__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	44.09 Å
Rg (electron density)	41.71 Å
Total Rg	42.33 Å
Atom count	16288
Residues	1546
Excluded volume	268960 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8ubi__assembly_1__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Histone H3
Molecular weight formula_weight	11405.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,E
Atom count atom_count	16288

KPHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEACEAYLVGLFEDTNLCAIHAKRVTIMPKDIQLARRIRGE

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Histone H4
Molecular weight formula_weight	9409.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,F

KVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Histone H2A
Molecular weight formula_weight	11936.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,G

ARAKAKTRSSRAGLQFPVGRVHRLLRKGNYSERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAIRNDEELNKLLGRVTIAQGGVLPNIQAVLLPK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Histone H2B type 1-J
Molecular weight formula_weight	10621.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,H

KRSRKESYSIYVYKVLKQVHPDTGISSKAMGIMNSFVNDIFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	NRCAM DNA (162-MER)
Molecular weight formula_weight	49865.8 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	I

GATCCATTACTTCTGAAACAGATGACTCCCAGCAGCTGCTGCCTGTGGCCCACAGGGCTTCCTGCCCTGCATGACAGCTGCACATCACATCCTGTGGTCATACTACTTCAGCCGCTTCTACGGCCAGATACAAAAGTGGGTGGGGAACATAGGCAAGGGATC

Entity 6 Entity 6 polymer

Description description	NRCAM DNA (162-MER)
Molecular weight formula_weight	50150.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	J

GATCCCTTGCCTATGTTCCCCACCCACTTTTGTATCTGGCCGTAGAAGCGGCTGAAGTAGTATGACCACAGGATGTGATGTGCAGCTGTCATGCAGGGCAGGAAGCCCTGTGGGCCACAGGCAGCAGCTGCTGGGAGTCATCTGTTTCAGAAGTAATGGATC

Entity 7 Entity 7 polymer

Description description	scFv
Molecular weight formula_weight	29345.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M,N

MKSSHHHHHHENLYFQSNAMDIKMTQSPSSMHASLGERVTITCKASQDIRSYLSWYQQKPWKSPKTLIYYATSLADGVPSRFSGSGSGQDFSLTINNLESDDTATYYCLQHGESPYTFGSGTKLEIKRAGGGGSGGGGSGGGGSGGGGSMEVQLQQSGPELVEPGTSVKMPCKASGYTFTSYTIQWVKQTPRQGLEWIGYIYPYNAGTKYNEKFKGKATLTSDKSSSTVYMELSSLTSEDSAVYYCARKSSRLRSTLDYWGQGTSVTVSS

Source Source

Source organism organism	Mus musculus
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.80 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	63842
