SAXSdb — 8ufi

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

;Rod cGMP-specific 3',5'-cyclic phosphodiesterase subunit alpha ;

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	;Rod cGMP-specific 3',5'-cyclic phosphodiesterase subunit beta ; × 1 （P23439） ;Retinal rod rhodopsin-sensitive cGMP 3',5'-cyclic phosphodiesterase subunit gamma ; × 2 （P04972） CYCLIC GUANOSINE MONOPHOSPHATE × 2 ZINC ION × 2 MAGNESIUM ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PDE6A_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–859； UniProt 1–859

;Rod cGMP-specific 3',5'-cyclic phosphodiesterase subunit beta ;

OrganismNot specified

UniProt P23439

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	;Rod cGMP-specific 3',5'-cyclic phosphodiesterase subunit alpha ; × 1 （P11541） ;Retinal rod rhodopsin-sensitive cGMP 3',5'-cyclic phosphodiesterase subunit gamma ; × 2 （P04972） CYCLIC GUANOSINE MONOPHOSPHATE × 2 ZINC ION × 2 MAGNESIUM ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PDE6B_BOVIN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–853； UniProt 1–853

;Retinal rod rhodopsin-sensitive cGMP 3',5'-cyclic phosphodiesterase subunit gamma ;

OrganismNot specified

UniProt P04972

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	;Rod cGMP-specific 3',5'-cyclic phosphodiesterase subunit alpha ; × 1 （P11541） ;Rod cGMP-specific 3',5'-cyclic phosphodiesterase subunit beta ; × 1 （P23439） CYCLIC GUANOSINE MONOPHOSPHATE × 2 ZINC ION × 2 MAGNESIUM ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CNRG_BOVIN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–87； UniProt 1–87 Author chain D； PDBConstruct 1–87； UniProt 1–87

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8ufi
Deposition date deposition_date	2023-10-04
Structure title title	Cryo-EM structure of bovine phosphodiesterase 6
Keywords keywords	phosphodiesterase, GPCR effector enzyme, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8ufi__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8ufi__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

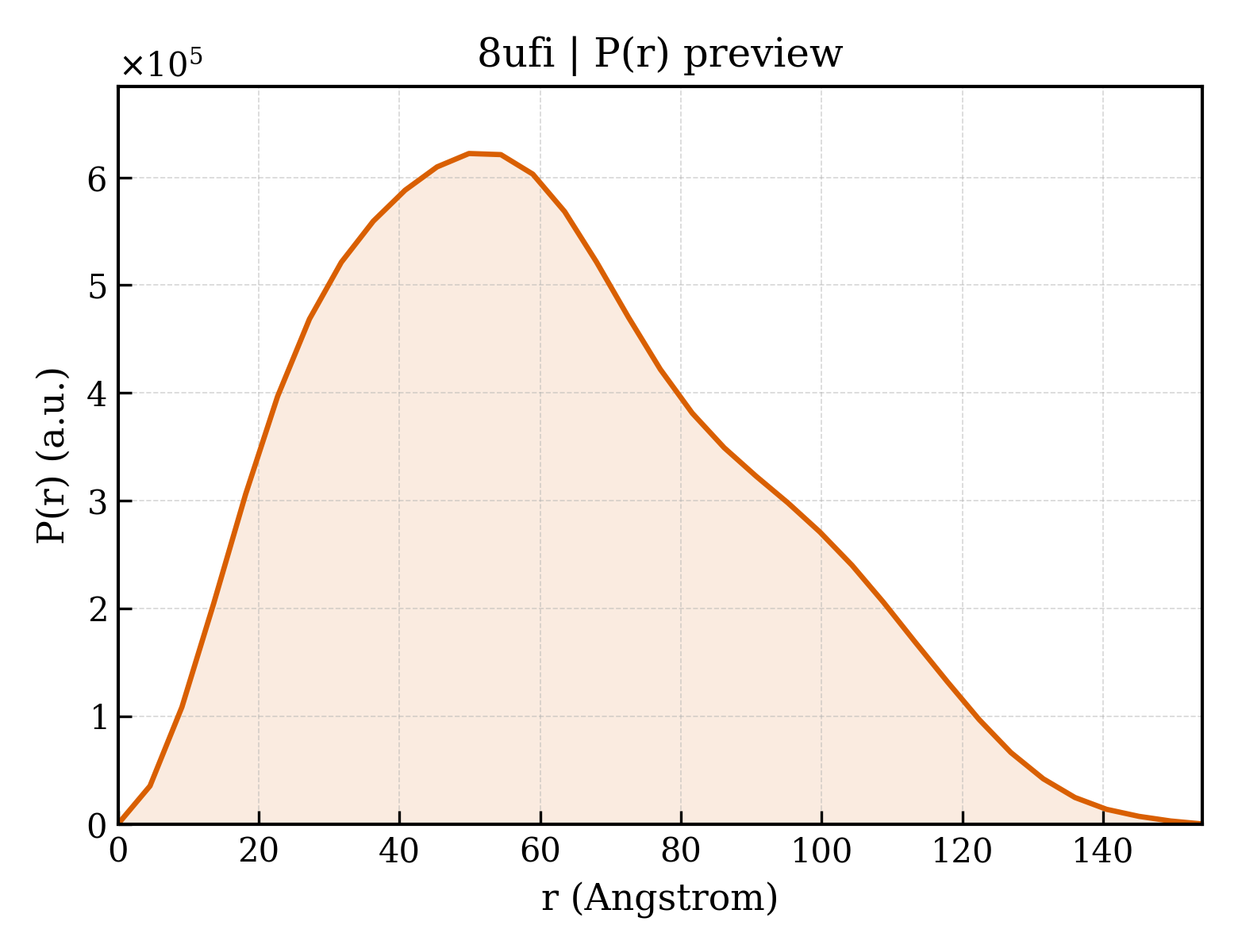

8ufi__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	47.00 Å
Rg (electron density)	46.95 Å
Total Rg	46.98 Å
Atom count	14157
Residues	1734
Excluded volume	252640 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8ufi__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	;Rod cGMP-specific 3',5'-cyclic phosphodiesterase subunit alpha ;
Molecular weight formula_weight	99461.8 kDa
EC 编号 ec_number	3.1.4.35
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	14157

MGEVTAEEVEKFLDSNVSFAKQYYNLRYRAKVISDLLGPREAAVDFSNYHALNSVEESEIIFDLLRDFQDNLQAEKCVFNVMKKLCFLLQADRMSLFMYRARNGIAELATRLFNVHKDAVLEECLVAPDSEIVFPLDMGVVGHVALSKKIVNVPNTEEDEHFCDFVDTLTEYQTKNILASPIMNGKDVVAIIMVVNKVDGPHFTENDEEILLKYLNFANLIMKVFHLSYLHNCETRRGQILLWSGSKVFEELTDIERQFHKALYTVRAFLNCDRYSVGLLDMTKQKEFFDVWPVLMGEAPPYAGPRTPDGREINFYKVIDYILHGKEDIKVIPNPPPDHWALVSGLPTYVAQNGLICNIMNAPSEDFFAFQKEPLDESGWMIKNVLSMPIVNKKEEIVGVATFYNRKDGKPFDEMDETLMESLTQFLGWSVLNPDTYELMNKLENRKDIFQDMVKYHVKCDNEEIQTILKTREVYGKEPWECEEEELAEILQGELPDADKYEINKFHFSDLPLTELELVKCGIQMYYELKVVDKFHIPQEALVRFMYSLSKGYRRITYHNWRHGFNVGQTMFSLLVTGKLKRYFTDLEALAMVTAAFCHDIDHRGTNNLYQMKSQNPLAKLHGSSILERHHLEFGKTLLRDESLNIFQNLNRRQHEHAIHMMDIAIIATDLALYFKKRTMFQKIVDQSKTYETQQEWTQYMMLDQTRKEIVMAMMMTACDLSAITKPWEVQSKVALLVAAEFWEQGDLERTVLQQNPIPMMDRNKADELPKLQVGFIDFVCTFVYKEFSRFHEEITPMLDGITNNRKEWKALADEYETKMKGLEEEKQKQQAANQAAAGSQHGGKQPGGGPASKSCCVQ

Entity 2 Entity 2 polymer

Description description	;Rod cGMP-specific 3',5'-cyclic phosphodiesterase subunit beta ;
Molecular weight formula_weight	98449.6 kDa
EC 编号 ec_number	3.1.4.35
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MSLSEGQVHRFLDQNPGFADQYFGRKLSPEDVANACEDGCPEGCTSFRELCQVEESAALFELVQDMQENVNMERVVFKILRRLCSILHADRCSLFMYRQRNGVAELATRLFSVQPDSVLEDCLVPPDSEIVFPLDIGVVGHVAQTKKMVNVQDVMECPHFSSFADELTDYVTRNILATPIMNGKDVVAVIMAVNKLDGPCFTSEDEDVFLKYLNFGTLNLKIYHLSYLHNCETRRGQVLLWSANKVFEELTDIERQFHKAFYTVRAYLNCDRYSVGLLDMTKEKEFFDVWPVLMGEAQAYSGPRTPDGREILFYKVIDYILHGKEDIKVIPSPPADHWALASGLPTYVAESGFICNIMNAPADEMFNFQEGPLDDSGWIVKNVLSMPIVNKKEEIVGVATFYNRKDGKPFDEQDEVLMESLTQFLGWSVLNTDTYDKMNKLENRKDIAQDMVLYHVRCDREEIQLILPTRERLGKEPADCEEDELGKILKEVLPGPAKFDIYEFHFSDLECTELELVKCGIQMYYELGVVRKFQIPQEVLVRFLFSVSKGYRRITYHNWRHGFNVAQTMFTLLMTGKLKSYYTDLEAFAMVTAGLCHDIDHRGTNNLYQMKSQNPLAKLHGSSILERHHLEFGKFLLSEETLNIYQNLNRRQHEHVIHLMDIAIIATDLALYFKKRTMFQKIVDESKNYEDRKSWVEYLSLETTRKEIVMAMMMTACDLSAITKPWEVQSKVALLVAAEFWEQGDLERTVLDQQPIPMMDRNKAAELPKLQVGFIDFVCTFVYKEFSRFHEEILPMFDRLQNNRKEWKALADEYEAKVKALEEDQKKETTAKKVGTEICNGGPAPRSSTCRIL

Entity 3 Entity 3 polymer

Description description	;Retinal rod rhodopsin-sensitive cGMP 3',5'-cyclic phosphodiesterase subunit gamma ;
Molecular weight formula_weight	9684.2 kDa
EC 编号 ec_number	3.1.4.35
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

MNLEPPKAEIRSATRVMGGPVTPRKGPPKFKQRQTRQFKSKPPKKGVQGFGDDIPGMEGLGTDITVICPWEAFNHLELHELAQYGII

Entity 4 Entity 4 non-polymer

Description description	CYCLIC GUANOSINE MONOPHOSPHATE
Molecular weight formula_weight	345.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Resolution resolution	3.10 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	457179

Cryo-EM structure of bovine phosphodiesterase 6
