9ohm

Cryo-EM structure of bovine phosphodiesterase 6 bound to CB-5083

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

;Rod cGMP-specific 3',5'-cyclic phosphodiesterase subunit alpha ;

Bos taurus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	;Rod cGMP-specific 3',5'-cyclic phosphodiesterase subunit beta ; × 1 （P23439） ;Retinal rod rhodopsin-sensitive cGMP 3',5'-cyclic phosphodiesterase subunit gamma ; × 2 （P04972） CYCLIC GUANOSINE MONOPHOSPHATE × 2 ZINC ION × 2 MAGNESIUM ION × 2 1-[4-(benzylamino)-7,8-dihydro-5H-pyrano[4,3-d]pyrimidin-2-yl]-2-methyl-1H-indole-4-carboxamide × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PDE6A_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–859； UniProt 1–859

;Rod cGMP-specific 3',5'-cyclic phosphodiesterase subunit beta ;

Bos taurus

UniProt P23439

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	;Rod cGMP-specific 3',5'-cyclic phosphodiesterase subunit alpha ; × 1 （P11541） ;Retinal rod rhodopsin-sensitive cGMP 3',5'-cyclic phosphodiesterase subunit gamma ; × 2 （P04972） CYCLIC GUANOSINE MONOPHOSPHATE × 2 ZINC ION × 2 MAGNESIUM ION × 2 1-[4-(benzylamino)-7,8-dihydro-5H-pyrano[4,3-d]pyrimidin-2-yl]-2-methyl-1H-indole-4-carboxamide × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PDE6B_BOVIN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–853； UniProt 1–853

;Retinal rod rhodopsin-sensitive cGMP 3',5'-cyclic phosphodiesterase subunit gamma ;

Bos taurus

UniProt P04972

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	;Rod cGMP-specific 3',5'-cyclic phosphodiesterase subunit alpha ; × 1 （P11541） ;Rod cGMP-specific 3',5'-cyclic phosphodiesterase subunit beta ; × 1 （P23439） CYCLIC GUANOSINE MONOPHOSPHATE × 2 ZINC ION × 2 MAGNESIUM ION × 2 1-[4-(benzylamino)-7,8-dihydro-5H-pyrano[4,3-d]pyrimidin-2-yl]-2-methyl-1H-indole-4-carboxamide × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CNRG_BOVIN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–87； UniProt 1–87 Author chain D； PDBConstruct 1–87； UniProt 1–87

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9ohm
Deposition date deposition_date	2025-05-05
Structure title title	Cryo-EM structure of bovine phosphodiesterase 6 bound to CB-5083
Keywords keywords	GAF domain, phosphohydrolase, G protein-coupled receptor signaling, SIGNALING PROTEIN, CB-5083; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9ohm__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9ohm__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

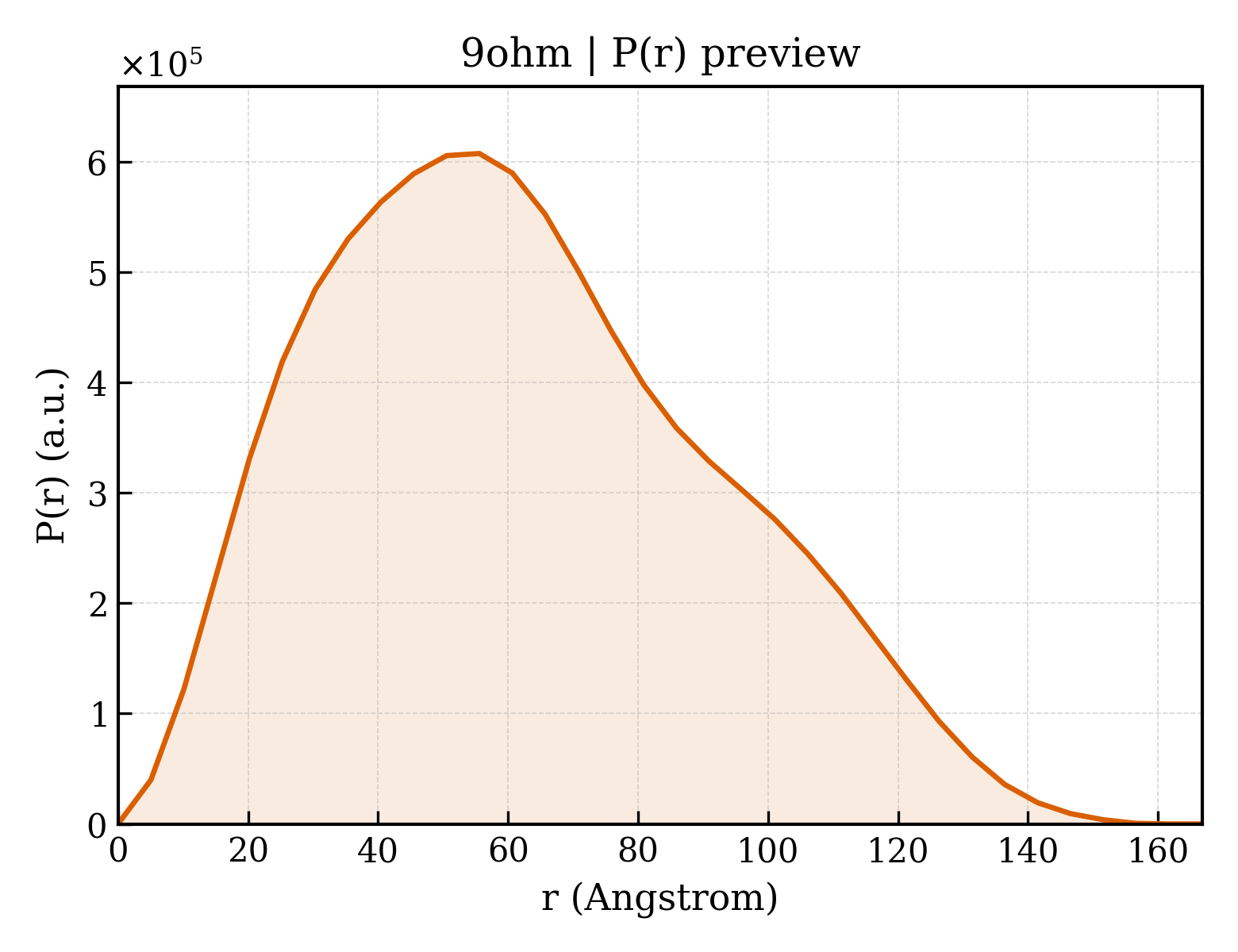

9ohm__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	48.38 Å
Rg (electron density)	48.36 Å
Total Rg	48.38 Å
Atom count	14219
Residues	1734
Excluded volume	253730 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9ohm__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	;Rod cGMP-specific 3',5'-cyclic phosphodiesterase subunit alpha ;
Molecular weight formula_weight	99461.8 kDa
EC 编号 ec_number	3.1.4.35
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	14219

MGEVTAEEVEKFLDSNVSFAKQYYNLRYRAKVISDLLGPREAAVDFSNYHALNSVEESEIIFDLLRDFQDNLQAEKCVFNVMKKLCFLLQADRMSLFMYRARNGIAELATRLFNVHKDAVLEECLVAPDSEIVFPLDMGVVGHVALSKKIVNVPNTEEDEHFCDFVDTLTEYQTKNILASPIMNGKDVVAIIMVVNKVDGPHFTENDEEILLKYLNFANLIMKVFHLSYLHNCETRRGQILLWSGSKVFEELTDIERQFHKALYTVRAFLNCDRYSVGLLDMTKQKEFFDVWPVLMGEAPPYAGPRTPDGREINFYKVIDYILHGKEDIKVIPNPPPDHWALVSGLPTYVAQNGLICNIMNAPSEDFFAFQKEPLDESGWMIKNVLSMPIVNKKEEIVGVATFYNRKDGKPFDEMDETLMESLTQFLGWSVLNPDTYELMNKLENRKDIFQDMVKYHVKCDNEEIQTILKTREVYGKEPWECEEEELAEILQGELPDADKYEINKFHFSDLPLTELELVKCGIQMYYELKVVDKFHIPQEALVRFMYSLSKGYRRITYHNWRHGFNVGQTMFSLLVTGKLKRYFTDLEALAMVTAAFCHDIDHRGTNNLYQMKSQNPLAKLHGSSILERHHLEFGKTLLRDESLNIFQNLNRRQHEHAIHMMDIAIIATDLALYFKKRTMFQKIVDQSKTYETQQEWTQYMMLDQTRKEIVMAMMMTACDLSAITKPWEVQSKVALLVAAEFWEQGDLERTVLQQNPIPMMDRNKADELPKLQVGFIDFVCTFVYKEFSRFHEEITPMLDGITNNRKEWKALADEYETKMKGLEEEKQKQQAANQAAAGSQHGGKQPGGGPASKSCCVQ

Source Source

Source organism organism	Bos taurus
Common name common_name	domestic cattle
NCBI taxonomy ID ncbi_taxonomy_id	9913
Host organism host_organism	Bos taurus

Entity 2 Entity 2 polymer

Description description	;Rod cGMP-specific 3',5'-cyclic phosphodiesterase subunit beta ;
Molecular weight formula_weight	98449.6 kDa
EC 编号 ec_number	3.1.4.35
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MSLSEGQVHRFLDQNPGFADQYFGRKLSPEDVANACEDGCPEGCTSFRELCQVEESAALFELVQDMQENVNMERVVFKILRRLCSILHADRCSLFMYRQRNGVAELATRLFSVQPDSVLEDCLVPPDSEIVFPLDIGVVGHVAQTKKMVNVQDVMECPHFSSFADELTDYVTRNILATPIMNGKDVVAVIMAVNKLDGPCFTSEDEDVFLKYLNFGTLNLKIYHLSYLHNCETRRGQVLLWSANKVFEELTDIERQFHKAFYTVRAYLNCDRYSVGLLDMTKEKEFFDVWPVLMGEAQAYSGPRTPDGREILFYKVIDYILHGKEDIKVIPSPPADHWALASGLPTYVAESGFICNIMNAPADEMFNFQEGPLDDSGWIVKNVLSMPIVNKKEEIVGVATFYNRKDGKPFDEQDEVLMESLTQFLGWSVLNTDTYDKMNKLENRKDIAQDMVLYHVRCDREEIQLILPTRERLGKEPADCEEDELGKILKEVLPGPAKFDIYEFHFSDLECTELELVKCGIQMYYELGVVRKFQIPQEVLVRFLFSVSKGYRRITYHNWRHGFNVAQTMFTLLMTGKLKSYYTDLEAFAMVTAGLCHDIDHRGTNNLYQMKSQNPLAKLHGSSILERHHLEFGKFLLSEETLNIYQNLNRRQHEHVIHLMDIAIIATDLALYFKKRTMFQKIVDESKNYEDRKSWVEYLSLETTRKEIVMAMMMTACDLSAITKPWEVQSKVALLVAAEFWEQGDLERTVLDQQPIPMMDRNKAAELPKLQVGFIDFVCTFVYKEFSRFHEEILPMFDRLQNNRKEWKALADEYEAKVKALEEDQKKETTAKKVGTEICNGGPAPRSSTCRIL

Source Source

Source organism organism	Bos taurus
Common name common_name	domestic cattle
NCBI taxonomy ID ncbi_taxonomy_id	9913
Host organism host_organism	Bos taurus

Entity 3 Entity 3 polymer

Description description	;Retinal rod rhodopsin-sensitive cGMP 3',5'-cyclic phosphodiesterase subunit gamma ;
Molecular weight formula_weight	9684.2 kDa
EC 编号 ec_number	3.1.4.35
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

MNLEPPKAEIRSATRVMGGPVTPRKGPPKFKQRQTRQFKSKPPKKGVQGFGDDIPGMEGLGTDITVICPWEAFNHLELHELAQYGII

Source Source

Source organism organism	Bos taurus
Common name common_name	domestic cattle
NCBI taxonomy ID ncbi_taxonomy_id	9913
Host organism host_organism	Bos taurus

Entity 4 Entity 4 non-polymer

Description description	CYCLIC GUANOSINE MONOPHOSPHATE
Molecular weight formula_weight	345.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	1-[4-(benzylamino)-7,8-dihydro-5H-pyrano[4,3-d]pyrimidin-2-yl]-2-methyl-1H-indole-4-carboxamide
Molecular weight formula_weight	413.5 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	2.72 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	274770
