SAXSdb — 8unh

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Sliding-clamp-loader large subunit

Tequatrovirus T4

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain B； UniProt 1–319 Chain C； UniProt 1–319 Chain D； UniProt 1–319 Chain E； UniProt 1–319	Not recorded	Sliding-clamp-loader small subunit × 1 （P04527） Sliding clamp × 3 （P04525） AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.21 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8UNH	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3U5Z Structure of T4 Bacteriophage clamp loader bound to the T4 clamp, primer-template DNA, and ATP analog Deposited 2011-10-11	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain B 1–319（319 aa） Chain C 1–319（319 aa） Chain D 1–319（319 aa） Chain E 1–319（319 aa）	Not recorded	08T [[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl]oxy-tris(fluoranyl)beryllium × 3 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；288 K；9% PEG4k, 0.1M MES pH 6.5, 50mM NaCl, 25mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 288K	Resolution 3.50 Å R-free 0.279
3U5Z Structure of T4 Bacteriophage clamp loader bound to the T4 clamp, primer-template DNA, and ATP analog Deposited 2011-10-11	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain L 1–319（319 aa） Chain M 1–319（319 aa） Chain N 1–319（319 aa） Chain O 1–319（319 aa）	Not recorded	08T [[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl]oxy-tris(fluoranyl)beryllium × 3 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；288 K；9% PEG4k, 0.1M MES pH 6.5, 50mM NaCl, 25mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 288K	Resolution 3.50 Å R-free 0.279
3U60 Structure of T4 Bacteriophage Clamp Loader Bound To Open Clamp, DNA and ATP Analog Deposited 2011-10-11	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain B 1–319（319 aa） Chain C 1–319（319 aa） Chain D 1–319（319 aa） Chain E 1–319（319 aa）	Not recorded	08T [[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl]oxy-tris(fluoranyl)beryllium × 3 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；295 K；20% PEG4k, 0.1M Tris pH7.5, 10mM MgCl2, 20mM NaCl, VAPOR DIFFUSION, temperature 295K	Resolution 3.34 Å R-free 0.282
3U61 Structure of T4 Bacteriophage Clamp Loader Bound To Closed Clamp, DNA and ATP Analog and ADP Deposited 2011-10-11	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain B 1–319（319 aa） Chain C 1–319（319 aa） Chain D 1–319（319 aa） Chain E 1–319（319 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 3 08T [[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl]oxy-tris(fluoranyl)beryllium × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；10% PEG4k, 0.1M MES pH 6.5, 20mM NaCl, 10mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.20 Å R-free 0.305
8UH7 Structure of T4 Bacteriophage clamp loader bound to the T4 clamp, primer-template DNA, and ATP analog Deposited 2023-10-07	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain B 1–319（319 aa） Chain C 1–319（319 aa） Chain D 1–319（319 aa） Chain E 1–319（319 aa）	Not recorded	08T [[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl]oxy-tris(fluoranyl)beryllium × 3 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；295 K；20% PEG4k, 0.1M Tris pH7.5, 10mM MgCl2, 20mM NaCl	Resolution 2.63 Å R-free 0.244
8UK9 Structure of T4 Bacteriophage clamp loader mutant D110C bound to the T4 clamp, primer-template DNA, and ATP analog Deposited 2023-10-12	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain B 1–319（319 aa） Chain C 1–319（319 aa） Chain D 1–319（319 aa） Chain E 1–319（319 aa）	Mutation：D110C Mutation：D110C Mutation：D110C Mutation：D110C	AF3 ALUMINUM FLUORIDE × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 4 MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6.5；298 K；0.1M MES pH 6.5, 9% PEG MME 5000, 6% 1-Propanol	Resolution 3.10 Å R-free 0.265
8UK9 Structure of T4 Bacteriophage clamp loader mutant D110C bound to the T4 clamp, primer-template DNA, and ATP analog Deposited 2023-10-12	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain K 1–319（319 aa） Chain L 1–319（319 aa） Chain M 1–319（319 aa） Chain N 1–319（319 aa）	Mutation：D110C Mutation：D110C Mutation：D110C Mutation：D110C	AF3 ALUMINUM FLUORIDE × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 4 MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6.5；298 K；0.1M MES pH 6.5, 9% PEG MME 5000, 6% 1-Propanol	Resolution 3.10 Å R-free 0.265
8UNF Cryo-EM structure of T4 Bacteriophage Clamp Loader with Sliding Clamp and DNA Deposited 2023-10-18	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain B 1–319（319 aa） Chain C 1–319（319 aa） Chain D 1–319（319 aa） Chain E 1–319（319 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 4 08T [[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl]oxy-tris(fluoranyl)beryllium × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.15 Å

6 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	LOADL_BPT4
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 1–319； UniProt 1–319 Author chain C； PDBConstruct 1–319； UniProt 1–319 Author chain D； PDBConstruct 1–319； UniProt 1–319 Author chain E； PDBConstruct 1–319； UniProt 1–319

Sliding-clamp-loader small subunit

Tequatrovirus T4

UniProt P04527

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain A； UniProt 1–187	Not recorded	Sliding-clamp-loader large subunit × 4 （P04526） Sliding clamp × 3 （P04525） AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.21 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8UNH	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3U5Z Structure of T4 Bacteriophage clamp loader bound to the T4 clamp, primer-template DNA, and ATP analog Deposited 2011-10-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain A 2–187（186 aa）	Not recorded	08T [[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl]oxy-tris(fluoranyl)beryllium × 3 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；288 K；9% PEG4k, 0.1M MES pH 6.5, 50mM NaCl, 25mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 288K	Resolution 3.50 Å R-free 0.279
3U5Z Structure of T4 Bacteriophage clamp loader bound to the T4 clamp, primer-template DNA, and ATP analog Deposited 2011-10-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain K 2–187（186 aa）	Not recorded	08T [[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl]oxy-tris(fluoranyl)beryllium × 3 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；288 K；9% PEG4k, 0.1M MES pH 6.5, 50mM NaCl, 25mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 288K	Resolution 3.50 Å R-free 0.279
3U60 Structure of T4 Bacteriophage Clamp Loader Bound To Open Clamp, DNA and ATP Analog Deposited 2011-10-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain A 2–187（186 aa）	Not recorded	08T [[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl]oxy-tris(fluoranyl)beryllium × 3 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；295 K；20% PEG4k, 0.1M Tris pH7.5, 10mM MgCl2, 20mM NaCl, VAPOR DIFFUSION, temperature 295K	Resolution 3.34 Å R-free 0.282
3U61 Structure of T4 Bacteriophage Clamp Loader Bound To Closed Clamp, DNA and ATP Analog and ADP Deposited 2011-10-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain A 2–187（186 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 3 08T [[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl]oxy-tris(fluoranyl)beryllium × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；10% PEG4k, 0.1M MES pH 6.5, 20mM NaCl, 10mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.20 Å R-free 0.305
8UH7 Structure of T4 Bacteriophage clamp loader bound to the T4 clamp, primer-template DNA, and ATP analog Deposited 2023-10-07	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain A 1–187（187 aa）	Not recorded	08T [[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl]oxy-tris(fluoranyl)beryllium × 3 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；295 K；20% PEG4k, 0.1M Tris pH7.5, 10mM MgCl2, 20mM NaCl	Resolution 2.63 Å R-free 0.244
8UK9 Structure of T4 Bacteriophage clamp loader mutant D110C bound to the T4 clamp, primer-template DNA, and ATP analog Deposited 2023-10-12	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain A 1–187（187 aa）	Not recorded	AF3 ALUMINUM FLUORIDE × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 4 MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6.5；298 K；0.1M MES pH 6.5, 9% PEG MME 5000, 6% 1-Propanol	Resolution 3.10 Å R-free 0.265
8UK9 Structure of T4 Bacteriophage clamp loader mutant D110C bound to the T4 clamp, primer-template DNA, and ATP analog Deposited 2023-10-12	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain Q 1–187（187 aa）	Not recorded	AF3 ALUMINUM FLUORIDE × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 4 MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6.5；298 K；0.1M MES pH 6.5, 9% PEG MME 5000, 6% 1-Propanol	Resolution 3.10 Å R-free 0.265
8UNF Cryo-EM structure of T4 Bacteriophage Clamp Loader with Sliding Clamp and DNA Deposited 2023-10-18	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain A 1–187（187 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 4 08T [[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl]oxy-tris(fluoranyl)beryllium × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.15 Å

6 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	LOADS_BPT4
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–187； UniProt 1–187

Sliding clamp

Tequatrovirus T4

UniProt P04525

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain F； UniProt 1–228 Chain G； UniProt 1–228 Chain H； UniProt 1–228	Not recorded	Sliding-clamp-loader large subunit × 4 （P04526） Sliding-clamp-loader small subunit × 1 （P04527） AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.21 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8UNH	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CZD CRYSTAL STRUCTURE OF THE PROCESSIVITY CLAMP GP45 FROM BACTERIOPHAGE T4 Deposited 1999-09-02	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–228（228 aa） Chain B 1–228（228 aa） Chain C 1–228（228 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；277 K；60 mM PIPES 200 mM CASO4 0.1 % 1,4 Dioxane 15% Glycerol 15% PEG MME 5000, pH 6.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.45 Å R-free 0.259
3U5Z Structure of T4 Bacteriophage clamp loader bound to the T4 clamp, primer-template DNA, and ATP analog Deposited 2011-10-11	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain F 1–228（228 aa） Chain G 1–228（228 aa） Chain H 1–228（228 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	08T [[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl]oxy-tris(fluoranyl)beryllium × 3 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；288 K；9% PEG4k, 0.1M MES pH 6.5, 50mM NaCl, 25mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 288K	Resolution 3.50 Å R-free 0.279
3U5Z Structure of T4 Bacteriophage clamp loader bound to the T4 clamp, primer-template DNA, and ATP analog Deposited 2011-10-11	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain P 1–228（228 aa） Chain Q 1–228（228 aa） Chain R 1–228（228 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	08T [[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl]oxy-tris(fluoranyl)beryllium × 3 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；288 K；9% PEG4k, 0.1M MES pH 6.5, 50mM NaCl, 25mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 288K	Resolution 3.50 Å R-free 0.279
3U60 Structure of T4 Bacteriophage Clamp Loader Bound To Open Clamp, DNA and ATP Analog Deposited 2011-10-11	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain F 1–228（228 aa） Chain G 1–228（228 aa） Chain H 1–228（228 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	08T [[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl]oxy-tris(fluoranyl)beryllium × 3 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；295 K；20% PEG4k, 0.1M Tris pH7.5, 10mM MgCl2, 20mM NaCl, VAPOR DIFFUSION, temperature 295K	Resolution 3.34 Å R-free 0.282
3U61 Structure of T4 Bacteriophage Clamp Loader Bound To Closed Clamp, DNA and ATP Analog and ADP Deposited 2011-10-11	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain F 1–228（228 aa） Chain G 1–228（228 aa） Chain H 1–228（228 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 3 08T [[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl]oxy-tris(fluoranyl)beryllium × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；10% PEG4k, 0.1M MES pH 6.5, 20mM NaCl, 10mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.20 Å R-free 0.305
6DRT Crystal structure of the processivity clamp GP45 complexed with recognition peptide of ligase from bacteriophage T4 Deposited 2018-06-13	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–228（228 aa） Chain B 1–228（228 aa） Chain C 1–228（228 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；PEG3350	Resolution 2.12 Å R-free 0.240
7D7D CryoEM structure of gp45-dependent transcription activation complex Deposited 2020-10-03	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain G 1–228（228 aa） Chain H 1–228（228 aa） Chain I 1–228（228 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.50 Å
8UH7 Structure of T4 Bacteriophage clamp loader bound to the T4 clamp, primer-template DNA, and ATP analog Deposited 2023-10-07	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain F 1–228（228 aa） Chain G 1–228（228 aa） Chain H 1–228（228 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	08T [[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl]oxy-tris(fluoranyl)beryllium × 3 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；295 K；20% PEG4k, 0.1M Tris pH7.5, 10mM MgCl2, 20mM NaCl	Resolution 2.63 Å R-free 0.244
8UK9 Structure of T4 Bacteriophage clamp loader mutant D110C bound to the T4 clamp, primer-template DNA, and ATP analog Deposited 2023-10-12	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain F 1–228（228 aa） Chain G 1–228（228 aa） Chain H 1–228（228 aa）	Not recorded	AF3 ALUMINUM FLUORIDE × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 4 MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6.5；298 K；0.1M MES pH 6.5, 9% PEG MME 5000, 6% 1-Propanol	Resolution 3.10 Å R-free 0.265
8UK9 Structure of T4 Bacteriophage clamp loader mutant D110C bound to the T4 clamp, primer-template DNA, and ATP analog Deposited 2023-10-12	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain R 1–228（228 aa） Chain S 1–228（228 aa） Chain T 1–228（228 aa）	Not recorded	AF3 ALUMINUM FLUORIDE × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 4 MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6.5；298 K；0.1M MES pH 6.5, 9% PEG MME 5000, 6% 1-Propanol	Resolution 3.10 Å R-free 0.265
8UNF Cryo-EM structure of T4 Bacteriophage Clamp Loader with Sliding Clamp and DNA Deposited 2023-10-18	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 8 PDB declaration: decameric	Chain F 1–228（228 aa） Chain G 1–228（228 aa） Chain H 1–228（228 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 4 08T [[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl]oxy-tris(fluoranyl)beryllium × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.15 Å
9E5Y T4 Bacteriophage Replicative Polymerase Captured in Polymerase Exchange State 1 Deposited 2024-10-28	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 5 PDB declaration: heptameric	Chain B 1–228（228 aa） Chain D 1–228（228 aa） Chain E 1–228（228 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.57 Å
9EA2 T4 Bacteriophage Replicative Polymerase Captured in Polymerase Exchange State 2 Deposited 2024-11-10	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 5 PDB declaration: heptameric	Chain B 1–228（228 aa） Chain D 1–228（228 aa） Chain E 1–228（228 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
9EA3 T4 bacteriophage replicative holoenzyme containing triple mutations D75R, Q430E, and K432E in the exonuclease-deficient polymerase Deposited 2024-11-10	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain B 1–228（228 aa） Chain D 1–228（228 aa） Chain E 1–228（228 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.99 Å
9EA6 T4 Bacteriophage Replicative Polymerase Captured in Polymerase Exchange State 3 Deposited 2024-11-10	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 5 PDB declaration: heptameric	Chain B 1–228（228 aa） Chain D 1–228（228 aa） Chain E 1–228（228 aa）	Not recorded	CA CALCIUM ION × 1 D3T 2',3'-DIDEOXY-THYMIDINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.74 Å

13 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CLAMP_BPT4
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain F； PDBConstruct 1–228； UniProt 1–228 Author chain G； PDBConstruct 1–228； UniProt 1–228 Author chain H； PDBConstruct 1–228； UniProt 1–228

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8unh
Deposition date deposition_date	2023-10-19
Structure title title	Cryo-EM structure of T4 Bacteriophage Clamp Loader with Sliding Clamp
Keywords keywords	autoinhibited, DNA-free, catalytically inactive, stable, REPLICATION; REPLICATION
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	40.43 Å
Radius of gyration Rg (electron density) rg_electron	39.84 Å
Forward intensity I(0) i0	518549000.00
Molecular weight molecular_weight	188530.0 kDa
Excluded volume excluded_volume	237100 Å³
Envelope volume envelope_volume	328160 Å³
Hydration-shell volume shell_volume	67435 Å³
Envelope diameter envelope_diameter	128.2 Å
Shell Rg shell_rg	47.46 Å
Envelope Rg envelope_rg	37.98 Å
Shape Rg shape_rg	39.82 Å
Total Rg total_rg	40.34 Å
Total atoms total_atoms	13271
Residues n_residues	1683
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

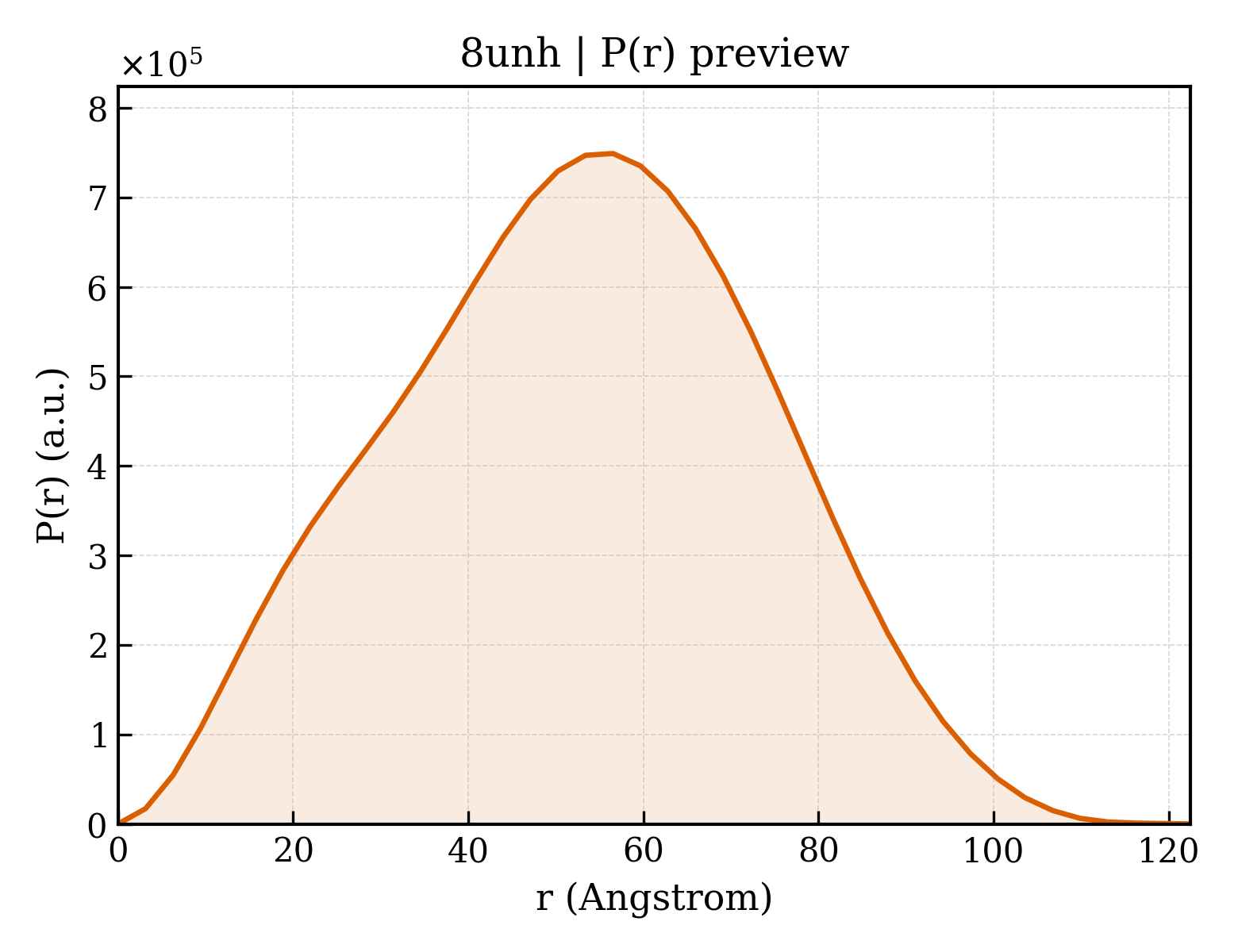

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	122.5 Å
Rg (real space) rg_real	40.19 Å
Rg uncertainty (real space) rg_real_error	0.72 Å
I(0) (real space) i0_real	5.1860e+08
I(0) uncertainty (real space) i0_real_error	8.3450e+06
Rg (reciprocal space) rg_reciprocal	40.43 Å
I(0) (reciprocal space) i0_reciprocal	518700000.0000
Solution quality estimate total_estimate	0.8970
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	56.5 Å
Skewness Skewness skewness	-0.013
Kurtosis Kurtosis kurtosis	-0.549
Angular range angular_range	— – 0.1950 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	38210000.0000
Real-space data points n_real_points	40
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.921; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.978; Smooth: 0.917

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Sliding-clamp-loader large subunit
Molecular weight formula_weight	35834.3 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,E,C,D
Atom count atom_count	13271

MITVNEKEHILEQKYRPSTIDECILPAFDKETFKSITSKGKIPHIILHSPSPGTGKTTVAKALCHDVNADMMFVNGSDCKIDFVRGPLTNFASAASFDGRQKVIVIDEFDRSGLAESQRHLRSFMEAYSSNCSIIITANNIDGIIKPLQSRCRVITFGQPTDEDKIEMMKQMIRRLTEICKHEGIAIADMKVVAALVKKNFPDFRKTIGELDSYSSKGVLDAGILSLVTNDRGAIDDVLESLKNKDVKQLRALAPKYAADYSWFVGKLAEEIYSRVTPQSIIRMYEIVGENNQYHGIAANTELHLAYLFIQLACEMQWK

来源 Source

来源生物 organism	Tequatrovirus T4
NCBI Class编号 ncbi_taxonomy_id	10665
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Sliding-clamp-loader small subunit
Molecular weight formula_weight	21391.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

MSLFKDDIQLNEHQVAWYSKDWTAVQSAADSFKEKAENEFFEIIGAINNKTKCSIAQKDYSKFMVENALSQFPECMPAVYAMNLIGSGLSDEAHFNYLMAAVPRGKRYGKWAKLVEDSTEVLIIKLLAKRYQVNTNDAINYKSILTKNGKLPLVLKELKGLVTDDFLKEVTKNVKEQKQLKKLALEW

来源 Source

来源生物 organism	Tequatrovirus T4
NCBI Class编号 ncbi_taxonomy_id	10665
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Sliding clamp
Molecular weight formula_weight	24881.2 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,H,F

MKLSKDTTALLKNFATINSGIMLKSGQFIMTRAVNGTTYAEANISDVIDFDVAIYDLNGFLGILSLVNDDAEISQSEDGNIKIADARSTIFWPAADPSTVVAPNKPIPFPVASAVTEIKAEDLQQLLRVSRGLQIDTIAITVKEGKIVINGFNKVEDSALTRVKYSLTLGDYDGENTFNFIINMANMKMQPGNYKLLLWAKGKQGAAKFEGEHANYVVALEADSTHDF

来源 Source

来源生物 organism	Tequatrovirus T4
NCBI Class编号 ncbi_taxonomy_id	10665
宿主生物 host_organism	Escherichia coli

Entity 4 Entity 4 non-polymer

Description description	PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.21 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	455041

fit	/app/data/saxs_computation/un/8unh/8unh.fit
pddf	/app/data/pr_computation/un/8unh/8unh.pr.out
profile	/app/data/saxs_computation/un/8unh/8unh.dat
