SAXSdb — 8v2b

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Oncostatin-M

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 3 其他Polymer 11	Interleukin-6 receptor subunit beta × 1 （Q00560） Oncostatin-M-specific receptor subunit beta × 1 （O70458） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 11 2-acetamido-2-deoxy-beta-D-glucopyranose × 7	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ONCM_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–183； UniProt 24–206

Interleukin-6 receptor subunit beta

Mus musculus

UniProt Q00560

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 3 其他Polymer 11	Oncostatin-M × 1 （P53347） Oncostatin-M-specific receptor subunit beta × 1 （O70458） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 11 2-acetamido-2-deoxy-beta-D-glucopyranose × 7	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IL6RB_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–595； UniProt 23–617

Oncostatin-M-specific receptor subunit beta

Mus musculus

UniProt O70458

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 3 其他Polymer 11	Oncostatin-M × 1 （P53347） Interleukin-6 receptor subunit beta × 1 （Q00560） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 11 2-acetamido-2-deoxy-beta-D-glucopyranose × 7	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	OSMR_MOUSE
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–715； UniProt 24–738

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8v2b
Deposition date deposition_date	2023-11-22
Structure title title	Cryo-EM structure of mouse type II OSM receptor complex: model for full extracellular assembly
Keywords keywords	cytokine signaling, OSM, gp130, OSMR, CYTOKINE, CYTOKINE-RECEPTOR complex; CYTOKINE/RECEPTOR
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8v2b__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

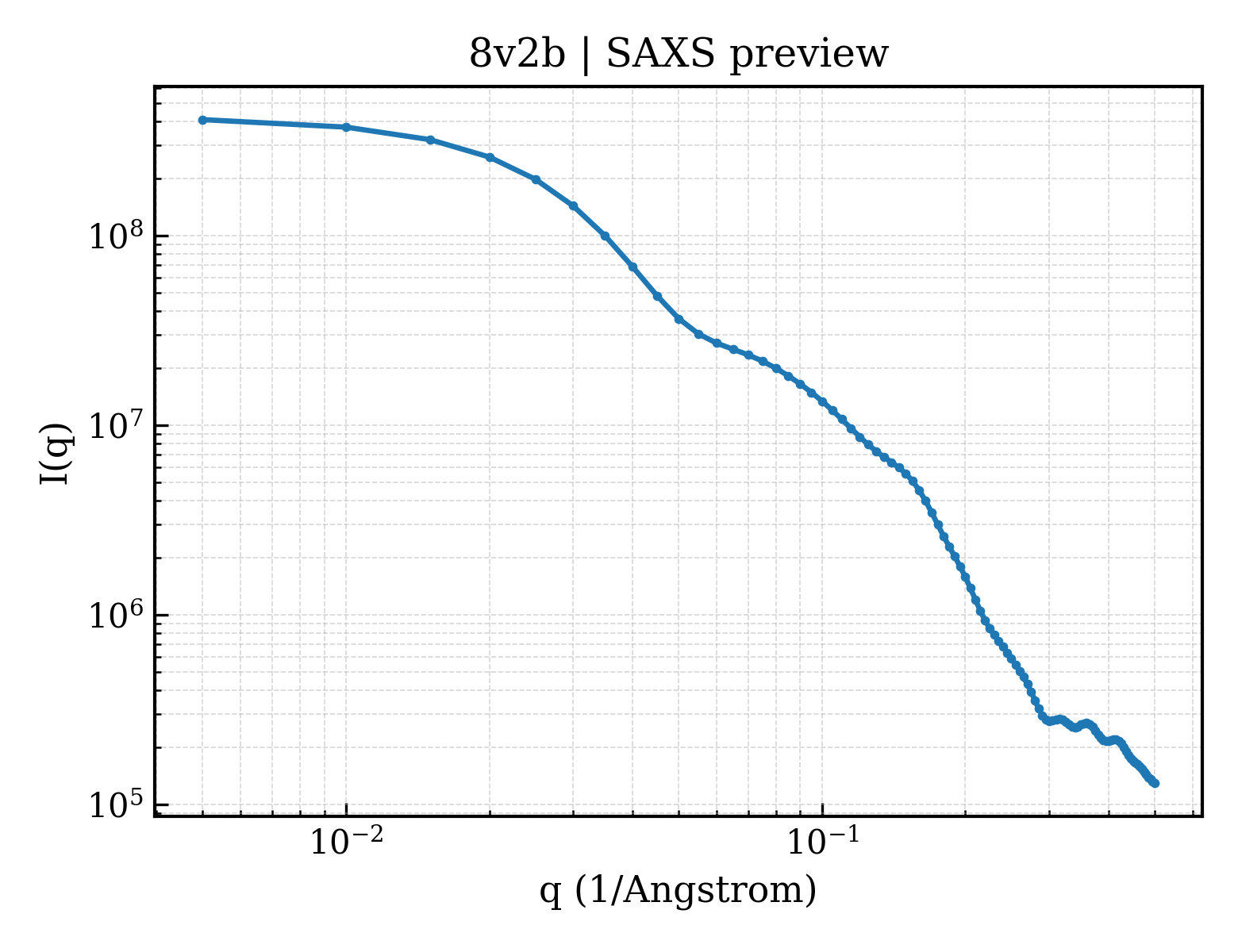

8v2b__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

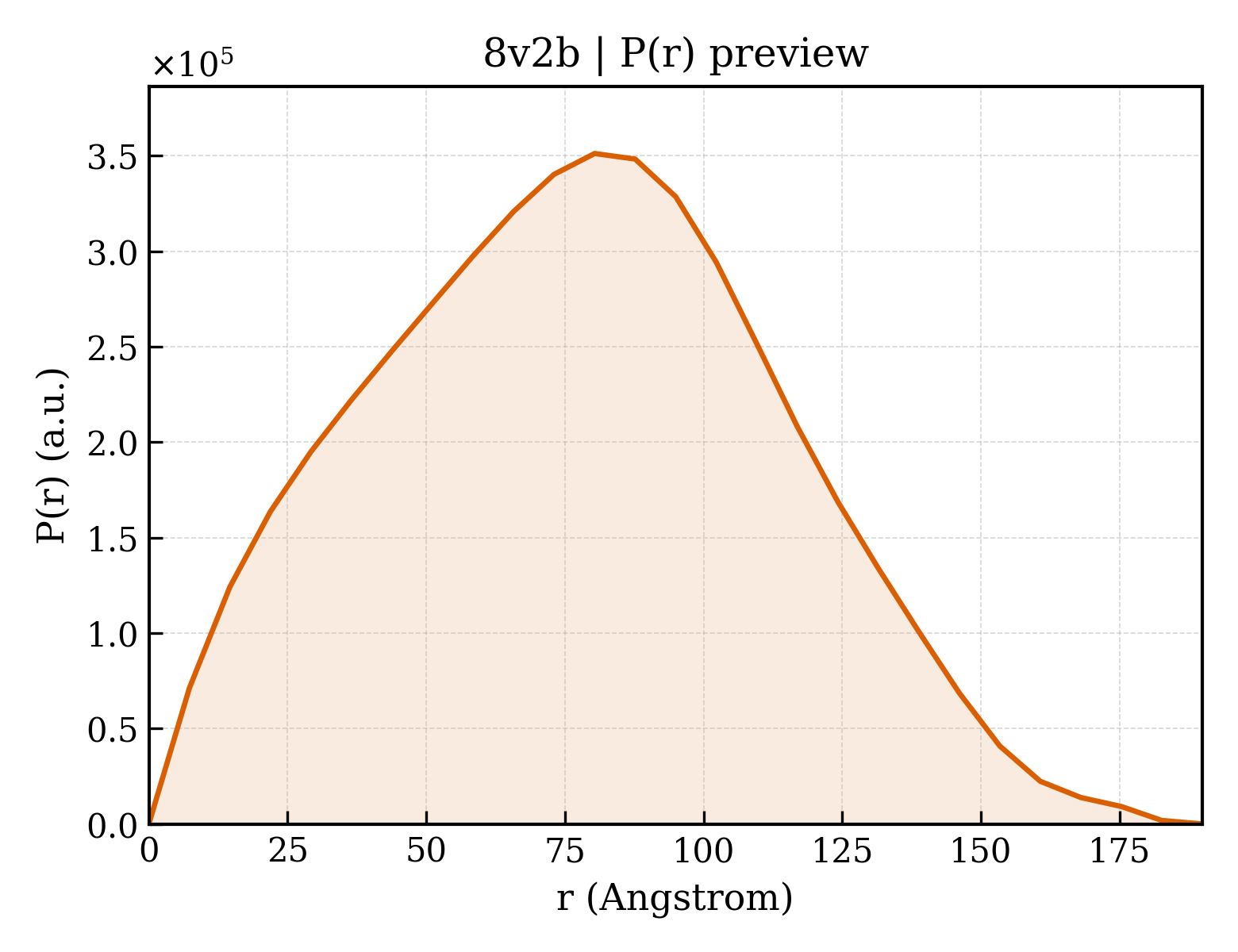

8v2b__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	60.32 Å
Rg (electron density)	60.44 Å
Total Rg	60.44 Å
Atom count	12049
Residues	1455
Excluded volume	213910 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8v2b__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Oncostatin-M
Molecular weight formula_weight	20645.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	12049

ANRGCSNSSSQLLSQLQNQANLTGNTESLLEPYIRLQNLNTPDLRAACTQHSVAFPSEDTLRQLSKPHFLSTVYTTLDRVLYQLDALRQKFLKTPAFPKLDSARHNILGIRNNVFCMARLLNHSLEIPEPTQTDSGASRSTTTPDVFNTKIGSCGFLWGYHRFMGSVGRVFREWDDGSTRSRR

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Interleukin-6 receptor subunit beta
Molecular weight formula_weight	70033.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

QLLEPCGYIYPEFPVVQRGSNFTAICVLKEACLQHYYVNASYIVWKTNHAAVPREQVTVINRTTSSVTFTDVVLPSVQLTCNILSFGQIEQNVYGVTMLSGFPPDKPTNLTCIVNEGKNMLCQWDPGRETYLETNYTLKSEWATEKFPDCQSKHGTSCMVSYMPTYYVNIEVWVEAENALGKVSSESINFDPVDKVKPTPPYNLSVTNSEELSSILKLSWVSSGLGGLLDLKSDIQYRTKDASTWIQVPLEDTMSPRTSFTVQDLKPFTEYVFRIRSIKDSGKGYWSDWSEEASGTTYEDRPSRPPSFWYKTNPSHGQEYRSVRLIWKALPLSEANGKILDYEVILTQSKSVSQTYTVTGTELTVNLTNDRYVASLAARNKVGKSAAAVLTIPSPHVTAAYSVVNLKAFPKDNLLWVEWTPPPKPVSKYILEWCVLSENAPCVEDWQQEDATVNRTHLRGRLLESKCYQITVTPVFATGPGGSESLKAYLKQAAPARGPTVRTKKVGKNEAVLAWDQIPVDDQNGFIRNYSISYRTSVGKEMVVHVDSSHTEYTLSSLSSDTLYMVRMAAYTDEGGKDGPEFTFTTPKFAQGEIEEQKLISEEDLGGEQKLISEEDLHHHHHH

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Cricetulus griseus

Entity 3 Entity 3 polymer

Description description	Oncostatin-M-specific receptor subunit beta
Molecular weight formula_weight	82357.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

EVLEEPLPLTPEIHKVSFQLKLQEVNLEWTVPALTHEELNMIFQIEISRLNISNTIWVENYSTTVKREEAVRWNWTSDIPLECVKHFIRIRALVDDTKSLPQSSWGNWSSWKEVNAKVSVEPDKSLIFPKDKVLEEGSNVTICLMYGQNVYNVSCKLQDEPIHGEQLDSHVSLLKLNNVVFLSDTGTNINCQATKGPKRIFGTVLFVSKVLEEPKNVSCETRDFKTLDCSWEPGVDTTLTWRKQRFQNYTLCESFSKRCEVSNYRNSYTWQITEGSQEMYNFTLTAENQLRKRSVNINFNLTHRVHPKAPQDVTLKIIGATKANMTWKVHSHGNNYTLLCQVKLQYGEVIHEHNVSVHMSANYLFSDLDPDTKYKAFVRCASANHFWKWSDWTQKEFSTPETAPSQALDVWRQVWSENGRRIVTLFWKPLLKSQANGKIISYNIVVENEAKPTESEHYCVWAPALSTNLSLDLQPYKIRITTNNSMGASPESLMVLSNDSGHEEVKEKTIKGIKDAFNISWEPVSGDTMGYVVDWCAHSQDQRCDLQWKNLGPNTTSTTITSDDFKPGVRYNFRIFERSVEHKARLVEKQRGYTQELAPLVNPKVEIPYSTPNSFVLRWPDYDSDFQAGFIKGYLVYVKSKEMQCNQPWERTLLPDNSVLCKYDINGSETKTLTVENLQPESLYEFFVTPYTSAGPGPNETFTKVTTPDARSHML

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	11

Entity 5 Entity 5 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	7

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.67 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	99588

Cryo-EM structure of mouse type II OSM receptor complex: model for full extracellular assembly
