SAXSdb — 8qy4

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Interleukin-11

Homo sapiens

UniProt P20809

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 6 其他Polymer 6	Interleukin-6 receptor subunit beta × 2 （Q00560） Interleukin-11 receptor subunit alpha × 2 （Q14626） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 6 2-acetamido-2-deoxy-beta-D-glucopyranose × 10	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IL11_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–199； UniProt 1–199 Author chain D； PDBConstruct 1–199； UniProt 1–199

Interleukin-6 receptor subunit beta

Mus musculus

UniProt Q00560

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 6 其他Polymer 6	Interleukin-11 × 2 （P20809） Interleukin-11 receptor subunit alpha × 2 （Q14626） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 6 2-acetamido-2-deoxy-beta-D-glucopyranose × 10	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IL6RB_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–917； UniProt 1–917 Author chain F； PDBConstruct 1–917； UniProt 1–917

Interleukin-11 receptor subunit alpha

Homo sapiens

UniProt Q14626

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 6 其他Polymer 6	Interleukin-11 × 2 （P20809） Interleukin-6 receptor subunit beta × 2 （Q00560） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 6 2-acetamido-2-deoxy-beta-D-glucopyranose × 10	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	I11RA_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain B； PDBConstruct 1–422； UniProt 1–422 Author chain E； PDBConstruct 1–422； UniProt 1–422

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8qy4
Deposition date deposition_date	2023-10-25
Structure title title	Structure of interleukin 11 (gp130 P496L mutant).
Keywords keywords	interleukin, gp130, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8qy4__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

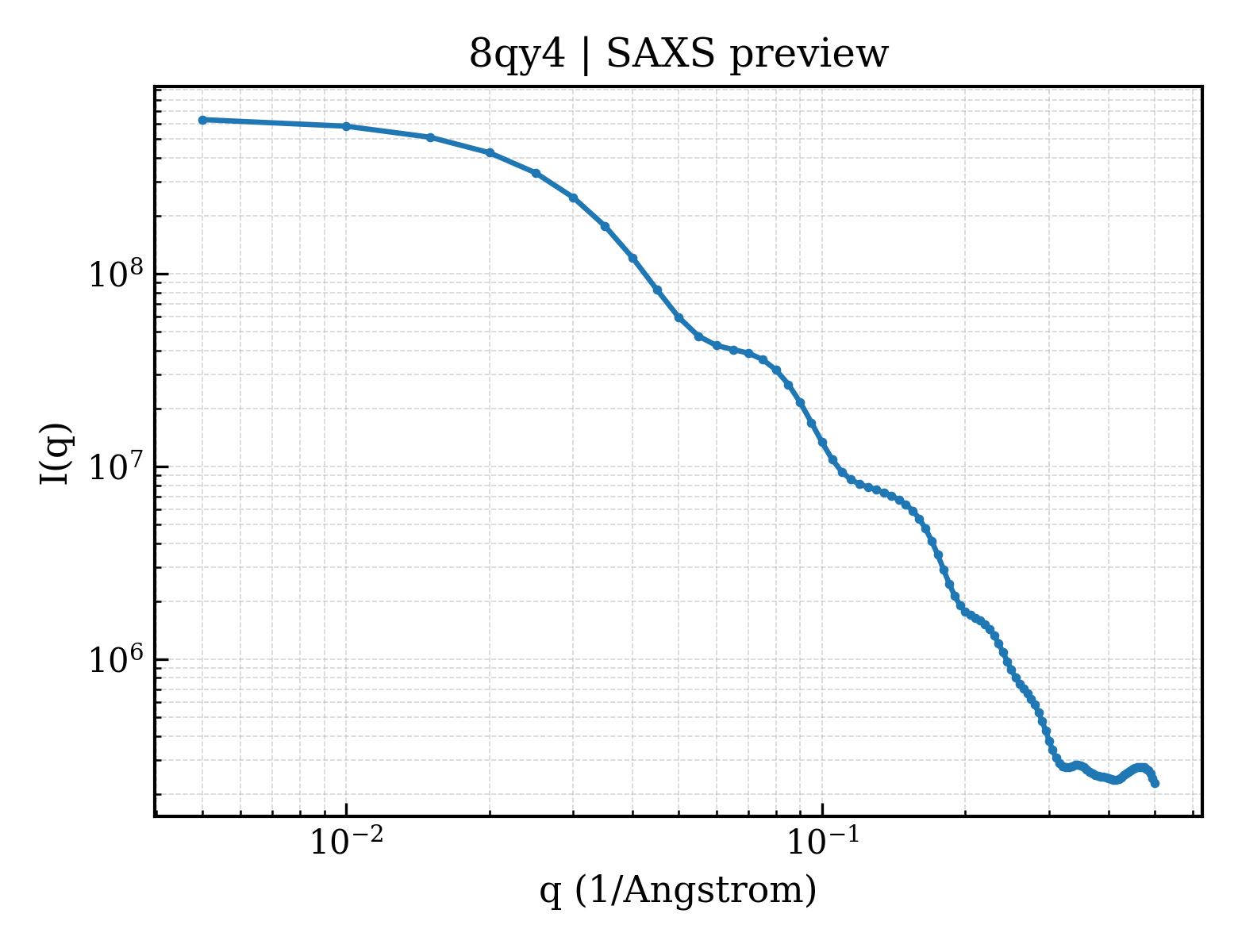

8qy4__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

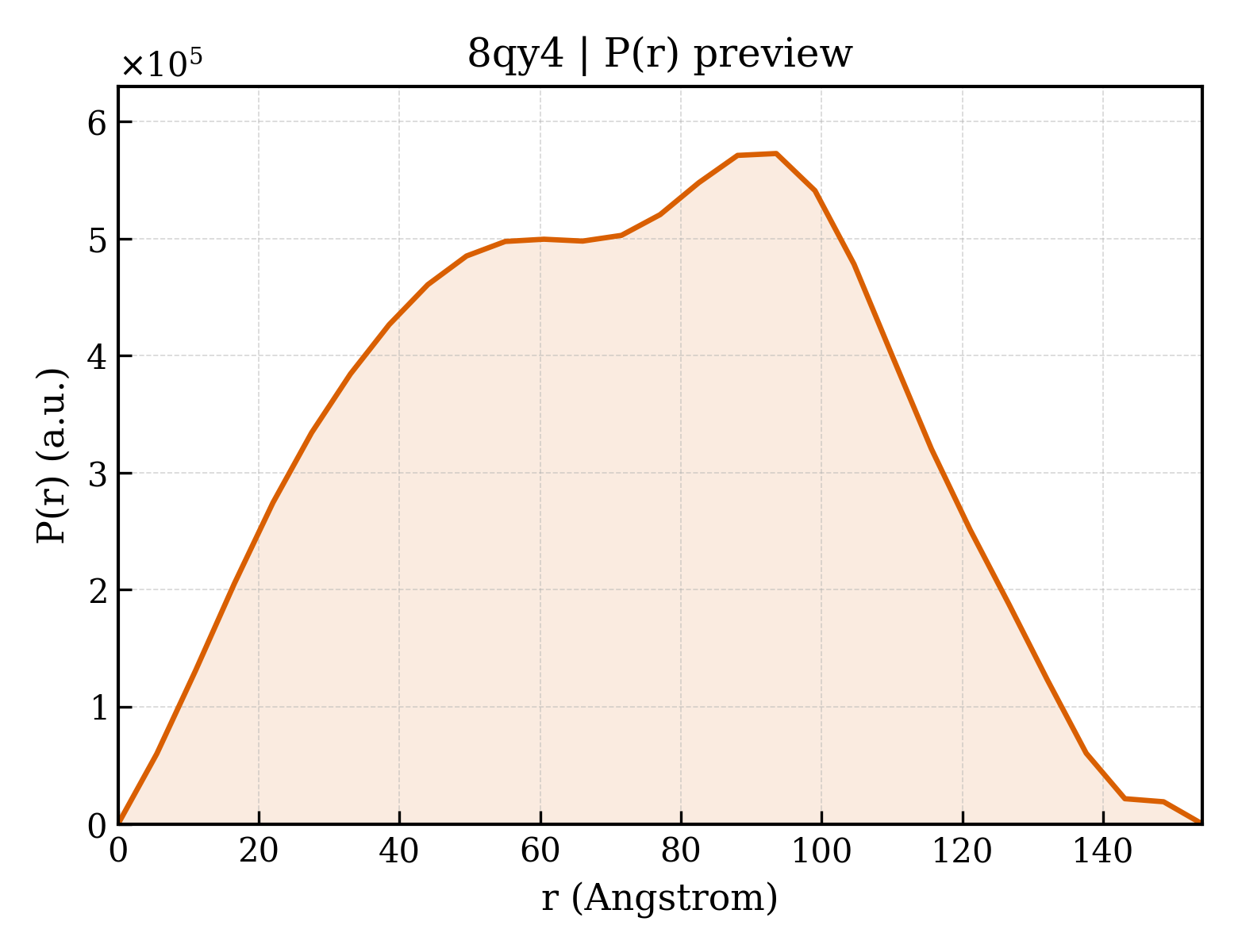

8qy4__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	56.03 Å
Rg (electron density)	55.75 Å
Total Rg	55.92 Å
Atom count	30094
Residues	1890
Excluded volume	269510 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8qy4__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Interleukin-11
Molecular weight formula_weight	21455.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D
Atom count atom_count	30094

MNCVCRLVLVVLSLWPDTAVAPGPPPGPPRVSPDPRAELDSTVLLTRSLLADTRQLAAQLRDKFPADGDHNLDSLPTLAMSAGALGALQLPGVLTRLRADLLSYLRHVQWLRRAGGSSLKTLEPELGTLQARLDRLLRRLQLLMSRLALPQPPPDPPAPPLAPPSSAWGGIRAAHAILGGLHLTLDWAVRGLLLLKTRL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	Interleukin-6 receptor subunit beta
Molecular weight formula_weight	102568.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,F

MSAPRIWLAQALLFFLTTESIGQLLEPCGYIYPEFPVVQRGSNFTAICVLKEACLQHYYVNASYIVWKTNHAAVPREQVTVINRTTSSVTFTDVVLPSVQLTCNILSFGQIEQNVYGVTMLSGFPPDKPTNLTCIVNEGKNMLCQWDPGRETYLETNYTLKSEWATEKFPDCQSKHGTSCMVSYMPTYYVNIEVWVEAENALGKVSSESINFDPVDKVKPTPPYNLSVTNSEELSSILKLSWVSSGLGGLLDLKSDIQYRTKDASTWIQVPLEDTMSPRTSFTVQDLKPFTEYVFRIRSIKDSGKGYWSDWSEEASGTTYEDRPSRPPSFWYKTNPSHGQEYRSVRLIWKALPLSEANGKILDYEVILTQSKSVSQTYTVTGTELTVNLTNDRYVASLAARNKVGKSAAAVLTIPSPHVTAAYSVVNLKAFPKDNLLWVEWTPPPKPVSKYILEWCVLSENAPCVEDWQQEDATVNRTHLRGRLLESKCYQITVTLVFATGPGGSESLKAYLKQAAPARGPTVRTKKVGKNEAVLAWDQIPVDDQNGFIRNYSISYRTSVGKEMVVHVDSSHTEYTLSSLSSDTLYMVRMAAYTDEGGKDGPEFTFTTPKFAQGEIEAIVVPVCLAFLLTTLLGVLFCFNKRDLIKKHIWPNVPDPSKSHIAQWSPHTPPRHNFNSKDQMYSDGNFTDVSVVEIEANNKKPCPDDLKSVDLFKKEKVSTEGHSSGIGGSSCMSSSRPSISSNEENESAQSTASTVQYSTVVHSGYRHQVPSVQVFSRSESTQPLLDSEERPEDLQLVDSVDGGDEILPRQPYFKQNCSQPEACPEISHFERSNQVLSGNEEDFVRLKQQQVSDHISQPYGSEQRRLFQEGSTADALGTGADGQMERFESVGMETTIDEEIPKSYLPQTVRQGGYMPQ

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Trichoplusia ni

Entity 3 Entity 3 polymer

Description description	Interleukin-11 receptor subunit alpha
Molecular weight formula_weight	45266.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,E

MSSSCSGLSRVLVAVATALVSASSPCPQAWGPPGVQYGQPGRSVKLCCPGVTAGDPVSWFRDGEPKLLQGPDSGLGHELVLAQADSTDEGTYICQTLDGALGGTVTLQLGYPPARPVVSCQAADYENFSCTWSPSQISGLPTRYLTSYRKKTVLGADSQRRSPSTGPWPCPQDPLGAARCVVHGAEFWSQYRINVTEVNPLGASTRLLDVSLQSILRPDPPQGLRVESVPGYPRRLRASWTYPASWPCQPHFLLKFRLQYRPAQHPAWSTVEPAGLEEVITDAVAGLPHAVRVSARDFLDAGTWSTWSPEAWGTPSTGTIPKEIPAWGQLHTQPEVEPQVDSPAPPRPSLQPHPRLLDHRDSVEQVAVLASLGILSFLGLVAGALALGLWLRLRRGGKDGSPKPGFLASVIPVDRRPGAPNL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 4 Entity 4 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	6

Entity 5 Entity 5 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	10

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	3.06 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	487147
