SAXSdb — 8v8j

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8v8j
沉积日期 deposition_date	2023-12-05
结构标题 title	PI3Ka H1047R co-crystal structure with inhibitors in two cryptic pockets (compounds 4 and 5).
关键词 keywords	H1047R, PI3K, PI3Ka, SIGNALING PROTEIN; SIGNALING PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	51.48 Å
回转半径 Rg (电子) rg_electron	51.42 Å
零角强度 I(0) i0	1238430000.00
分子量 molecular_weight	297510.0 kDa
排除体积 excluded_volume	374000 Å³
包络体积 envelope_volume	537680 Å³
水化壳体积 shell_volume	86922 Å³
包络直径 envelope_diameter	176.3 Å
壳层 Rg shell_rg	54.61 Å
包络 Rg envelope_rg	50.83 Å
形状 Rg shape_rg	51.44 Å
总 Rg total_rg	51.47 Å
总原子数 total_atoms	20898
残基数 n_residues	2508
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	171.0 Å
Rg (实空间) rg_real	51.54 Å
Rg 误差 (实空间) rg_real_error	1.28 Å
I(0) (实空间) i0_real	1.2380e+09
I(0) 误差 (实空间) i0_real_error	2.3590e+07
Rg (倒空间) rg_reciprocal	51.42 Å
I(0) (倒空间) i0_reciprocal	1238000000.0000
解质量估计 total_estimate	0.8762
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	49.6 Å
偏度 Skewness skewness	0.329
峰度 Kurtosis kurtosis	-0.609
角度范围 angular_range	— – 0.1550 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	172600000.0000
实空间数据点数 n_real_points	32
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.869; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.976; Smooth: 0.804

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Phosphatidylinositol 4,5-bisphosphate 3-kinase catalytic subunit alpha isoform
分子量 formula_weight	124810.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C
原子数 atom_count	20898

AMGSMPPRPSSGELWGIHLMPPRILVECLLPNGMIVTLECLREATLITIKHELFKEARKYPLHQLLQDESSYIFVSVTQEAEREEFFDETRRLCDLRLFQPFLKVIEPVGNREEKILNREIGFAIGMPVCEFDMVKDPEVQDFRRNILNVCKEAVDLRDLNSPHSRAMYVYPPNVESSPELPKHIYNKLDKGQIIVVIWVIVSPNNDKQKYTLKINHDCVPEQVIAEAIRKKTRSMLLSSEQLKLCVLEYQGKYILKVCGCDEYFLEKYPLSQYKYIRSCIMLGRMPNLMLMAKESLYSQLPMDCFTMPSYSRRISTATPYMNGETSTKSLWVINSALRIKILCATYVNVNIRDIDKIYVRTGIYHGGEPLCDNVNTQRVPCSNPRWNEWLNYDIYIPDLPRAARLCLSICSVKGRKGAKEEHCPLAWGNINLFDYTDTLVSGKMALNLWPVPHGLEDLLNPIGVTGSNPNKETPCLELEFDWFSSVVKFPDMSVIEEHANWSVSREAGFSYSHAGLSNRLARDNELRENDKEQLKAISTRDPLSEITEQEKDFLWSHRHYCVTIPEILPKLLLSVKWNSRDEVAQMYCLVKDWPPIKPEQAMELLDCNYPDPMVRGFAVRCLEKYLTDDKLSQYLIQLVQVLKYEQYLDNLLVRFLLKKALTNQRIGHFFFWHLKSEMHNKTVSQRFGLLLESYCRACGMYLKHLNRQVEAMEKLINLTDILKQEKKDETQKVQMKFLVEQMRRPDFMDALQGFLSPLNPAHQLGNLRLEECRIMSSAKRPLWLNWENPDIMSELLFQNNEIIFKNGDDLRQDMLTLQIIRIMENIWQNQGLDLRMLPYGCLSIGDCVGLIEVVRNSHTIMQIQCKGGLKGALQFNSHTLHQWLKDKNKGEIYDAAIDLFTRSCAGYCVATFILGIGDRHNSNIMVKDDGQLFHIDFGHFLDHKKKKFGYKRERVPFVLTQDFLIVISKGAQECTKTREFERFQEMCYKAYLAIRQHANLFINLFSMMLGSGMPELQSFDDIAYIRKTLALDKTEQEALEYFMKQMNDARHGGWTTKMDWIFHTIKQHALN

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 2 polymer

描述 description	Phosphatidylinositol 3-kinase regulatory subunit alpha
分子量 formula_weight	33667.0 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D

MNNNMSLQDAEWYWGDISREEVNEKLRDTADGTFLVRDASTKMHGDYTLTLRKGGNNKLIKIFHRDGKYGFSDPLTFSSVVELINHYRNESLAQYNPKLDVKLLYPVSKYQQDQVVKEDNIEAVGKKLHEYNTQFQEKSREYDRLYEEYTRTSQEIQMKRTAIEAFNETIKIFEEQCQTQERYSKEYIEKFKREGNEKEIQRIMHNYDKLKSRISEIIDSRRRLEEDLKKQAAEYREIDKRMNSIKPDLIQLRKTRDQYLMWLTQKGVRQKKLNEWLGN

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 3 non-polymer

描述 description	2-({(1R)-1-[2-(4,4-dimethylpiperidin-1-yl)-3,6-dimethyl-4-oxo-4H-1-benzopyran-8-yl]ethyl}amino)benzoic acid
分子量 formula_weight	448.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	N-{(3S)-3-(2-methylphenyl)-6-[(oxetan-3-yl)amino]-1-oxo-2,3-dihydro-1H-isoindol-4-yl}-1-benzothiophene-3-carboxamide
分子量 formula_weight	469.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 non-polymer

描述 description	(2S)-N~1~-[(4P)-2-tert-butyl-4'-methyl[4,5'-bi-1,3-thiazol]-2'-yl]pyrrolidine-1,2-dicarboxamide
分子量 formula_weight	393.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	236.940 Å
晶胞边长 b length_b	158.480 Å
晶胞边长 c length_c	121.600 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	112.83 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	3.350 Å
最低分辨率 resolution_low	43.470 Å
R 因子 r_factor	0.2112
R_work r_work	0.2091
R_free r_free	0.2513

fit	/app/data/saxs_computation/v8/8v8j/8v8j.fit
pddf	/app/data/pr_computation/v8/8v8j/8v8j.pr.out
profile	/app/data/saxs_computation/v8/8v8j/8v8j.dat

PI3Ka H1047R co-crystal structure with inhibitors in two cryptic pockets (compounds 4 and 5).

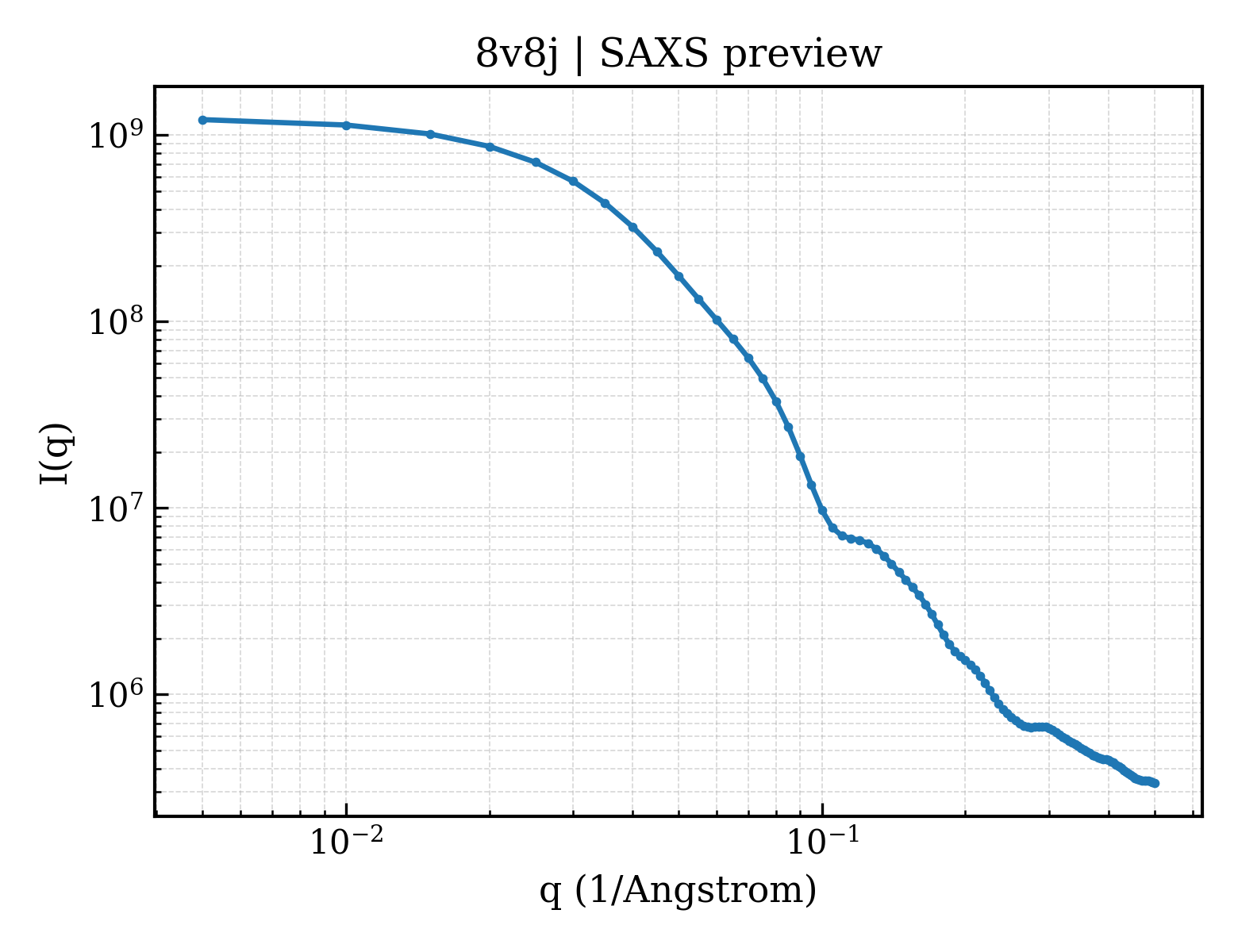

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution
