8wed

Crystal structure of Arabidopsis thaliana MIK2 ectodomain in complex with BAK1 ectodomain and Fusarium oxysporum SCOOPL

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

MDIS1-interacting receptor like kinase 2

Arabidopsis thaliana

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 3 其他Polymer 7	BRASSINOSTEROID INSENSITIVE 1-associated receptor kinase 1 × 1 （Q94F62） a SCOOP-like peptide from F. oxysporum f. sp. conglutinans strain Fo5176 × 1 ;alpha-L-fucopyranose-(1-3)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)][alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 4 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose × 1 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	Consistent with protein count
2	Other combination	Heteromer	Protein 3 其他Polymer 8	BRASSINOSTEROID INSENSITIVE 1-associated receptor kinase 1 × 1 （Q94F62） a SCOOP-like peptide from F. oxysporum f. sp. conglutinans strain Fo5176 × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 4 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ;beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 alpha-L-fucopyranose-(1-6)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MIK2_ARATH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–683； UniProt 1–683 Author chain D； PDBConstruct 1–683； UniProt 1–683

BRASSINOSTEROID INSENSITIVE 1-associated receptor kinase 1

Arabidopsis thaliana

UniProt Q94F62

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 3 其他Polymer 7	MDIS1-interacting receptor like kinase 2 × 1 （Q8VZG8） a SCOOP-like peptide from F. oxysporum f. sp. conglutinans strain Fo5176 × 1 ;alpha-L-fucopyranose-(1-3)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)][alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 4 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose × 1 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	Consistent with protein count
2	Other combination	Heteromer	Protein 3 其他Polymer 8	MDIS1-interacting receptor like kinase 2 × 1 （Q8VZG8） a SCOOP-like peptide from F. oxysporum f. sp. conglutinans strain Fo5176 × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 4 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ;beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 alpha-L-fucopyranose-(1-6)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BAK1_ARATH
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–220； UniProt 1–220 Author chain E； PDBConstruct 1–220； UniProt 1–220

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8wed
Deposition date deposition_date	2023-09-17
Structure title title	Crystal structure of Arabidopsis thaliana MIK2 ectodomain in complex with BAK1 ectodomain and Fusarium oxysporum SCOOPL
Keywords keywords	LRR receptor-like serine/threonine-protein kinase, PLANT PROTEIN; PLANT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8wed__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8wed__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

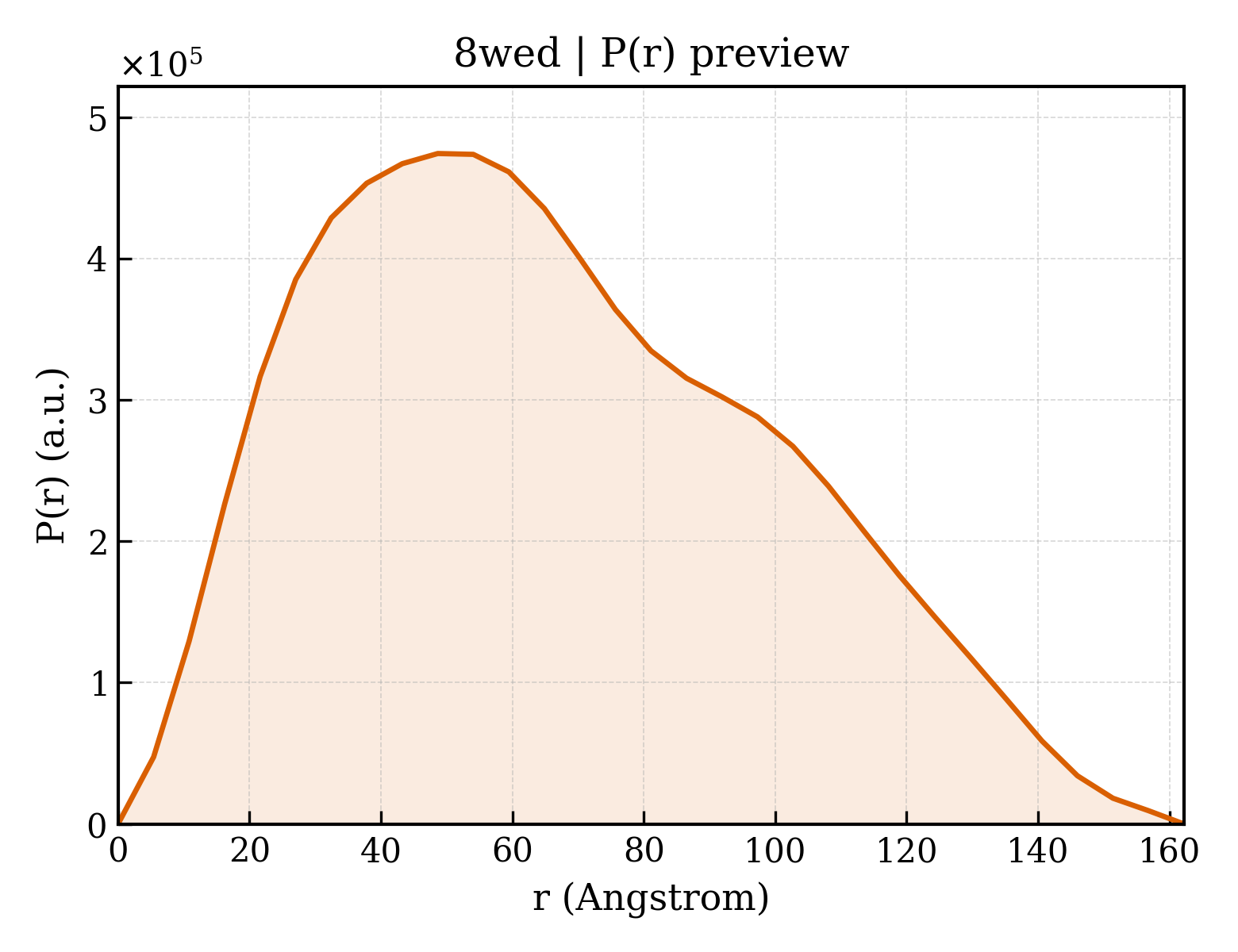

8wed__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	34.00 Å
Rg (electron density)	33.47 Å
Total Rg	33.93 Å
Atom count	6654
Residues	825
Excluded volume	118510 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8wed__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`8wed__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (10)

Entity 1 Entity 1 polymer

Description description	MDIS1-interacting receptor like kinase 2
Molecular weight formula_weight	75533.3 kDa
EC 编号 ec_number	2.7.11.1
Mutation mutation	L137E/D164K/S564F
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D
Atom count atom_count	13354

MNKTNPERKISLTSFKERMACKEKPRDLQVLLIISIVLSCSFAVSATVEEANALLKWKSTFTNQTSSSKLSSWVNPNTSSFCTSWYGVACSLGSIIRLNLTNTGIEGTFEDFPFSSLPNLTFVDLSMNRFSGTISPEWGRFSKLEYFDLSINQLVGEIPPELGKLSNLDTLHLVENKLNGSIPSEIGRLTKVTEIAIYDNLLTGPIPSSFGNLTKLVNLYLFINSLSGSIPSEIGNLPNLRELCLDRNNLTGKIPSSFGNLKNVTLLNMFENQLSGEIPPEIGNMTALDTLSLHTNKLTGPIPSTLGNIKTLAVLHLYLNQLNGSIPPELGEMESMIDLEISENKLTGPVPDSFGKLTALEWLFLRDNQLSGPIPPGIANSTELTVLQLDTNNFTGFLPDTICRGGKLENLTLDDNHFEGPVPKSLRDCKSLIRVRFKGNSFSGDISEAFGVYPTLNFIDLSNNNFHGQLSANWEQSQKLVAFILSNNSITGAIPPEIWNMTQLSQLDLSSNRITGELPESISNINRISKLQLNGNRLSGKIPSGIRLLTNLEYLDLSSNRFSFEIPPTLNNLPRLYYMNLSRNDLDQTIPEGLTKLSQLQMLDLSYNQLDGEISSQFRSLQNLERLDLSHNNLSGQIPPSFKDMLALTHVDVSHNNLQGPIPDNAAFRNAPPDAFEGNKDLC

Source Source

Source organism organism	Arabidopsis thaliana
Common name common_name	Mouse-ear cress
NCBI taxonomy ID ncbi_taxonomy_id	3702
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	BRASSINOSTEROID INSENSITIVE 1-associated receptor kinase 1
Molecular weight formula_weight	25183.8 kDa
EC 编号 ec_number	2.7.10.1,2.7.11.1
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,E

MERRLMIPCFFWLILVLDLVLRVSGNAEGDALSALKNSLADPNKVLQSWDATLVTPCTWFHVTCNSDNSVTRVDLGNANLSGQLVMQLGQLPNLQYLELYSNNITGTIPEQLGNLTELVSLDLYLNNLSGPIPSTLGRLKKLRFLRLNNNSLSGEIPRSLTAVLTLQVLDLSNNPLTGDIPVNGSFSLFTPISFANTKLTPLPASPPPPISPTPPSPAGSHHHHHHHHHH

Source Source

Source organism organism	Arabidopsis thaliana
Common name common_name	Mouse-ear cress
NCBI taxonomy ID ncbi_taxonomy_id	3702
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	a SCOOP-like peptide from F. oxysporum f. sp. conglutinans strain Fo5176
Molecular weight formula_weight	1349.3 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,F

ESSSSHSERAGGR

Entity 4 Entity 4 branched

Description description	;alpha-L-fucopyranose-(1-3)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)][alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	716.7 kDa
Source method src_method	man
Copy count entity_count	1

Entity 5 Entity 5 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 6 Entity 6 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	570.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 8 Entity 8 branched

Description description	;beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	732.7 kDa
Source method src_method	man
Copy count entity_count	1

Entity 9 Entity 9 branched

Description description	alpha-L-fucopyranose-(1-6)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	367.3 kDa
Source method src_method	man
Copy count entity_count	2

Entity 10 Entity 10 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	9

▶

Unit-cell length a length_a	72.674 Å
Unit-cell length b length_b	178.123 Å
Unit-cell length c length_c	142.263 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.11 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	3.300 Å
Low-resolution limit resolution_low	36.340 Å
R factor r_factor	0.2415
R_work r_work	0.2405
R_free r_free	0.2612
