SAXSdb — 8wfi

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Isoform GlyT-1B of Sodium- and chloride-dependent glycine transporter 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 46–614	Not recorded	GLY GLYCINE × 1 CL CHLORIDE ION × 1 NA SODIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 2.58 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8WFI	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6ZBV Inward-open structure of human glycine transporter 1 in complex with a benzoylisoindoline inhibitor and sybody Sb_GlyT1#7 Deposited 2020-06-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 91–239（149 aa） Chain A 257–684（428 aa）	Not recorded	QET [5-fluoranyl-6-(oxan-4-yloxy)-1,3-dihydroisoindol-2-yl]-[5-methylsulfonyl-2-[2,2,3,3,3-pentakis(fluoranyl)propoxy]phenyl]methanone × 1	X-RAY DIFFRACTION X-ray crystallization conditions LIPIDIC CUBIC PHASE；pH 7；292.75 K；0.1M ADA pH 7, 13-25% PEG600, 4-14% v/v-1,3-Butanediol	Resolution 3.40 Å R-free 0.259
6ZPL Inward-open structure of human glycine transporter 1 in complex with a benzoylisoindoline inhibitor, sybody Sb_GlyT1#7 and bound Na and Cl ions. Deposited 2020-07-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 92–684（593 aa） Chain B 92–684（593 aa）	Mutation：;L153A, S297A, I368A, C633A. N-terminal deletion of residues 1-91 and residues 9-281 of Lichenase (PDB ID 2CIT) have been fused at the N-terminal. C- terminal deletion of residues 685-706 as well as a deletion in the extracellular loop 2 (EL2) between residues 240-256. ; Mutation：;L153A, S297A, I368A, C633A. N-terminal deletion of residues 1-91 and residues 9-281 of Lichenase (PDB ID 2CIT) have been fused at the N-terminal. C- terminal deletion of residues 685-706 as well as a deletion in the extracellular loop 2 (EL2) between residues 240-256. ;	QET [5-fluoranyl-6-(oxan-4-yloxy)-1,3-dihydroisoindol-2-yl]-[5-methylsulfonyl-2-[2,2,3,3,3-pentakis(fluoranyl)propoxy]phenyl]methanone × 2 NA SODIUM ION × 2 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions LIPIDIC CUBIC PHASE；pH 7；292.75 K；Crystals appeared in 3-10 days in 0.1 M ADA pH 7, 13-25% PEG600, 4-14% v/v, 1,3-Butanediol with the longest dimension of 2-5 um.	Resolution 3.94 Å R-free 0.291
8WFJ human glycine transporter 1 in complex with ALX-5407 in inward facing conformation Deposited 2023-09-19	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–652（652 aa）	Not recorded	W5F ALX5407 × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.35 Å
8WFK human glycine transporter 1 in complex with SSR504734 in outward facing conformation Deposited 2023-09-19	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–652（652 aa）	Not recorded	W5O SSR504734 × 1 CL CHLORIDE ION × 1 NA SODIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.22 Å
8WFL human glycine transporter 1 in complex with PF-03463275 in outward facing conformation Deposited 2023-09-19	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–652（652 aa）	Not recorded	W5X PF-3463275 × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.03 Å
9J8B Human Glycine Transporter 1 in the Apo State with an Inward-Facing Conformation Deposited 2024-08-21	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–652（652 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
9J8C Human Glycine Transporter 1 in the Sarcosine-Bound State with an Occluded Conformation Deposited 2024-08-21	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–652（652 aa）	Not recorded	SAR SARCOSINE × 1 CLR CHOLESTEROL × 3 CL CHLORIDE ION × 1 NA SODIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
9J8D Human Glycine Transporter 1 in the Iclepertin-Bound State with an Inward-Facing Conformation Deposited 2024-08-21	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–652（652 aa）	Not recorded	A1EBX Iclepertin × 1 CL CHLORIDE ION × 1 CLR CHOLESTEROL × 3 NA SODIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å

8 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SC6A9_HUMAN
Isoform	P48067-3
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–569； UniProt 46–614

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8wfi
Deposition date deposition_date	2023-09-19
Structure title title	human glycine transporter 1 in complex with glycine in occluded conformation
Keywords keywords	GlyT1, glycine, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	25.56 Å
Radius of gyration Rg (electron density) rg_electron	24.33 Å
Forward intensity I(0) i0	51003800.00
Molecular weight molecular_weight	61063.0 kDa
Excluded volume excluded_volume	78593 Å³
Envelope volume envelope_volume	93105 Å³
Hydration-shell volume shell_volume	31366 Å³
Envelope diameter envelope_diameter	86.8 Å
Shell Rg shell_rg	32.18 Å
Envelope Rg envelope_rg	24.59 Å
Shape Rg shape_rg	24.34 Å
Total Rg total_rg	25.23 Å
Total atoms total_atoms	4310
Residues n_residues	542
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	83.8 Å
Rg (real space) rg_real	25.55 Å
Rg uncertainty (real space) rg_real_error	0.51 Å
I(0) (real space) i0_real	5.1000e+07
I(0) uncertainty (real space) i0_real_error	7.0490e+05
Rg (reciprocal space) rg_reciprocal	25.55 Å
I(0) (reciprocal space) i0_reciprocal	51000000.0000
Solution quality estimate total_estimate	0.7233
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	29.7 Å
Skewness Skewness skewness	0.380
Kurtosis Kurtosis kurtosis	-0.218
Angular range angular_range	— – 0.3100 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	9856000.0000
Real-space data points n_real_points	63
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.843; Stabil: 1.000; Sysdev: 0.315; Positv: 1.000; Valcen: 1.000; Smooth: 0.926

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Isoform GlyT-1B of Sodium- and chloride-dependent glycine transporter 1
Molecular weight formula_weight	63769.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4347

RGNWGNQIEFVLTSVGYAVGLGNVWRFPYLCYRNAGGAFMFPYFIMLIFCGIPLFFMELSFGQFASQGCLGVWRISPMFKGVGYGMMVVSTYIGIYYNVVICIAFYYFFSSMTHVLPWAYCNNPWNTHDCAGVLDASNLTNGSRPAALPSNLSHLLNHSLQRTSPSEEYWRLYVLKLSDDIGNFGEVRLPLLGCLGVSWLVVFLCLIRGVKSSGKVVYFTATFPYVVLTILFVRGVTLEGAFDGIMYYLTPQWDKILAAKVWGDAASQIFYSLGCAWGGLITMASYNKFHNNCYRDSVIISITNCATSVYAGFVIFSILGFMANHLGVDVSRVADHGPGLAFVAYPEALTLLPISPLWSLLFFFMLILLGLGTQFCLLETLVTAIVDEVGNEWILQKKTYVTLGVAVAGFLLGIPLTSQAGIYWLLLMDNYAASFSLVVISCIMCVAIMYIYGHRNYFQDIQMMLGFPPPLFFQICWRFVSPAIIFFILVFTVIQYPITAYNHYQYPGWAVAIGFLMALSSVLCIPLYAMFRLCRTDGADLLQRLKNATKPSRDWGPALLEHRTGRYAP

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 non-polymer

Description description	GLYCINE
Molecular weight formula_weight	75.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	37

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.58 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	129157

fit	/app/data/saxs_computation/wf/8wfi/8wfi.fit
pddf	/app/data/pr_computation/wf/8wfi/8wfi.pr.out
profile	/app/data/saxs_computation/wf/8wfi/8wfi.dat

human glycine transporter 1 in complex with glycine in occluded conformation

1. Protein Identity and Related Structures Protein Identity & Related Structures

Isoform GlyT-1B of Sodium- and chloride-dependent glycine transporter 1

State in the Current Structure

Other States of the Same Protein in the Database

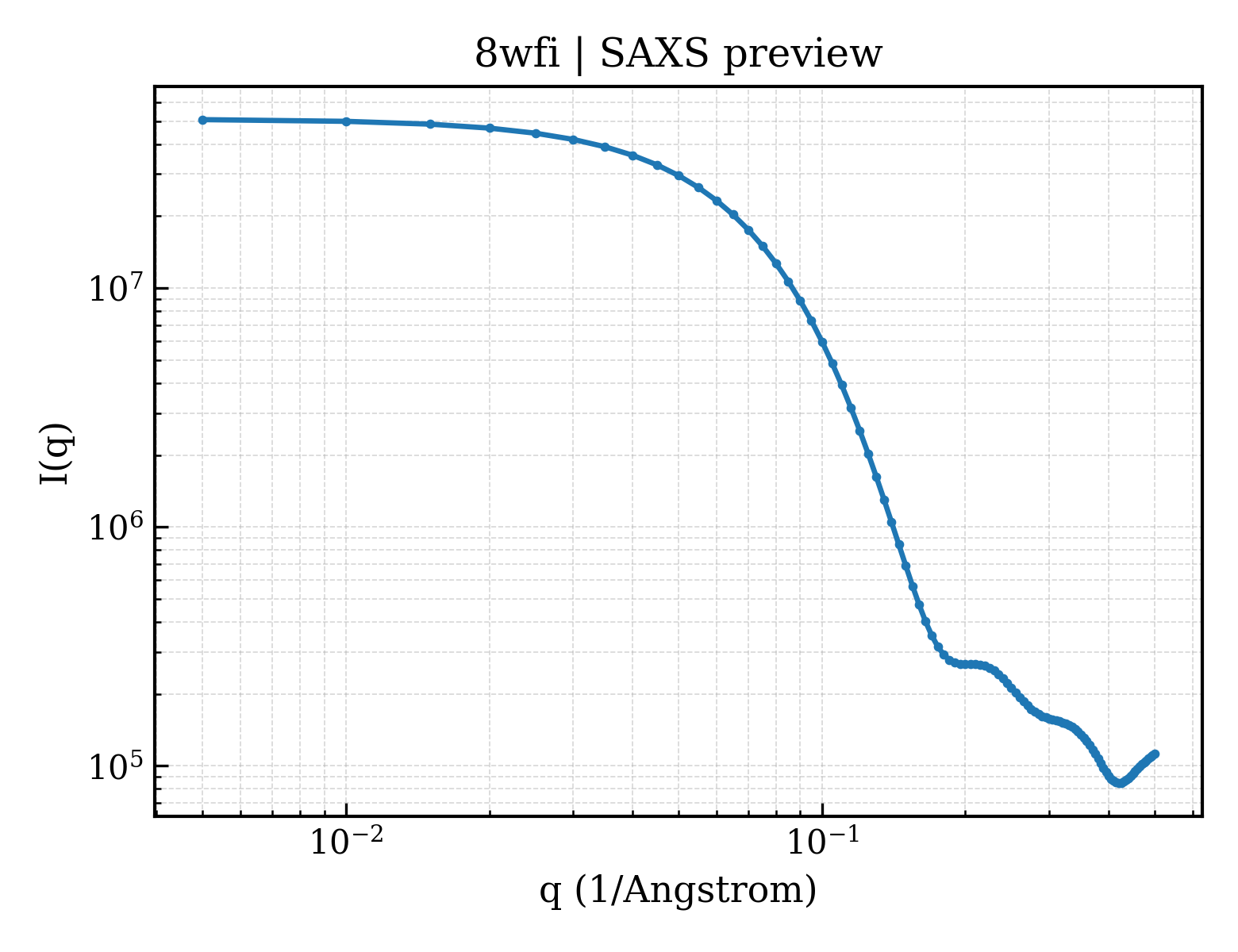

SAXS scattering curve SAXS Profile
