8wku

Complex structure of MjHKU4r-CoV-1 spike RBD bound to human CD26

Method: X-RAY DIFFRACTION D_max: 118.7 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

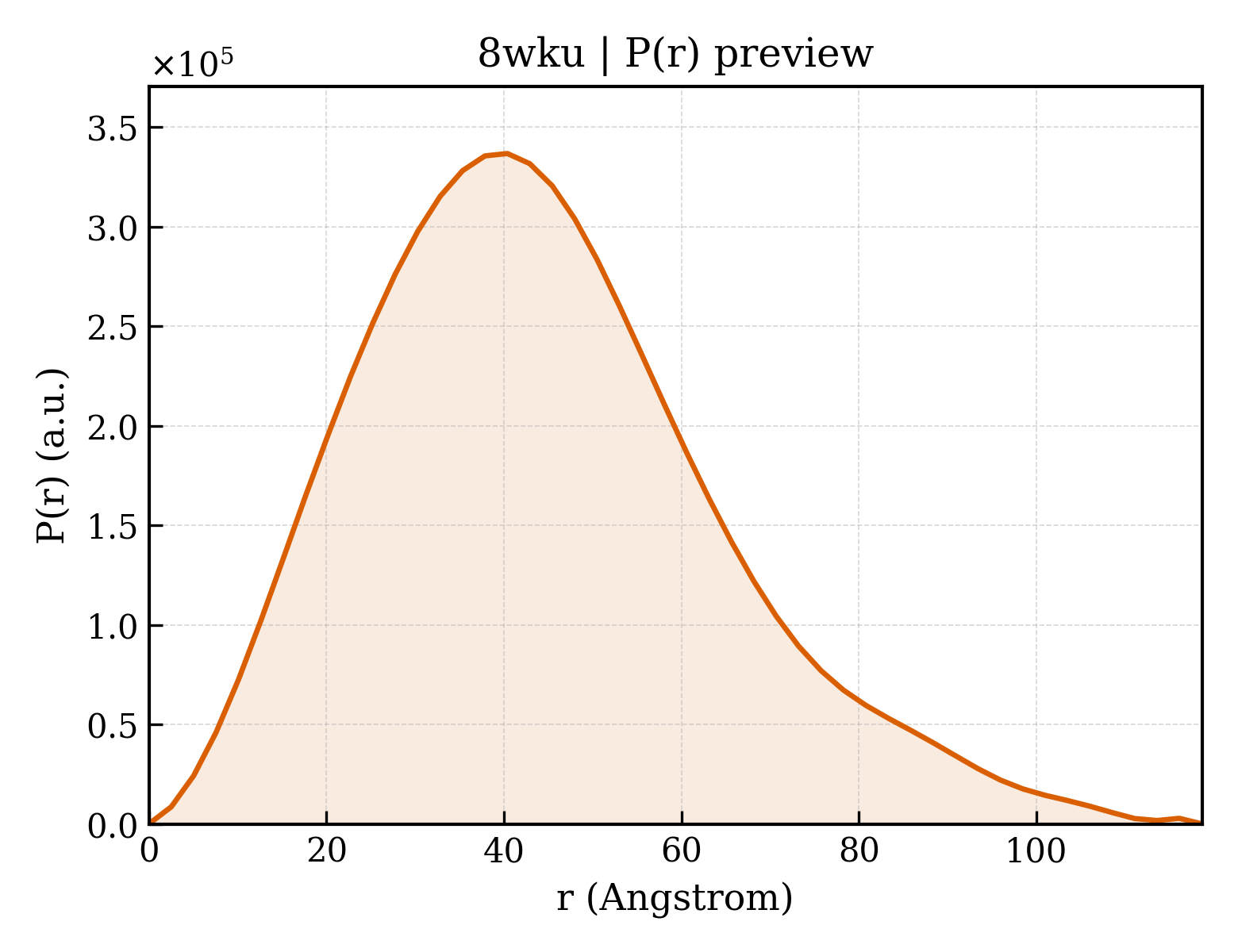

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8wku
沉积日期 deposition_date	2023-09-28
结构标题 title	Complex structure of MjHKU4r-CoV-1 spike RBD bound to human CD26
关键词 keywords	MjHKU4r-CoV-1, spike RBD, human CD26, VIRAL PROTEIN/HYDROLASE, VIRAL PROTEIN-HYDROLASE complex; VIRAL PROTEIN/HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	34.02 Å
回转半径 Rg (电子) rg_electron	33.61 Å
零角强度 I(0) i0	201814000.00
分子量 molecular_weight	114230.0 kDa
排除体积 excluded_volume	142920 Å³
包络体积 envelope_volume	185800 Å³
水化壳体积 shell_volume	47166 Å³
包络直径 envelope_diameter	127.5 Å
壳层 Rg shell_rg	39.26 Å
包络 Rg envelope_rg	33.71 Å
形状 Rg shape_rg	33.51 Å
总 Rg total_rg	34.37 Å
总原子数 total_atoms	8045
残基数 n_residues	935
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	118.7 Å
Rg (实空间) rg_real	34.13 Å
Rg 误差 (实空间) rg_real_error	1.06 Å
I(0) (实空间) i0_real	2.0180e+08
I(0) 误差 (实空间) i0_real_error	3.6910e+06
Rg (倒空间) rg_reciprocal	34.06 Å
I(0) (倒空间) i0_reciprocal	201800000.0000
解质量估计 total_estimate	0.8425
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	40.4 Å
偏度 Skewness skewness	0.555
峰度 Kurtosis kurtosis	0.144
角度范围 angular_range	— – 0.2350 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	29300000.0000
实空间数据点数 n_real_points	48
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.708; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.956; Smooth: 0.868

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (9)

Entity 1 polymer

描述 description	Dipeptidyl peptidase 4 soluble form
分子量 formula_weight	85291.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	8045

SRKTYTLTDYLKNTYRLKLYSLRWISDHEYLYKQENNILVFNAEYGNSSVFLENSTFDEFGHSINDYSISPDGQFILLEYNYVKQWRHSYTASYDIYDLNKRQLITEERIPNNTQWVTWSPVGHKLAYVWNNDIYVKIEPNLPSYRITWTGKEDIIYNGITDWVYEEEVFSAYSALWWSPNGTFLAYAQFNDTEVPLIEYSFYSDESLQYPKTVRVPYPKAGAVNPTVKFFVVNTDSLSSVTNATSIQITAPASMLIGDHYLCDVTWATQERISLQWLRRIQNYSVMDICDYDESSGRWNCLVARQHIEMSTTGWVGRFRPSEPHFTLDGNSFYKIISNEEGYRHICYFQIDKKDCTFITKGTWEVIGIEALTSDYLYYISNEYKGMPGGRNLYKIQLSDYTKVTCLSCELNPERCQYYSVSFSKEAKYYQLRCSGPGLPLYTLHSSVNDKGLRVLEDNSALDKMLQNVQMPSKKLDFIILNETKFWYQMILPPHFDKSKKYPLLLDVYAGPCSQKADTVFRLNWATYLASTENIIVASFDGRGSGYQGDKIMHAINRRLGTFEVEDQIEAARQFSKMGFVDNKRIAIWGWSYGGYVTSMVLGSGSGVFKCGIAVAPVSRWEYYDSVYTERYMGLPTPEDNLDHYRNSTVMSRAENFKQVEYLLIHGTADDNVHFQQSAQISKALVDVGVDFQAMWYTDEDHGIASSTAHQHIYTHMSHFIKQCFSLPHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	MjHKU4r-CoV-1 spike RBD
分子量 formula_weight	27251.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

EAAATGTFIEQPKSKECDFTPMLVGVPPQVYNFKRLVFTNCNYNLTKLLSLFMVNEFSCNGISPDAIARGCYSSLTVDYFAYPLSMRSYIQPGSAGDISLYNYKQSFANPTCRVLATAPANLTLTKPSAYGYFQKCSRVSGEHNSVETPLYINPGEYSICRSFSPYGFSEDGEVFRRQLTQYEGGGILVGVGAKLAMTDKLEMGFIISVQYGTDTNSVCPMLDLGNSSTITHYLGKCVDYHHHHHH

来源 Source

来源生物 organism	Manis javanica
NCBI 分类编号 ncbi_taxonomy_id	9974
宿主生物 host_organism	Spodoptera frugiperda

Entity 3 branched

描述 description	;beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	732.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 4 branched

描述 description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1057.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 5 branched

描述 description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	910.8 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 6 branched

描述 description	;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)-alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1397.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 7 branched

描述 description	;alpha-D-mannopyranose-(1-6)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	894.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 8 branched

描述 description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 9 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	127.501 Å
晶胞边长 b length_b	127.501 Å
晶胞边长 c length_c	245.633 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	6

空间群 space_group	P 32 2 1
空间群编号 int_tables_number	154
晶系 crystal_system	trigonal

分辨率 resolution	3.500 Å
最低分辨率 resolution_low	45.780 Å
R 因子 r_factor	0.2293
R_work r_work	0.2107
R_free r_free	0.2375
