SAXSdb — 8wyu

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Falcilysin

Plasmodium falciparum 3D7

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 61–1193	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5；20 mM Na HEPES, 300 mM NaCl, 0.5 mM TCEP, pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.20 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8WYU	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3S5H Crystal structures of falcilysin, a M16 metalloprotease from the malaria parasite Plasmodium falciparum Deposited 2011-05-23	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–1193（1193 aa）	Not recorded	CO COBALT (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.2；298 K；11% PEG6000,10%PEG400,0.1M ADA, 20mM Mg acetate,20 mM Co acetate, pH 6.2, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.60 Å R-free 0.257
3S5I Crystal structures of falcilysin, a M16 metalloprotease from the malaria parasite Plasmodium falciparum Deposited 2011-05-23	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–1193（1193 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.2；11% PEG6000, 10%PEG400, 0.1M ADA, 20mM Mg acetate, pH 6.2, VAPOR DIFFUSION, SITTING DROP, temperature 100K	Resolution 1.74 Å R-free 0.197
3S5K Crystal structures of falcilysin, a M16 metalloprotease from the malaria parasite Plasmodium falciparum Deposited 2011-05-23	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–1193（1193 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；298 K；20% PEG6000, 0.1M MES, 5 M Zn acetate,0.1% - mercaptoethanol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.20 Å R-free 0.316
3S5M Crystal structures of falcilysin, a M16 metalloprotease from the malaria parasite Plasmodium falciparum Deposited 2011-05-23	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–1193（1193 aa）	Not recorded	ZN ZINC ION × 1 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.2；298 K；11% PEG6000, 10% PEG400, 0.1M ADA, 20 mM Mg acetate, 20 mM Zn acetate, pH 6.2, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.55 Å R-free 0.214
7DI7 Falcilysin in complex with chloroquine Deposited 2020-11-18	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 59–1193（1135 aa）	Not recorded	ACT ACETATE ION × 2 CLQ N4-(7-CHLORO-QUINOLIN-4-YL)-N1,N1-DIETHYL-PENTANE-1,4-DIAMINE × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2 M sodium acetate trihydrate pH 8.0, 20% w/v PEG 3,350	Resolution 1.82 Å R-free 0.198
7DIA Falcilysin in complex with mefloquine Deposited 2020-11-18	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 59–1193（1135 aa）	Not recorded	H8O (S)-[2,8-bis(trifluoromethyl)quinolin-4-yl]-[(2S)-piperidin-2-yl]methanol × 1 GOL GLYCEROL × 1 ACT ACETATE ION × 3 YMZ (11R,12S)- Mefloquine × 1 EDO 1,2-ETHANEDIOL × 4 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2 M sodium acetate trihydrate pH 7.0, 20% w/v PEG 3,350	Resolution 1.55 Å R-free 0.197
7DIJ Falcilysin in complex with MK-4815 Deposited 2020-11-19	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 59–1193（1135 aa）	Not recorded	GOL GLYCEROL × 1 ACT ACETATE ION × 3 EDO 1,2-ETHANEDIOL × 3 DMS DIMETHYL SULFOXIDE × 1 H8F 2-(aminomethyl)-3,5-ditert-butyl-phenol × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2 M ammonium acetate, 0.1 M Tris pH 8.5, 25% w/v PEG 3,350	Resolution 1.90 Å R-free 0.206
8HO4 Falcilysin in complex with MMV000848 Deposited 2022-12-09	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 59–1193（1135 aa）	Not recorded	XUH (2R)-1-(9H-carbazol-9-yl)-3-(cyclopentylamino)propan-2-ol × 1 EDO 1,2-ETHANEDIOL × 3 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293.15 K；0.05 M Sodium HEPES, 0.05M MOPS pH 7.5, 0.03 M sodium nitrate, 0.03 M sodium phosphate dibasic, 0.03 M ammonium sulfate, 20% (v/v) PEG 500 MME, 10% (w/v) PEG 20,000	Resolution 1.96 Å R-free 0.206
8HO5 Falcilysin in complex with MMV665806 Deposited 2022-12-09	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 59–1193（1135 aa）	Not recorded	XUN (2S)-1-(2,3-dimethyl-1H-indol-1-yl)-3-{[(1S,2S)-2-methylcyclohexyl]amino}propan-2-ol × 1 GOL GLYCEROL × 1 EDO 1,2-ETHANEDIOL × 2 PEG DI(HYDROXYETHYL)ETHER × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293.15 K；0.039M Bicine, 0.061M TRIZMA base pH 8.5, 0.03 M sodium nitrate, 0.03 M sodium phosphate dibasic, 0.03 M ammonium sulfate, 20% (v/v) PEG 500 MME, 10% (w/v) PEG 20,000	Resolution 2.00 Å R-free 0.189
8WXW Falcilysin in complex with hemoglobin alpha chain peptide Deposited 2023-10-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 59–1193（1135 aa）	Mutation：E132Q	GOL GLYCEROL × 4 EDO 1,2-ETHANEDIOL × 1 ZN ZINC ION × 1 CL CHLORIDE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；4% w/v PEG 1500, 20% v/v glycerol	Resolution 1.86 Å R-free 0.210
8WXZ Falcilysin in complex with hemoglobin beta chain peptide Deposited 2023-10-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 59–1193（1135 aa）	Mutation：E132Q	PEG DI(HYDROXYETHYL)ETHER × 1 ACY ACETIC ACID × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；0.12M monosaccharides, 0.1M imidazole/MES monohydrate pH 6.5, 20% v/v PEG 500, 10% w/v PEG 20000	Resolution 2.30 Å R-free 0.251
8WYT Partially closed Falcilysin bound to MK-4815, from MK-4815-treated dataset Deposited 2023-10-31	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 59–1193（1135 aa）	Not recorded	H8F 2-(aminomethyl)-3,5-ditert-butyl-phenol × 1 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；20 mM Na HEPES, 300 mM NaCl, 0.5 mM TCEP, pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å
8WYX Partially closed falcilysin, from free falcilysin dataset Deposited 2023-10-31	Different construct Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 59–1192（1134 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；20 mM Na HEPES, 300 mM NaCl, 0.5 mM TCEP, pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
8WYY Open falcilysin, from free falcilysin dataset Deposited 2023-10-31	Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 61–1193（1133 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；20 mM Na HEPES, 300 mM NaCl, 0.5 mM TCEP, pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å

14 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	FCLN_PLAF7
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1133； UniProt 61–1193

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8wyu
Deposition date deposition_date	2023-10-31
Structure title title	Open Falcilysin, from MK-4815-treated dataset
Keywords keywords	falcilysin open conformation, HYDROLASE; HYDROLASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	33.34 Å
Radius of gyration Rg (electron density) rg_electron	32.22 Å
Forward intensity I(0) i0	230180000.00
Molecular weight molecular_weight	125020.0 kDa
Excluded volume excluded_volume	158100 Å³
Envelope volume envelope_volume	204650 Å³
Hydration-shell volume shell_volume	51462 Å³
Envelope diameter envelope_diameter	104.0 Å
Shell Rg shell_rg	40.75 Å
Envelope Rg envelope_rg	31.06 Å
Shape Rg shape_rg	32.21 Å
Total Rg total_rg	32.98 Å
Total atoms total_atoms	8819
Residues n_residues	1072
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

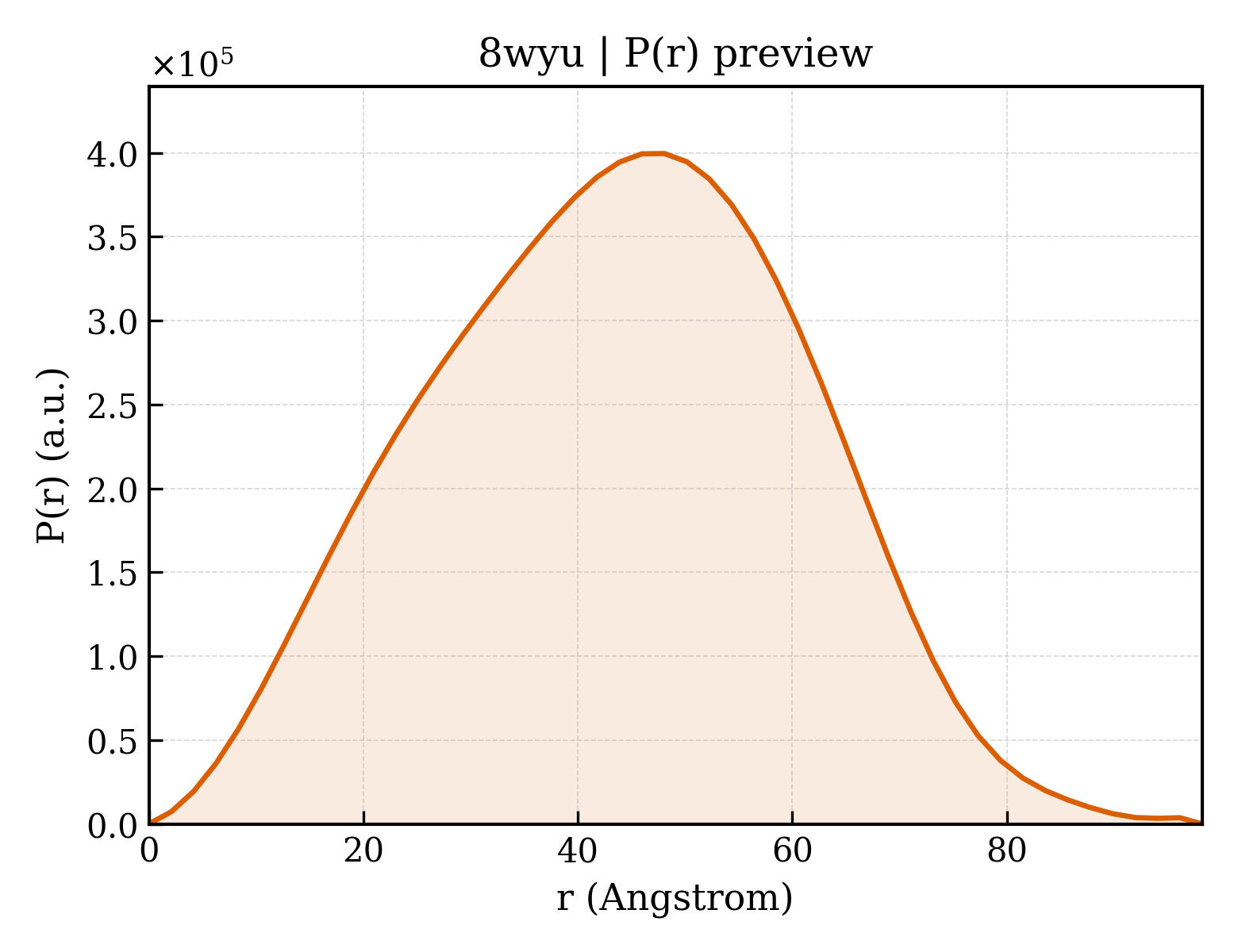

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	98.2 Å
Rg (real space) rg_real	33.11 Å
Rg uncertainty (real space) rg_real_error	0.51 Å
I(0) (real space) i0_real	2.3020e+08
I(0) uncertainty (real space) i0_real_error	3.5130e+06
Rg (reciprocal space) rg_reciprocal	33.25 Å
I(0) (reciprocal space) i0_reciprocal	230200000.0000
Solution quality estimate total_estimate	0.9000
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	48.1 Å
Skewness Skewness skewness	-0.008
Kurtosis Kurtosis kurtosis	-0.519
Angular range angular_range	— – 0.2350 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	37930000.0000
Real-space data points n_real_points	48
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.935; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.973; Smooth: 0.917

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Falcilysin
Molecular weight formula_weight	132034.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	8819

IHEKSPKHNSYDIIEKRYNEEFKMTYTVYQHKKAKTQVISLGTNDPLDVEQAFAFYVKTLTHSGKGIPHILEHSVLSGSKNYNYKNSIGLLEKGTLHTHLNAYTFNDRTVYMAGSMNNKDFFNIMGVYMDSVFQPNVLENKYIFETEGWTYEVEKLKEDEKGKAEIPQMKDYKVSFNGIVYNEMKGALSSPLEDLYHEEMKYMFPDNVHSNNSGGDPKEITNLTYEEFKEFYYKNYNPKKVKVFFFSKNNPTELLNFVDQYLGQLDYSKYRDDAVESVEYQTYKKGPFYIKKKYGDHSEEKENLVSVAWLLNPKVDKTNNHNNNHSNNQSSENNGYSNGSHSSDLSLENPTDYFVLLIINNLLIHTPESVLYKALTDCGLGNNVIDRGLNDSLVQYIFSIGLKGIKRNNEKIKNFDKVHYEVEDVIMNALKKVVKEGFNKSAVEASINNIEFILKEANLKTSKSIDFVFEMTSKLNYNRDPLLIFEFEKYLNIVKNKIKNEPMYLEKFVEKHFINNAHRSVILLEGDENYAQEQENLEKQELKKRIENFNEQEKEQVIKNFEELSKYKNAEESPEHLNKFPIISISDLNKKTLEVPVNVYFTNINENNNIMETYNKLKTNEHMLKDNMDVFLKKYVLKNDKHNTNNNNNNNNNMDYSFTETKYEGNVPILVYEMPTTGIVYLQFVFSLDHLTVDELAYLNLFKTLILENKTNKRSSEDFVILREKNIGSMSANVALYSKDDHLNVTDKYNAQALFNLEMHVLSHKCNDALNIALEAVKESDFSNKKKVIDILKRKINGMKTTFSEKGYAILMKYVKAHLNSKHYAHNIIYGYENYLKLQEQLELAENDFKTLENILVRIRNKIFNKKNLMVSVTSDYGALKHLFVNSNESLKNLVSYFEENDKYINDMQNKVNDPTVMGWNEEIKSKKLFDEEKVKKEFFVLPTFVNSVSMSGILFKPGEYLDPSFTVIVAALKNSYLWDTVRGLNGAYGVFADIEYDGSVVFLSARDPNLEKTLATFRESAKGLRKMADTMTENDLLRYIINTIGTIDKPRRGIELSKLSFLRLISNESEQDRVEFRKRIMNTKKEDFYKFADLLESKVNEFEKNIVIITTKEKANEYIANVDGEFKKVLIE

来源 Source

来源生物 organism	Plasmodium falciparum 3D7
NCBI Class编号 ncbi_taxonomy_id	36329
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.20 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	45566

fit	/app/data/saxs_computation/wy/8wyu/8wyu.fit
pddf	/app/data/pr_computation/wy/8wyu/8wyu.pr.out
profile	/app/data/saxs_computation/wy/8wyu/8wyu.dat
