SAXSdb — 7di7

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Falcilysin

Plasmodium falciparum 3D7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	ACETATE ION × 2 N4-(7-CHLORO-QUINOLIN-4-YL)-N1,N1-DIETHYL-PENTANE-1,4-DIAMINE × 1 ZINC ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FCLN_PLAF7
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 24–1158； UniProt 59–1193

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7di7
Deposition date deposition_date	2020-11-18
Structure title title	Falcilysin in complex with chloroquine
Keywords keywords	PROTEIN BINDING-inhibitor complex; PROTEIN BINDING/INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7di7__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

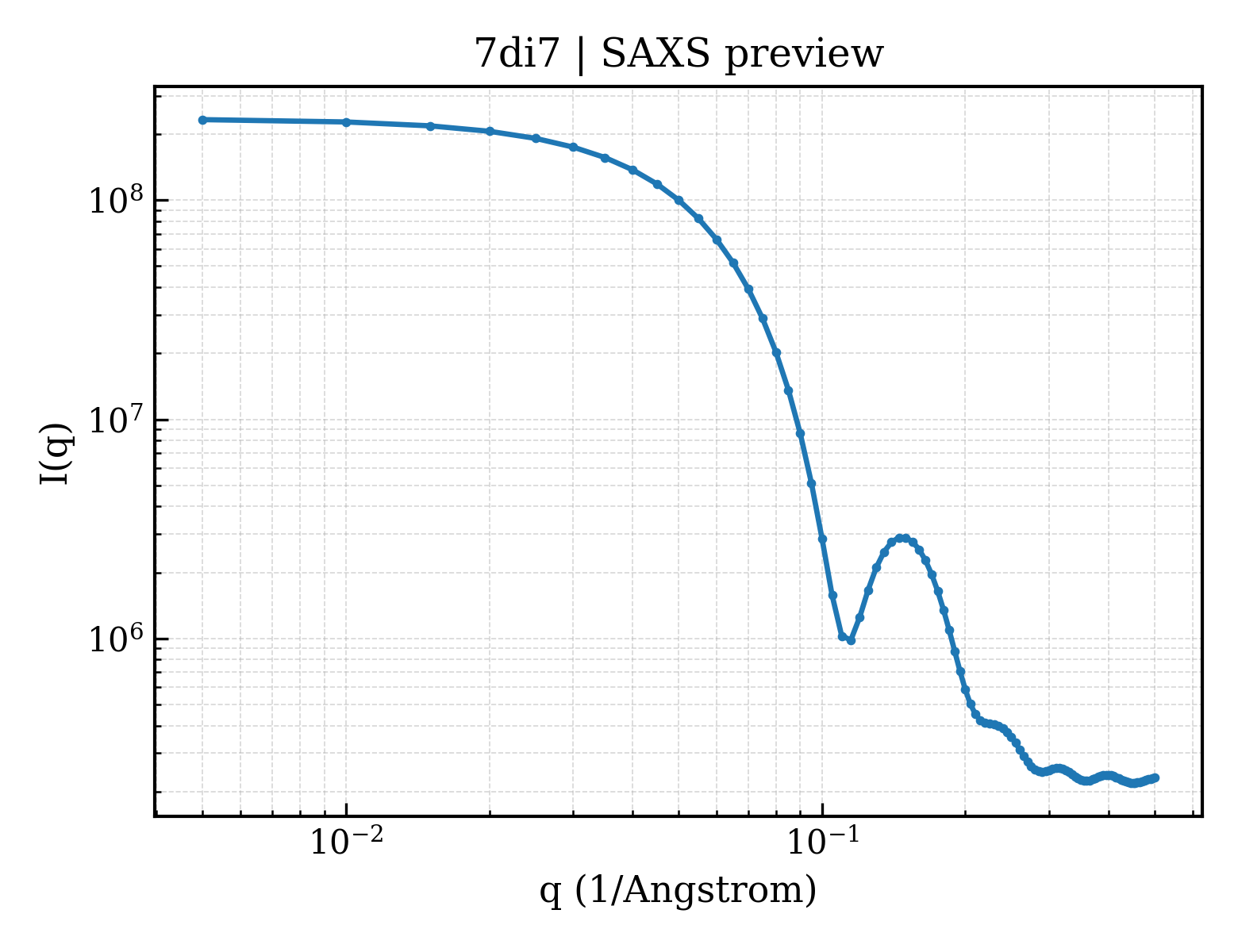

7di7__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

7di7__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.44 Å
Rg (electron density)	30.12 Å
Total Rg	31.02 Å
Atom count	8888
Residues	1076
Excluded volume	159440 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7di7__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Falcilysin
Molecular weight formula_weight	135039.4 kDa
EC 编号 ec_number	3.4.24.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	10422

MHHHHHHSSGVDLGTENLYFQSMEWIHEKSPKHNSYDIIEKRYNEEFKMTYTVYQHKKAKTQVISLGTNDPLDVEQAFAFYVKTLTHSGKGIPHILEHSVLSGSKNYNYKNSIGLLEKGTLHTHLNAYTFNDRTVYMAGSMNNKDFFNIMGVYMDSVFQPNVLENKYIFETEGWTYEVEKLKEDEKGKAEIPQMKDYKVSFNGIVYNEMKGALSSPLEDLYHEEMKYMFPDNVHSNNSGGDPKEITNLTYEEFKEFYYKNYNPKKVKVFFFSKNNPTELLNFVDQYLGQLDYSKYRDDAVESVEYQTYKKGPFYIKKKYGDHSEEKENLVSVAWLLNPKVDKTNNHNNNHSNNQSSENNGYSNGSHSSDLSLENPTDYFVLLIINNLLIHTPESVLYKALTDCGLGNNVIDRGLNDSLVQYIFSIGLKGIKRNNEKIKNFDKVHYEVEDVIMNALKKVVKEGFNKSAVEASINNIEFILKEANLKTSKSIDFVFEMTSKLNYNRDPLLIFEFEKYLNIVKNKIKNEPMYLEKFVEKHFINNAHRSVILLEGDENYAQEQENLEKQELKKRIENFNEQEKEQVIKNFEELSKYKNAEESPEHLNKFPIISISDLNKKTLEVPVNVYFTNINENNNIMETYNKLKTNEHMLKDNMDVFLKKYVLKNDKHNTNNNNNNNNNMDYSFTETKYEGNVPILVYEMPTTGIVYLQFVFSLDHLTVDELAYLNLFKTLILENKTNKRSSEDFVILREKNIGSMSANVALYSKDDHLNVTDKYNAQALFNLEMHVLSHKCNDALNIALEAVKESDFSNKKKVIDILKRKINGMKTTFSEKGYAILMKYVKAHLNSKHYAHNIIYGYENYLKLQEQLELAENDFKTLENILVRIRNKIFNKKNLMVSVTSDYGALKHLFVNSNESLKNLVSYFEENDKYINDMQNKVNDPTVMGWNEEIKSKKLFDEEKVKKEFFVLPTFVNSVSMSGILFKPGEYLDPSFTVIVAALKNSYLWDTVRGLNGAYGVFADIEYDGSVVFLSARDPNLEKTLATFRESAKGLRKMADTMTENDLLRYIINTIGTIDKPRRGIELSKLSFLRLISNESEQDRVEFRKRIMNTKKEDFYKFADLLESKVNEFEKNIVIITTKEKANEYIANVDGEFKKVLIE

Source Source

Source organism organism	Plasmodium falciparum 3D7
NCBI taxonomy ID ncbi_taxonomy_id	36329
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	N4-(7-CHLORO-QUINOLIN-4-YL)-N1,N1-DIETHYL-PENTANE-1,4-DIAMINE
Molecular weight formula_weight	319.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1494

▶

Unit-cell length a length_a	93.940 Å
Unit-cell length b length_b	106.610 Å
Unit-cell length c length_c	127.810 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	orthorhombic

Resolution resolution	1.820 Å
Low-resolution limit resolution_low	49.200 Å
R factor r_factor	0.1771
R_work r_work	0.1760
R_free r_free	0.1984
