8wxw

Falcilysin in complex with hemoglobin alpha chain peptide

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Falcilysin

Plasmodium falciparum 3D7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Hemoglobin subunit alpha fragment × 1 （P69905） GLYCEROL × 4 1,2-ETHANEDIOL × 1 ZINC ION × 1 CHLORIDE ION × 6 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FCLN_PLAF7
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 24–1158； UniProt 59–1193

Hemoglobin subunit alpha fragment

OrganismNot specified

UniProt P69905

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Falcilysin × 1 （Q76NL8） GLYCEROL × 4 1,2-ETHANEDIOL × 1 ZINC ION × 1 CHLORIDE ION × 6 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HBA_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain P； PDBConstruct 1–14； UniProt 35–48

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8wxw
Deposition date deposition_date	2023-10-30
Structure title title	Falcilysin in complex with hemoglobin alpha chain peptide
Keywords keywords	falcilysin-substrate complex, inactive mutant, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8wxw__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

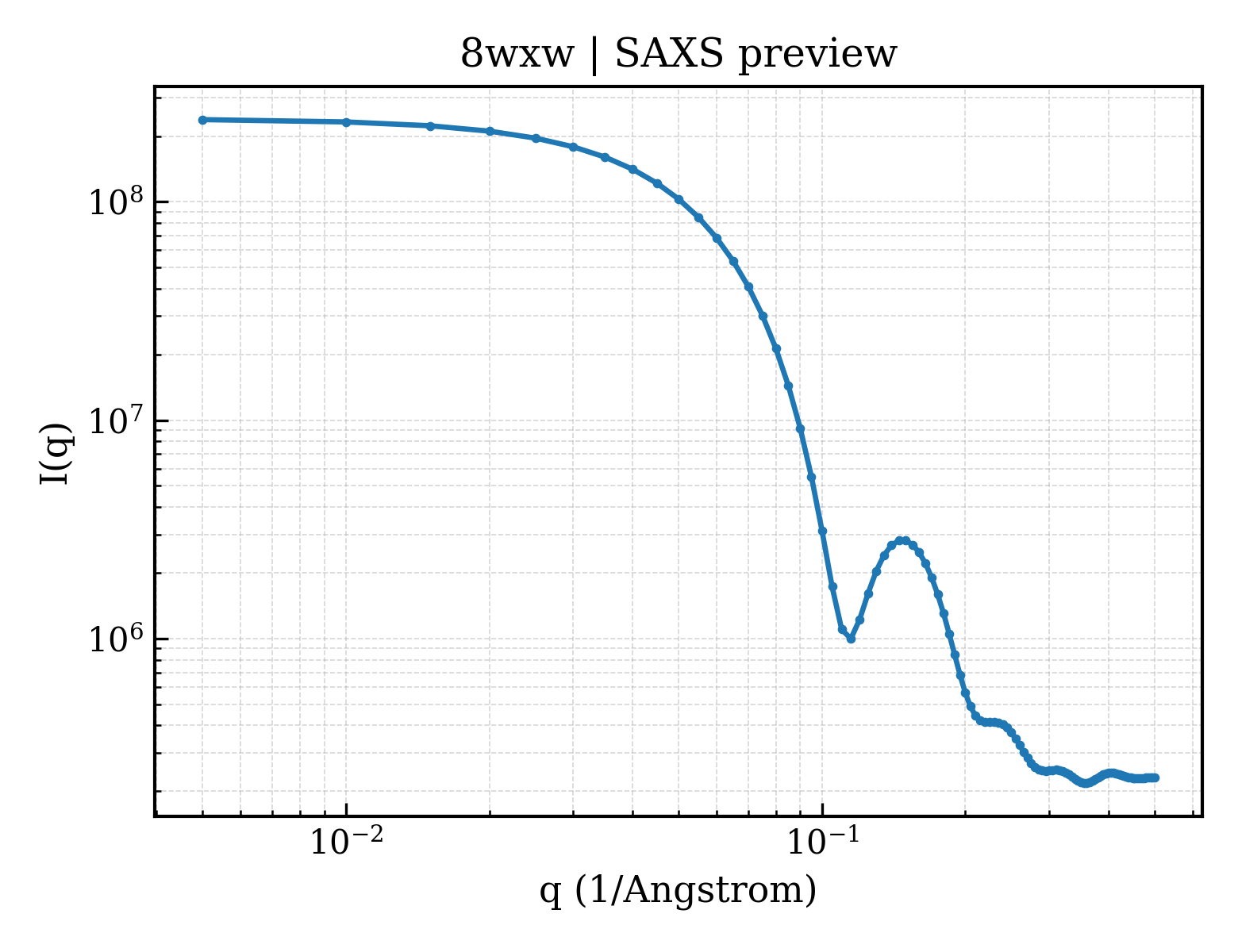

8wxw__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

8wxw__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.30 Å
Rg (electron density)	30.00 Å
Total Rg	30.89 Å
Atom count	8951
Residues	1083
Excluded volume	160580 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8wxw__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Falcilysin
Molecular weight formula_weight	135038.4 kDa
EC 编号 ec_number	3.4.24.-
Mutation mutation	E132Q
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	9724

MHHHHHHSSGVDLGTENLYFQSMEWIHEKSPKHNSYDIIEKRYNEEFKMTYTVYQHKKAKTQVISLGTNDPLDVEQAFAFYVKTLTHSGKGIPHILQHSVLSGSKNYNYKNSIGLLEKGTLHTHLNAYTFNDRTVYMAGSMNNKDFFNIMGVYMDSVFQPNVLENKYIFETEGWTYEVEKLKEDEKGKAEIPQMKDYKVSFNGIVYNEMKGALSSPLEDLYHEEMKYMFPDNVHSNNSGGDPKEITNLTYEEFKEFYYKNYNPKKVKVFFFSKNNPTELLNFVDQYLGQLDYSKYRDDAVESVEYQTYKKGPFYIKKKYGDHSEEKENLVSVAWLLNPKVDKTNNHNNNHSNNQSSENNGYSNGSHSSDLSLENPTDYFVLLIINNLLIHTPESVLYKALTDCGLGNNVIDRGLNDSLVQYIFSIGLKGIKRNNEKIKNFDKVHYEVEDVIMNALKKVVKEGFNKSAVEASINNIEFILKEANLKTSKSIDFVFEMTSKLNYNRDPLLIFEFEKYLNIVKNKIKNEPMYLEKFVEKHFINNAHRSVILLEGDENYAQEQENLEKQELKKRIENFNEQEKEQVIKNFEELSKYKNAEESPEHLNKFPIISISDLNKKTLEVPVNVYFTNINENNNIMETYNKLKTNEHMLKDNMDVFLKKYVLKNDKHNTNNNNNNNNNMDYSFTETKYEGNVPILVYEMPTTGIVYLQFVFSLDHLTVDELAYLNLFKTLILENKTNKRSSEDFVILREKNIGSMSANVALYSKDDHLNVTDKYNAQALFNLEMHVLSHKCNDALNIALEAVKESDFSNKKKVIDILKRKINGMKTTFSEKGYAILMKYVKAHLNSKHYAHNIIYGYENYLKLQEQLELAENDFKTLENILVRIRNKIFNKKNLMVSVTSDYGALKHLFVNSNESLKNLVSYFEENDKYINDMQNKVNDPTVMGWNEEIKSKKLFDEEKVKKEFFVLPTFVNSVSMSGILFKPGEYLDPSFTVIVAALKNSYLWDTVRGLNGAYGVFADIEYDGSVVFLSARDPNLEKTLATFRESAKGLRKMADTMTENDLLRYIINTIGTIDKPRRGIELSKLSFLRLISNESEQDRVEFRKRIMNTKKEDFYKFADLLESKVNEFEKNIVIITTKEKANEYIANVDGEFKKVLIE

Source Source

Source organism organism	Plasmodium falciparum 3D7
NCBI taxonomy ID ncbi_taxonomy_id	36329
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Hemoglobin subunit alpha fragment
Molecular weight formula_weight	1702.9 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P

LSFPTTKTYFPHFD

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	762

▶

Unit-cell length a length_a	94.120 Å
Unit-cell length b length_b	105.720 Å
Unit-cell length c length_c	125.360 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	orthorhombic

Resolution resolution	1.860 Å
Low-resolution limit resolution_low	46.090 Å
R factor r_factor	0.1900
R_work r_work	0.1889
R_free r_free	0.2096
