SAXSdb — 8x85

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Leptin receptor

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 4 其他Polymer 2 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 21–839 Chain B； UniProt 21–839	Not recorded	Leptin × 2 （P41159） ;beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 alpha-L-fucopyranose-(1-6)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 11	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.58 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8X85	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3V6O Leptin Receptor-antibody complex Deposited 2011-12-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 428–633（206 aa） Fragment：Leptin binding domain of human obesity receptor	Not recorded	CYS CYSTEINE × 1 EDO 1,2-ETHANEDIOL × 13 ACT ACETATE ION × 3 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 4.6；281 K；sodium acetate, PEG-4000, pH 4.6, vapor diffusion, temperature 281K	Resolution 1.95 Å R-free 0.213
3V6O Leptin Receptor-antibody complex Deposited 2011-12-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 428–633（206 aa） Fragment：Leptin binding domain of human obesity receptor	Not recorded	CYS CYSTEINE × 1 EDO 1,2-ETHANEDIOL × 18 ACT ACETATE ION × 3 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 4.6；281 K；sodium acetate, PEG-4000, pH 4.6, vapor diffusion, temperature 281K	Resolution 1.95 Å R-free 0.213
6E2P Structure of human JAK2 FERM/SH2 in complex with Leptin Receptor Deposited 2018-07-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 863–933（71 aa） Fragment：UNP residues 863-933	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277.15 K；0.1 M MES, pH 6.5, 0.2 M magnesium chloride, 5-10% PEG4000, 10% ethylene glycol	Resolution 2.83 Å R-free 0.243
6E2P Structure of human JAK2 FERM/SH2 in complex with Leptin Receptor Deposited 2018-07-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 863–933（71 aa） Fragment：UNP residues 863-933	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277.15 K；0.1 M MES, pH 6.5, 0.2 M magnesium chloride, 5-10% PEG4000, 10% ethylene glycol	Resolution 2.83 Å R-free 0.243
7Z3Q Crystal structure of the human leptin:LepR-CRH2 encounter complex to 3.6 A resolution. Deposited 2022-03-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 428–635（208 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；Index screen HT #F1 0.2 M L-proline 0.1 M HEPES pH 7.5 10% PEG 3350 cryo: 25% PEG400	Resolution 3.62 Å R-free 0.305
7Z3Q Crystal structure of the human leptin:LepR-CRH2 encounter complex to 3.6 A resolution. Deposited 2022-03-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 428–635（208 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；Index screen HT #F1 0.2 M L-proline 0.1 M HEPES pH 7.5 10% PEG 3350 cryo: 25% PEG400	Resolution 3.62 Å R-free 0.305
7Z3Q Crystal structure of the human leptin:LepR-CRH2 encounter complex to 3.6 A resolution. Deposited 2022-03-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 428–635（208 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；Index screen HT #F1 0.2 M L-proline 0.1 M HEPES pH 7.5 10% PEG 3350 cryo: 25% PEG400	Resolution 3.62 Å R-free 0.305
8AVE Human leptin in complex with the human LEP-R ectodomain fused to a C-terminal trimeric isoleucine GCN4 zipper (2:2 model) Deposited 2022-08-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 22–839（818 aa） Chain D 22–839（818 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；20 mM HEPES, 150 mM NaCl, pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.62 Å
8AVF Human leptin in complex with the human LEP-R ectodomain fused to a C-terminal trimeric isoleucine GCN4 zipper (closed 3:3 model) Deposited 2022-08-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 22–839（818 aa） Chain D 22–839（818 aa） Chain F 22–839（818 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；20 mM HEPES, 150 mM NaCl, pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.45 Å
8AVO Human leptin in complex with the human LEP-R ectodomain fused to a C-terminal trimeric isoleucine GCN4 zipper (open 3:3 model). Deposited 2022-08-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 22–839（818 aa） Chain D 22–839（818 aa） Chain F 22–839（818 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；20 mM HEPES, 150 mM NaCl, pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.84 Å
8X80 Structure of leptin-LepR trimer with a small gap Deposited 2023-11-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 21–839（819 aa） Chain B 21–839（819 aa） Chain C 21–839（819 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 15	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.88 Å
8X81 Structure of leptin-LepR trimer with a large gap Deposited 2023-11-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 21–839（819 aa） Chain B 21–839（819 aa） Chain C 21–839（819 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 19	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.77 Å

8 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	LEPR_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–819； UniProt 21–839 Author chain B； PDBConstruct 1–819； UniProt 21–839

Leptin

Homo sapiens

UniProt P41159

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 4 其他Polymer 2 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain C； UniProt 1–167 Chain D； UniProt 1–167	Not recorded	Leptin receptor × 2 （P48357） ;beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 alpha-L-fucopyranose-(1-6)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 11	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.58 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8X85	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AX8 Human obesity protein, leptin Deposited 1997-10-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 22–167（146 aa）	Mutation：W100E	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；PROTEIN WAS CRYSTALLIZED FROM 1.8M NA FORMATE, 100MM TRIS, PH 7.5	Resolution 2.40 Å R-free 0.283
1AX8 Human obesity protein, leptin Deposited 1997-10-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 22–167（146 aa）	Mutation：W100E	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；PROTEIN WAS CRYSTALLIZED FROM 1.8M NA FORMATE, 100MM TRIS, PH 7.5	Resolution 2.40 Å R-free 0.283
7Z3Q Crystal structure of the human leptin:LepR-CRH2 encounter complex to 3.6 A resolution. Deposited 2022-03-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 22–167（146 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；Index screen HT #F1 0.2 M L-proline 0.1 M HEPES pH 7.5 10% PEG 3350 cryo: 25% PEG400	Resolution 3.62 Å R-free 0.305
7Z3Q Crystal structure of the human leptin:LepR-CRH2 encounter complex to 3.6 A resolution. Deposited 2022-03-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 22–167（146 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；Index screen HT #F1 0.2 M L-proline 0.1 M HEPES pH 7.5 10% PEG 3350 cryo: 25% PEG400	Resolution 3.62 Å R-free 0.305
7Z3Q Crystal structure of the human leptin:LepR-CRH2 encounter complex to 3.6 A resolution. Deposited 2022-03-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 22–167（146 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；Index screen HT #F1 0.2 M L-proline 0.1 M HEPES pH 7.5 10% PEG 3350 cryo: 25% PEG400	Resolution 3.62 Å R-free 0.305
8AVE Human leptin in complex with the human LEP-R ectodomain fused to a C-terminal trimeric isoleucine GCN4 zipper (2:2 model) Deposited 2022-08-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 22–167（146 aa） Chain C 22–167（146 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；20 mM HEPES, 150 mM NaCl, pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.62 Å
8AVF Human leptin in complex with the human LEP-R ectodomain fused to a C-terminal trimeric isoleucine GCN4 zipper (closed 3:3 model) Deposited 2022-08-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 22–167（146 aa） Chain C 22–167（146 aa） Chain E 22–167（146 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；20 mM HEPES, 150 mM NaCl, pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.45 Å
8AVO Human leptin in complex with the human LEP-R ectodomain fused to a C-terminal trimeric isoleucine GCN4 zipper (open 3:3 model). Deposited 2022-08-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 22–167（146 aa） Chain C 22–167（146 aa） Chain E 22–167（146 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；20 mM HEPES, 150 mM NaCl, pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.84 Å
8K6Z NMR structure of human leptin Deposited 2023-07-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 22–167（146 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.5；298 K；Ionic strength (raw mmCIF value) 5；Pressure 1 NMR sample composition 0.8 mM [U-13C; U-15N] leptin, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
8X80 Structure of leptin-LepR trimer with a small gap Deposited 2023-11-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 1–167（167 aa） Chain E 1–167（167 aa） Chain F 1–167（167 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 15	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.88 Å
8X81 Structure of leptin-LepR trimer with a large gap Deposited 2023-11-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 1–167（167 aa） Chain E 1–167（167 aa） Chain F 1–167（167 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 19	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.77 Å
9PUO Neutralizing monoclonal antibody Fab fragment bound to leptin Deposited 2025-07-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 22–167（146 aa）	Mutation：W100E	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；Protein at 25 mg/ml in 20 mM Hepes pH 7.4 and 75 mM sodium chloride versus a reservoir with 18% PEG 8,000 and 20% glycerol.	Resolution 3.10 Å R-free 0.277
9PUO Neutralizing monoclonal antibody Fab fragment bound to leptin Deposited 2025-07-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 22–167（146 aa）	Mutation：W100E	PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；Protein at 25 mg/ml in 20 mM Hepes pH 7.4 and 75 mM sodium chloride versus a reservoir with 18% PEG 8,000 and 20% glycerol.	Resolution 3.10 Å R-free 0.277

9 other PDB entries and 13 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	LEP_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–167； UniProt 1–167 Author chain D； PDBConstruct 1–167； UniProt 1–167

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8x85
Deposition date deposition_date	2023-11-27
Structure title title	Structure of leptin-LepR dimer
Keywords keywords	cytokine receptor, tetramer, CYTOKINE; CYTOKINE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	63.67 Å
Radius of gyration Rg (electron density) rg_electron	64.05 Å
Forward intensity I(0) i0	570144000.00
Molecular weight molecular_weight	206140.0 kDa
Excluded volume excluded_volume	260590 Å³
Envelope volume envelope_volume	490880 Å³
Hydration-shell volume shell_volume	67958 Å³
Envelope diameter envelope_diameter	204.3 Å
Shell Rg shell_rg	59.74 Å
Envelope Rg envelope_rg	60.74 Å
Shape Rg shape_rg	64.03 Å
Total Rg total_rg	63.98 Å
Total atoms total_atoms	14490
Residues n_residues	1782
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	186.4 Å
Rg (real space) rg_real	63.70 Å
Rg uncertainty (real space) rg_real_error	1.50 Å
I(0) (real space) i0_real	5.7010e+08
I(0) uncertainty (real space) i0_real_error	1.1590e+07
Rg (reciprocal space) rg_reciprocal	63.59 Å
I(0) (reciprocal space) i0_reciprocal	570000000.0000
Solution quality estimate total_estimate	0.8075
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	89.5 Å
Skewness Skewness skewness	0.208
Kurtosis Kurtosis kurtosis	-0.309
Angular range angular_range	— – 0.1250 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	17630000.0000
Real-space data points n_real_points	26
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.806; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.080

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Leptin receptor
Molecular weight formula_weight	94933.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	14490

AFNLSYPITPWRFKLSCMPPNSTYDYFLLPAGLSKNTSNSNGHYETAVEPKFNSSGTHFSNLSKTTFHCCFRSEQDRNCSLCADNIEGKTFVSTVNSLVFQQIDANWNIQCWLKGDLKLFICYVESLFKNLFRNYNYKVHLLYVLPEVLEDSPLVPQKGSFQMVHCNCSVHECCECLVPVPTAKLNDTLLMCLKITSGGVIFQSPLMSVQPINMVKPDPPLGLHMEITDDGNLKISWSSPPLVPFPLQYQVKYSENSTTVIREADKIVSATSLLVDSILPGSSYEVQVRGKRLDGPGIWSDWSTPRVFTTQDVIYFPPKILTSVGSNVSFHCIYKKENKIVPSKEIVWWMNLAEKIPQSQYDVVSDHVSKVTFFNLNETKPRGKFTYDAVYCCNEHECHHRYAELYVIDVNINISCETDGYLTKMTCRWSTSTIQSLAESTLQLRYHRSSLYCSDIPSIHPISEPKDCYLQSDGFYECIFQPIFLLSGYTMWIRINHSLGSLDSPPTCVLPDSVVKPLPPSSVKAEITINIGLLKISWEKPVFPENNLQFQIRYGLSGKEVQWKMYEVYDAKSKSVSLPVPDLCAVYAVQVRCKRLDGLGYWSNWSNPAYTVVMDIKVPMRGPEFWRIINGDTMKKEKNVTLLWKPLMKNDSLCSVQRYVINHHTSCNGTWSEDVGNHTKFTFLWTEQAHTVTVLAINSIGASVANFNLTFSWPMSKVNIVQSLSAYPLNSSCVIVSWILSPSDYKLMYFIIEWKNLNEDGEIKWLRISSSVKKYYIHDHFIPIEKYQFSLYPIFMEGVGKPKIINSFTQDDIEKHQSDGTHHHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Leptin
Molecular weight formula_weight	18656.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

MHWGTLCGFLWLWPYLFYVQAVPIQKVQDDTKTLIKTIVTRINDISHTQSVSSKQKVTGLDFIPGLHPILTLSKMDQTLAVYQQILTSMPSRNVIQISNDLENLRDLLHVLAFSKSCHLPWASGLETLDSLGGVLEASGYSTEVVALSRLQGSLQDMLWQLDLSPGC

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 Entity 3 branched

Description description	;beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	732.7 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 branched

Description description	alpha-L-fucopyranose-(1-6)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	367.3 kDa
Source method src_method	man
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	11

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.58 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	115281

fit	/app/data/saxs_computation/x8/8x85/8x85.fit
pddf	/app/data/pr_computation/x8/8x85/8x85.pr.out
profile	/app/data/saxs_computation/x8/8x85/8x85.dat

Structure of leptin-LepR dimer

1. Protein Identity and Related Structures Protein Identity & Related Structures

Leptin receptor

State in the Current Structure

Other States of the Same Protein in the Database

Leptin

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

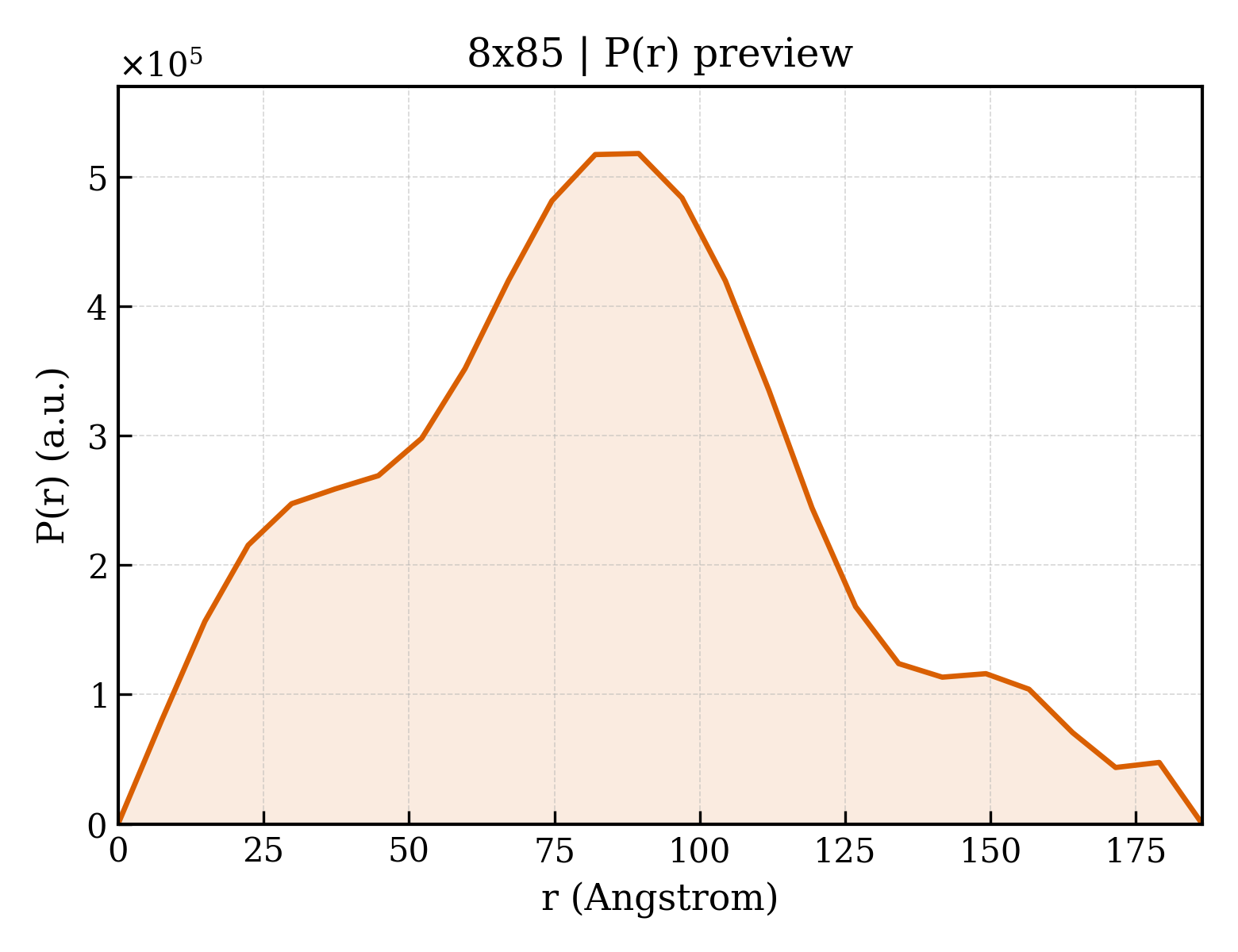

P(r) Distance Distribution P(r) Distribution
