SAXSdb — 8xi4

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Spike glycoprotein E1

Eastern equine encephalitis virus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	Very low-density lipoprotein receptor × 4 （P98155） CALCIUM ION × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	POLS_EEEVF
Isoform	—
PDB entities	1, 2, 3
Chains and sequence ranges	Author chain A； PDBConstruct 1–441； UniProt 802–1242 Author chain D； PDBConstruct 1–441； UniProt 802–1242 Author chain G； PDBConstruct 1–441； UniProt 802–1242 Author chain J； PDBConstruct 1–441； UniProt 802–1242 Author chain B； PDBConstruct 1–420； UniProt 325–744 Author chain E； PDBConstruct 1–420； UniProt 325–744 Author chain H； PDBConstruct 1–420； UniProt 325–744 Author chain K； PDBConstruct 1–420； UniProt 325–744 Author chain C； PDBConstruct 1–261； UniProt 1–261 Author chain F； PDBConstruct 1–261； UniProt 1–261 Author chain I； PDBConstruct 1–261； UniProt 1–261 Author chain L； PDBConstruct 1–261； UniProt 1–261

Very low-density lipoprotein receptor

Homo sapiens

UniProt P98155

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	Spike glycoprotein E1 × 4 （Q4QXJ7） Spike glycoprotein E2 × 4 （Q4QXJ7） Capsid protein × 4 （Q4QXJ7） CALCIUM ION × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VLDLR_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain M； PDBConstruct 1–83； UniProt 31–113 Author chain N； PDBConstruct 1–83； UniProt 31–113 Author chain O； PDBConstruct 1–83； UniProt 31–113 Author chain P； PDBConstruct 1–83； UniProt 31–113

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8xi4
Deposition date deposition_date	2023-12-19
Structure title title	Structure of Eastern Equine Encephalitis VLP in complex with the receptor VLDLR LA1-2
Keywords keywords	East Equine Encephalitis virus, EEEV, receptor, complex, VLDLR, glycoprotein, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8xi4__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8xi4__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

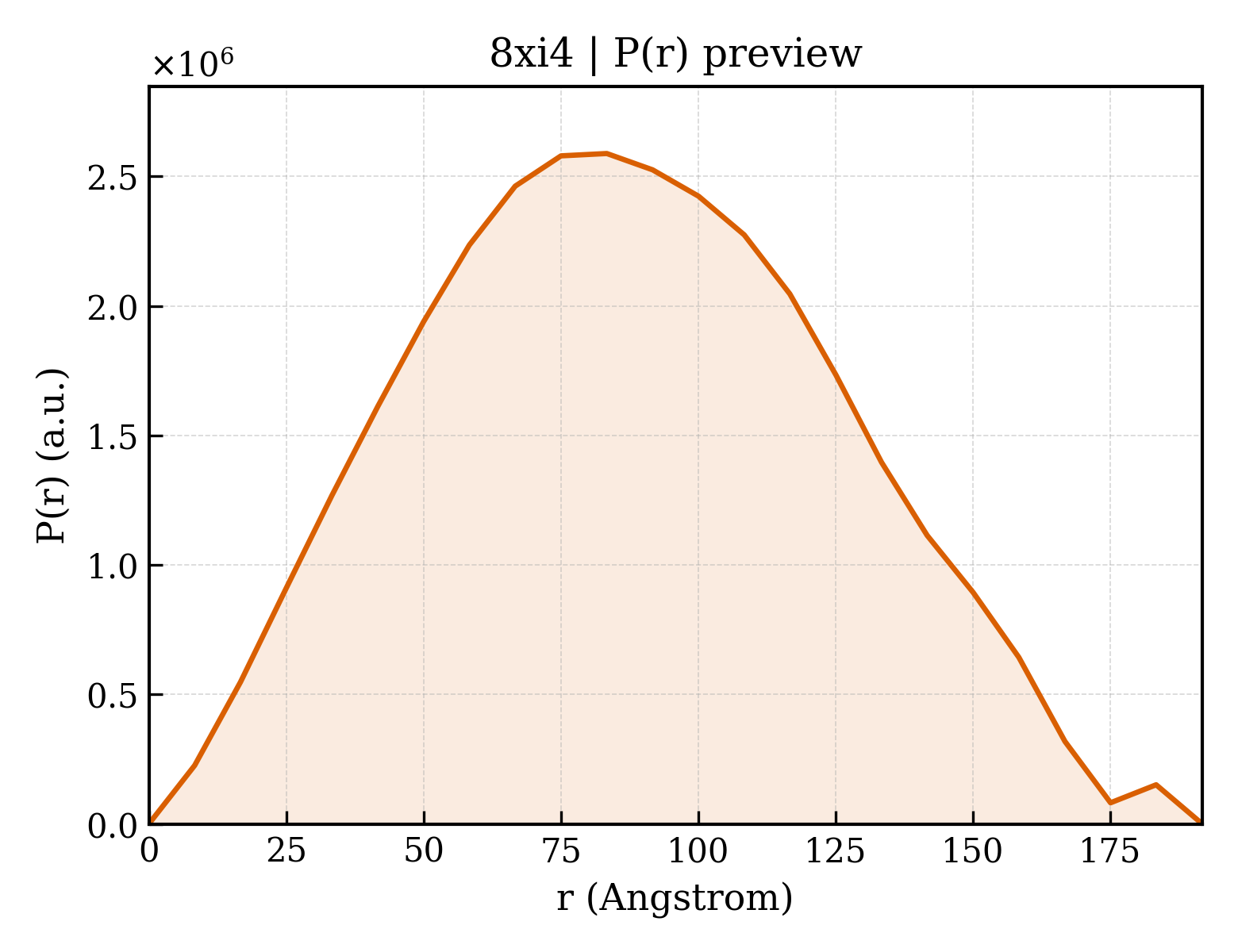

8xi4__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	67.26 Å
Rg (electron density)	66.92 Å
Total Rg	67.12 Å
Atom count	33772
Residues	4364
Excluded volume	598660 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8xi4__assembly_1__model_1`	16-meric （16）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Spike glycoprotein E1
Molecular weight formula_weight	47984.2 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D,G,J
Atom count atom_count	33772

YEHTAVMPNKVGIPYKALVERPGYAPVHLQIQLVNTRIIPSTNLEYITCKYKTKVPSPVVKCCGATQCTSKPHPDYQCQVFSGVYPFMWGGAYCFCDTENTQMSEAYVERSEECSIDHAKAYKVHTGTVQAMVNITYGSVSWRSADVYVNGETPAKIGDAKLIIGPLSSAWSPFDNKVVVYGHEVYNYDFPEYGTGKAGSFGDLQSRTSTSNDLYANTNLKLQRPQAGIVHTPFTQVPSGFERWKKDKGAPLNDVAPFGCSIALEPLRAENCAVGSIPISIDIPDAAFTRISETPTVSDLECKITECTYAFDFGGIATVAYKSSKAGNCPIHSPSGVAVIKENDVTLAESGSFTFHFSTANIHPAFKLQVCTSAVTCKGDCKPPKDHIVDYPAQHTESFTSAISATAWSWIKVLVGGTSAFIVLGLIATAVVALVLFFHRH

Source Source

Source organism organism	Eastern equine encephalitis virus
NCBI taxonomy ID ncbi_taxonomy_id	11021
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Spike glycoprotein E2
Molecular weight formula_weight	47047.0 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,E,H,K

DLDTHFTQYKLARPYIADCPNCGHSRCDSPIAIEEVRGDAHAGVIRIQTSAMFGLKTDGVDLAYMSFMNGKTQKSIKIDNLHVRTSAPCSLVSHHGYYILAQCPPGDTVTVGFHDGPNRHTCTVAHKVEFRPVGREKYRHPPEHGVELPCNRYTHKRADQGHYVEMHQPGLVADHSLLSIHSAKVKITVPSGAQVKYYCKCPDVRKGITSSDHTTTCTDVKQCRAYLIDNKKWVYNSGRLPRGEGDTFKGKLHVPFVPVKAKCIATLAPEPLVEHKHRTLILHLHPDHPTLLTTRSLGSDANPTRQWIERPTTVNFTVTGEGLEYTWGNHPPKRVWAQESGEGNPHGWPHEVVVYYYNRYPLTTIIGLCTCVAIIMVSCVTSVWLLCRTRNLCITPYKLAPNAQVPILLALLCCIKPTRA

Source Source

Source organism organism	Eastern equine encephalitis virus
NCBI taxonomy ID ncbi_taxonomy_id	11021
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Capsid protein
Molecular weight formula_weight	29178.8 kDa
EC 编号 ec_number	3.4.21.90
Mutation mutation	K67N
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,F,I,L

MFPYPTLNYPPMAPINPMAYRDPNPPRRRWRPFRPPLAAQIEDLRRSIASLTLKQRAPNPPAGPPANRKKPAPKPKPAQAKKKRPPPPAKKQKRKPKPGKRQRMCMKLESDKTFPIMLNGQVNGYACVVGGRVFKPLHVEGRIDNEQLAAIKLKKASIYDLEYGDVPQCMKSDTLQYTSDKPPGFYNWHHGAVQYENNRFTVPRGVGGKGDSGRPILDNKGRVVAIVLGGVNEGSRTALSVVTWNQKGVTVKDTPEGSEPW

Source Source

Source organism organism	Eastern equine encephalitis virus
NCBI taxonomy ID ncbi_taxonomy_id	11021
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	Very low-density lipoprotein receptor
Molecular weight formula_weight	9216.1 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M,N,O,P

AKCEPSQFQCTNGRCITLLWKCDGDEDCVDGSDEKNCVKKTCAESDFVCNNGQCVPSRWKCDGDPDCEDGSDESPEQCHMRTC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 5 Entity 5 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	8

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.40 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	15654
