SAXSdb — 8xum

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Leucine-rich repeat-containing G-protein coupled receptor 4

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	MB52 × 1 R-spondin-2 × 1 （Q6UXX9）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LGR4_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–951； UniProt 1–951

R-spondin-2

Homo sapiens

UniProt Q6UXX9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	MB52 × 1 Leucine-rich repeat-containing G-protein coupled receptor 4 × 1 （Q9BXB1）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RSPO2_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain B； PDBConstruct 1–243； UniProt 1–243

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8xum
Deposition date deposition_date	2024-01-13
Structure title title	Structure of LGR4 with RSPO2
Keywords keywords	LGR4, RSPO2, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8xum__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8xum__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

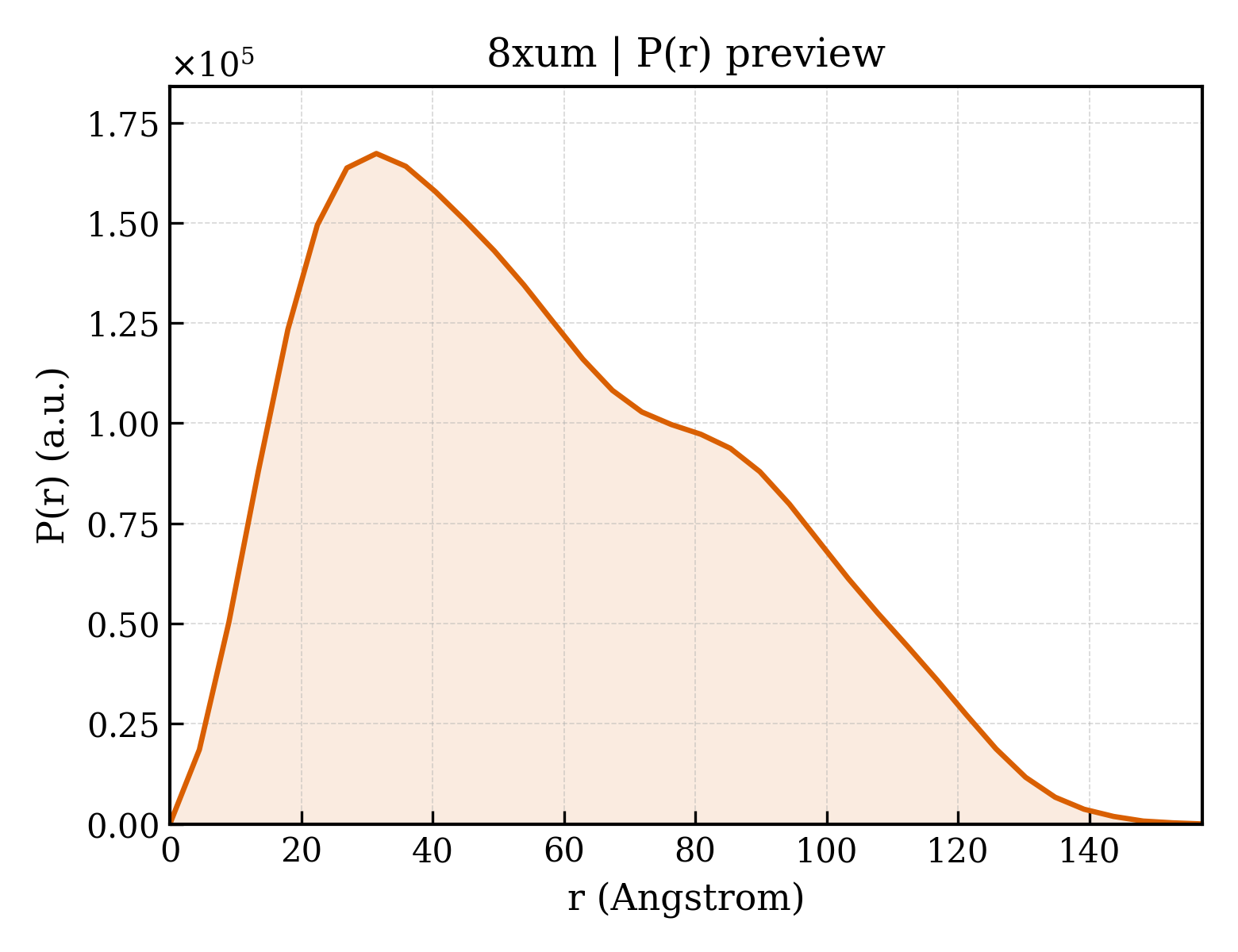

8xum__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	44.73 Å
Rg (electron density)	45.93 Å
Total Rg	45.99 Å
Atom count	7359
Residues	951
Excluded volume	131950 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8xum__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	MB52
Molecular weight formula_weight	12003.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C
Atom count atom_count	7359

GSLRLSCAASGYTYSPYCMGWFRQAPGKAREGVATVDLDGSTIYADSVKGRFTISQDNAKNTLYLQMNSLKPEDTAMYYCASRTRAGVTCGLNWAIFSYWGQGTQVTVSS

Source Source

Source organism organism	Camelus bactrianus
NCBI taxonomy ID ncbi_taxonomy_id	9837
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Leucine-rich repeat-containing G-protein coupled receptor 4
Molecular weight formula_weight	104565.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

MPGPLGLLCFLALGLLGSAGPSGAAPPLCAAPCSCDGDRRVDCSGKGLTAVPEGLSAFTQALDISMNNITQLPEDAFKNFPFLEELQLAGNDLSFIHPKALSGLKELKVLTLQNNQLKTVPSEAIRGLSALQSLRLDANHITSVPEDSFEGLVQLRHLWLDDNSLTEVPVHPLSNLPTLQALTLALNKISSIPDFAFTNLSSLVVLHLHNNKIRSLSQHCFDGLDNLETLDLNYNNLGEFPQAIKALPSLKELGFHSNSISVIPDGAFDGNPLLRTIHLYDNPLSFVGNSAFHNLSDLHSLVIRGASMVQQFPNLTGTVHLESLTLTGTKISSIPNNLCQEQKMLRTLDLSYNNIRDLPSFNGCHALEEISLQRNQIYQIKEGTFQGLISLRILDLSRNLIHEIHSRAFATLGPITNLDVSFNELTSFPTEGLNGLNQLKLVGNFKLKEALAAKDFVNLRSLSVPYAYQCCAFWGCDSYANLNTEDNSLQDHSVAQEKGTADAANVTSTLENEEHSQIIIHCTPSTGAFKPCEYLLGSWMIRLTVWFIFLVALFFNLLVILTTFASCTSLPSSKLFIGLISVSNLFMGIYTGILTFLDAVSWGRFAEFGIWWETGSGCKVAGFLAVFSSESAIFLLMLATVERSLSAKDIMKNGKSNHLKQFRVAALLAFLGATVAGCFPLFHRGEYSASPLCLPFPTGETPSLGFTVTLVLLNSLAFLLMAVIYTKLYCNLEKEDLSENSQSSMIKHVAWLIFTNCIFFCPVAFFSFAPLITAISISPEIMKSVTLIFFPLPACLNPVLYVFFNPKFKEDWKLLKRRVTKKSGSVSVSISSQGGCLEQDFYYDCGMYSHLQGNLTVCDCCESFLLTKPVSCKHLIKSHSCPALAVASCQRPEGYWSDCGTQSAHSDYADEEDSFVSDSSDQVQACGRACFYQSRGFPLVRYAYNLPRVKD

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	R-spondin-2
Molecular weight formula_weight	28356.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MQFRLFSFALIILNCMDYSHCQGNRWRRSKRASYVSNPICKGCLSCSKDNGCSRCQQKLFFFLRREGMRQYGECLHSCPSGYYGHRAPDMNRCARCRIENCDSCFSKDFCTKCKVGFYLHRGRCFDECPDGFAPLDETMECVEGCEVGHWSEWGTCSRNNRTCGFKWGLETRTRQIVKKPVKDTILCPTIAESRRCKMTMRHCPGGKRTPKAKEKRNKKKKRKLIERAQEQHSVFLATDRANQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.90 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	2357026
