SAXSdb — 4kt1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Leucine-rich repeat-containing G-protein coupled receptor 4

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 2 其他Polymer 1 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 26–527	Fragment：UNP residues 26-502	R-spondin-1 × 1 （Q2MKA7） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；291 K；PEG, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.50 Å R-free 0.209

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4KT1	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4QXE Crystal structure of LGR4 fused with hagfish VLR Deposited 2014-07-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 27–396（370 aa） Fragment：R-spondin Receptor, UNP residues 27-396, UNP residues 133-200	Mutation：D75G	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 GOL GLYCEROL × 1 CL CHLORIDE ION × 2 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；289 K；0.1M HEPES pH 7.5, 2.0M ammonium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.20 Å R-free 0.237
4QXF crystal structure of human LGR4 and Rspo1 Deposited 2014-07-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 27–252（226 aa） Fragment：UNP residues 27-252, UNP residues 128-200	Mutation：D75G	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289 K；0.1M MES pH 6.5, 0.2M sodium thiocyanate, 22% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.25 Å R-free 0.243
4QXF crystal structure of human LGR4 and Rspo1 Deposited 2014-07-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 27–252（226 aa） Fragment：UNP residues 27-252, UNP residues 128-200	Mutation：D75G	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289 K；0.1M MES pH 6.5, 0.2M sodium thiocyanate, 22% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.25 Å R-free 0.243
8WVU Cryo-EM structure of LGR4 in complex with Rspo1 and RNF43 Deposited 2023-10-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 24–832（809 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen PROPANE	Resolution 3.61 Å
8WVV Cryo-EM structure of LGR4 in state I Deposited 2023-10-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 24–832（809 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen PROPANE	Resolution 3.35 Å
8WVW Cryo-EM structure of LGR4 in state II Deposited 2023-10-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 24–832（809 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen PROPANE	Resolution 3.53 Å
8WVX Cryo-EM structure of LGR4 in complex with Norrin(dimer) Deposited 2023-10-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 24–832（809 aa） Chain B 24–832（809 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen PROPANE	Resolution 3.32 Å
8WVY Cryo-EM structure of LGR4 in complex with Norrin Deposited 2023-10-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 24–832（809 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen PROPANE	Resolution 3.29 Å
8XFP the pentamerA complex of LGR4-RSPO2-ZNRF3(delta RING) Deposited 2023-12-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–951（951 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.21 Å
8XFS LGR4-RSPO2-ZNRF3 RING domain (1:2:2) Deposited 2023-12-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 31–821（791 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
8XFT LGR4-RSPO2-ZNRF3(1:1:1) Deposited 2023-12-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–951（951 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.24 Å
8XT9 structure of LGR4 Deposited 2024-01-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–951（951 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
8XUM Structure of LGR4 with RSPO2 Deposited 2024-01-13	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–951（951 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
8Y69 LGR4-RSPO2-ZNRF3 (2:2:2) Deposited 2024-02-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 33–820（788 aa） Chain D 33–820（788 aa）	Not recorded	CLR CHOLESTEROL × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.38 Å
9KB6 Cryo-EM structure of LGR4 Deposited 2024-10-30	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–822（822 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.53 Å
9KB7 Cryo-EM structure of LGR4-RSPO2 complex Deposited 2024-10-30	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–822（822 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.97 Å
9KB8 Cryo-EM structure of LGR4-RSPO2-ZNRF3 complex (1:1:2) Deposited 2024-10-30	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–822（822 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.25 Å
9KB9 Cryo-EM structure of LGR4-RSPO2-ZNRF3 complex (2:2:2) Deposited 2024-10-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–822（822 aa） Chain D 1–822（822 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.59 Å
9KGK Structure of the complex of LGR4 with NB18 Deposited 2024-11-08	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–950（950 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.63 Å
9KHH Structure of the complex of LGR4 with Norrin (2:2) Deposited 2024-11-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 24–951（928 aa） Chain D 24–951（928 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.65 Å
9S37 Structure of LGR4 with NB21 Deposited 2025-07-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 32–823（792 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.94 Å
9S38 Structure of LGR4 with NB21 Deposited 2025-07-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 32–823（792 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.94 Å
9UOK Structure of the complex of LGR4_ECD with Norrin Deposited 2025-04-25	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 24–951（928 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.05 Å

22 other PDB entries and 23 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	LGR4_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–502； UniProt 26–527

R-spondin-1

Homo sapiens

UniProt Q2MKA7

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 2 其他Polymer 1 PDB declaration: dimeric（2） Consistent with protein copy count	Chain E； UniProt 39–128	Fragment：UNP residues 39-128	Leucine-rich repeat-containing G-protein coupled receptor 4 × 1 （Q9BXB1） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；291 K；PEG, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.50 Å R-free 0.209

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4KT1	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4BSO Crystal structure of R-spondin 1 (Fu1Fu2) - Native Deposited 2013-06-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–146（116 aa） Fragment：FU1FU2, RESIDUES 31-146	Not recorded	EDO 1,2-ETHANEDIOL × 5 CL CHLORIDE ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.20 Å R-free 0.250
4BSP Crystal structure of R-spondin 1 (Fu1Fu2) - Holmium soak Deposited 2013-06-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–146（116 aa） Fragment：FU1FU2, RESIDUES 31-146	Not recorded	HO HOLMIUM ATOM × 2 SO4 SULFATE ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å R-free 0.260
4BSR Structure of the ectodomain of LGR5 in complex with R-spondin-1 (Fu1Fu2) in P22121 crystal form Deposited 2013-06-11	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 31–146（116 aa） Fragment：FU1FU2, RESIDUES 31-146 Chain D 31–146（116 aa） Fragment：FU1FU2, RESIDUES 31-146	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.20 Å R-free 0.258
4BSS Structure of the ectodomain of LGR5 in complex with R-spondin-1 (Fu1Fu2) in P21 crystal form Deposited 2013-06-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 31–146（116 aa） Fragment：FU1FU2, RESIDUES 31-146 Chain D 31–146（116 aa） Fragment：FU1FU2, RESIDUES 31-146	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.20 Å R-free 0.290
4BSS Structure of the ectodomain of LGR5 in complex with R-spondin-1 (Fu1Fu2) in P21 crystal form Deposited 2013-06-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain G 31–146（116 aa） Fragment：FU1FU2, RESIDUES 31-146 Chain H 31–146（116 aa） Fragment：FU1FU2, RESIDUES 31-146	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.20 Å R-free 0.290
4BST Structure of the ectodomain of LGR5 in complex with R-spondin-1 (Fu1Fu2) in P6122 crystal form Deposited 2013-06-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 31–146（116 aa） Fragment：FU1FU2, RESIDUES 31-146 Chain D 31–146（116 aa） Fragment：FU1FU2, RESIDUES 31-146	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 4.30 Å R-free 0.268
4BSU Structure of the ectodomain of LGR5 in complex with R-spondin-1 (Fu1Fu2) in C2 crystal form Deposited 2013-06-11	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain G 31–146（116 aa） Chain H 31–146（116 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.20 Å R-free 0.287
4BSU Structure of the ectodomain of LGR5 in complex with R-spondin-1 (Fu1Fu2) in C2 crystal form Deposited 2013-06-11	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 31–146（116 aa） Chain D 31–146（116 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.20 Å R-free 0.287
4CDK Structure of ZNRF3-RSPO1 Deposited 2013-11-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 31–145（115 aa） Fragment：FURIN-LIKE DOMAIN, RESIDUES 31-145	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions 0.2M SODIUM BROMIDE AND 20% W/V PEG 3350	Resolution 2.80 Å R-free 0.246
4CDK Structure of ZNRF3-RSPO1 Deposited 2013-11-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 31–145（115 aa） Fragment：FURIN-LIKE DOMAIN, RESIDUES 31-145	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions 0.2M SODIUM BROMIDE AND 20% W/V PEG 3350	Resolution 2.80 Å R-free 0.246
4CDK Structure of ZNRF3-RSPO1 Deposited 2013-11-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 31–145（115 aa） Fragment：FURIN-LIKE DOMAIN, RESIDUES 31-145	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions 0.2M SODIUM BROMIDE AND 20% W/V PEG 3350	Resolution 2.80 Å R-free 0.246
4CDK Structure of ZNRF3-RSPO1 Deposited 2013-11-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 31–145（115 aa） Fragment：FURIN-LIKE DOMAIN, RESIDUES 31-145	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions 0.2M SODIUM BROMIDE AND 20% W/V PEG 3350	Resolution 2.80 Å R-free 0.246
4KNG Crystal structure of human LGR5-RSPO1-RNF43 Deposited 2013-05-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain M 35–144（110 aa） Fragment：furin repeats Chain P 35–144（110 aa） Fragment：furin repeats	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 NI NICKEL (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；10% PEG4000, 0.2M ammonium sulfate, 7% Sucrose and 0.1 M TRIS pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.50 Å R-free 0.276
4LI2 Crystal Structures of Lgr4 and its complex with R-spondin1 Deposited 2013-07-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 33–144（112 aa） Fragment：FU 1 and FU 2 repeat residues 33-144	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.7；298 K；22% PEG3350, 200 mM MgCl2 and 100 mM BisTris pH 5.7, vapor diffusion, temperature 298K	Resolution 3.19 Å R-free 0.284
4QXF crystal structure of human LGR4 and Rspo1 Deposited 2014-07-20	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 34–135（102 aa） Fragment：UNP residues 34-135	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289 K；0.1M MES pH 6.5, 0.2M sodium thiocyanate, 22% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.25 Å R-free 0.243
4QXF crystal structure of human LGR4 and Rspo1 Deposited 2014-07-20	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 34–135（102 aa） Fragment：UNP residues 34-135	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289 K；0.1M MES pH 6.5, 0.2M sodium thiocyanate, 22% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.25 Å R-free 0.243
8WVU Cryo-EM structure of LGR4 in complex with Rspo1 and RNF43 Deposited 2023-10-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 35–144（110 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen PROPANE	Resolution 3.61 Å

11 other PDB entries and 17 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RSPO1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain E； PDBConstruct 1–90； UniProt 39–128

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4kt1
Deposition date deposition_date	2013-05-19
Structure title title	Complex of R-spondin 1 with LGR4 extracellular domain
Keywords keywords	R-spondin, LGR receptor, complex structure, Wnt signaling, HORMONE RECEPTOR-CELL ADHESION complex; HORMONE RECEPTOR/CELL ADHESION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	30.10 Å
Radius of gyration Rg (electron density) rg_electron	29.74 Å
Forward intensity I(0) i0	61308700.00
Molecular weight molecular_weight	61378.0 kDa
Excluded volume excluded_volume	76774 Å³
Envelope volume envelope_volume	100160 Å³
Hydration-shell volume shell_volume	29162 Å³
Envelope diameter envelope_diameter	104.8 Å
Shell Rg shell_rg	35.69 Å
Envelope Rg envelope_rg	29.36 Å
Shape Rg shape_rg	29.74 Å
Total Rg total_rg	30.30 Å
Total atoms total_atoms	4307
Residues n_residues	551
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

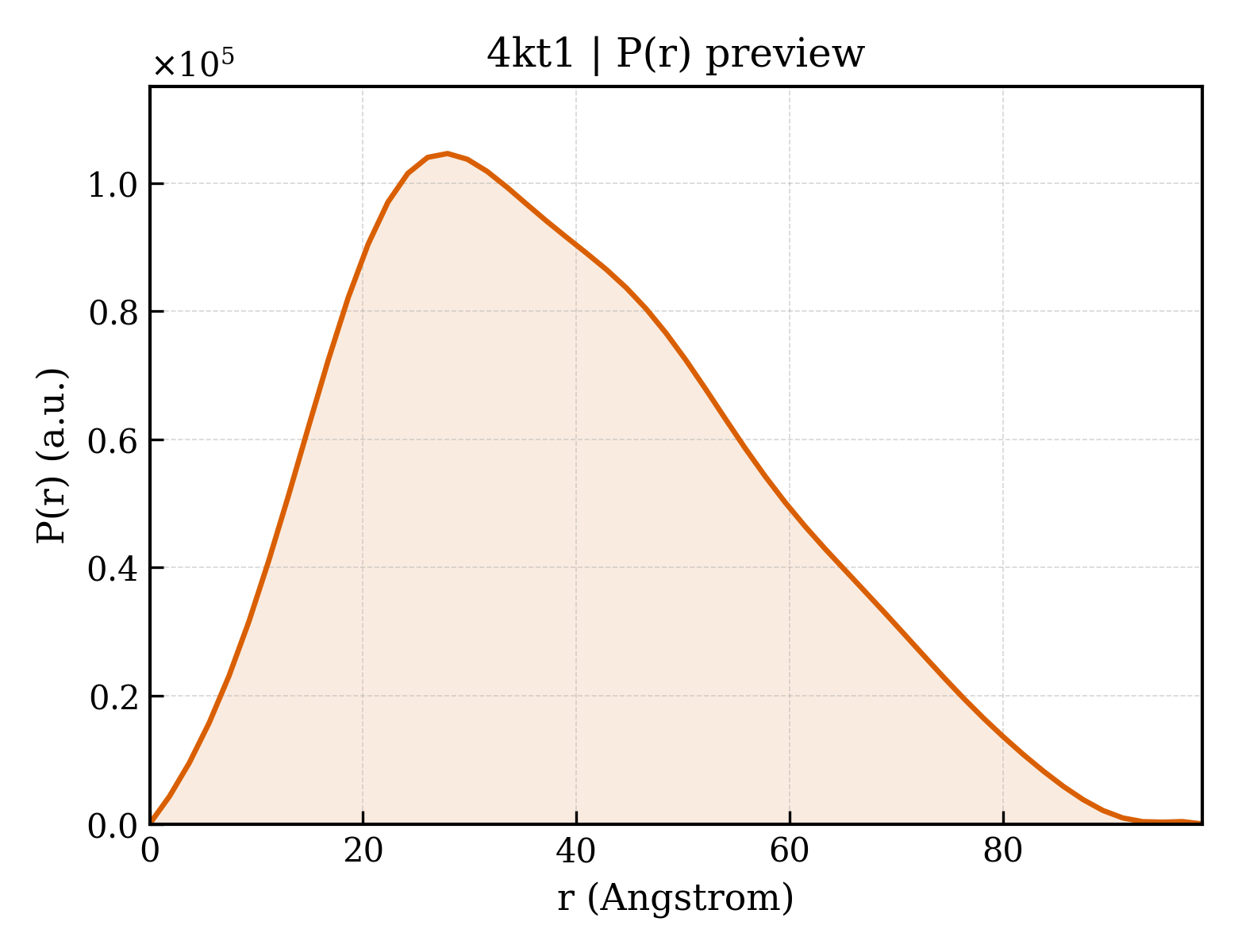

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	98.7 Å
Rg (real space) rg_real	30.22 Å
Rg uncertainty (real space) rg_real_error	0.68 Å
I(0) (real space) i0_real	6.1310e+07
I(0) uncertainty (real space) i0_real_error	8.8030e+05
Rg (reciprocal space) rg_reciprocal	30.17 Å
I(0) (reciprocal space) i0_reciprocal	61310000.0000
Solution quality estimate total_estimate	0.8798
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	27.9 Å
Skewness Skewness skewness	0.404
Kurtosis Kurtosis kurtosis	-0.487
Angular range angular_range	— – 0.2650 Å⁻¹
Current regularization parameter α current_alpha	0.0001
Highest regularization parameter α highest_alpha	11630000.0000
Real-space data points n_real_points	54
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.877; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.915; Smooth: 0.886

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Leucine-rich repeat-containing G-protein coupled receptor 4
Molecular weight formula_weight	55438.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4524

PPLCAAPCSCDGDRRVDCSGKGLTAVPEGLSAFTQALDISMNNITQLPEDAFKNFPFLEELQLAGNDLSFIHPKALSGLKELKVLTLQNNQLKTVPSEAIRGLSALQSLRLDANHITSVPEDSFEGLVQLRHLWLDDNSLTEVPVHPLSNLPTLQALTLALNKISSIPDFAFTNLSSLVVLHLHNNKIRSLSQHCFDGLDNLETLDLNYNNLGEFPQAIKALPSLKELGFHSNSISVIPDGAFDGNPLLRTIHLYDNPLSFVGNSAFHNLSDLHSLVIRGASMVQQFPNLTGTVHLESLTLTGTKISSIPNNLCQEQKMLRTLDLSYNNIRDLPSFNGCHALEEISLQRNQIYQIKEGTFQGLISLRILDLSRNLIHEIHSRAFATLGPITNLDVSFNELTSFPTEGLNGLNQLKLVGNFKLKEALAAKDFVNLRSLSVPYAYQCCAFWGCDSYANLNTEDNSLQDHSVAQEKGTADAANVTSTLENEEHSQIIIHCTPSTGHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	R-spondin-1
Molecular weight formula_weight	10080.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

ACAKGCELCSEVNGCLKCSPKLFILLERNDIRQVGVCLPSCPPGYFDARNPDMNKCIKCKIEHCEACFSHNFCTKCKEGLYLHKGRCYPA

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 3 Entity 3 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	217

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d4kt1e_
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.9 — Growth factor receptor domain
Family Family family	g.3.9.1 — Growth factor receptor domain

CATH v4.4 (2 domains)

Domain ID domain_id	4kt1A01
Class class	3 — Alpha Beta
Architecture architecture	80 — Alpha-Beta Horseshoe
Topology topology	10 — Leucine-rich repeat, LRR (right-handed beta-alpha superhelix)
Homologous superfamily homologous superfamily	10 — Ribonuclease Inhibitor

Domain ID domain_id	4kt1E00
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	220 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A domain 2
Homologous superfamily homologous superfamily	10 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A, domain 2

▶

8. Citations (1)

▶

Unit-cell length a length_a	91.376 Å
Unit-cell length b length_b	91.376 Å
Unit-cell length c length_c	87.273 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	3

Space group space_group	P 32
Space-group number int_tables_number	145
Crystal system crystal_system	—

Resolution resolution	2.497 Å
Low-resolution limit resolution_low	24.671 Å
R factor r_factor	0.1626
R_work r_work	0.1601
R_free r_free	0.2086

fit	/app/data/saxs_computation/kt/4kt1/4kt1.fit
pddf	/app/data/pr_computation/kt/4kt1/4kt1.pr.out
profile	/app/data/saxs_computation/kt/4kt1/4kt1.dat
