4bss

Structure of the ectodomain of LGR5 in complex with R-spondin-1 (Fu1Fu2) in P21 crystal form

Method: X-RAY DIFFRACTION Dmax: 187.3 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

LEUCINE-RICH REPEAT-CONTAINING G-PROTEIN COUPLED RECEPTOR 5

HOMO SAPIENS

UniProt O75473

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Other combination Heteromer Protein × 4 其他Polymer 3 PDB declaration: tetrameric（4） Consistent with protein copy count Chain A； UniProt 22–543 Chain B； UniProt 22–543 Fragment：EXTRACELLULAR LRR DOMAIN, RESIDUES 22-543 R-SPONDIN-1 × 2 （Q2MKA7） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 3 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions Resolution 3.20 Å R-free 0.290
2 Other combination Heteromer Protein × 4 其他Polymer 1 PDB declaration: tetrameric（4） Consistent with protein copy count Chain E； UniProt 22–543 Chain F； UniProt 22–543 Fragment：EXTRACELLULAR LRR DOMAIN, RESIDUES 22-543 R-SPONDIN-1 × 2 （Q2MKA7） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions Resolution 3.20 Å R-free 0.290

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 4BSS Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
4BSR Structure of the ectodomain of LGR5 in complex with R-spondin-1 (Fu1Fu2) in P22121 crystal form Deposited 2013-06-11 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 22–543（522 aa） Fragment：EXTRACELLULAR LRR DOMAIN, RESIDUES 22-543
Chain B 22–543（522 aa） Fragment：EXTRACELLULAR LRR DOMAIN, RESIDUES 22-543
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.20 Å R-free 0.258
4BST Structure of the ectodomain of LGR5 in complex with R-spondin-1 (Fu1Fu2) in P6122 crystal form Deposited 2013-06-11 Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 22–543（522 aa） Fragment：EXTRACELLULAR LRR DOMAIN, RESIDUES 22-543
Chain B 22–543（522 aa） Fragment：EXTRACELLULAR LRR DOMAIN, RESIDUES 22-543
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 4.30 Å R-free 0.268
4BSU Structure of the ectodomain of LGR5 in complex with R-spondin-1 (Fu1Fu2) in C2 crystal form Deposited 2013-06-11 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 22–543（522 aa）
Chain F 22–543（522 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.20 Å R-free 0.287
4BSU Structure of the ectodomain of LGR5 in complex with R-spondin-1 (Fu1Fu2) in C2 crystal form Deposited 2013-06-11 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 2 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 22–543（522 aa）
Chain B 22–543（522 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.20 Å R-free 0.287
4KNG Crystal structure of human LGR5-RSPO1-RNF43 Deposited 2013-05-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 32–557（526 aa） Fragment：extracellular domain
Chain B 32–557（526 aa） Fragment：extracellular domain
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 NI NICKEL (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；10% PEG4000, 0.2M ammonium sulfate, 7% Sucrose and 0.1 M TRIS pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.50 Å R-free 0.276
4UFR Structure of the ectodomain of LGR5 in complex with R-spondin-2 (Fu1Fu2) Deposited 2015-03-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 32–487（456 aa） Fragment：ECTODOMAIN, RESIDUES 32-487 AND RESIDUES 538-544
Chain A 538–544（7 aa） Fragment：ECTODOMAIN, RESIDUES 32-487 AND RESIDUES 538-544
Chain C 32–487（456 aa） Fragment：ECTODOMAIN, RESIDUES 32-487 AND RESIDUES 538-544
Chain C 538–544（7 aa） Fragment：ECTODOMAIN, RESIDUES 32-487 AND RESIDUES 538-544
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 CL CHLORIDE ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.5；25 %W/V PEG3350, 0.200 M LITHIUM SULPHATE, 0.100 M BIS-TRIS PH 5.5
Resolution 2.20 Å R-free 0.262
4UFS Low resolution structure R-spondin-2 (Fu1Fu2) in complex with the ectodomains of LGR5 and ZNRF3 Deposited 2015-03-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 32–487（456 aa） Fragment：ECTODOMAIN, RESIDUES 32-487 AND RESIDUES 538-544
Chain A 538–544（7 aa） Fragment：ECTODOMAIN, RESIDUES 32-487 AND RESIDUES 538-544
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；0.100 M AMMONIUM ACETATE, 0.600 M SODIUM CHLORIDE, 0.050 M MES PH 6.0, 0.005 M MAGNESIUM SULPHATE
Resolution 4.80 Å R-free 0.313

6 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name LGR5_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 15–536； UniProt 22–543 Author chain B； PDBConstruct 15–536； UniProt 22–543 Author chain E； PDBConstruct 15–536； UniProt 22–543 Author chain F； PDBConstruct 15–536； UniProt 22–543

R-SPONDIN-1

HOMO SAPIENS

UniProt Q2MKA7

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Other combination Heteromer Protein × 4 其他Polymer 3 PDB declaration: tetrameric（4） Consistent with protein copy count Chain C； UniProt 31–146 Chain D； UniProt 31–146 Fragment：FU1FU2, RESIDUES 31-146 LEUCINE-RICH REPEAT-CONTAINING G-PROTEIN COUPLED RECEPTOR 5 × 2 （O75473） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 3 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions Resolution 3.20 Å R-free 0.290
2 Other combination Heteromer Protein × 4 其他Polymer 1 PDB declaration: tetrameric（4） Consistent with protein copy count Chain G； UniProt 31–146 Chain H； UniProt 31–146 Fragment：FU1FU2, RESIDUES 31-146 LEUCINE-RICH REPEAT-CONTAINING G-PROTEIN COUPLED RECEPTOR 5 × 2 （O75473） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions Resolution 3.20 Å R-free 0.290

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 4BSS Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
4BSO Crystal structure of R-spondin 1 (Fu1Fu2) - Native Deposited 2013-06-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 31–146（116 aa） Fragment：FU1FU2, RESIDUES 31-146
Not recorded EDO 1,2-ETHANEDIOL × 5 CL CHLORIDE ION × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.20 Å R-free 0.250
4BSP Crystal structure of R-spondin 1 (Fu1Fu2) - Holmium soak Deposited 2013-06-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 31–146（116 aa） Fragment：FU1FU2, RESIDUES 31-146
Not recorded HO HOLMIUM ATOM × 2 SO4 SULFATE ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.00 Å R-free 0.260
4BSR Structure of the ectodomain of LGR5 in complex with R-spondin-1 (Fu1Fu2) in P22121 crystal form Deposited 2013-06-11 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 31–146（116 aa） Fragment：FU1FU2, RESIDUES 31-146
Chain D 31–146（116 aa） Fragment：FU1FU2, RESIDUES 31-146
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.20 Å R-free 0.258
4BST Structure of the ectodomain of LGR5 in complex with R-spondin-1 (Fu1Fu2) in P6122 crystal form Deposited 2013-06-11 Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 31–146（116 aa） Fragment：FU1FU2, RESIDUES 31-146
Chain D 31–146（116 aa） Fragment：FU1FU2, RESIDUES 31-146
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 4.30 Å R-free 0.268
4BSU Structure of the ectodomain of LGR5 in complex with R-spondin-1 (Fu1Fu2) in C2 crystal form Deposited 2013-06-11 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain G 31–146（116 aa）
Chain H 31–146（116 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.20 Å R-free 0.287
4BSU Structure of the ectodomain of LGR5 in complex with R-spondin-1 (Fu1Fu2) in C2 crystal form Deposited 2013-06-11 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 2 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 31–146（116 aa）
Chain D 31–146（116 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 3.20 Å R-free 0.287
4CDK Structure of ZNRF3-RSPO1 Deposited 2013-11-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 31–145（115 aa） Fragment：FURIN-LIKE DOMAIN, RESIDUES 31-145
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions 0.2M SODIUM BROMIDE AND 20% W/V PEG 3350
Resolution 2.80 Å R-free 0.246
4CDK Structure of ZNRF3-RSPO1 Deposited 2013-11-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 31–145（115 aa） Fragment：FURIN-LIKE DOMAIN, RESIDUES 31-145
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions 0.2M SODIUM BROMIDE AND 20% W/V PEG 3350
Resolution 2.80 Å R-free 0.246
4CDK Structure of ZNRF3-RSPO1 Deposited 2013-11-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 31–145（115 aa） Fragment：FURIN-LIKE DOMAIN, RESIDUES 31-145
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions 0.2M SODIUM BROMIDE AND 20% W/V PEG 3350
Resolution 2.80 Å R-free 0.246
4CDK Structure of ZNRF3-RSPO1 Deposited 2013-11-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 31–145（115 aa） Fragment：FURIN-LIKE DOMAIN, RESIDUES 31-145
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions 0.2M SODIUM BROMIDE AND 20% W/V PEG 3350
Resolution 2.80 Å R-free 0.246
4KNG Crystal structure of human LGR5-RSPO1-RNF43 Deposited 2013-05-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain M 35–144（110 aa） Fragment：furin repeats
Chain P 35–144（110 aa） Fragment：furin repeats
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 NI NICKEL (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；10% PEG4000, 0.2M ammonium sulfate, 7% Sucrose and 0.1 M TRIS pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.50 Å R-free 0.276
4KT1 Complex of R-spondin 1 with LGR4 extracellular domain Deposited 2013-05-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 39–128（90 aa） Fragment：UNP residues 39-128
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；291 K；PEG, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.50 Å R-free 0.209
4LI2 Crystal Structures of Lgr4 and its complex with R-spondin1 Deposited 2013-07-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 33–144（112 aa） Fragment：FU 1 and FU 2 repeat residues 33-144
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5.7；298 K；22% PEG3350, 200 mM MgCl2 and 100 mM BisTris pH 5.7, vapor diffusion, temperature 298K
Resolution 3.19 Å R-free 0.284
4QXF crystal structure of human LGR4 and Rspo1 Deposited 2014-07-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 34–135（102 aa） Fragment：UNP residues 34-135
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289 K；0.1M MES pH 6.5, 0.2M sodium thiocyanate, 22% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 2.25 Å R-free 0.243
4QXF crystal structure of human LGR4 and Rspo1 Deposited 2014-07-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 34–135（102 aa） Fragment：UNP residues 34-135
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289 K；0.1M MES pH 6.5, 0.2M sodium thiocyanate, 22% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 2.25 Å R-free 0.243
8WVU Cryo-EM structure of LGR4 in complex with Rspo1 and RNF43 Deposited 2023-10-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 35–144（110 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen PROPANE
Resolution 3.61 Å

11 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name RSPO1_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain C； PDBConstruct 3–118； UniProt 31–146 Author chain D； PDBConstruct 3–118； UniProt 31–146 Author chain G； PDBConstruct 3–118； UniProt 31–146 Author chain H； PDBConstruct 3–118； UniProt 31–146

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 4bss

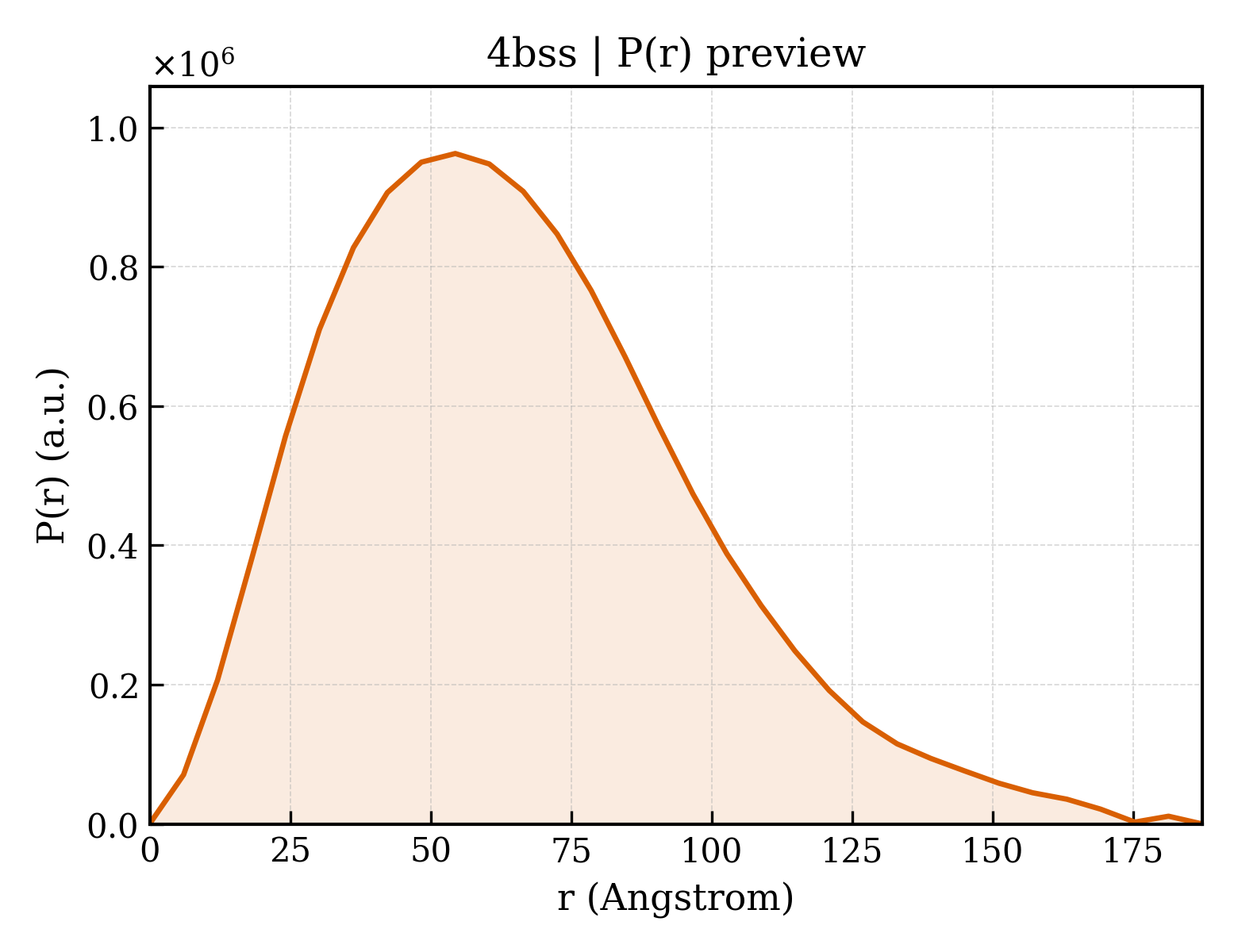

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 4bss
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id4bss
Deposition date deposition_date2013-06-11
Structure title titleStructure of the ectodomain of LGR5 in complex with R-spondin-1 (Fu1Fu2) in P21 crystal form
Keywords keywords;SIGNALING PROTEIN, ADULT STEM CELL, LEUCINE-RICH REPEAT G-PROTEIN COUPLED RECEPTOR, LEUCINE-RICH REPEAT, FURIN DOMAIN, WNT SIGNALING, CONGENITAL ANONYCHIA ;; SIGNALING PROTEIN
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier50.91 Å
Radius of gyration Rg (electron density) rg_electron50.97 Å
Forward intensity I(0) i0949249000.00
Molecular weight molecular_weight255710.0 kDa
Excluded volume excluded_volume320340 ų
Envelope volume envelope_volume456610 ų
Hydration-shell volume shell_volume77614 ų
Envelope diameter envelope_diameter196.0 Å
Shell Rg shell_rg51.13 Å
Envelope Rg envelope_rg51.02 Å
Shape Rg shape_rg50.89 Å
Total Rg total_rg51.25 Å
Total atoms total_atoms17925
Residues n_residues2281
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax187.3 Å
Rg (real space) rg_real51.23 Å
Rg uncertainty (real space) rg_real_error2.49 Å
I(0) (real space) i0_real9.4920e+08
I(0) uncertainty (real space) i0_real_error2.1010e+07
Rg (reciprocal space) rg_reciprocal50.65 Å
I(0) (reciprocal space) i0_reciprocal948500000.0000
Solution quality estimate total_estimate0.8155
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary54.4 Å
Skewness Skewness skewness0.630
Kurtosis Kurtosis kurtosis0.203
Angular range angular_range— – 0.1550 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha123800000.0000
Real-space data points n_real_points32
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.674; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.827; Smooth: 0.749
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

▼

7. Fold Classification (SCOP + CATH) 8 domains

CATH v4.4 (8 domains)

Domain ID domain_id4bssA01
Class class3 — Alpha Beta
Architecture architecture80 — Alpha-Beta Horseshoe
Topology topology10 — Leucine-rich repeat, LRR (right-handed beta-alpha superhelix)
Homologous superfamily homologous superfamily10 — Ribonuclease Inhibitor
Domain ID domain_id4bssB01
Class class3 — Alpha Beta
Architecture architecture80 — Alpha-Beta Horseshoe
Topology topology10 — Leucine-rich repeat, LRR (right-handed beta-alpha superhelix)
Homologous superfamily homologous superfamily10 — Ribonuclease Inhibitor
Domain ID domain_id4bssC00
Class class2 — Mainly Beta
Architecture architecture10 — Ribbon
Topology topology220 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A domain 2
Homologous superfamily homologous superfamily10 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A, domain 2
Domain ID domain_id4bssD00
Class class2 — Mainly Beta
Architecture architecture10 — Ribbon
Topology topology220 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A domain 2
Homologous superfamily homologous superfamily10 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A, domain 2
Domain ID domain_id4bssE01
Class class3 — Alpha Beta
Architecture architecture80 — Alpha-Beta Horseshoe
Topology topology10 — Leucine-rich repeat, LRR (right-handed beta-alpha superhelix)
Homologous superfamily homologous superfamily10 — Ribonuclease Inhibitor
Domain ID domain_id4bssF01
Class class3 — Alpha Beta
Architecture architecture80 — Alpha-Beta Horseshoe
Topology topology10 — Leucine-rich repeat, LRR (right-handed beta-alpha superhelix)
Homologous superfamily homologous superfamily10 — Ribonuclease Inhibitor
Domain ID domain_id4bssG00
Class class2 — Mainly Beta
Architecture architecture10 — Ribbon
Topology topology220 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A domain 2
Homologous superfamily homologous superfamily10 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A, domain 2
Domain ID domain_id4bssH00
Class class2 — Mainly Beta
Architecture architecture10 — Ribbon
Topology topology220 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A domain 2
Homologous superfamily homologous superfamily10 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A, domain 2
▶

8. Citations (1)

▶

9. Files and Curves (10)
