SAXSdb — 4ufs

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

LEUCINE-RICH REPEAT-CONTAINING G-PROTEIN COUPLED RECEPTOR 5

HOMO SAPIENS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	R-SPONDIN-2 × 1 （Q8BFU0） E3 UBIQUITIN-PROTEIN LIGASE ZNRF3 × 1 （Q5SSZ7）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LGR5_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–458； UniProt 32–487 Author chain A； PDBConstruct 466–472； UniProt 538–544

R-SPONDIN-2

HOMO SAPIENS

UniProt Q8BFU0

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	LEUCINE-RICH REPEAT-CONTAINING G-PROTEIN COUPLED RECEPTOR 5 × 1 （O75473） E3 UBIQUITIN-PROTEIN LIGASE ZNRF3 × 1 （Q5SSZ7）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RSPO2_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 4–109； UniProt 39–144

E3 UBIQUITIN-PROTEIN LIGASE ZNRF3

HOMO SAPIENS

UniProt Q5SSZ7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	LEUCINE-RICH REPEAT-CONTAINING G-PROTEIN COUPLED RECEPTOR 5 × 1 （O75473） R-SPONDIN-2 × 1 （Q8BFU0）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ZNRF3_MOUSE
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 4–156； UniProt 53–205

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4ufs
Deposition date deposition_date	2015-03-18
Structure title title	Low resolution structure R-spondin-2 (Fu1Fu2) in complex with the ectodomains of LGR5 and ZNRF3
Keywords keywords	SIGNALING PROTEIN, WNT, LGR, RSPO; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

4ufs__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

4ufs__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

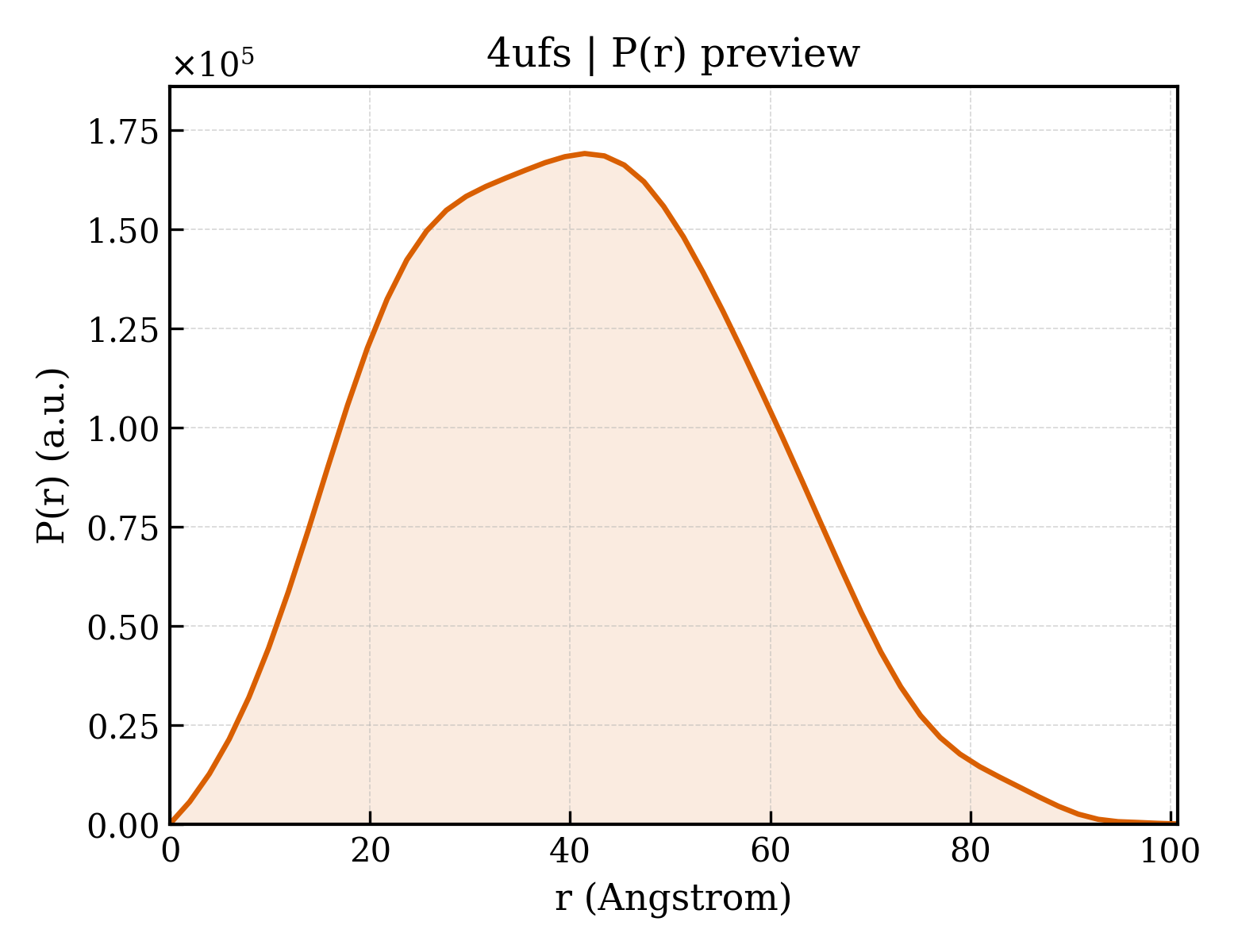

4ufs__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.20 Å
Rg (electron density)	30.70 Å
Total Rg	31.35 Å
Atom count	5582
Residues	716
Excluded volume	99401 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`4ufs__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	LEUCINE-RICH REPEAT-CONTAINING G-PROTEIN COUPLED RECEPTOR 5
Molecular weight formula_weight	54108.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5582

ETLRGCPTHCHCEPDGRMLLRVDCSDLGLSELPSNLSVFTSYLDLSMNNISQLLPNPLPSLRFLEELRLAGNALTYIPKGAFTGLYSLKVLMLQNNQLRHVPTEALQNLRSLQSLRLDANHISYVPPSCFSGLHSLRHLWLDDNALTEIPVQAFRSLSALQAMTLALNKIHHIPDYAFGNLSSLVVLHLHNNRIHSLGKKCFDGLHSLETLDLNYNNLDEFPTAIRTLSNLKELGFHSNNIRSIPEKAFVGNPSLITIHFYDNPIQFVGRSAFQHLPELRTLTLNGASQITEFPDLTGTANLESLTLTGAQISSLPQTVCNQLPNLQVLDLSYNLLEDLPSFSVCQKLQKIDLRHNEIYEIKVDTFQQLLSLRSLNLAWNKIAIIHPNAFSTLPSLIKLDLSSNLLSSFPITGLHGLTHLKLTGNHALQSLISSENFPELKVIEMPYAYQCCAFGVCENNGNNGDSVQCSPSGTHHHHHHHHHH

Source Source

Source organism organism	HOMO SAPIENS
Common name common_name	HUMAN
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	HOMO SAPIENS

Entity 2 Entity 2 polymer

Description description	R-SPONDIN-2
Molecular weight formula_weight	13946.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

ETGICKGCLSCSKDNGCSRCQQKLFFFLRREGMRQYGECLHSCPSGYYGHRAPDMNRCARCRIENCDSCFSKDFCTKCKVGFYLHRGRCFDECPDGFAPLDETMECVEGTHHHHHHHHHH

Source Source

Source organism organism	HOMO SAPIENS
Common name common_name	HUMAN
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	HOMO SAPIENS

Entity 3 Entity 3 polymer

Description description	E3 UBIQUITIN-PROTEIN LIGASE ZNRF3
Molecular weight formula_weight	18203.6 kDa
EC 编号 ec_number	6.3.2.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

ETGKETAFVEVVLFESSPSGDYTTHTTGLTGRFSRAGAMLSAEGEIVQMHPLGLCNNNDEEDLYEYGWVGVVKLEQPELDPKPCLTVLGKAKRAVQRGATAVIFDVSENPEAIDQLNQGSEDPLKRPVVYVKGADAIKLMNIVNKQKVARARIQHLGTKHHHHHH

Source Source

Source organism organism	HOMO SAPIENS
Common name common_name	HUMAN
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	HOMO SAPIENS

▶

Unit-cell length a length_a	188.609 Å
Unit-cell length b length_b	188.609 Å
Unit-cell length c length_c	165.292 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	I 4 2 2
Space-group number int_tables_number	97
Crystal system crystal_system	—

Resolution resolution	4.800 Å
Low-resolution limit resolution_low	133.370 Å
R factor r_factor	0.2722
R_work r_work	0.2699
R_free r_free	0.3126

Low resolution structure R-spondin-2 (Fu1Fu2) in complex with the ectodomains of LGR5 and ZNRF3
