SAXSdb — 4c8p

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

E3 UBIQUITIN-PROTEIN LIGASE ZNRF3

MUS MUSCULUS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 53–205	Fragment：ECTODOMAIN, RESIDUES 53-205 Mutation：YES	No other associated polymer	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 2.10 Å R-free 0.286

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4C8P	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4C86 mouse ZNRF3 ectodomain crystal form I Deposited 2013-09-30	Different construct Different mutation/modification Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 53–205（153 aa） Fragment：ECTODOMAIN, RESIDUES 53-205 Chain B 53–205（153 aa） Fragment：ECTODOMAIN, RESIDUES 53-205	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å R-free 0.276
4C8A mouse ZNRF3 ectodomain crystal form II Deposited 2013-09-30	Different mutation/modification Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 53–205（153 aa） Fragment：ECTODOMAIN, RESIDUES 53-205	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.70 Å R-free 0.299
4C8A mouse ZNRF3 ectodomain crystal form II Deposited 2013-09-30	Different construct Different mutation/modification Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 53–205（153 aa） Fragment：ECTODOMAIN, RESIDUES 53-205 Chain B 53–205（153 aa） Fragment：ECTODOMAIN, RESIDUES 53-205	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.70 Å R-free 0.299
4C8C mouse ZNRF3 ectodomain crystal form III Deposited 2013-09-30	Different construct Different mutation/modification Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 53–205（153 aa） Fragment：ECTODOMAIN, RESIDUES 53-205 Chain B 53–205（153 aa） Fragment：ECTODOMAIN, RESIDUES 53-205	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.40 Å R-free 0.320
4C8F mouse ZNRF3 ectodomain crystal form IV Deposited 2013-09-30	Different construct Different mutation/modification Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 53–205（153 aa） Fragment：ECTODOMAIN, RESIDUES 53-205 Chain D 53–205（153 aa） Fragment：ECTODOMAIN, RESIDUES 53-205	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.69 Å R-free 0.341
4C8F mouse ZNRF3 ectodomain crystal form IV Deposited 2013-09-30	Different construct Different mutation/modification Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 53–205（153 aa） Fragment：ECTODOMAIN, RESIDUES 53-205 Chain C 53–205（153 aa） Fragment：ECTODOMAIN, RESIDUES 53-205	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.69 Å R-free 0.341
4C99 Mouse ZNRF3 ectodomain in complex with mouse RSPO2 Fu1-Fu2 crystal form I Deposited 2013-10-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 53–205（153 aa） Fragment：ECTODOMAIN, RESIDUES 53-205 Chain C 53–205（153 aa） Fragment：ECTODOMAIN, RESIDUES 53-205	Not recorded	CL CHLORIDE ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.80 Å R-free 0.323
4C9A Mouse ZNRF3 ectodomain in complex with Xenopus RSPO2 Fu1-Fu2 (Seleno Met) crystal form I Deposited 2013-10-02	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–165（165 aa） Fragment：ECTODOMAIN, RESIDUES 1-165 Chain C 1–165（165 aa） Fragment：ECTODOMAIN, RESIDUES 1-165	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.40 Å R-free 0.273
4C9E Mouse ZNRF3 ectodomain in complex with Xenopus RSPO2 Fu1-Fu2 (Seleno Met) crystal form II Deposited 2013-10-02	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 53–205（153 aa） Fragment：ECTODOMAIN, RESIDUES 53-205 Chain C 53–205（153 aa） Fragment：ECTODOMAIN, RESIDUES 53-205	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.00 Å R-free 0.334
4C9E Mouse ZNRF3 ectodomain in complex with Xenopus RSPO2 Fu1-Fu2 (Seleno Met) crystal form II Deposited 2013-10-02	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 53–205（153 aa） Fragment：ECTODOMAIN, RESIDUES 53-205 Chain G 53–205（153 aa） Fragment：ECTODOMAIN, RESIDUES 53-205	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.00 Å R-free 0.334
4CDJ Structure of ZNRF3 ectodomain Deposited 2013-11-01	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 53–205（153 aa） Fragment：ECTODOMAIN, RESIDUES 53-205	Not recorded	EDO 1,2-ETHANEDIOL × 3 FMT FORMIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions 0.2 M AMMONIUM FORMATE AT PH 6.6 WITH 20% W/V PEG3350	Resolution 1.50 Å R-free 0.177
4CDJ Structure of ZNRF3 ectodomain Deposited 2013-11-01	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 53–205（153 aa） Fragment：ECTODOMAIN, RESIDUES 53-205	Not recorded	EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions 0.2 M AMMONIUM FORMATE AT PH 6.6 WITH 20% W/V PEG3350	Resolution 1.50 Å R-free 0.177
4CDK Structure of ZNRF3-RSPO1 Deposited 2013-11-01	Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 53–205（153 aa） Fragment：ECTODOMAIN, RESIDUES 53-205	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions 0.2M SODIUM BROMIDE AND 20% W/V PEG 3350	Resolution 2.80 Å R-free 0.246
4CDK Structure of ZNRF3-RSPO1 Deposited 2013-11-01	Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 53–205（153 aa） Fragment：ECTODOMAIN, RESIDUES 53-205	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions 0.2M SODIUM BROMIDE AND 20% W/V PEG 3350	Resolution 2.80 Å R-free 0.246
4CDK Structure of ZNRF3-RSPO1 Deposited 2013-11-01	Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 53–205（153 aa） Fragment：ECTODOMAIN, RESIDUES 53-205	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions 0.2M SODIUM BROMIDE AND 20% W/V PEG 3350	Resolution 2.80 Å R-free 0.246
4CDK Structure of ZNRF3-RSPO1 Deposited 2013-11-01	Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 53–205（153 aa） Fragment：ECTODOMAIN, RESIDUES 53-205	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions 0.2M SODIUM BROMIDE AND 20% W/V PEG 3350	Resolution 2.80 Å R-free 0.246
4UFS Low resolution structure R-spondin-2 (Fu1Fu2) in complex with the ectodomains of LGR5 and ZNRF3 Deposited 2015-03-18	Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 53–205（153 aa） Fragment：ECTODOMAIN, RESIDUES 53-205	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；0.100 M AMMONIUM ACETATE, 0.600 M SODIUM CHLORIDE, 0.050 M MES PH 6.0, 0.005 M MAGNESIUM SULPHATE	Resolution 4.80 Å R-free 0.313

10 other PDB entries and 17 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ZNRF3_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–156； UniProt 53–205

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4c8p
Deposition date deposition_date	2013-10-01
Structure title title	mouse ZNRF3 ectodomain crystal form V, disulfide-bridged S90C variant
Keywords keywords	LIGASE, WNT, RNF43, LGR4, LGR5, LGR6, RSPO, R-SPONDIN, R-SPO, RSPO1, RSPO2, RSPO3, RSPO4, RECEPTOR, MEMBRANE, SIGNALLING; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.50 Å
Radius of gyration Rg (electron density) rg_electron	15.17 Å
Forward intensity I(0) i0	4805420.00
Molecular weight molecular_weight	15706.0 kDa
Excluded volume excluded_volume	19745 Å³
Envelope volume envelope_volume	23007 Å³
Hydration-shell volume shell_volume	13211 Å³
Envelope diameter envelope_diameter	59.4 Å
Shell Rg shell_rg	20.65 Å
Envelope Rg envelope_rg	15.64 Å
Shape Rg shape_rg	15.18 Å
Total Rg total_rg	16.25 Å
Total atoms total_atoms	1103
Residues n_residues	144
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	57.5 Å
Rg (real space) rg_real	16.49 Å
Rg uncertainty (real space) rg_real_error	0.43 Å
I(0) (real space) i0_real	4.8050e+06
I(0) uncertainty (real space) i0_real_error	6.5020e+04
Rg (reciprocal space) rg_reciprocal	16.49 Å
I(0) (reciprocal space) i0_reciprocal	4805000.0000
Solution quality estimate total_estimate	0.7572
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	21.7 Å
Skewness Skewness skewness	0.427
Kurtosis Kurtosis kurtosis	0.207
Angular range angular_range	— – 0.4800 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1210000.0000
Real-space data points n_real_points	78
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.616; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	4c8pA00
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	30 — Glucose Oxidase; domain 1
Homologous superfamily homologous superfamily	30 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	58.725 Å
Unit-cell length b length_b	74.297 Å
Unit-cell length c length_c	38.834 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	46.070 Å
R factor r_factor	0.2077
R_work r_work	0.2041
R_free r_free	0.2856

Description description	E3 UBIQUITIN-PROTEIN LIGASE ZNRF3
Molecular weight formula_weight	18219.6 kDa
EC 编号 ec_number	6.3.2.-
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1129

mouse ZNRF3 ectodomain crystal form V, disulfide-bridged S90C variant

1. Protein Identity and Related Structures Protein Identity & Related Structures

E3 UBIQUITIN-PROTEIN LIGASE ZNRF3

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

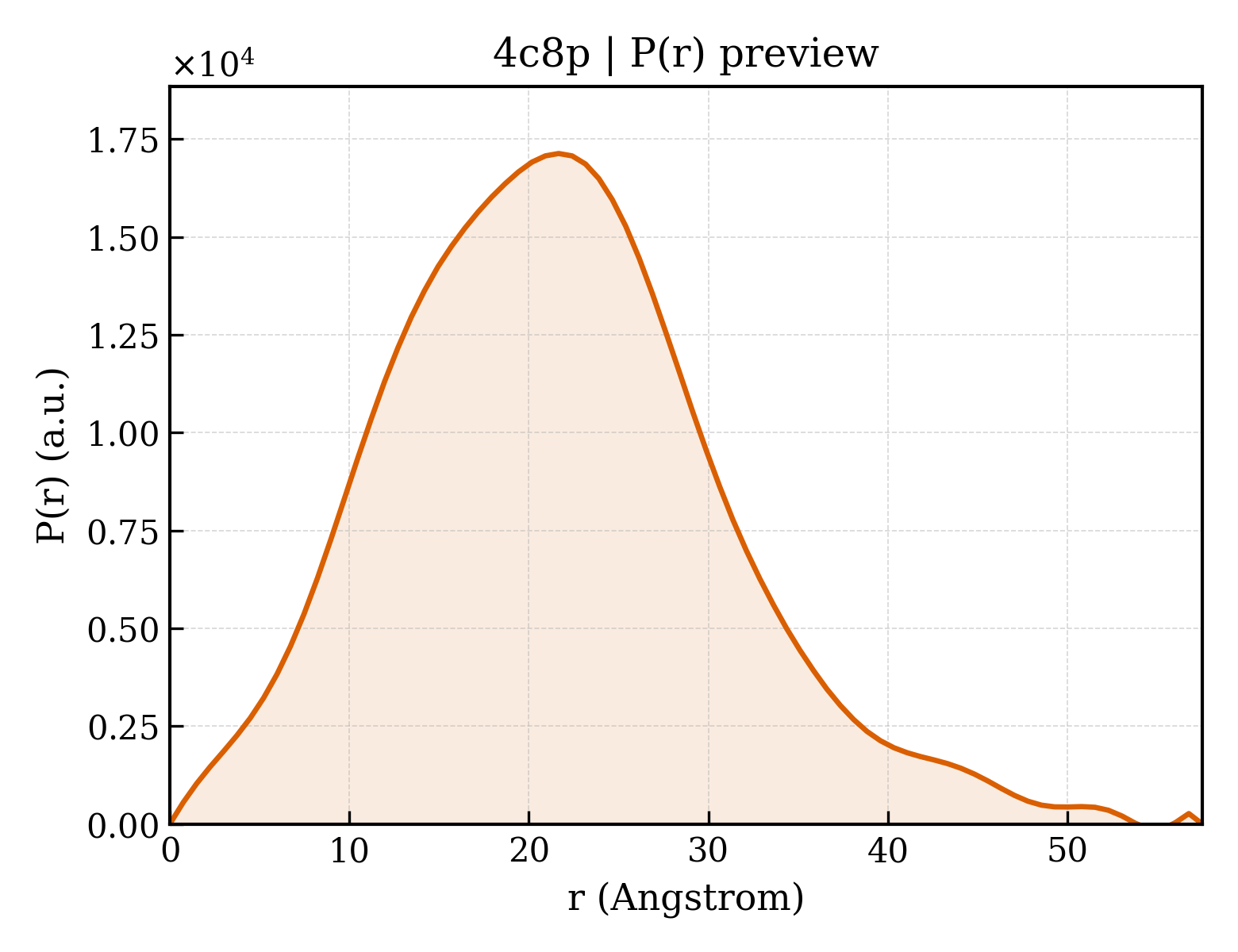

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 water

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	MUS MUSCULUS
通用名 common_name	MOUSE
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	HOMO SAPIENS

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	21

fit	/app/data/saxs_computation/c8/4c8p/4c8p.fit
pddf	/app/data/pr_computation/c8/4c8p/4c8p.pr.out
profile	/app/data/saxs_computation/c8/4c8p/4c8p.dat
