4cdk

Structure of ZNRF3-RSPO1

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

E3 UBIQUITIN-PROTEIN LIGASE ZNRF3

MUS MUSCULUS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	R-SPONDIN-1 × 1 （Q2MKA7） water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	R-SPONDIN-1 × 1 （Q2MKA7） water × 2	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 2	R-SPONDIN-1 × 1 （Q2MKA7） water × 1	Consistent with protein count
4	Protein heterocomplex	Heteromer	Protein 2	R-SPONDIN-1 × 1 （Q2MKA7） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ZNRF3_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–155； UniProt 53–205 Author chain B； PDBConstruct 3–155； UniProt 53–205 Author chain C； PDBConstruct 3–155； UniProt 53–205 Author chain D； PDBConstruct 3–155； UniProt 53–205

R-SPONDIN-1

HOMO SAPIENS

UniProt Q2MKA7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	E3 UBIQUITIN-PROTEIN LIGASE ZNRF3 × 1 （Q5SSZ7） water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	E3 UBIQUITIN-PROTEIN LIGASE ZNRF3 × 1 （Q5SSZ7） water × 2	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 2	E3 UBIQUITIN-PROTEIN LIGASE ZNRF3 × 1 （Q5SSZ7） water × 1	Consistent with protein count
4	Protein heterocomplex	Heteromer	Protein 2	E3 UBIQUITIN-PROTEIN LIGASE ZNRF3 × 1 （Q5SSZ7） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RSPO1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain E； PDBConstruct 3–117； UniProt 31–145 Author chain F； PDBConstruct 3–117； UniProt 31–145 Author chain G； PDBConstruct 3–117； UniProt 31–145 Author chain H； PDBConstruct 3–117； UniProt 31–145

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4cdk
Deposition date deposition_date	2013-11-01
Structure title title	Structure of ZNRF3-RSPO1
Keywords keywords	LIGASE, WNT SIGNALING, ADULT STEM CELLS, E3 LIGASE, PROTEASE-ASSOCIATED DOMAIN, ZINC RING FINGER, LGR5, R-SPONDIN; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

4cdk__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

4cdk__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

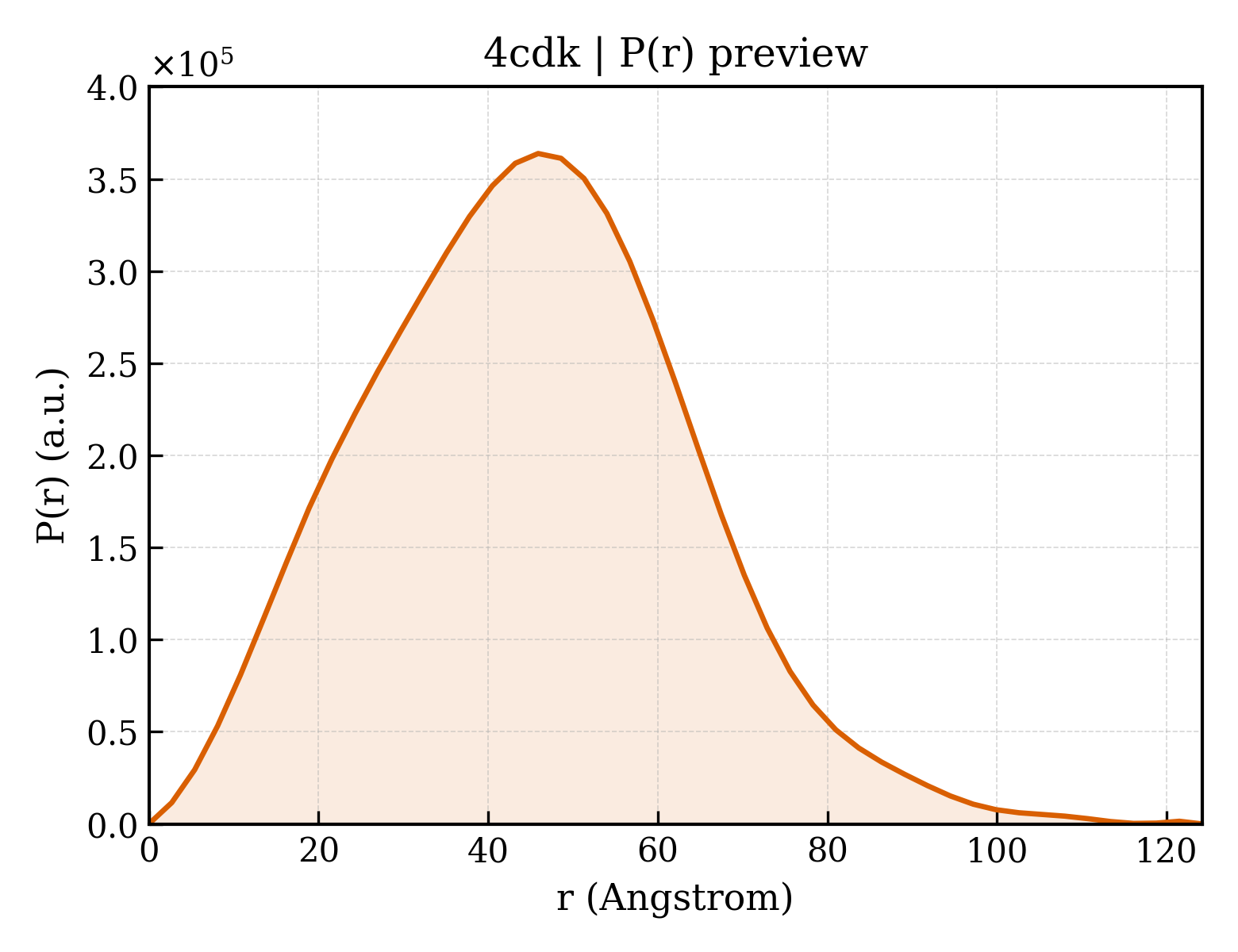

4cdk__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	21.83 Å
Rg (electron density)	20.96 Å
Total Rg	21.73 Å
Atom count	1990
Residues	262
Excluded volume	35308 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`4cdk__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`4cdk__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`4cdk__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`4cdk__assembly_4__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	E3 UBIQUITIN-PROTEIN LIGASE ZNRF3
Molecular weight formula_weight	17986.3 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	7982

GSKETAFVEVVLFESSPSGDYTTHTTGLTGRFSRAGAMLSAEGEIVQMHPLGLCNNNDEEDLYEYGWVGVVKLEQPELDPKPCLTVLGKAKRAVQRGATAVIFDVSENPEAIDQLNQGSEDPLKRPVVYVKGADAIKLMNIVNKQKVARARIQHLAAAHHHHHH

Source Source

Source organism organism	MUS MUSCULUS
Common name common_name	HOUSE MOUSE
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	HOMO SAPIENS

Entity 2 Entity 2 polymer

Description description	R-SPONDIN-1
Molecular weight formula_weight	13706.8 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F,G,H

GSRISAEGSQACAKGCELCSEVNGCLKCSPKLFILLERNDIRQVGVCLPSCPPGYFDARNPDMNKCIKCKIEHCEACFSHNFCTKCKEGLYLHKGRCYPACPEGSSAANGTMECSSPAAAHHHHHH

Source Source

Source organism organism	HOMO SAPIENS
Common name common_name	HHUMA
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	HOMO SAPIENS

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	55

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d4cdke_
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.9 — Growth factor receptor domain
Family Family family	g.3.9.1 — Growth factor receptor domain

Domain ID domain_id	d4cdkf_
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.9 — Growth factor receptor domain
Family Family family	g.3.9.1 — Growth factor receptor domain

Domain ID domain_id	d4cdkg_
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.9 — Growth factor receptor domain
Family Family family	g.3.9.1 — Growth factor receptor domain

Domain ID domain_id	d4cdkh_
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.9 — Growth factor receptor domain
Family Family family	g.3.9.1 — Growth factor receptor domain

CATH v4.4 (8 domains)

Domain ID domain_id	4cdkA00
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	30 — Glucose Oxidase; domain 1
Homologous superfamily homologous superfamily	30 —

Domain ID domain_id	4cdkB00
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	30 — Glucose Oxidase; domain 1
Homologous superfamily homologous superfamily	30 —

Domain ID domain_id	4cdkC00
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	30 — Glucose Oxidase; domain 1
Homologous superfamily homologous superfamily	30 —

Domain ID domain_id	4cdkD00
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	30 — Glucose Oxidase; domain 1
Homologous superfamily homologous superfamily	30 —

Domain ID domain_id	4cdkE00
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	220 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A domain 2
Homologous superfamily homologous superfamily	10 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A, domain 2

Domain ID domain_id	4cdkF00
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	220 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A domain 2
Homologous superfamily homologous superfamily	10 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A, domain 2

Domain ID domain_id	4cdkG00
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	220 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A domain 2
Homologous superfamily homologous superfamily	10 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A, domain 2

Domain ID domain_id	4cdkH00
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	220 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A domain 2
Homologous superfamily homologous superfamily	10 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A, domain 2

▶

Unit-cell length a length_a	51.700 Å
Unit-cell length b length_b	80.160 Å
Unit-cell length c length_c	82.980 Å
Unit-cell angle α angle_alpha	66.27 °
Unit-cell angle β angle_beta	81.36 °
Unit-cell angle γ angle_gamma	80.66 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	44.706 Å
R factor r_factor	0.2192
R_work r_work	0.2177
R_free r_free	0.2464
