8y37

Cryo-EM structure of Staphylococcus aureus (15B196) 50S ribosome in complex with MCX-190.

Method: ELECTRON MICROSCOPY D_max: 257.6 Å Quality: GOOD

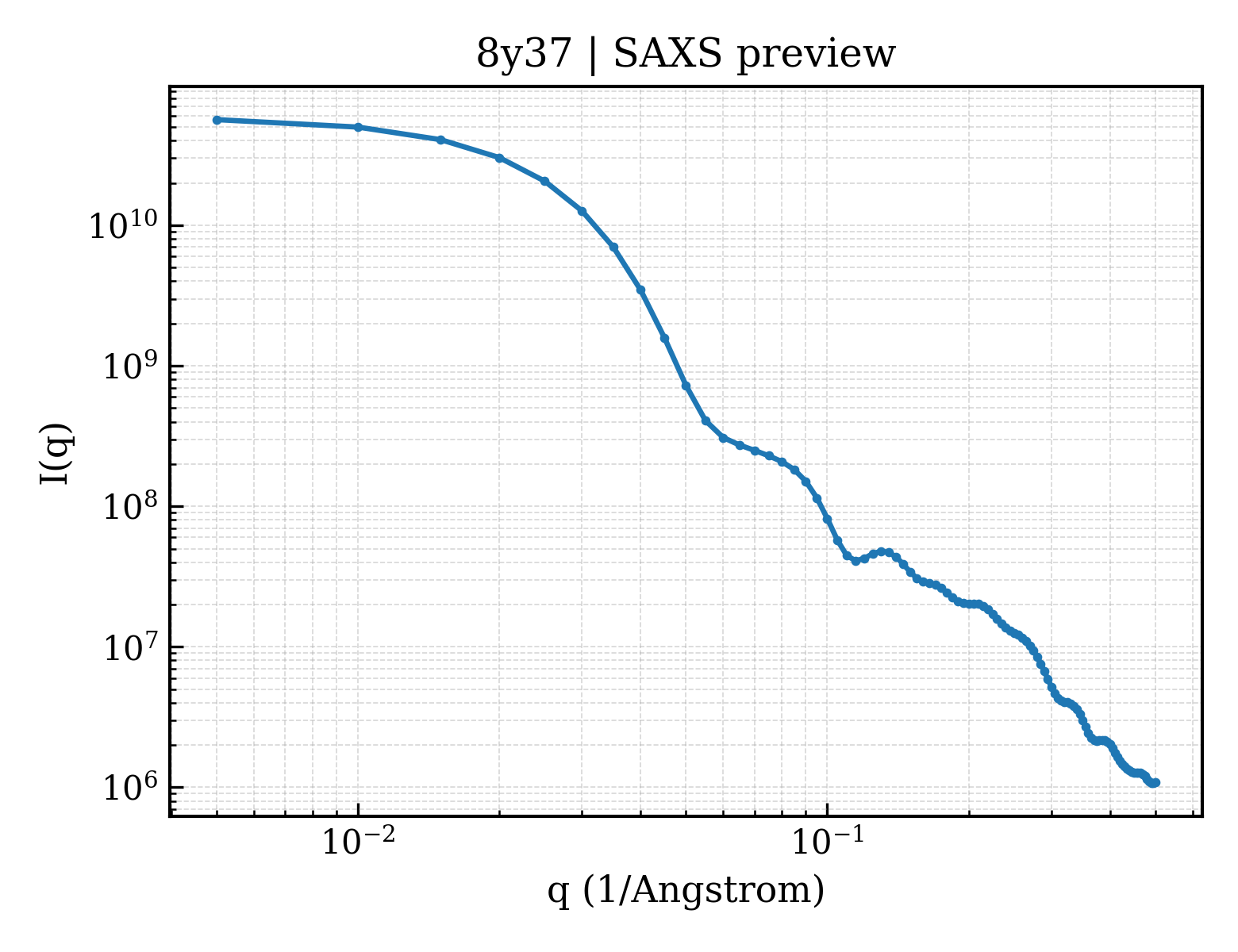

SAXS 散射曲线 SAXS Profile

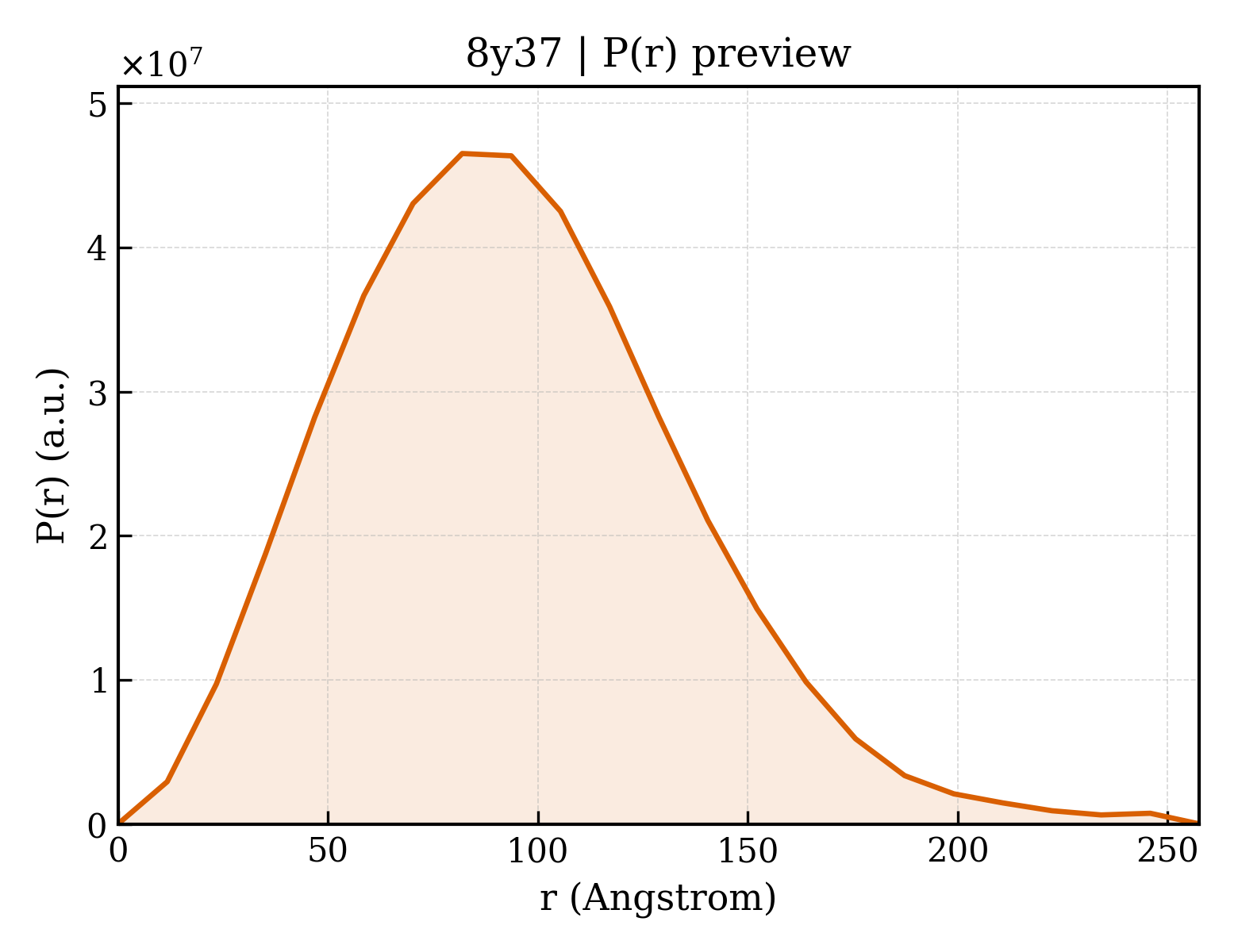

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8y37
沉积日期 deposition_date	2024-01-28
结构标题 title	Cryo-EM structure of Staphylococcus aureus (15B196) 50S ribosome in complex with MCX-190.
关键词 keywords	antibiotic, ribosome; RIBOSOME
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	69.84 Å
回转半径 Rg (电子) rg_electron	70.42 Å
零角强度 I(0) i0	58834700000.00
分子量 molecular_weight	1315700.0 kDa
排除体积 excluded_volume	1336300 Å³
包络体积 envelope_volume	2257800 Å³
水化壳体积 shell_volume	246030 Å³
包络直径 envelope_diameter	230.5 Å
壳层 Rg shell_rg	82.56 Å
包络 Rg envelope_rg	69.94 Å
形状 Rg shape_rg	70.46 Å
总 Rg total_rg	70.43 Å
总原子数 total_atoms	88295
残基数 n_residues	6120
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	257.6 Å
Rg (实空间) rg_real	72.30 Å
Rg 误差 (实空间) rg_real_error	1.40 Å
I(0) (实空间) i0_real	5.8830e+10
I(0) 误差 (实空间) i0_real_error	1.1490e+09
Rg (倒空间) rg_reciprocal	70.46 Å
I(0) (倒空间) i0_reciprocal	58920000000.0000
解质量估计 total_estimate	0.8791
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	82.0 Å
偏度 Skewness skewness	0.500
峰度 Kurtosis kurtosis	0.289
角度范围 angular_range	— – 0.1100 Å⁻¹
当前正则化参数 α current_alpha	0.8328
最高正则化参数 α highest_alpha	6551000000.0000
实空间数据点数 n_real_points	23
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.660; Stabil: 0.916; Sysdev: 1.000; Positv: 1.000; Valcen: 0.936; Smooth: 0.926

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (33)

Entity 1 polymer

描述 description	Large ribosomal subunit protein bL33B
分子量 formula_weight	5684.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1
原子数 atom_count	88301

RVNVTLACTECGDRNYITTKNKRNNPERIEMKKYCPRLNKYTLHRET

Entity 2 polymer

描述 description	Large ribosomal subunit protein bL34
分子量 formula_weight	5252.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	2

VKRTYQPNKRKHSKVHGFRKRMSTKNGRKVLARRRRKGRKVLS

Entity 3 polymer

描述 description	Large ribosomal subunit protein bL35
分子量 formula_weight	7462.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	3

PKMKTHRGAAKRVKRTASGQLKRSRAFTSHLFANKSTKQKRQLRKARLVSKSDMKRVKQLLAYK

Entity 4 polymer

描述 description	Large ribosomal subunit protein bL36
分子量 formula_weight	4318.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	4

MKVRPSVKPICEKCKVIKRKGKVMVICENPKHKQRQG

Entity 5 polymer

描述 description	23S ribosomal RNA
分子量 formula_weight	946121.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	A

UUAAGUUAUUAAGGGCGCACGGUGGAUGCCUUGGCACUAGAAGCCGAUGAAGGACGUUACUAACGACGAUAUGCUUUGGGGAGCUGUAAGUAAGCUUUGAUCCAGAGAUUUCCGAAUGGGGAAACCCAGCAUGAGUUAUGUCAUGUUAUCGAUAUGUGAAUACAUAGCAUAUCAGAAGGCACACCCGGAGAACUGAAACAUCUUAGUACCCGGAGGAAGAGAAAGAAAAUUCGAUUCCCUUAGUAGCGGCGAGCGAAAUGGGAAGAGCCCAAACCAACAAGCUUGCUUGUUGGGGUUGUAGGACACUCUAUACGGAGUUACAAAGGACGACAUUAGACGAAUCAUCUGGAAAGAUGAAUCAAAGAAGGUAAUAAUCCUGUAGUCGAAAAUGUUGUCUCUCUUGAGUGGAUCCUGAGUACGACGGAGCACGUGAAAUUCCGUCGGAAUCUGGGAGGACCAUCUCCUAAGGCUAAAUACUCUCUAGUGACCGAUAGUGAACCAGUACCGUGAGGGAAAGGUGAAAAGCACCCCGGAAGGGGAGUGAAAUAGAACCUGAAACCGUGUGCUUACAAGUAGUCAGAGCCCGUUAAUGGGUGAUGGCGUGCCUUUUGUAGAAUGAACCGGCGAGUUACGAUUUGAUGCAAGGUUAAGCAGUAAAUGUGGAGCCGUAGCGAAAGCGAGUCUGAAUAGGGCGUUUAGUAUUUGGUCGUAGACCCGAAACCAGGUGAUCUACCCUUGGUCAGGUUGAAGUUCAGGUAACACUGAAUGGAGGACCGAACCGACUUACGUUGAAAAGUGAGCGGAUGAACUGAGGGUAGCGGAGAAAUUCCAAUCGAACCUGGAGAUAGCUGGUUCUCUCCGAAAUAGCUUUAGGGCUAGCCUCAAGUGAUGAUUAUUGGAGGUAGAGCACUGUUUGGACGAGGGGCCCCUCUCGGGUUACCGAAUUCAGACAAACUCCGAAUGCCAAUUAAUUUAACUUGGGAGUCAGAACAUGGGUGAUAAGGUCCGUGUUCGAAAGGGAAACAGCCCAGACCACCAGCUAAGGUCCCAAAAUAUAUGUUAAGUGGAAAAGGAUGUGGCGUUGCCCAGACAACUAGGAUGUUGGCUUAGAAGCAGCCAUCAUUUAAAGAGUGCGUAAUAGCUCACUAGUCGAGUGACACUGCGCCGAAAAUGUACCGGGGCUAAACAUAUUACCGAAGCUGUGGAUUGUCCUUUGGACAAUGGUAGGAGAGCGUUCUAAGGGCGUUGAAGCAUGAUCGUAAGGACAUGUGGAGCGCUUAGAAGUGAGAAUGCCGGUGUGAGUAGCGAAAGACGGGUGAGAAUCCCGUCCACCGAUUGACUAAGGUUUCCAGAGGAAGGCUCGUCCGCUCUGGGUUAGUCGGGUCCUAAGCUGAGGCCGACAGGCGUAGGCGAUGGAUAACAGGUUGAUAUUCCUGUACCACCUAUAAUCGUUUUAAUCGAUGGGGGGACGCAGUAGGAUAGGCGAAGCGUGCGAUUGGAUUGCACGUCUAAGCAGUAAGGCUGAGUAUUAGGCAAAUCCGGUACUCGUUAAGGCUGAGCUGUGAUGGGGAGAAGACAUUGUGUCUUCGAGUCGUUGAUUUCACACUGCCGAGAAAAGCCUCUAGAUAGAAAAUAGGUGCCCGUACCGCAAACCGACACAGGUAGUCAAGAUGAGAAUUCUAAGGUGAGCGAGCGAACUCUCGUUAAGGAACUCGGCAAAAUGACCCCGUAACUUCGGGAGAAGGGGUGCUCUUUAGGGUUAACGCCCAGAAGAGCCGCAGUGAAUAGGCCCAAGCGACUGUUUAUCAAAAACACAGGUCUCUGCUAAACCGUAAGGUGAUGUAUAGGGGCUGACGCCUGCCCGGUGCUGGAAGGUUAAGAGGAGUGGUUAGCUUCUGCGAAGCUACGAAUCGAAGCCCCAGUAAACGGCGGCCGUAACUAUAACGGUCCUAAGGUAGCGAAAUUCCUUGUCGGGUAAGUUCCGACCCGCACGAAAGGCGUAACGAUUUGGGCACUGUCUCAACGAGAGACUCGGUGAAAUCAUAGUACCUGUGAAGAUGCAGGUUACCCGCGACAGGACGGAAAGACCCCGUGGAGCUUUACUGUAGCCUGAUAUUGAAAUUCGGCACAGCUUGUACAGGAUAGGUAGGAGCCUUUGAAACGUGAGCGCUAGCUUACGUGGAGGCGCUGGUGGGAUACUACCCUAGCUGUGUUGGCUUUCUAACCCGCACCACUUAUCGUGGUGGGAGACAGUGUCAGGCGGGCAGUUUGACUGGGGCGGUCGCCUCCUAAAAGGUAACGGAGGCGCUCAAAGGUUCCCUCAGAAUGGUUGGAAAUCAUUCAUAGAGUGUAAAGGCAUAAGGGAGCUUGACUGCGAGACCUACAAGUCGAGCAGGGUCGAAAGACGGACUUAGUGAUCCGGUGGUUCCGCAUGGAAGGGCCAUCGCUCAACGGAUAAAAGCUACCCCGGGGAUAACAGGCUUAUCUCCCCCAAGAGUUCACAUCGACGGGGAGGUUUGGCACCUCGAUGUCGGCUCAUCGCAUCCUGGGGCUGUAGUCGGUCCCAAGGGUUGGGCUGUUCGCCCAUUAAAGCGGUACGCGAGCUGGGUUCAGAACGUCGUGAGACAGUUCGGUCCCUAUCCGUCGUGGGCGUAGGAAAUUUGAGAGGAGCUGUCCUUAGUACGAGAGGACCGGGAUGGACAUACCUCUGGUGUACCAGUUGUCGUGCCAACGGCAUAGCUGGGUAGCUAUGUGUGGACGGGAUAAGUGCUGAAAGCAUCUAAGCAUGAAGCCCCCCUCAAGAUGAGAUUUCCCAACUUCGGUUAUAAGAUCCCUCAAAGAUGAUGAGGUUAAUAGGUUCGAGGUGGAAGCAUGGUGACAUGUGGAGCUGACGAAUACUAAUCGAUCGAAGACUUAAUCAA

Entity 6 polymer

描述 description	5S ribosomal RNA
分子量 formula_weight	36974.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	B

UCUGGUGACUAUAGCAAGGAGGUCACACCUGUUCCCAUGCCGAACACAGAAGUUAAGCUCCUUAGCGUCGAUGGUAGUCGAACUUACGUUCCGCUAGAGUAGAACGUUGCCAGGC

Entity 7 polymer

描述 description	Large ribosomal subunit protein uL2
分子量 formula_weight	29827.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

AIKKYKPITNGRRNMTSLDFAEITKTTPEKSLLKPLPKKAGRNNQGKLTVRHHGGGHKRQYRVIDFKRNKDGINAKVDSIQYDPNRSANIALVVYADGEKRYIIAPKGLEVGQIVESGAEADIKVGNALPLQNIPVGTVVHNIELKPGKGGQIARSAGASAQVLGKEGKYVLIRLRSGEVRMILSTCRATIGQVGNLQHELVNVGKAGRSRWKGIRPTVRGSVMNPNDHPHGGGEGRAPIGRPSPMSPWGKPTLGKKTRRGKKSSDKLIVRGRK

Entity 8 polymer

描述 description	Large ribosomal subunit protein uL3
分子量 formula_weight	23199.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

TKGILGRKIGMTQVFGENGELIPVTVVEAKENVVLQKKTVEVDGYNAIQVGFEDKKAYKKDAKSNKYANKPAEGHAKKADAAPKRFIREFRNVDVDAYEVGQEVSVDTFVAGDVIDVTGVSKGKGFQGAIKRHGQSRGPMSHGSHFHRAPGSVGMASDASRVFKGQKMPGRMGGNTVTVQNLEVVQVDTENKVILVKGNVPGPKKGLVEIRTSIK

Entity 9 polymer

描述 description	Large ribosomal subunit protein uL4
分子量 formula_weight	22364.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

ANYDVLKLDGTKSGSIELSDAVFGIEPNNSVLFEAINLQRASLRQGTHAVKNRSAVSGGGRKPWKQKGTGRARQGTIRAPQWRGGGIVFGPTPRSYAYKMPKKMRRLALRSALSFKAQENGLTVVDAFNFEAPKTKEFKNVLSTLEQPKKVLVVTENEDVNVELSARNIPGVQVTTAQGLNVLDITNADSLVITEAAAKKVEEVLG

Entity 10 polymer

描述 description	Large ribosomal subunit protein uL5
分子量 formula_weight	19731.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

NRLKEKFNTEVTENLMKKFNYSSVMEVPKIDKIVVNMGVGDAVQNSKVLDNAVEELELITGQKPLVTKAKKSIATFRLREGMPIGAKVTLRGERMYEFLDKLISVSLPRVRDFQGVSKKAFDGRGNYTLGVKEQLIFPEIDYDKVSKVRGMDIVIVTTANTDEEARELLANFGMP

Entity 11 polymer

描述 description	Large ribosomal subunit protein uL6
分子量 formula_weight	19501.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

SRVGKKIIDIPSDVTVTFDGNHVTVKGPKGELSRTLNERMTFKQEENTIEVVRPSDSKEDRTNHGTTRALLNNMVQGVSQGYVKVLELVGVGYRAQMQGKDLILNVGYSHPVEIKAEENITFSVEKNTVVKVEGISKEQVGALASNIRSVRPPEPYKGKGIRYQGEYVRRKEGKT

Entity 12 polymer

描述 description	Large ribosomal subunit protein uL13
分子量 formula_weight	16359.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MRQTFMANESNIERKWYVIDAEGQTLGRLSSEVASILRGKNKVTYTPHVDTGDYVIVINASKIEFTGNKETDKVYYRHSNHPGGIKSITAGELRRTNPERLIENSIKGMLPSTRLGEKQGKKLFVYGGAEHPHAAQQPENYELRG

Entity 13 polymer

描述 description	Large ribosomal subunit protein uL14
分子量 formula_weight	13157.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MIQQETRLKVADNSGAREVLTIKVLGGSGRKTANIGDVIVCTVKNATPGGVVKKGDVVKAVIVRTKSGVRRNDGSYIKFDENACVIIRDDKGPRGTRIFGPVARELREGNFMKIVSLAPEVL

Entity 14 polymer

描述 description	Large ribosomal subunit protein uL15
分子量 formula_weight	15628.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MKLHELKPAEGSRKERNRVGRGVATGNGKTSGRGHKGQKARSGGGVRPGFEGGQLPLFRRLPKRGFTNINRKEYAIVNLDQLNKFEDGTEVTPALLVESGVVKNEKSGIKILGNGSLDKKLTVKAHKFSASAAEAIDAKGGAHEVI

Entity 15 polymer

描述 description	Large ribosomal subunit protein uL16
分子量 formula_weight	15599.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MLLPKRVKYRRQHRPKTTGRSKGGNYVTFGEFGLQATTTSWITSRQIESARIAMTRYMKRGGKVWIKIFPHTPYTKKPLEVRMGAGKGAVEGWIAVVKPGRILFEVAGVSEEVAREALRLASHKLPVKTKFVKREEL

Entity 16 polymer

描述 description	Large ribosomal subunit protein bL17
分子量 formula_weight	13583.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

YRKLGRTSDQRKAMLRDLATSLIISERIETTEARAKEVRSVVEKLITLGKKGDLASRRNAAKTLRNVEILNEDETTQTALQKLFGEIAERYTERQGGYTRILKQGPRRGDGAESVIIELV

Entity 17 polymer

描述 description	Large ribosomal subunit protein uL18
分子量 formula_weight	13124.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MISKIDKNKVRLKRHARVRTNLSGTAEKPRLNVYRSNKHIYAQIIDDNKGVTLAQASSKDSDIATTATKVELATKVGEAIAKKAADKGIKEIVFDRGGYLYHGRVKALAEAARESGLEF

Entity 18 polymer

描述 description	Large ribosomal subunit protein bL19
分子量 formula_weight	13104.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

TNHKLIEAVTKSQLRTDLPSFRPGDTLRVHVRIIEGTRERIQVFEGVVIKRRGGGVSETFTVRKISSGVGVERTFPLHTPKIEKIEVKRRGKVRRAKLYYLRSLRGKAARIQEI

Entity 19 polymer

描述 description	Large ribosomal subunit protein bL20
分子量 formula_weight	13459.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O

PRVKGGTVTRARRKKTIKLAKGYFGSKHTLYKVAKQQVMKSGQYAFRDRRQRKRDFRKLWITRINAAARQHEMSYSRLMNGLKKAGIDINRKMLSEIAISDEKAFAQLVTKAKDAL

Entity 20 polymer

描述 description	Large ribosomal subunit protein bL21
分子量 formula_weight	11354.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P

MFAIIETGGKQIKVEEGQEIFVEKLDVNEGDTFTFDKVLFVGGDSVKVGAPTVEGATVTATVNKQGRGKKITVFTYKRRKNSKRKKGHRQPYTKLTIDKINA

Entity 21 polymer

描述 description	Large ribosomal subunit protein uL22
分子量 formula_weight	12857.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q

MEAKAVARTIRIAPRKVRLVLDLIRGKNAAEAIAILKLTNKASSPVIEKVLMSALANAEHNYDMNTDELVVKEAYANEGPTLKRFRPRAQGRASAINKRTSHITIVVSDGKEEAKEA

Entity 22 polymer

描述 description	Large ribosomal subunit protein uL23
分子量 formula_weight	10380.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R

EARDILKRPVITEKSSEAMAEDKYTFDVDTRVNKTQVKMAVEEIFNVKVASVNIMNYKPKKKRMGRYQGYTNKRRKAIVTLKEGSIDLF

Entity 23 polymer

描述 description	Large ribosomal subunit protein uL24
分子量 formula_weight	11316.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S

HIKKGDNVKVIAGKDKGKEGKVIATLPKKDRVVVEGVNIMKKHQKPTQLNPEGGILETEAAIHVSNVQLLDPKTNEPTRVGYKFVDGKKVRIAKKSGEEIKSN

Entity 24 polymer

描述 description	Large ribosomal subunit protein bL25
分子量 formula_weight	10462.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T

ASLKSIIRQGKQTRSDLKQLRKSGKVPAVVYGYGTKNVSVKVDEVEFIKVIREVGRNGVIELGVGSKTIKVMVADYQFDPLKNQITHIDFLAIN

Entity 25 polymer

描述 description	Large ribosomal subunit protein bL27
分子量 formula_weight	8911.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U

KKGVSSTKNGRDSESKRLGAKRADGQFVTGGSILYRQRGTKIYPGENVGRGGDDTLFAKIDGVVKFERKGRDKKQVSVYAVA

Entity 26 polymer

描述 description	Large ribosomal subunit protein bL28
分子量 formula_weight	6550.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V

KQCFVTGRKASTGNRRSHALNSTKRRWNANLQKVRILVDGKPKKVWVSARALKSGKVT

Entity 27 polymer

描述 description	Large ribosomal subunit protein uL29
分子量 formula_weight	7845.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	W

KAKEIRDLTTSEIEEQIKSSKEELFNLRFQLATGQLEETARIRTVRKTIARLKTVAREREIEQSKAN

Entity 28 polymer

描述 description	Large ribosomal subunit protein uL30
分子量 formula_weight	6434.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	X

AKLQITLTRSVIGRPETQRKTVEALGLKKTNSSVVVEDNPAIRGQINKVKHLVTVEEK

Entity 29 polymer

描述 description	Large ribosomal subunit protein bL31B
分子量 formula_weight	6909.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Y

MKQGIHPEYHQVIFLDTTTNFKFLSGSTKTSSEMMEWEDGKEYPVIRLDISSDSHPFYT

Entity 30 polymer

描述 description	Large ribosomal subunit protein bL32
分子量 formula_weight	5569.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Z

AVPKRRTSKTRKNKRRTHFKISVPGMTECPNCGEYKLSHRVCKNCGSY

Entity 31 non-polymer

描述 description	;7-[4-[3-[[(1~{S},2~{R},5~{R},6~{S},7~{S},8~{R},9~{R},11~{R},13~{R},14~{R})-8-[(2~{S},3~{R},4~{S},6~{R})-4-(dimethylamino)-6-methyl-3-oxidanyl-oxan-2-yl]oxy-2-ethyl-9-methoxy-1,5,7,9,11,13-hexamethyl-4,12,16-tris(oxidanylidene)-3,17-dioxa-15-azabicyclo[12.3.0]heptadecan-6-yl]oxycarbonylamino]propoxy]but-1-ynyl]-1-methyl-4-oxidanylidene-quinoline-3-carboxylic acid ;
分子量 formula_weight	969.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 32 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	12

Entity 33 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.53 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	68392

fit	/app/data/saxs_computation/y3/8y37/8y37.fit
pddf	/app/data/pr_computation/y3/8y37/8y37.pr.out
profile	/app/data/saxs_computation/y3/8y37/8y37.dat

Cryo-EM structure of Staphylococcus aureus (15B196) 50S ribosome in complex with MCX-190.

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

冷冻电镜 EM 3D

5. 实体与聚合体信息 (33)

Entity 1 polymer

聚合体 Polymer

Entity 2 polymer

聚合体 Polymer

Entity 3 polymer

聚合体 Polymer

Entity 4 polymer

聚合体 Polymer

Entity 5 polymer

聚合体 Polymer

Entity 6 polymer

聚合体 Polymer

Entity 7 polymer

聚合体 Polymer

Entity 8 polymer

聚合体 Polymer

Entity 9 polymer

聚合体 Polymer

Entity 10 polymer

聚合体 Polymer

Entity 11 polymer

聚合体 Polymer

Entity 12 polymer

聚合体 Polymer

Entity 13 polymer

聚合体 Polymer

Entity 14 polymer

聚合体 Polymer

Entity 15 polymer

聚合体 Polymer

Entity 16 polymer

聚合体 Polymer

Entity 17 polymer

聚合体 Polymer

Entity 18 polymer

聚合体 Polymer

Entity 19 polymer

聚合体 Polymer

Entity 20 polymer

聚合体 Polymer

Entity 21 polymer

聚合体 Polymer

Entity 22 polymer

聚合体 Polymer

Entity 23 polymer

聚合体 Polymer

Entity 24 polymer

聚合体 Polymer

Entity 25 polymer

聚合体 Polymer

Entity 26 polymer

聚合体 Polymer

Entity 27 polymer

聚合体 Polymer

Entity 28 polymer

聚合体 Polymer

Entity 29 polymer

聚合体 Polymer

Entity 30 polymer

聚合体 Polymer

Entity 31 non-polymer

Entity 32 non-polymer

Entity 33 water

7. 引用文献 (1)

8. 文件与曲线 (10)

Files (7)

Curves (3)
