8y39

cryo-EM structure of Staphylococcus aureus(ATCC 29213) 70S ribosome in complex with MCX-190.

Method: ELECTRON MICROSCOPY D_max: 300.2 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

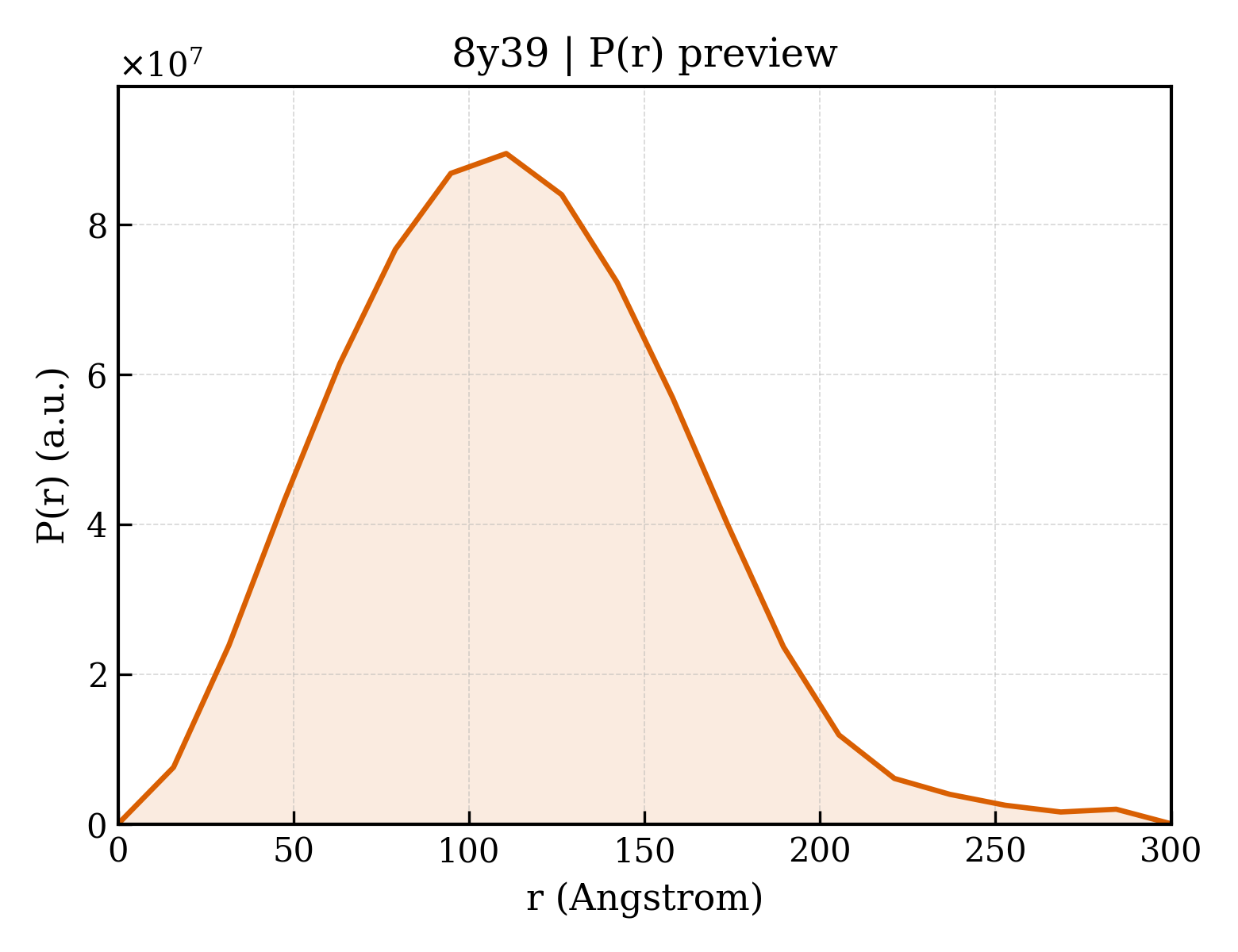

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8y39
沉积日期 deposition_date	2024-01-28
结构标题 title	cryo-EM structure of Staphylococcus aureus(ATCC 29213) 70S ribosome in complex with MCX-190.
关键词 keywords	antibiotic, ribosome, MLSBK-resistant; RIBOSOME
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	84.05 Å
回转半径 Rg (电子) rg_electron	84.86 Å
零角强度 I(0) i0	138352000000.00
分子量 molecular_weight	2055000.0 kDa
排除体积 excluded_volume	2108800 Å³
包络体积 envelope_volume	3751300 Å³
水化壳体积 shell_volume	340220 Å³
包络直径 envelope_diameter	280.4 Å
壳层 Rg shell_rg	98.34 Å
包络 Rg envelope_rg	82.60 Å
形状 Rg shape_rg	84.92 Å
总 Rg total_rg	84.80 Å
总原子数 total_atoms	138218
残基数 n_residues	9891
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	300.2 Å
Rg (实空间) rg_real	86.79 Å
Rg 误差 (实空间) rg_real_error	1.56 Å
I(0) (实空间) i0_real	1.3780e+11
I(0) 误差 (实空间) i0_real_error	3.1810e+09
Rg (倒空间) rg_reciprocal	85.50 Å
I(0) (倒空间) i0_reciprocal	138900000000.0000
解质量估计 total_estimate	0.9059
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	110.6 Å
偏度 Skewness skewness	0.404
峰度 Kurtosis kurtosis	0.161
角度范围 angular_range	— – 0.0950 Å⁻¹
当前正则化参数 α current_alpha	1.1010
最高正则化参数 α highest_alpha	6158000000.0000
实空间数据点数 n_real_points	20
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.752; Stabil: 0.899; Sysdev: 1.000; Positv: 1.000; Valcen: 0.967; Smooth: 0.870

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (52)

Entity 1 polymer

描述 description	23S ribosomal RNA
分子量 formula_weight	946093.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	A
原子数 atom_count	138218

UUAAGUUAUUAAGGGCGCACGGUGGAUGCCUUGGCACUAGAAGCCGAUGAAGGACGUUACUAACGACGAUAUGCUUUGGGGAGCUGUAAGUAAGCUUUGAUCCAGAGAUUUCCGAAUGGGGAAACCCAGCAUGAGUUAUGUCAUGUUAUCGAUAUGUGAAUACAUAGCAUAUCAGAAGGCACACCCGGAGAACUGAAACAUCUUAGUACCCGGAGGAAGAGAAAGAAAAUUCGAUUCCCUUAGUAGCGGCGAGCGAAAUGGGAAGAGCCCAAACCAACAAGCUUGCUUGUUGGGGUUGUAGGACACUCUAUACGGAGUUACAAAGGACGACAUUAGACGAAUCAUCUGGAAAGAUGAAUCAAAGAAGGUAAUAAUCCUGUAGUCGAAAAUGUUGUCUCUCUUGAGUGGAUCCUGAGUACGACGGAGCACGUGAAAUUCCGUCGGAAUCUGGGAGGACCAUCUCCUAAGGCUAAAUACUCUCUAGUGACCGAUAGUGAACCAGUACCGUGAGGGAAAGGUGAAAAGCACCCCGGAAGGGGAGUGAAAUAGAACCUGAAACCGUGUGCUUACAAGUAGUCAGAGCCCGUUAAUGGGUGAUGGCGUGCCUUUUGUAGAAUGAACCGGCGAGUUACGAUUUGAUGCAAGGUUAAGCAGUAAAUGUGGAGCCGUAGCGAAAGCGAGUCUGAAUAGGGCGUUUAGUAUUUGGUCGUAGACCCGAAACCAGGUGAUCUACCCUUGGUCAGGUUGAAGUUCAGGUAACACUGAAUGGAGGACCGAACCGACUUACGUUGAAAAGUGAGCGGAUGAACUGAGGGUAGCGGAGAAAUUCCAAUCGAACCUGGAGAUAGCUGGUUCUCUCCGAAAUAGCUUUAGGGCUAGCCUCAAGUGAUGAUUAUUGGAGGUAGAGCACUGUUUGGACGAGGGGCCCCUCUCGGGUUACCGAAUUCAGACAAACUCCGAAUGCCAAUUAAUUUAACUUGGGAGUCAGAACAUGGGUGAUAAGGUCCGUGUUCGAAAGGGAAACAGCCCAGACCACCAGCUAAGGUCCCAAAAUAUAUGUUAAGUGGAAAAGGAUGUGGCGUUGCCCAGACAACUAGGAUGUUGGCUUAGAAGCAGCCAUCAUUUAAAGAGUGCGUAAUAGCUCACUAGUCGAGUGACACUGCGCCGAAAAUGUACCGGGGCUAAACAUAUUACCGAAGCUGUGGAUUGUCCUUUGGACAAUGGUAGGAGAGCGUUCUAAGGGCGUUGAAGCAUGAUCGUAAGGACAUGUGGAGCGCUUAGAAGUGAGAAUGCCGGUGUGAGUAGCGAAAGACGGGUGAGAAUCCCGUCCACCGAUUGACUAAGGUUUCCAGAGGAAGGCUCGUCCGCUCUGGGUUAGUCGGGUCCUAAGCUGAGGCCGACAGGCGUAGGCGAUGGAUAACAGGUUGAUAUUCCUGUACCACCUAUAAUCGUUUUAAUCGAUGGGGGGACGCAGUAGGAUAGGCGAAGCGUGCGAUUGGAUUGCACGUCUAAGCAGUAAGGCUGAGUAUUAGGCAAAUCCGGUACUCGUUAAGGCUGAGCUGUGAUGGGGAGAAGACAUUGUGUCUUCGAGUCGUUGAUUUCACACUGCCGAGAAAAGCCUCUAGAUAGAAAAUAGGUGCCCGUACCGCAAACCGACACAGGUAGUCAAGAUGAGAAUUCUAAGGUGAGCGAGCGAACUCUCGUUAAGGAACUCGGCAAAAUGACCCCGUAACUUCGGGAGAAGGGGUGCUCUUUAGGGUUAACGCCCAGAAGAGCCGCAGUGAAUAGGCCCAAGCGACUGUUUAUCAAAAACACAGGUCUCUGCUAAACCGUAAGGUGAUGUAUAGGGGCUGACGCCUGCCCGGUGCUGGAAGGUUAAGAGGAGUGGUUAGCUUCUGCGAAGCUACGAAUCGAAGCCCCAGUAAACGGCGGCCGUAACUAUAACGGUCCUAAGGUAGCGAAAUUCCUUGUCGGGUAAGUUCCGACCCGCACGAAAGGCGUAACGAUUUGGGCACUGUCUCAACGAGAGACUCGGUGAAAUCAUAGUACCUGUGAAGAUGCAGGUUACCCGCGACAGGACGGAAAGACCCCGUGGAGCUUUACUGUAGCCUGAUAUUGAAAUUCGGCACAGCUUGUACAGGAUAGGUAGGAGCCUUUGAAACGUGAGCGCUAGCUUACGUGGAGGCGCUGGUGGGAUACUACCCUAGCUGUGUUGGCUUUCUAACCCGCACCACUUAUCGUGGUGGGAGACAGUGUCAGGCGGGCAGUUUGACUGGGGCGGUCGCCUCCUAAAAGGUAACGGAGGCGCUCAAAGGUUCCCUCAGAAUGGUUGGAAAUCAUUCAUAGAGUGUAAAGGCAUAAGGGAGCUUGACUGCGAGACCUACAAGUCGAGCAGGGUCGAAAGACGGACUUAGUGAUCCGGUGGUUCCGCAUGGAAGGGCCAUCGCUCAACGGAUAAAAGCUACCCCGGGGAUAACAGGCUUAUCUCCCCCAAGAGUUCACAUCGACGGGGAGGUUUGGCACCUCGAUGUCGGCUCAUCGCAUCCUGGGGCUGUAGUCGGUCCCAAGGGUUGGGCUGUUCGCCCAUUAAAGCGGUACGCGAGCUGGGUUCAGAACGUCGUGAGACAGUUCGGUCCCUAUCCGUCGUGGGCGUAGGAAAUUUGAGAGGAGCUGUCCUUAGUACGAGAGGACCGGGAUGGACAUACCUCUGGUGUACCAGUUGUCGUGCCAACGGCAUAGCUGGGUAGCUAUGUGUGGACGGGAUAAGUGCUGAAAGCAUCUAAGCAUGAAGCCCCCCUCAAGAUGAGAUUUCCCAACUUCGGUUAUAAGAUCCCUCAAAGAUGAUGAGGUUAAUAGGUUCGAGGUGGAAGCAUGGUGACAUGUGGAGCUGACGAAUACUAAUCGAUCGAAGACUUAAUCAA

Entity 2 polymer

描述 description	5S ribosomal RNA
分子量 formula_weight	36974.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	B

UCUGGUGACUAUAGCAAGGAGGUCACACCUGUUCCCAUGCCGAACACAGAAGUUAAGCUCCUUAGCGUCGAUGGUAGUCGAACUUACGUUCCGCUAGAGUAGAACGUUGCCAGGC

Entity 3 polymer

描述 description	Large ribosomal subunit protein uL2
分子量 formula_weight	29827.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

AIKKYKPITNGRRNMTSLDFAEITKTTPEKSLLKPLPKKAGRNNQGKLTVRHHGGGHKRQYRVIDFKRNKDGINAKVDSIQYDPNRSANIALVVYADGEKRYIIAPKGLEVGQIVESGAEADIKVGNALPLQNIPVGTVVHNIELKPGKGGQIARSAGASAQVLGKEGKYVLIRLRSGEVRMILSTCRATIGQVGNLQHELVNVGKAGRSRWKGIRPTVRGSVMNPNDHPHGGGEGRAPIGRPSPMSPWGKPTLGKKTRRGKKSSDKLIVRGRK

Entity 4 polymer

描述 description	Large ribosomal subunit protein uL3
分子量 formula_weight	23199.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

TKGILGRKIGMTQVFGENGELIPVTVVEAKENVVLQKKTVEVDGYNAIQVGFEDKKAYKKDAKSNKYANKPAEGHAKKADAAPKRFIREFRNVDVDAYEVGQEVSVDTFVAGDVIDVTGVSKGKGFQGAIKRHGQSRGPMSHGSHFHRAPGSVGMASDASRVFKGQKMPGRMGGNTVTVQNLEVVQVDTENKVILVKGNVPGPKKGLVEIRTSIK

Entity 5 polymer

描述 description	Large ribosomal subunit protein uL4
分子量 formula_weight	22364.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

ANYDVLKLDGTKSGSIELSDAVFGIEPNNSVLFEAINLQRASLRQGTHAVKNRSAVSGGGRKPWKQKGTGRARQGTIRAPQWRGGGIVFGPTPRSYAYKMPKKMRRLALRSALSFKAQENGLTVVDAFNFEAPKTKEFKNVLSTLEQPKKVLVVTENEDVNVELSARNIPGVQVTTAQGLNVLDITNADSLVITEAAAKKVEEVLG

Entity 6 polymer

描述 description	Large ribosomal subunit protein uL5
分子量 formula_weight	19731.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

NRLKEKFNTEVTENLMKKFNYSSVMEVPKIDKIVVNMGVGDAVQNSKVLDNAVEELELITGQKPLVTKAKKSIATFRLREGMPIGAKVTLRGERMYEFLDKLISVSLPRVRDFQGVSKKAFDGRGNYTLGVKEQLIFPEIDYDKVSKVRGMDIVIVTTANTDEEARELLANFGMP

Entity 7 polymer

描述 description	Large ribosomal subunit protein uL6
分子量 formula_weight	19501.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

SRVGKKIIDIPSDVTVTFDGNHVTVKGPKGELSRTLNERMTFKQEENTIEVVRPSDSKEDRTNHGTTRALLNNMVQGVSQGYVKVLELVGVGYRAQMQGKDLILNVGYSHPVEIKAEENITFSVEKNTVVKVEGISKEQVGALASNIRSVRPPEPYKGKGIRYQGEYVRRKEGKT

Entity 8 polymer

描述 description	Large ribosomal subunit protein uL13
分子量 formula_weight	16359.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MRQTFMANESNIERKWYVIDAEGQTLGRLSSEVASILRGKNKVTYTPHVDTGDYVIVINASKIEFTGNKETDKVYYRHSNHPGGIKSITAGELRRTNPERLIENSIKGMLPSTRLGEKQGKKLFVYGGAEHPHAAQQPENYELRG

Entity 9 polymer

描述 description	Large ribosomal subunit protein uL14
分子量 formula_weight	13157.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MIQQETRLKVADNSGAREVLTIKVLGGSGRKTANIGDVIVCTVKNATPGGVVKKGDVVKAVIVRTKSGVRRNDGSYIKFDENACVIIRDDKGPRGTRIFGPVARELREGNFMKIVSLAPEVL

Entity 10 polymer

描述 description	Large ribosomal subunit protein uL15
分子量 formula_weight	15628.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MKLHELKPAEGSRKERNRVGRGVATGNGKTSGRGHKGQKARSGGGVRPGFEGGQLPLFRRLPKRGFTNINRKEYAIVNLDQLNKFEDGTEVTPALLVESGVVKNEKSGIKILGNGSLDKKLTVKAHKFSASAAEAIDAKGGAHEVI

Entity 11 polymer

描述 description	Large ribosomal subunit protein uL16
分子量 formula_weight	15599.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MLLPKRVKYRRQHRPKTTGRSKGGNYVTFGEFGLQATTTSWITSRQIESARIAMTRYMKRGGKVWIKIFPHTPYTKKPLEVRMGAGKGAVEGWIAVVKPGRILFEVAGVSEEVAREALRLASHKLPVKTKFVKREEL

Entity 12 polymer

描述 description	Large ribosomal subunit protein bL17
分子量 formula_weight	13583.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

YRKLGRTSDQRKAMLRDLATSLIISERIETTEARAKEVRSVVEKLITLGKKGDLASRRNAAKTLRNVEILNEDETTQTALQKLFGEIAERYTERQGGYTRILKQGPRRGDGAESVIIELV

Entity 13 polymer

描述 description	Large ribosomal subunit protein uL18
分子量 formula_weight	13124.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MISKIDKNKVRLKRHARVRTNLSGTAEKPRLNVYRSNKHIYAQIIDDNKGVTLAQASSKDSDIATTATKVELATKVGEAIAKKAADKGIKEIVFDRGGYLYHGRVKALAEAARESGLEF

Entity 14 polymer

描述 description	Large ribosomal subunit protein bL19
分子量 formula_weight	13104.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

TNHKLIEAVTKSQLRTDLPSFRPGDTLRVHVRIIEGTRERIQVFEGVVIKRRGGGVSETFTVRKISSGVGVERTFPLHTPKIEKIEVKRRGKVRRAKLYYLRSLRGKAARIQEI

Entity 15 polymer

描述 description	Large ribosomal subunit protein bL20
分子量 formula_weight	13459.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O

PRVKGGTVTRARRKKTIKLAKGYFGSKHTLYKVAKQQVMKSGQYAFRDRRQRKRDFRKLWITRINAAARQHEMSYSRLMNGLKKAGIDINRKMLSEIAISDEKAFAQLVTKAKDAL

Entity 16 polymer

描述 description	Large ribosomal subunit protein bL21
分子量 formula_weight	11354.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P

MFAIIETGGKQIKVEEGQEIFVEKLDVNEGDTFTFDKVLFVGGDSVKVGAPTVEGATVTATVNKQGRGKKITVFTYKRRKNSKRKKGHRQPYTKLTIDKINA

Entity 17 polymer

描述 description	Large ribosomal subunit protein uL22
分子量 formula_weight	12857.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q

MEAKAVARTIRIAPRKVRLVLDLIRGKNAAEAIAILKLTNKASSPVIEKVLMSALANAEHNYDMNTDELVVKEAYANEGPTLKRFRPRAQGRASAINKRTSHITIVVSDGKEEAKEA

Entity 18 polymer

描述 description	Large ribosomal subunit protein uL23
分子量 formula_weight	10380.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R

EARDILKRPVITEKSSEAMAEDKYTFDVDTRVNKTQVKMAVEEIFNVKVASVNIMNYKPKKKRMGRYQGYTNKRRKAIVTLKEGSIDLF

Entity 19 polymer

描述 description	Large ribosomal subunit protein uL24
分子量 formula_weight	11316.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S

HIKKGDNVKVIAGKDKGKEGKVIATLPKKDRVVVEGVNIMKKHQKPTQLNPEGGILETEAAIHVSNVQLLDPKTNEPTRVGYKFVDGKKVRIAKKSGEEIKSN

Entity 20 polymer

描述 description	Large ribosomal subunit protein bL25
分子量 formula_weight	10462.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T

ASLKSIIRQGKQTRSDLKQLRKSGKVPAVVYGYGTKNVSVKVDEVEFIKVIREVGRNGVIELGVGSKTIKVMVADYQFDPLKNQITHIDFLAIN

Entity 21 polymer

描述 description	Large ribosomal subunit protein bL27
分子量 formula_weight	8911.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U

KKGVSSTKNGRDSESKRLGAKRADGQFVTGGSILYRQRGTKIYPGENVGRGGDDTLFAKIDGVVKFERKGRDKKQVSVYAVA

Entity 22 polymer

描述 description	Large ribosomal subunit protein bL28
分子量 formula_weight	6550.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V

KQCFVTGRKASTGNRRSHALNSTKRRWNANLQKVRILVDGKPKKVWVSARALKSGKVT

Entity 23 polymer

描述 description	Large ribosomal subunit protein uL29
分子量 formula_weight	7845.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	W

KAKEIRDLTTSEIEEQIKSSKEELFNLRFQLATGQLEETARIRTVRKTIARLKTVAREREIEQSKAN

Entity 24 polymer

描述 description	Large ribosomal subunit protein uL30
分子量 formula_weight	6434.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	X

AKLQITLTRSVIGRPETQRKTVEALGLKKTNSSVVVEDNPAIRGQINKVKHLVTVEEK

Entity 25 polymer

描述 description	Large ribosomal subunit protein bL31B
分子量 formula_weight	6909.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Y

MKQGIHPEYHQVIFLDTTTNFKFLSGSTKTSSEMMEWEDGKEYPVIRLDISSDSHPFYT

Entity 26 polymer

描述 description	Large ribosomal subunit protein bL32
分子量 formula_weight	5569.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Z

AVPKRRTSKTRKNKRRTHFKISVPGMTECPNCGEYKLSHRVCKNCGSY

Entity 27 polymer

描述 description	Large ribosomal subunit protein bL33B
分子量 formula_weight	5684.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1

RVNVTLACTECGDRNYITTKNKRNNPERIEMKKYCPRLNKYTLHRET

Entity 28 polymer

描述 description	Large ribosomal subunit protein bL34
分子量 formula_weight	5252.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	2

VKRTYQPNKRKHSKVHGFRKRMSTKNGRKVLARRRRKGRKVLS

Entity 29 polymer

描述 description	Large ribosomal subunit protein bL35
分子量 formula_weight	7462.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	3

PKMKTHRGAAKRVKRTASGQLKRSRAFTSHLFANKSTKQKRQLRKARLVSKSDMKRVKQLLAYK

Entity 30 polymer

描述 description	Large ribosomal subunit protein bL36
分子量 formula_weight	4318.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	4

MKVRPSVKPICEKCKVIKRKGKVMVICENPKHKQRQG

Entity 31 polymer

描述 description	16S ribosomal RNA
分子量 formula_weight	500833.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	a

AUGGAGAGUUUGAUCCUGGCUCAGGAUGAACGCUGGCGGCGUGCCUAAUACAUGCAAGUCGAGCGAACGGACGAGAAGCUUGCUUCUCUGAUGUUAGCGGCGGACGGGUGAGUAACACGUGGAUAACCUACCUAUAAGACUGGGAUAACUUCGGGAAACCGGAGCUAAUACCGGAUAAUAUUUUGAACCGCAUGGUUCAAAAGUGAAAGACGGUCUUGCUGUCACUUAUAGAUGGAUCCGCGCUGCAUUAGCUAGUUGGUAAGGUAACGGCUUACCAAGGCAACGAUGCAUAGCCGACCUGAGAGGGUGAUCGGCCACACUGGAACUGAGACACGGUCCAGACUCCUACGGGAGGCAGCAGUAGGGAAUCUUCCGCAAUGGGCGAAAGCCUGACGGAGCAACGCCGCGUGAGUGAUGAAGGUCUUCGGAUCGUAAAACUCUGUUAUUAGGGAAGAACAUAUGUGUAAGUAACUGUGCACAUCUUGACGGUACCUAAUCAGAAAGCCACGGCUAACUACGUGCCAGCAGCCGCGGUAAUACGUAGGUGGCAAGCGUUAUCCGGAAUUAUUGGGCGUAAAGCGCGCGUAGGCGGUUUUUUAAGUCUGAUGUGAAAGCCCACGGCUCAACCGUGGAGGGUCAUUGGAAACUGGAAAACUUGAGUGCAGAAGAGGAAAGUGGAAUUCCAUGUGUAGCGGUGAAAUGCGCAGAGAUAUGGAGGAACACCAGUGGCGAAGGCGACUUUCUGGUCUGUAACUGACGCUGAUGUGCGAAAGCGUGGGGAUCAAACAGGAUUAGAUACCCUGGUAGUCCACGCCGUAAACGAUGAGUGCUAAGUGUUAGGGGGUUUCCGCCCCUUAGUGCUGCAGCUAACGCAUUAAGCACUCCGCCUGGGGAGUACGACCGCAAGGUUGAAACUCAAAGGAAUUGACGGGGACCCGCACAAGCGGUGGAGCAUGUGGUUUAAUUCGAAGCAACGCGAAGAACCUUACCAAAUCUUGACAUCCUUUGACAACUCUAGAGAUAGAGCCUUCCCCUUCGGGGGACAAAGUGACAGGUGGUGCAUGGUUGUCGUCAGCUCGUGUCGUGAGAUGUUGGGUUAAGUCCCGCAACGAGCGCAACCCUUAAGCUUAGUUGCCAUCAUUAAGUUGGGCACUCUAAGUUGACUGCCGGUGACAAACCGGAGGAAGGUGGGGAUGACGUCAAAUCAUCAUGCCCCUUAUGAUUUGGGCUACACACGUGCUACAAUGGACAAUACAAAGGGCAGCGAAACCGCGAGGUCAAGCAAAUCCCAUAAAGUUGUUCUCAGUUCGGAUUGUAGUCUGCAACUCGACUACAUGAAGCUGGAAUCGCUAGUAAUCGUAGAUCAGCAUGCUACGGUGAAUACGUUCCCGGGUCUUGUACACACCGCCCGUCACACCACGAGAGUUUGUAACACCCGAAGCCGGUGGAGUAACCUUUUAGGAGCUAGCCGUCGAAGGUGGGACAAAUGAUUGGGGUGAAGUCGUAACAAGGUAGCCGUAUCGGAAGGUGCGGCUGGAUCACCUCCUU

Entity 32 polymer

描述 description	Small ribosomal subunit protein uS2
分子量 formula_weight	26588.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	b

MAVISMKQLLEAGVHFGHQTRRWNPKMKKYIFTERNGIYIIDLQKTVKKVDEAYNFLKQVSEDGGQVLFVGTKKQAQESVKSEAERAGQFYINQRWLGGLLTNYKTISKRIKRISEIEKMEEDGLFEVLPKKEVVELKKEYDRLIKFLGGIRDMKSMPQALFVVDPRKERNAIAEARKLNIPIVGIVDTNCDPDEIDYVIPANDDAIRAVKLLTAKMADAILEGQQGVLMKK

Entity 33 polymer

描述 description	Small ribosomal subunit protein uS3
分子量 formula_weight	24143.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	c

MGQKINPIGLRVGIIRDWEAKWYAEKDFASLLHEDLKIRKFIDNELKEASVSHVEIERAANRINIAIHTGKPGMVIGKGGSEIEKLRNKLNALTDKKVHINVIEIKKVDLDARLVAENIARQLENRASFRRVQKQAITRAMKLGAKGIKTQVSGRLGGADIARAEQYSEGTVPLHTLRADIDYAHAEADTTYGKLGVKVWIYRGEVLPTKNTSGGGK

Entity 34 polymer

描述 description	Small ribosomal subunit protein uS4
分子量 formula_weight	23051.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	d

MARFRGSNWKKSRRLGISLSGTGKELEKRPYAPGQHGPNQRKKLSEYGLQLREKQKLRYLYGMTERQFRNTFDIAGKKFGVHGENFMILLASRLDAVVYSLGLARTRRQARQLVNHGHILVDGKRVDIPSYSVKPGQTISVREKSQKLNIIVESVEINNFVPEYLNFDADSLTGTFVRLPERSELPAEINEQLIVEYYSR

Entity 35 polymer

描述 description	Small ribosomal subunit protein uS5
分子量 formula_weight	17770.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	e

MARREEETKEFEERVVTINRVAKVVKGGRRFRFTALVVVGDKNGRVGFGTGKAQEVPEAIKKAVEAAKKDLVVVPRVEGTTPHTITGRYGSGSVFMKPAAPGTGVIAGGPVRAVLELAGITDILSKSLGSNTPINMVRATIDGLQNLKNAEDVAKLRGKTVEELYN

Entity 36 polymer

描述 description	Small ribosomal subunit protein bS6
分子量 formula_weight	11613.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	f

MRTYEVMYIVRPNIEEDAKKALVERFNGILATEGAEVLEAKDWGKRRLAYEINDFKDGFYNIVRVKSDNNKATDEFQRLAKISDDIIRYMVIREDEDK

Entity 37 polymer

描述 description	Small ribosomal subunit protein uS7
分子量 formula_weight	17826.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	g

MPRKGSVPKRDVLPDPIHNSKLVTKLINKIMLDGKRGTAQRILYSAFDLVEQRSGRDALEVFEEAINNIMPVLEVKARRVGGSNYQVPVEVRPERRTTLGLRWLVNYARLRGEKTMEDRLANEILDAANNTGGAVKKREDTHKMAEANKAFAHYRW

Entity 38 polymer

描述 description	Small ribosomal subunit protein uS8
分子量 formula_weight	14854.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	h

MTMTDPIADMLTRVRNANMVRHEKLELPASNIKKEIAEILKSEGFIKNVEYVEDDKQGVLRLFLKYGQNDERVITGLKRISKPGLRVYAKASEMPKVLNGLGIALVSTSEGVITDKEARKRNVGGEIIAYVW

Entity 39 polymer

描述 description	Small ribosomal subunit protein uS9
分子量 formula_weight	14642.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	i

MAQVEYRGTGRRKNSVARVRLVPGEGNITVNNRDVREYLPFESLILDLNQPFDVTETKGNYDVLVNVHGGGFTGQAQAIRHGIARALLEADPEYRGSLKRAGLLTRDPRMKERKKPGLKAARRSPQFSKR

Entity 40 polymer

描述 description	Small ribosomal subunit protein uS10
分子量 formula_weight	11598.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	j

MAKQKIRIRLKAYDHRVIDQSAEKIVETAKRSGADVSGPIPLPTEKSVYTIIRAVHKYKDSREQFEQRTHKRLIDIVNPTPKTVDALMGLNLPSGVDIEIKL

Entity 41 polymer

描述 description	Small ribosomal subunit protein uS11
分子量 formula_weight	13908.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	k

MARKQVSRKRRVKKNIENGVAHIRSTFNNTIVTITDEFGNALSWSSAGALGFKGSKKSTPFAAQMASETASKSAMEHGLKTVEVTVKGPGPGRESAIRALQSAGLEVTAIRDVTPVPHNGCRPPKRRRV

Entity 42 polymer

描述 description	Small ribosomal subunit protein uS12
分子量 formula_weight	16813.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	l

MGLKSEERRTYHMPTINQLVRKPRQSKIKKSDSPALNKGFNSKKKKFTDLNSPQKRGVCTRVGTMTPKKPNSALRKYARVRLSNNIEINAYIPGIGHNLQEHSVVLVRGGRVKDLPGVRYHIVRGALDTSGVDGRRQGRSLYGTKKPKN

Entity 43 polymer

描述 description	Small ribosomal subunit protein uS13
分子量 formula_weight	13747.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	m

MARIAGVDIPREKRVVISLTYIYGIGTSTAQKILEEANVSADTRVKDLTDDELGRIREVVDGYKVEGDLRRETNLNIKRLMEISSYRGIRHRRGLPVRGQKTKNNARTRKGPVKTVANKKK

Entity 44 polymer

描述 description	Small ribosomal subunit protein uS14B
分子量 formula_weight	7317.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	n

MAKTSMVAKQQKKQKYAVREYTRCERCGRPHSVYRKFKLCRICFRELAYKGQIPGVRKASW

Entity 45 polymer

描述 description	Small ribosomal subunit protein uS15
分子量 formula_weight	10634.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	o

MAISQERKNEIIKEYRVHETDTGSPEVQIAVLTAEINAVNEHLRTHKKDHHSRRGLLKMVGRRRHLLNYLRSKDIQRYRELIKSLGIRR

Entity 46 polymer

描述 description	Small ribosomal subunit protein bS16
分子量 formula_weight	10253.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	p

MAVKIRLTRLGSKRNPFYRIVVADARSPRDGRIIEQIGTYNPTSANAPEIKVDEALALKWLNDGAKPTDTVHNILSKEGIMKKFDEQKKAK

Entity 47 polymer

描述 description	Small ribosomal subunit protein uS17
分子量 formula_weight	10196.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	q

MSERNDRKVYVGKVVSDKMDKTITVLVETYKTHKLYGKRVKYSKKYKTHDENNSAKLGDIVKIQETRPLSATKRFRLVEIVEESVII

Entity 48 polymer

描述 description	Small ribosomal subunit protein bS18
分子量 formula_weight	9332.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	r

MAGGPRRGGRRRKKVCYFTANGITHIDYKDTELLKRFISERGKILPRRVTGTSAKYQRMLTTAIKRSRHMALLPYVKEEQ

Entity 49 polymer

描述 description	Small ribosomal subunit protein uS19
分子量 formula_weight	12319.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	s

MCGLKLHAHNKKGGAQMARSIKKGPFVDEHLMKKVEAQEGSEKKQVIKTWSRRSTIFPNFIGHTFAVYDGRKHVPVYVTEDMVGHKLGEFAPTRTFKGHVADDKKTRR

Entity 50 polymer

描述 description	Small ribosomal subunit protein bS20
分子量 formula_weight	9039.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	t

MANIKSAIKRVKTTEKAEARNISQKSAMRTAVKNAKTAVSNNADNKNELVSLAVKLVDKAAQSNLIHSNKADRIKSQLMTANK

Entity 51 non-polymer

描述 description	;7-[4-[3-[[(1~{S},2~{R},5~{R},6~{S},7~{S},8~{R},9~{R},11~{R},13~{R},14~{R})-8-[(2~{S},3~{R},4~{S},6~{R})-4-(dimethylamino)-6-methyl-3-oxidanyl-oxan-2-yl]oxy-2-ethyl-9-methoxy-1,5,7,9,11,13-hexamethyl-4,12,16-tris(oxidanylidene)-3,17-dioxa-15-azabicyclo[12.3.0]heptadecan-6-yl]oxycarbonylamino]propoxy]but-1-ynyl]-1-methyl-4-oxidanylidene-quinoline-3-carboxylic acid ;
分子量 formula_weight	969.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 52 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	12

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.60 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	27177

fit	/app/data/saxs_computation/y3/8y39/8y39.fit
pddf	/app/data/pr_computation/y3/8y39/8y39.pr.out
profile	/app/data/saxs_computation/y3/8y39/8y39.dat

cryo-EM structure of Staphylococcus aureus(ATCC 29213) 70S ribosome in complex with MCX-190.

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

冷冻电镜 EM 3D

5. 实体与聚合体信息 (52)

Entity 1 polymer

聚合体 Polymer

Entity 2 polymer

聚合体 Polymer

Entity 3 polymer

聚合体 Polymer

Entity 4 polymer

聚合体 Polymer

Entity 5 polymer

聚合体 Polymer

Entity 6 polymer

聚合体 Polymer

Entity 7 polymer

聚合体 Polymer

Entity 8 polymer

聚合体 Polymer

Entity 9 polymer

聚合体 Polymer

Entity 10 polymer

聚合体 Polymer

Entity 11 polymer

聚合体 Polymer

Entity 12 polymer

聚合体 Polymer

Entity 13 polymer

聚合体 Polymer

Entity 14 polymer

聚合体 Polymer

Entity 15 polymer

聚合体 Polymer

Entity 16 polymer

聚合体 Polymer

Entity 17 polymer

聚合体 Polymer

Entity 18 polymer

聚合体 Polymer

Entity 19 polymer

聚合体 Polymer

Entity 20 polymer

聚合体 Polymer

Entity 21 polymer

聚合体 Polymer

Entity 22 polymer

聚合体 Polymer

Entity 23 polymer

聚合体 Polymer

Entity 24 polymer

聚合体 Polymer

Entity 25 polymer

聚合体 Polymer

Entity 26 polymer

聚合体 Polymer

Entity 27 polymer

聚合体 Polymer

Entity 28 polymer

聚合体 Polymer

Entity 29 polymer

聚合体 Polymer

Entity 30 polymer

聚合体 Polymer

Entity 31 polymer

聚合体 Polymer

Entity 32 polymer

聚合体 Polymer

Entity 33 polymer

聚合体 Polymer

Entity 34 polymer

聚合体 Polymer

Entity 35 polymer
