SAXSdb — 8y9v

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Serine protease subunit NS2B

Zika virus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Serine protease NS3 × 1 （Q32ZE1） water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	Serine protease NS3 × 1 （Q32ZE1） DAR-LYS-ORN-ARG × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H8XX12_ZIKV
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–53； UniProt 1411–1462 Author chain C； PDBConstruct 2–53； UniProt 1411–1462

Serine protease NS3

Zika virus

UniProt Q32ZE1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Serine protease subunit NS2B × 1 （H8XX12） water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	Serine protease subunit NS2B × 1 （H8XX12） DAR-LYS-ORN-ARG × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	POLG_ZIKV
Isoform	—
PDB entities	2, 3
Chains and sequence ranges	Author chain B； PDBConstruct 1–153； UniProt 1516–1668 Author chain D； PDBConstruct 1–161； UniProt 1511–1671

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8y9v
Deposition date deposition_date	2024-02-07
Last revision last_revision	2024-02-28
Structure title title	ZIKV NS2B/NS3 protease
Keywords keywords	ZIKV, NS2B/NS3 protease, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8y9v__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8y9v__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

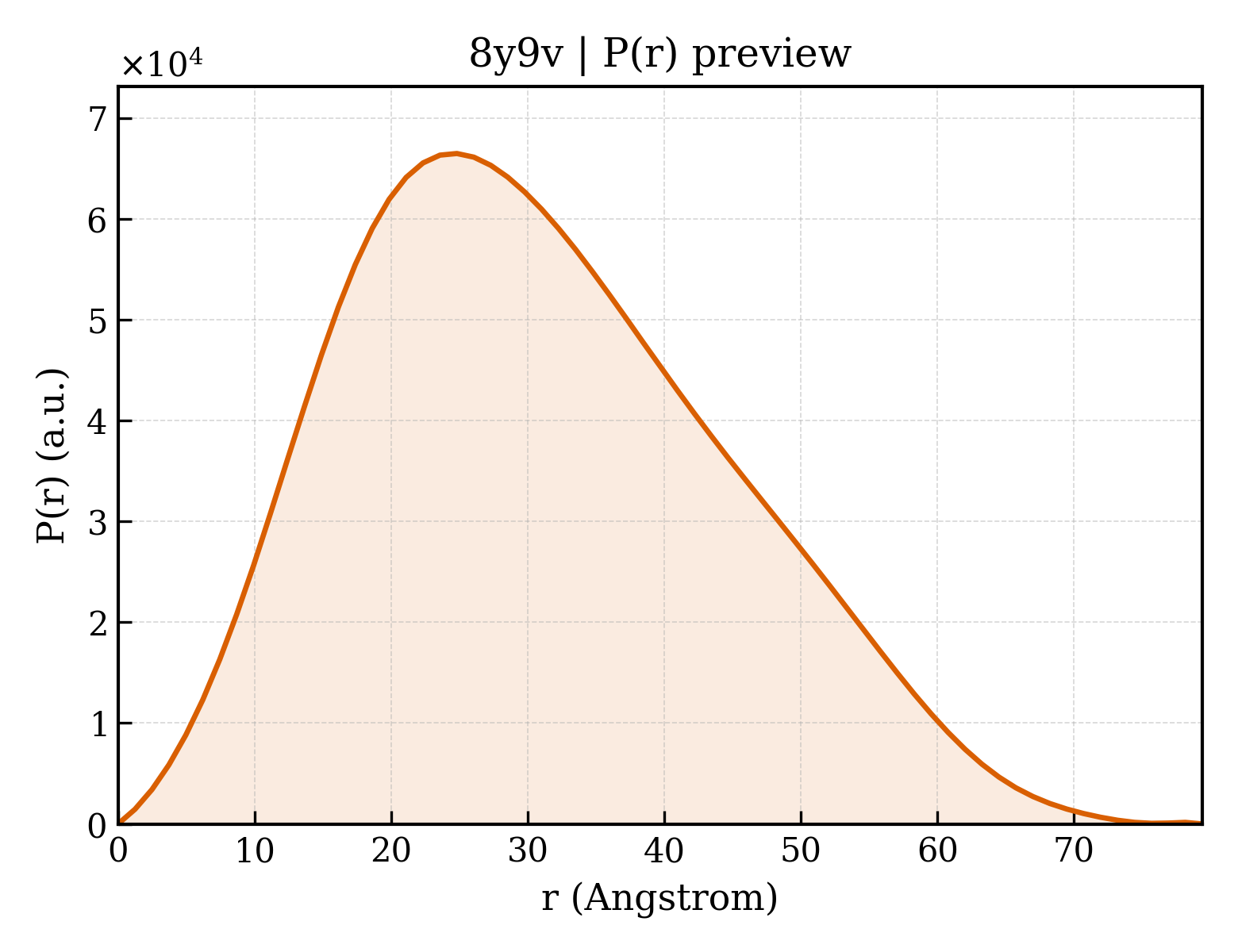

8y9v__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	16.95 Å
Rg (electron density)	15.68 Å
Total Rg	16.84 Å
Atom count	1414
Residues	190
Excluded volume	25022 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8y9v__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`8y9v__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Serine protease subunit NS2B
Molecular weight formula_weight	5865.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	3067

MTGKSVDMYIERAGDITWEKDAEVTGNSPRLDVALDESGDFSLVEEDGPPMRE

Source Source

Source organism organism	Zika virus
NCBI taxonomy ID ncbi_taxonomy_id	64320
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Serine protease NS3
Molecular weight formula_weight	16354.6 kDa
EC 编号 ec_number	3.4.21.91,3.6.1.15,3.6.4.13
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

TTDGVYRVMTRRLLGSTQVGVGVMQEGVFHTMWHVTKGAALRSGEGRLDPYWGDVKQDLVSYCGPWKLDAAWDGLSEVQLLAVPPGERAKNIQTLPGIFKTKDGDIGAVALDYPAGTSGSPILDKSGRVIGLYGNGVVIKNGSYVSAITQGKR

Source Source

Source organism organism	Zika virus
NCBI taxonomy ID ncbi_taxonomy_id	64320
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 polymer

Description description	Serine protease NS3
Molecular weight formula_weight	17285.6 kDa
EC 编号 ec_number	3.4.21.91,3.6.1.15,3.6.4.13
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

VKKGETTDGVYRVMTRRLLGSTQVGVGVMQEGVFHTMWHVTKGAALRSGEGRLDPYWGDVKQDLVSYCGPWKLDAAWDGLSEVQLLAVPPGERAKNIQTLPGIFKTKDGDIGAVALDYPAGTSGSPILDKSGRVIGLYGNGVVIKNGSYVSAITQGKREEE

Source Source

Source organism organism	Zika virus
NCBI taxonomy ID ncbi_taxonomy_id	64320
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 4 Entity 4 polymer

Description description	DAR-LYS-ORN-ARG
Molecular weight formula_weight	575.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

RKAR

Source Source

Source organism organism	synthetic construct
NCBI taxonomy ID ncbi_taxonomy_id	32630
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	163

▶

Unit-cell length a length_a	59.753 Å
Unit-cell length b length_b	59.753 Å
Unit-cell length c length_c	213.594 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	45.770 Å
R factor r_factor	0.2190
R_work r_work	0.2170
R_free r_free	0.2477
