8z22

Crystal structure of the liprin-alpha2/RIM1 complex

Method: X-RAY DIFFRACTION
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Regulating synaptic membrane exocytosis 1

Rattus norvegicus

UniProt A0A8I6GEN0

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein heterocomplex Heteromer Protein 4 Liprin-alpha-2 × 2 (O75334) water × 3 Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence
UniProt name A0A8I6GEN0_RAT
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A; PDBConstruct 7–175; UniProt 675–843 Author chain B; PDBConstruct 7–175; UniProt 675–843

Liprin-alpha-2

Homo sapiens

UniProt O75334

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein heterocomplex Heteromer Protein 4 Regulating synaptic membrane exocytosis 1 × 2 (A0A8I6GEN0) water × 3 Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence
UniProt name LIPA2_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain C; PDBConstruct 7–111; UniProt 300–404 Author chain D; PDBConstruct 7–111; UniProt 300–404

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id8z22
Deposition date deposition_date2024-04-12
Structure title titleCrystal structure of the liprin-alpha2/RIM1 complex
Keywords keywordsCoiled coil, Complex, PROTEIN BINDING; PROTEIN BINDING
Experimental Method methodX-RAY DIFFRACTION
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8z22__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

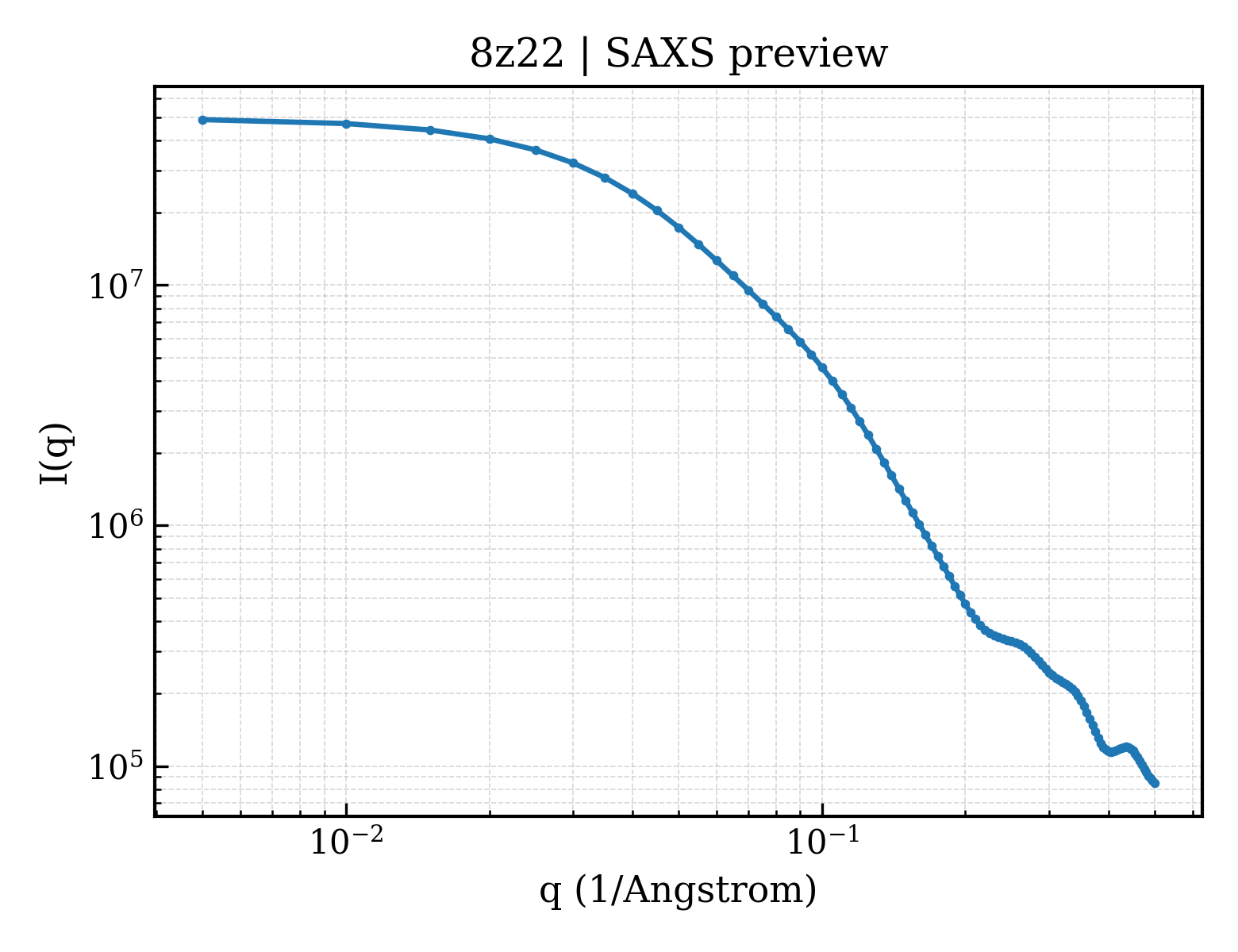

8z22__assembly_1__model_1 | I(q)

10-2 10-1 105 106 107 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

8z22__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg(Guinier)36.20 Å
Rg (electron density)36.57 Å
Total Rg36.72 Å
Atom count3832
Residues479
Excluded volume68532 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 8z22__assembly_1__model_1 tetrameric (4) Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

▶

7. Citations (1)
