SAXSdb — 8zwa

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Disease resistance protein ADR1

Arabidopsis thaliana

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Isoform 1 of Protein EDS1 × 1 （Q9SU72） PAD4 × 1 （A0A178V847） 2'-O-[(5'-PHOSPHO)RIBOSYL]ADENOSINE-5'-MONOPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ADR1_ARATH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–787； UniProt 1–787

Isoform 1 of Protein EDS1

Arabidopsis thaliana

UniProt Q9SU72

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Disease resistance protein ADR1 × 1 （Q9FW44） PAD4 × 1 （A0A178V847） 2'-O-[(5'-PHOSPHO)RIBOSYL]ADENOSINE-5'-MONOPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EDS1C_ARATH
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–623； UniProt 1–623

PAD4

Arabidopsis thaliana

UniProt A0A178V847

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Disease resistance protein ADR1 × 1 （Q9FW44） Isoform 1 of Protein EDS1 × 1 （Q9SU72） 2'-O-[(5'-PHOSPHO)RIBOSYL]ADENOSINE-5'-MONOPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A178V847_ARATH
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–541； UniProt 1–541

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8zwa
Deposition date deposition_date	2024-06-13
Structure title title	HopBY induced At EDS1-PAD4-ADR1 heterotrimer
Keywords keywords	Effector-triggered immunity (ETI), TNL signaling pathway, EDS1, PAD4, ADR1, PLANT PROTEIN; PLANT PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8zwa__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8zwa__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

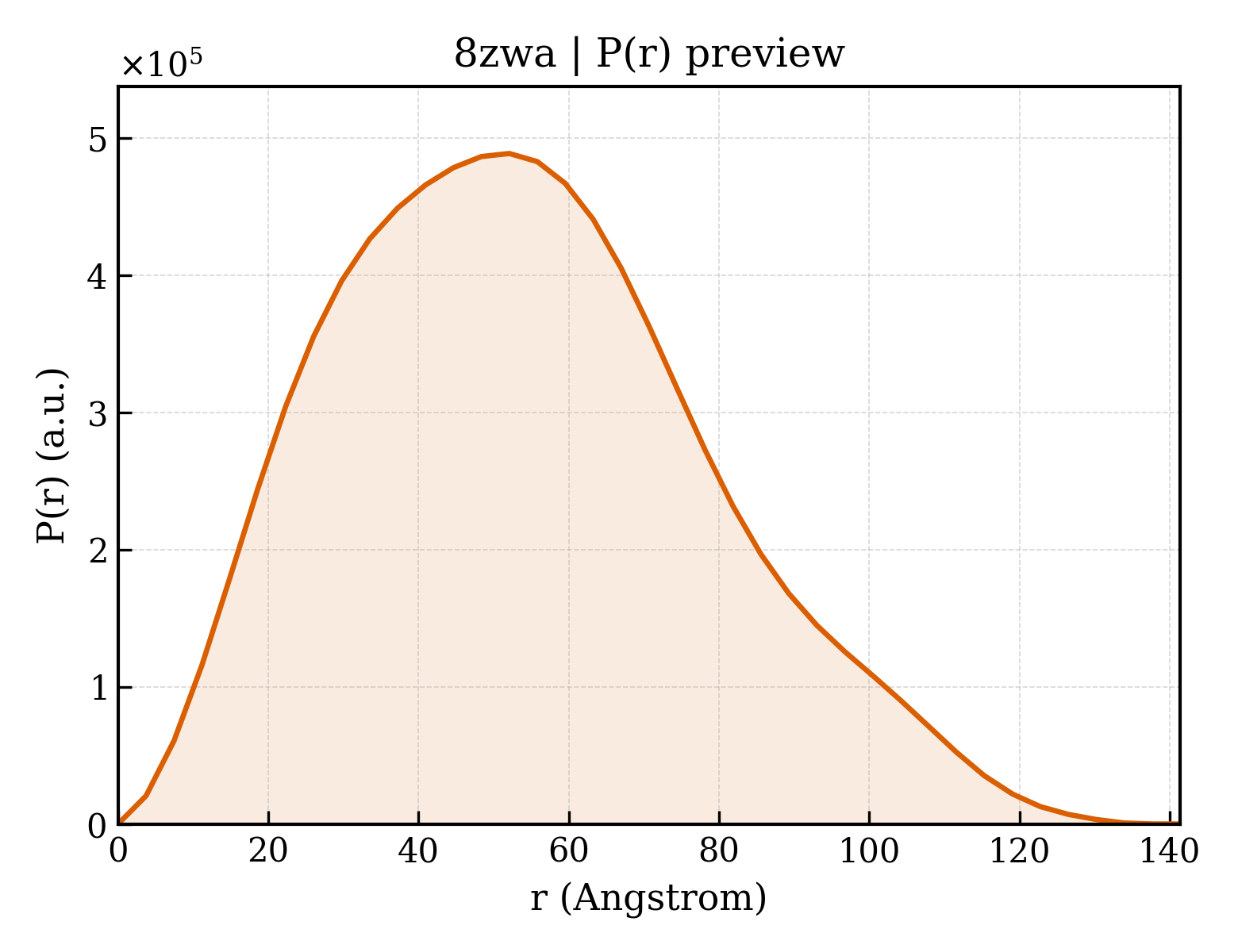

8zwa__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	41.71 Å
Rg (electron density)	41.39 Å
Total Rg	41.60 Å
Atom count	11395
Residues	1509
Excluded volume	201060 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8zwa__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Disease resistance protein ADR1
Molecular weight formula_weight	90252.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	11395

MASFIDLFAGDITTQLLKLLALVANTVYSCKGIAERLITMIRDVQPTIREIQYSGAELSNHHQTQLGVFYEILEKARKLCEKVLRCNRWNLKHVYHANKMKDLEKQISRFLNSQILLFVLAEVCHLRVNGDRIERNMDRLLTERNDSLSFPETMMEIETVSDPEIQTVLELGKKKVKEMMFKFTDTHLFGISGMSGSGKTTLAIELSKDDDVRGLFKNKVLFLTVSRSPNFENLESCIREFLYDGVHQRKLVILDDVWTRESLDRLMSKIRGSTTLVVSRSKLADPRTTYNVELLKKDEAMSLLCLCAFEQKSPPSPFNKYLVKQVVDECKGLPLSLKVLGASLKNKPERYWEGVVKRLLRGEAADETHESRVFAHMEESLENLDPKIRDCFLDMGAFPEDKKIPLDLLTSVWVERHDIDEETAFSFVLRLADKNLLTIVNNPRFGDVHIGYYDVFVTQHDVLRDLALHMSNRVDVNRRERLLMPKTEPVLPREWEKNKDEPFDAKIVSLHTGEMDEMNWFDMDLPKAEVLILNFSSDNYVLPPFIGKMSRLRVLVIINNGMSPARLHGFSIFANLAKLRSLWLKRVHVPELTSCTIPLKNLHKIHLIFCKVKNSFVQTSFDISKIFPSLSDLTIDHCDDLLELKSIFGITSLNSLSITNCPRILELPKNLSNVQSLERLRLYACPELISLPVEVCELPCLKYVDISQCVSLVSLPEKFGKLGSLEKIDMRECSLLGLPSSVAALVSLRHVICDEETSSMWEMVKKVVPELCIEVAKKCFTVDWLDD

Source Source

Source organism organism	Arabidopsis thaliana
Common name common_name	thale cress
NCBI taxonomy ID ncbi_taxonomy_id	3702
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Isoform 1 of Protein EDS1
Molecular weight formula_weight	71784.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MAFEALTGINGDLITRSWSASKQAYLTERYHKEEAGAVVIFAFQPSFSEKDFFDPDNKSSFGEIKLNRVQFPCMRKIGKGDVATVNEAFLKNLEAIIDPRTSFQASVEMAVRSRKQIVFTGHSSGGATAILATVWYLEKYFIRNPNVYLEPRCVTFGAPLVGDSIFSHALGREKWSRFFVNFVSRFDIVPRIMLARKASVEETLPHVLAQLDPRKSSVQESEQRITEFYTRVMRDTSTVANQAVCELTGSAEAFLETLSSFLELSPYRPAGTFVFSTEKRLVAVNNSDAILQMLFYTSQASDEQEWSLIPFRSIRDHHSYEELVQSMGKKLFNHLDGENSIESTLNDLGVSTRGRQYVQAALEEEKKRVENQKKIIQVIEQERFLKKLAWIEDEYKPKCQAHKNGYYDSFKVSNEENDFKANVKRAELAGVFDEVLGLMKKCQLPDEFEGDIDWIKLATRYRRLVEPLDIANYHRHLKNEDTGPYMKRGRPTRYIYAQRGYEHYILKPNGMIAEDVFWNKVNGLNLGLQLEEIQETLKNSGSECGSCFWAEVEELKGKPYEEVEVRVKTLEGMLGEWITDGEVDDKEIFLEGSTFRKWWITLPKNHKSHSPLRDYMMDEITDT

Source Source

Source organism organism	Arabidopsis thaliana
Common name common_name	thale cress
NCBI taxonomy ID ncbi_taxonomy_id	3702
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	PAD4
Molecular weight formula_weight	61054.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MDDCRFETSELQASVMISTPLFTDSWSSCNTANCNGSIKIHDIAGITYVAIPAVSMIQLGNLVGLPVTGDVLFPGLSSDEPLPMVDAAILKLFLQLKIKEGLELELLGKKLVVITGHSTGGALAAFTALWLLSQSSPPSFRVFCITFGSPLLGNQSLSTSISRSRLAHNFCHVVSIHDLVPRSSNEQFWPFGTYLFCSDKGGVCLDNAGSVRLMFNILNTTATQNTEEHQRYGHYVFTLSHMFLKSRSFLGGSIPDNSYQAGVALAVEALGFSNDDTSGVLVKECIETATRIVRAPILRSAELANELASVLPARLEIQWYKDRCDASEEQLGYYDFFKRYSLKRDFKVNMSRIRLAKFWDTVIKMVETNELPFDFHLGKKWIYASQFYQLLAEPLDIANFYKNRDIKTGGHYLEGNRPKRYEVIDKWQKGVKVPEECVRSRYASTTQDTCFWAKLEQAKEWLDEARKESSDPQRRSLLREKIVPFESYANTLVTKKEVSLDVKAKNSSYSVWEANLKEFKCKMGYENEIEMVVDESDAMET

Source Source

Source organism organism	Arabidopsis thaliana
Common name common_name	thale cress
NCBI taxonomy ID ncbi_taxonomy_id	3702
Host organism host_organism	Spodoptera frugiperda

Entity 4 Entity 4 non-polymer

Description description	2'-O-[(5'-PHOSPHO)RIBOSYL]ADENOSINE-5'-MONOPHOSPHATE
Molecular weight formula_weight	559.3 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	3.48 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	107173
