SAXSdb — 9b8q

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9b8q
沉积日期 deposition_date	2024-03-31
结构标题 title	Synaptic Vesicle V-ATPase with synaptophysin and SidK, State 3, peripheral stalks
关键词 keywords	Complex, Synaptic, Native, PROTON TRANSPORT; PROTON TRANSPORT
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	72.91 Å
回转半径 Rg (电子) rg_electron	72.54 Å
零角强度 I(0) i0	515449000.00
分子量 molecular_weight	174930.0 kDa
排除体积 excluded_volume	212240 Å³
包络体积 envelope_volume	554410 Å³
水化壳体积 shell_volume	66483 Å³
包络直径 envelope_diameter	208.3 Å
壳层 Rg shell_rg	73.09 Å
包络 Rg envelope_rg	66.14 Å
形状 Rg shape_rg	72.46 Å
总 Rg total_rg	72.78 Å
总原子数 total_atoms	12348
残基数 n_residues	1886
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	193.1 Å
Rg (实空间) rg_real	72.64 Å
Rg 误差 (实空间) rg_real_error	1.60 Å
I(0) (实空间) i0_real	5.1540e+08
I(0) 误差 (实空间) i0_real_error	1.1060e+07
Rg (倒空间) rg_reciprocal	73.58 Å
I(0) (倒空间) i0_reciprocal	516300000.0000
解质量估计 total_estimate	0.5653
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	110.4 Å
偏度 Skewness skewness	-0.258
峰度 Kurtosis kurtosis	-0.883
角度范围 angular_range	— – 0.1050 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	19690000.0000
实空间数据点数 n_real_points	22
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.830; Stabil: 1.000; Sysdev: 0.020; Positv: 1.000; Valcen: 0.798; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	V-type proton ATPase subunit C 1
分子量 formula_weight	43958.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G
原子数 atom_count	12348

MTEFWLISAPGEKTCQQTWEKLHAATTKNNNLAVSSKFNIPDLKVGTLDVLVGLSDELAKLDAFVEGVVKKVAQYMADVLEDSKDKVQENLLASGVDLVTYITRFQWDMAKYPIKQSLKNISEIIAKGVTQIDNDLKSRASAYNNLKGNLQNLERKNAGSLLTRSLAEIVKKDDFVLDSEYLVTLLVVVPKLNHNDWIKQYETLAEMVVPRSSNVLSEDQDSYLCNVTLFKKAVDDFRHKARENKFIVRDFQYNEEEMRADKEEMNRLSTDKKKQFGPLVRWLKVNFSEAFIAWIHIKALRVFVESVLRYGLPVNFQAMLLQPNKKSVKKLREVLHELYKHLDSSAAAIIDAPMDIPGLNLSQQEYYPYVYYKIDCNLLEFK

Entity 2 polymer

描述 description	V-type proton ATPase subunit E 1
分子量 formula_weight	26167.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I,J,K

MALSDADVQKQIKHMMAFIEQEANEKAEEIDAKAEEEFNIEKGRLVQTQRLKIMEYYEKKEKQIEQQKKIQMSNLMNQARLKVLRARDDLITDLLNEAKQRLSKVVKDTTRYQVLLDGLVLQGLYQLLEPRMIVRCRKQDFPLVKAAVQKAIPMYKIATKKDVDVQIDLEAYLPEDIAGGVEIYNGDRKIKVSNTLESRLDLIAQQMMPEVRGALFGANANRKFLD

Entity 3 polymer

描述 description	V-type proton ATPase subunit G
分子量 formula_weight	13690.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M,N,O

MASQSQGIQQLLQAEKRAAEKVADARKRKARRLKQAKEEAQMEVEQYRREREQEFQSKQQAAMGSQGNLSAEVEQATRRQVQGMQSSQQRNRERVLTQLLGMVCDVRPQVHPNYRITV

Entity 4 polymer

描述 description	V-type proton ATPase subunit H
分子量 formula_weight	55936.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T

MTKMDIRGAVDAAVPTNIIAAKAAEVRANKVNWQSYLQGQMISAEDCEFIQRFEMKRCSEEKQEMLQTEGSQCAKTFINLMTHISKEQTVQYILTMVDDMLQENHQRVSIFFDYAKRSKSTAWPYFLPMLNRQDPFTVHMAARIIAKLAAWGKELMEGSDLNYYFNWIKTQLSSQKLRGSGVAVETGTISASDSSQYVQCVAGCLQLMLRVNEYRFAWVEADGVNCIMGVLSNKCGFQLQYQMIFSIWLLAFSPQMCEHLRRYNIIPVLSDILQESVKEKVTRIILAAFRNFLEKSTERETRQEYALAMIQCKVLKQLENLEQQKYDDEDISEDIKFLLEKLGESVQDLSSFDEYSSELKSGRLEWSPVHKSEKFWRENAVRLNEKNYELLKILTKLLEVSDDPQVLAVAAHDVGEYVRHYPRGKRVIEQLGGKQLVMNHMHHEDQQVRYNALLAVQKLMVHNWEYLGKQLQSEQPQTAAARS

Entity 5 polymer

描述 description	V-type proton ATPase 116 kDa subunit a isoform 1
分子量 formula_weight	96429.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	a

MGELFRSEEMTLAQLFLQSEAAYCCVSELEELGKVQFRDLNPDVNVFQRKFVNEVRRCEEMDRKLRFVEKEIRKANIPIMDTGENPEVPFPRDMIDLEANFEKIENELKEINTNQEALKRNFLELTELKFILRKTQQFFDEMADPDLLEESSSLLEPNEMGRGAPLRLGFVAGVINRERIPTFERMLWRVCRGNVFLRQAEIENPLEDPVTGDYVHKSVFIIFFQGDQLKNRVKKICEGFRASLYPCPETPQERKEMASGVNTRIDDLQMVLNQTEDHRQRVLQAAAKNIRVWFIKVRKMKAIYHTLNLCNIDVTQKCLIAEVWCPVTDLDSIQFALRRGTEHSGSTVPSILNRMQTNQTPPTYNKTNKFTHGFQNIVDAYGIGTYREINPAPYTVITFPFLFAVMFGDFGHGILMTLFAVWMVLRESRILSQKNENEMFSMVFSGRYIILLMGLFSIYTGLIYNDCFSKSLNIFGSSWSVRPMFTIGNWTEETLLGSSVLQLNPAIPGVFGGPYPFGIDPIWNIATNKLTFLNSFKMKMSVILGIIHMLFGVSLSLFNHIYFKKPLNIYFGFIPEIIFMSSLFGYLVILIFYKWTAYDAHSSRNAPSLLIHFINMFLFSYPESGNAMLYSGQKGIQCFLIVVAMLCVPWMLLFKPLILRHQYLRKKHLGTLNFGGIRVGNGPTEEDAEIIQHDQLSTHSEDAEEPTEDEVFDFGDTMVHQAIHTIEYCLGCISNTASYLRLWALSLAHAQLSEVLWTMVIHIGLHVRSLAGGLGLFFIFAAFATLTVAILLIMEGLSAFLHALRLHWVEFQNKFYTGTGFKFLPFSFEHIREGKFDE

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	3.80 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	198533

fit	/app/data/saxs_computation/b8/9b8q/9b8q.fit
pddf	/app/data/pr_computation/b8/9b8q/9b8q.pr.out
profile	/app/data/saxs_computation/b8/9b8q/9b8q.dat

Synaptic Vesicle V-ATPase with synaptophysin and SidK, State 3, peripheral stalks

SAXS 散射曲线 SAXS Profile

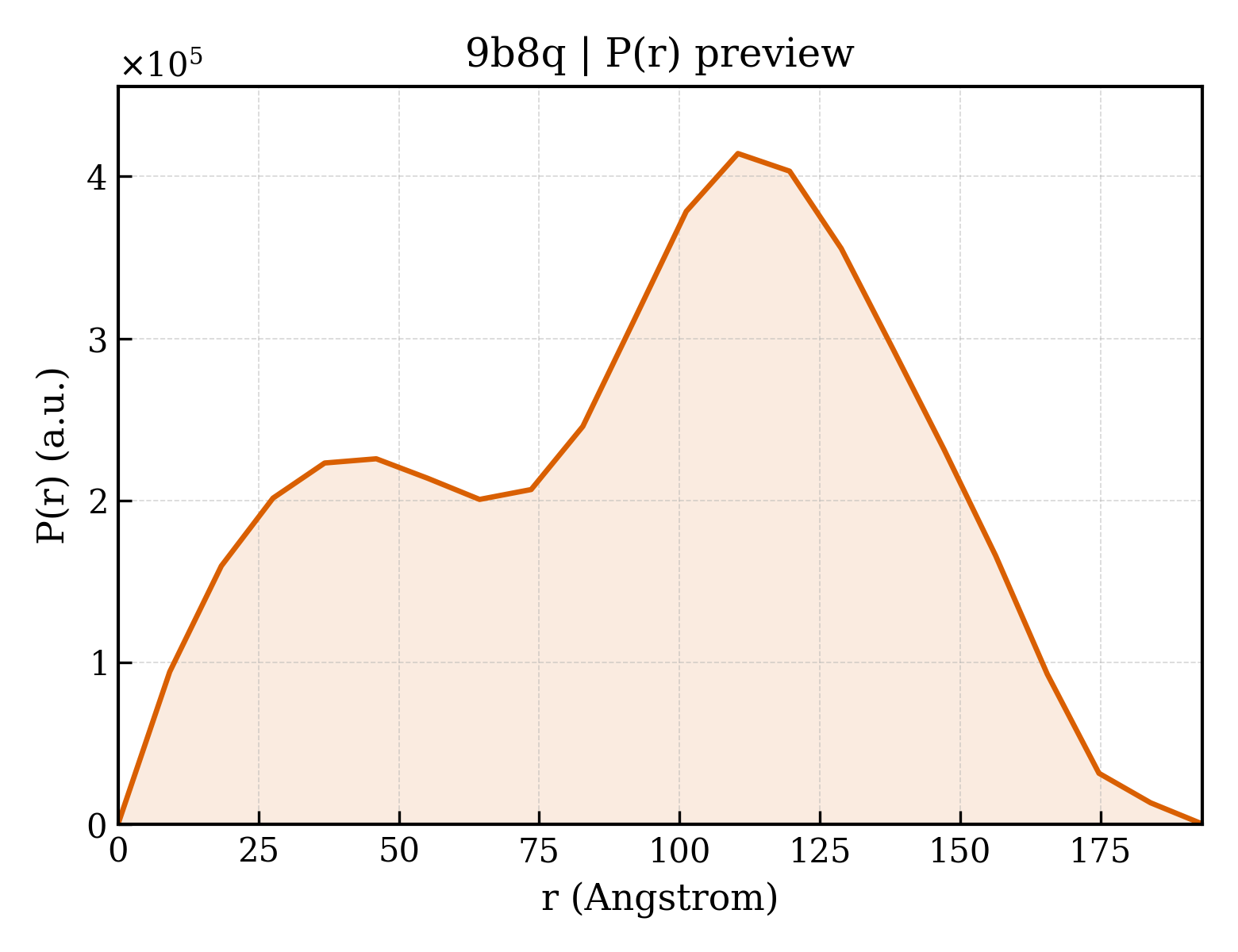

P(r) 距离分布 P(r) Distribution
