SAXSdb — 9bk6

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cytotoxin 1

Naja pallida

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 1–60	Not recorded	B10_CYTX binder × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；0.1 M MES pH 6, 0.01 M Zinc chloride, 20% (w/v) PEG 6000 and 10 % (v/v) Ethylene glycol	Resolution 2.00 Å R-free 0.285

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9BK6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CXN REFINED THREE-DIMENSIONAL SOLUTION STRUCTURE OF A SNAKE CARDIOTOXIN: ANALYSIS OF THE SIDE-CHAIN ORGANISATION SUGGESTS THE EXISTENCE OF A POSSIBLE PHOSPHOLIPID BINDING SITE Deposited 1994-07-08	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–60（60 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1CXO REFINED THREE-DIMENSIONAL SOLUTION STRUCTURE OF A SNAKE CARDIOTOXIN: ANALYSIS OF THE SIDE-CHAIN ORGANISATION SUGGESTS THE EXISTENCE OF A POSSIBLE PHOSPHOLIPID BINDING SITE Deposited 1994-11-07	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–60（60 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1TGX X-RAY STRUCTURE AT 1.55 A OF TOXIN GAMMA, A CARDIOTOXIN FROM NAJA NIGRICOLLIS VENOM. CRYSTAL PACKING REVEALS A MODEL FOR INSERTION INTO MEMBRANES Deposited 1993-11-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 1–60（60 aa） Chain B 1–60（60 aa） Chain C 1–60（60 aa）	Not recorded	CL CHLORIDE ION × 28	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.55 Å
1TGX X-RAY STRUCTURE AT 1.55 A OF TOXIN GAMMA, A CARDIOTOXIN FROM NAJA NIGRICOLLIS VENOM. CRYSTAL PACKING REVEALS A MODEL FOR INSERTION INTO MEMBRANES Deposited 1993-11-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 1–60（60 aa） Chain B 1–60（60 aa） Chain C 1–60（60 aa）	Not recorded	CL CHLORIDE ION × 28	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.55 Å
1TGX X-RAY STRUCTURE AT 1.55 A OF TOXIN GAMMA, A CARDIOTOXIN FROM NAJA NIGRICOLLIS VENOM. CRYSTAL PACKING REVEALS A MODEL FOR INSERTION INTO MEMBRANES Deposited 1993-11-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 1–60（60 aa） Chain B 1–60（60 aa） Chain C 1–60（60 aa）	Not recorded	CL CHLORIDE ION × 28	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.55 Å
1TGX X-RAY STRUCTURE AT 1.55 A OF TOXIN GAMMA, A CARDIOTOXIN FROM NAJA NIGRICOLLIS VENOM. CRYSTAL PACKING REVEALS A MODEL FOR INSERTION INTO MEMBRANES Deposited 1993-11-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 1–60（60 aa） Chain B 1–60（60 aa） Chain C 1–60（60 aa）	Not recorded	CL CHLORIDE ION × 28	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.55 Å
9RIT Co-crystal of broadly neutralizing biparatopic VHH in complex with cardiotoxin (P01468) Naja pallida Deposited 2025-06-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–60（60 aa）	Not recorded	ACT ACETATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；293 K；0.2M Ammonium acetate, 0.1M Sodium acetate, pH 4.6, 30% w/v PEG 4000. 25% (v/v) glycerol as cryoprotection.	Resolution 1.60 Å R-free 0.258
9RIT Co-crystal of broadly neutralizing biparatopic VHH in complex with cardiotoxin (P01468) Naja pallida Deposited 2025-06-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–60（60 aa）	Not recorded	ACT ACETATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；293 K；0.2M Ammonium acetate, 0.1M Sodium acetate, pH 4.6, 30% w/v PEG 4000. 25% (v/v) glycerol as cryoprotection.	Resolution 1.60 Å R-free 0.258

4 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	3SA1_NAJPA
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–60； UniProt 1–60

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9bk6
Deposition date deposition_date	2024-04-26
Structure title title	Structure of B10_CYTX binder-complex
Keywords keywords	cytotoxins, protein design, diffusion, deep learning, DE NOVO PROTEIN, DE NOVO PROTEIN-TOXIN complex; DE NOVO PROTEIN/TOXIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	17.78 Å
Radius of gyration Rg (electron density) rg_electron	16.76 Å
Forward intensity I(0) i0	6200600.00
Molecular weight molecular_weight	17880.0 kDa
Excluded volume excluded_volume	22415 Å³
Envelope volume envelope_volume	26850 Å³
Hydration-shell volume shell_volume	14038 Å³
Envelope diameter envelope_diameter	60.8 Å
Shell Rg shell_rg	21.93 Å
Envelope Rg envelope_rg	17.02 Å
Shape Rg shape_rg	16.77 Å
Total Rg total_rg	17.67 Å
Total atoms total_atoms	1241
Residues n_residues	161
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	58.7 Å
Rg (real space) rg_real	17.74 Å
Rg uncertainty (real space) rg_real_error	0.38 Å
I(0) (real space) i0_real	6.2010e+06
I(0) uncertainty (real space) i0_real_error	7.6840e+04
Rg (reciprocal space) rg_reciprocal	17.75 Å
I(0) (reciprocal space) i0_reciprocal	6201000.0000
Solution quality estimate total_estimate	0.8150
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	22.2 Å
Skewness Skewness skewness	0.269
Kurtosis Kurtosis kurtosis	-0.301
Angular range angular_range	— – 0.4450 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	854500.0000
Real-space data points n_real_points	75
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.866; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	B10_CYTX binder
Molecular weight formula_weight	11392.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1298

MSGGTPEERLAQLEKEIQALYDAADEVVDEVEEKDGKMTVTRTLTIGDGTVTLVETLKIVDGAPVKDGEIEVICNPECEELGKRLKALAKEYEKAQEEVEKAKA

来源 Source

来源生物 organism	synthetic construct
NCBI Class编号 ncbi_taxonomy_id	32630
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Cytotoxin 1
Molecular weight formula_weight	6838.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

LKCNQLIPPFWKTCPKGKNLCYKMTMRAAPMVPVKRGCIDVCPKSSLLIKYMCCNTDKCN

来源 Source

来源生物 organism	Naja pallida
通用名 common_name	Red spitting cobra
NCBI Class编号 ncbi_taxonomy_id	8658
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	57

▶

8. Citations (1)

▶

Unit-cell length a length_a	34.564 Å
Unit-cell length b length_b	63.663 Å
Unit-cell length c length_c	77.720 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	orthorhombic

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	33.170 Å
R factor r_factor	0.2514
R_work r_work	0.2496
R_free r_free	0.2850

fit	/app/data/saxs_computation/bk/9bk6/9bk6.fit
pddf	/app/data/pr_computation/bk/9bk6/9bk6.pr.out
profile	/app/data/saxs_computation/bk/9bk6/9bk6.dat

Structure of B10_CYTX binder-complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cytotoxin 1

State in the Current Structure

Other States of the Same Protein in the Database

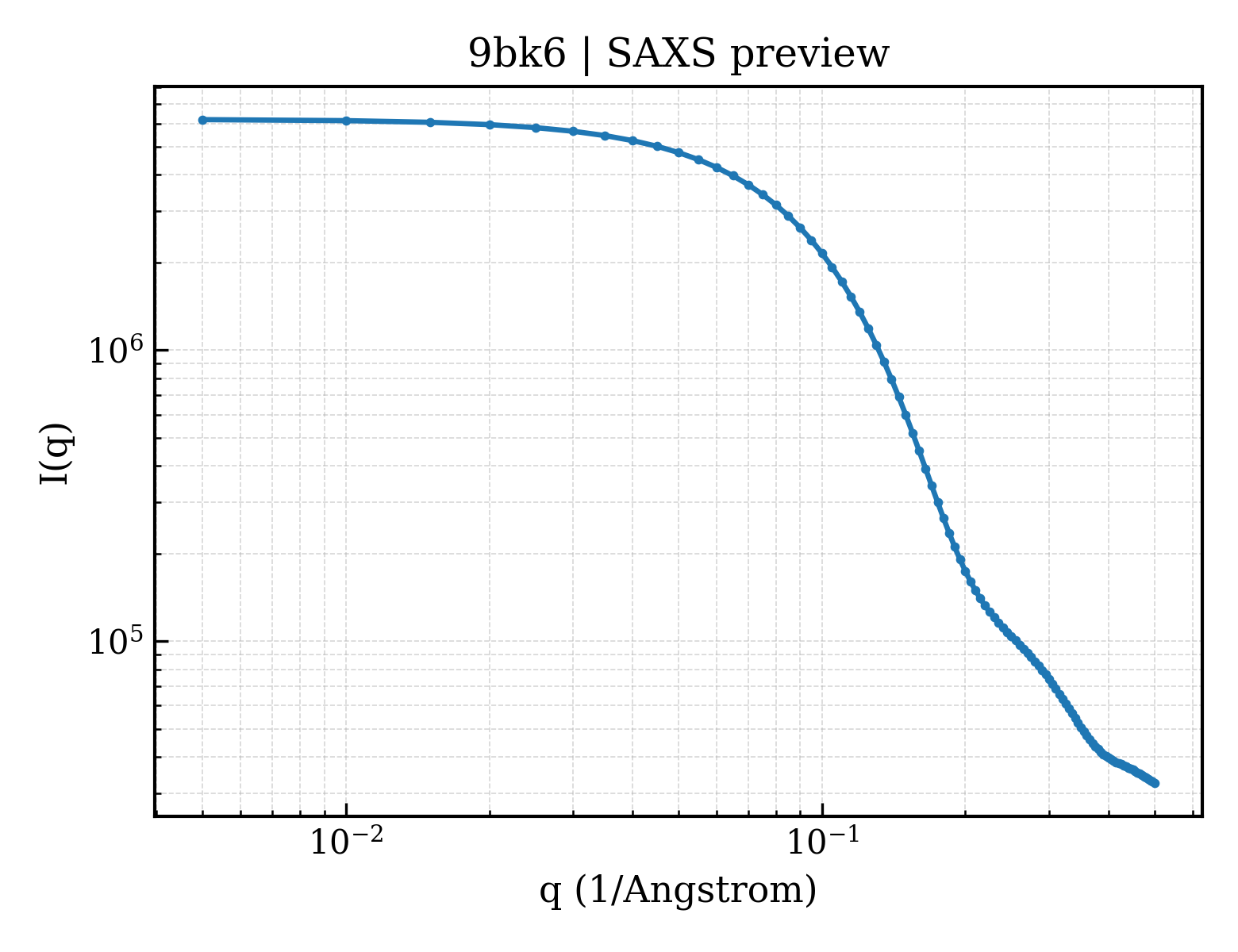

SAXS scattering curve SAXS Profile
