SAXSdb — 9c0x

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Hemagglutinin HA2 subunit

Influenza A virus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 4 其他Polymer 1 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain B； UniProt 354–518	Not recorded	Antibody 31.b.09 Fab light chain × 1 Antibody 31.b.09 Fab heavy chain × 1 Hemagglutinin HA1 subunit × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M sodium phosphate dibasic, 20% w/v PEG3350	Resolution 4.35 Å R-free 0.382

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9C0X	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
9DRU Crystal structure of 04709_4F04 Fab in complex with H1 HA from A/California/04/2009(H1N1) Deposited 2024-09-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain B 345–518（174 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2 M sodium acetate, pH 6.4, 18% PEG3350	Resolution 2.75 Å R-free 0.265
9DS1 Crystal structure of 241_2F04 Fab in complex with H1 HA from A/California/04/2009(H1N1) Deposited 2024-09-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: tetrameric	Chain B 345–518（174 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2 M sodium acetate, pH 6.4, 16% PEG3350	Resolution 2.40 Å R-free 0.263
9DS2 Crystal structure of 346-54 Fab in complex with H1 HA from A/California/04/2009(H1N1) Deposited 2024-09-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 345–518（174 aa） Chain D 345–518（174 aa） Chain F 345–518（174 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2 M sodium acetate, pH 6.2, 20% PEG3350	Resolution 3.29 Å R-free 0.279

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	A0A6J3XB93_9INFA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 1–165； UniProt 354–518

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9c0x
Deposition date deposition_date	2024-05-28
Structure title title	Crystal structure of chimeric hemagglutinin cH11/1 in complex with broad protective antibody 31.b.09
Keywords keywords	immune system, VIRAL PROTEIN-IMMUNE SYSTEM complex; VIRAL PROTEIN/IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	36.58 Å
Radius of gyration Rg (electron density) rg_electron	36.74 Å
Forward intensity I(0) i0	106148000.00
Molecular weight molecular_weight	80928.0 kDa
Excluded volume excluded_volume	100540 Å³
Envelope volume envelope_volume	133950 Å³
Hydration-shell volume shell_volume	33596 Å³
Envelope diameter envelope_diameter	136.9 Å
Shell Rg shell_rg	38.42 Å
Envelope Rg envelope_rg	36.27 Å
Shape Rg shape_rg	36.74 Å
Total Rg total_rg	36.84 Å
Total atoms total_atoms	5699
Residues n_residues	714
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

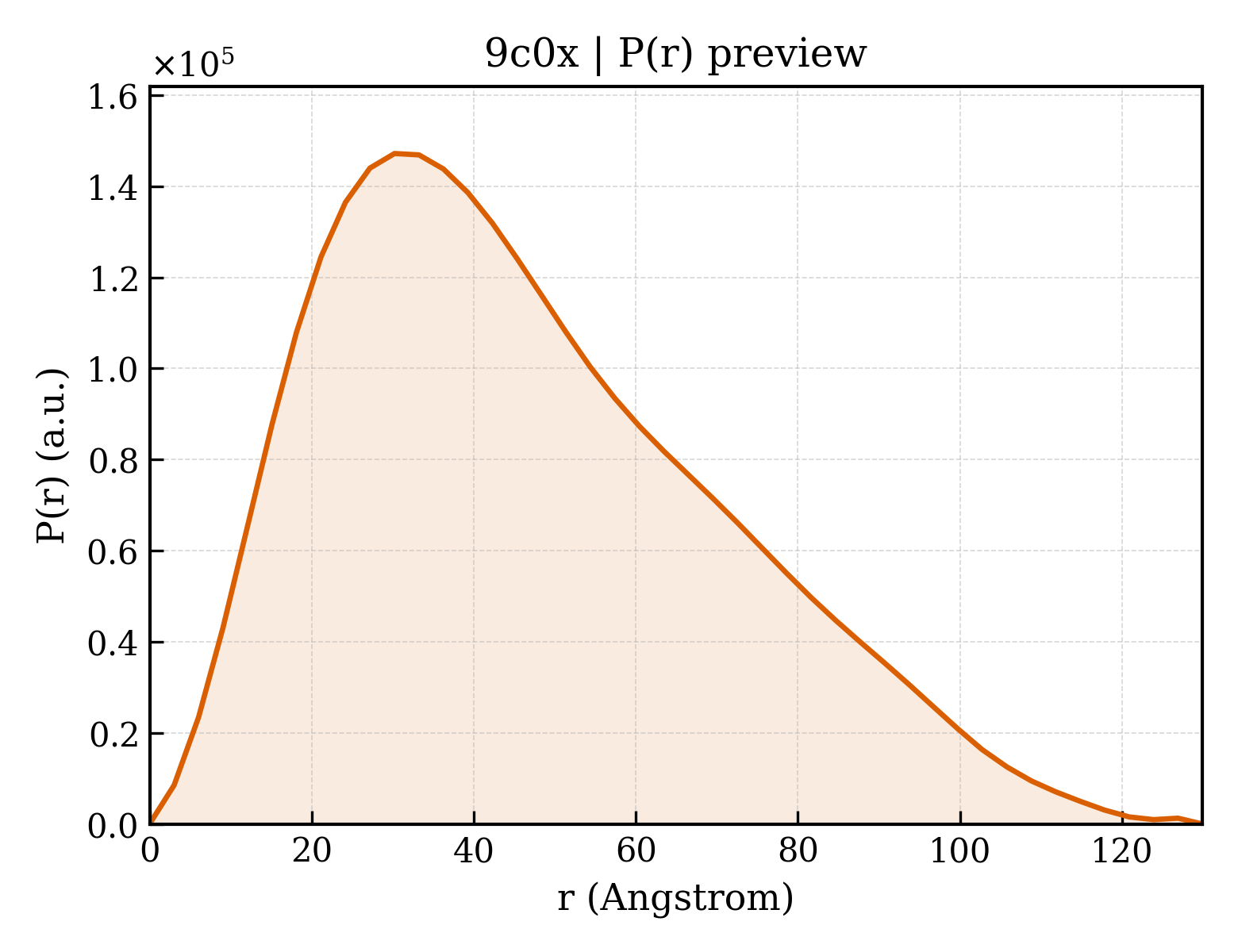

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	129.9 Å
Rg (real space) rg_real	37.06 Å
Rg uncertainty (real space) rg_real_error	1.37 Å
I(0) (real space) i0_real	1.0610e+08
I(0) uncertainty (real space) i0_real_error	2.0220e+06
Rg (reciprocal space) rg_reciprocal	36.76 Å
I(0) (reciprocal space) i0_reciprocal	106100000.0000
Solution quality estimate total_estimate	0.7888
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	30.2 Å
Skewness Skewness skewness	0.582
Kurtosis Kurtosis kurtosis	-0.299
Angular range angular_range	— – 0.2150 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	11420000.0000
Real-space data points n_real_points	44
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.660; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.466; Smooth: 0.804

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Hemagglutinin HA2 subunit
Molecular weight formula_weight	19158.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B
Atom count atom_count	5699

IEGGWTGMVDGWYGYHHQNEQGSGYAADLKSTQNAIDGITNKVNSVIEKMNTQFTAVGKEFNHLEKRIENLNKKVDDGFLDIWTYNAELLVLLENERTLDYHDSNVKNLYEKVRSQLKNNAKEIGNGCFEFYHKCDNTCMESVKNGTYDYPKYSEEAKLNREEIDS

来源 Source

来源生物 organism	Influenza A virus
NCBI Class编号 ncbi_taxonomy_id	11320
宿主生物 host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	Antibody 31.b.09 Fab light chain
Molecular weight formula_weight	12642.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

DVVMTQSPVSLPVTLGQPASISCRSSQGLVYIDGNTYLNWFQQRPGQSPRRLIYNVFTRDSGVPDRFSGSGSGTDFTLKITTVEAEDVGVYYCMQGTHWPYTFGQGTKLEIKRA

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cricetulus griseus

Entity 3 Entity 3 polymer

Description description	Antibody 31.b.09 Fab heavy chain
Molecular weight formula_weight	13335.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

QVQLVQSGAEVKKPGASVKVSCKASGYSFSSYGISWVRQAPGQGLEWMGWISAYNGNTNYAQKLQGRVTMTTDTSTSTAYMELRSLRSDDTAVFYCARDRPHILTGFDFDYWGQGTLVTVS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cricetulus griseus

Entity 4 Entity 4 polymer

Description description	Hemagglutinin HA1 subunit
Molecular weight formula_weight	35506.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

GDTLCIGYHANNSTDTVDTLLEKNVTVTHSVNLLEDKHNGKXXINGKQPISLGDCSFAGWILGNPMCDDLIGKTSWSYIVEKPNPTNGICYPGTLEDEEELRLKFSGVLEFSKFEAFTSNGWGAVNSGAGVTAACKFGSSNSFFRNMVWLIHQSGTYPVIKRTFNNTKGRDVLIVWGIHHPATLKEHQDLYKKDSSYVAVGSETYNRRFTPEISTRPNVNGQAGRMTFYWTMVKPGESITFESNGAFLAPRYAFEIVSVGNGKLFRSELSIESCNTTCQTPKGAINTSLPFQNIHPITIGKCPKYVKSTKLRLATGLRNVPS

来源 Source

来源生物 organism	Influenza A virus
NCBI Class编号 ncbi_taxonomy_id	11320
宿主生物 host_organism	Trichoplusia ni

Entity 5 Entity 5 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	1

▶

8. Citations (1)

▶

Unit-cell length a length_a	169.045 Å
Unit-cell length b length_b	169.045 Å
Unit-cell length c length_c	169.045 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 21 3
Space-group number int_tables_number	198
Crystal system crystal_system	—

Resolution resolution	4.350 Å
Low-resolution limit resolution_low	48.800 Å
R factor r_factor	0.3373
R_work r_work	0.3352
R_free r_free	0.3820

fit	/app/data/saxs_computation/c0/9c0x/9c0x.fit
pddf	/app/data/pr_computation/c0/9c0x/9c0x.pr.out
profile	/app/data/saxs_computation/c0/9c0x/9c0x.dat

Crystal structure of chimeric hemagglutinin cH11/1 in complex with broad protective antibody 31.b.09
