SAXSdb — 9ds2

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Hemagglutinin HA1 chai

Influenza A virus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 6 其他Polymer 2 PDB declaration: hexameric（6） Consistent with protein copy count	Chain A； UniProt 18–342 Chain C； UniProt 18–342 Chain E； UniProt 18–342	Not recorded	Hemagglutinin HA2 chain × 3 （A0A6J3XB93） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 7	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；0.2 M sodium acetate, pH 6.2, 20% PEG3350	Resolution 3.29 Å R-free 0.279

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9DS2	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
9DS1 Crystal structure of 241_2F04 Fab in complex with H1 HA from A/California/04/2009(H1N1) Deposited 2024-09-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: tetrameric	Chain A 18–340（323 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2 M sodium acetate, pH 6.4, 16% PEG3350	Resolution 2.40 Å R-free 0.263

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	A0A5B9ZSV0_9INFA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–328； UniProt 18–342 Author chain C； PDBConstruct 4–328； UniProt 18–342 Author chain E； PDBConstruct 4–328； UniProt 18–342

Hemagglutinin HA2 chain

Influenza A virus

UniProt A0A6J3XB93

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 6 其他Polymer 2 PDB declaration: hexameric（6） Consistent with protein copy count	Chain B； UniProt 345–518 Chain D； UniProt 345–518 Chain F； UniProt 345–518	Not recorded	Hemagglutinin HA1 chai × 3 （A0A5B9ZSV0） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 7	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；0.2 M sodium acetate, pH 6.2, 20% PEG3350	Resolution 3.29 Å R-free 0.279

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9DS2	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
9C0X Crystal structure of chimeric hemagglutinin cH11/1 in complex with broad protective antibody 31.b.09 Deposited 2024-05-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 354–518（165 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M sodium phosphate dibasic, 20% w/v PEG3350	Resolution 4.35 Å R-free 0.382
9DRU Crystal structure of 04709_4F04 Fab in complex with H1 HA from A/California/04/2009(H1N1) Deposited 2024-09-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain B 345–518（174 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2 M sodium acetate, pH 6.4, 18% PEG3350	Resolution 2.75 Å R-free 0.265
9DS1 Crystal structure of 241_2F04 Fab in complex with H1 HA from A/California/04/2009(H1N1) Deposited 2024-09-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: tetrameric	Chain B 345–518（174 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2 M sodium acetate, pH 6.4, 16% PEG3350	Resolution 2.40 Å R-free 0.263

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	A0A6J3XB93_9INFA
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–174； UniProt 345–518 Author chain D； PDBConstruct 1–174； UniProt 345–518 Author chain F； PDBConstruct 1–174； UniProt 345–518

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9ds2
Deposition date deposition_date	2024-09-26
最后修订 last_revision	2025-03-19
Structure title title	Crystal structure of 346-54 Fab in complex with H1 HA from A/California/04/2009(H1N1)
Keywords keywords	H1N1, Antibody, Hemagglutinin, VIRAL PROTEIN-IMMUNE SYSTEM complex; VIRAL PROTEIN/IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	58.85 Å
Radius of gyration Rg (electron density) rg_electron	58.98 Å
Forward intensity I(0) i0	1427620000.00
Molecular weight molecular_weight	312020.0 kDa
Excluded volume excluded_volume	388350 Å³
Envelope volume envelope_volume	558490 Å³
Hydration-shell volume shell_volume	83035 Å³
Envelope diameter envelope_diameter	183.3 Å
Shell Rg shell_rg	55.41 Å
Envelope Rg envelope_rg	58.80 Å
Shape Rg shape_rg	58.96 Å
Total Rg total_rg	58.95 Å
Total atoms total_atoms	21985
Residues n_residues	2806
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

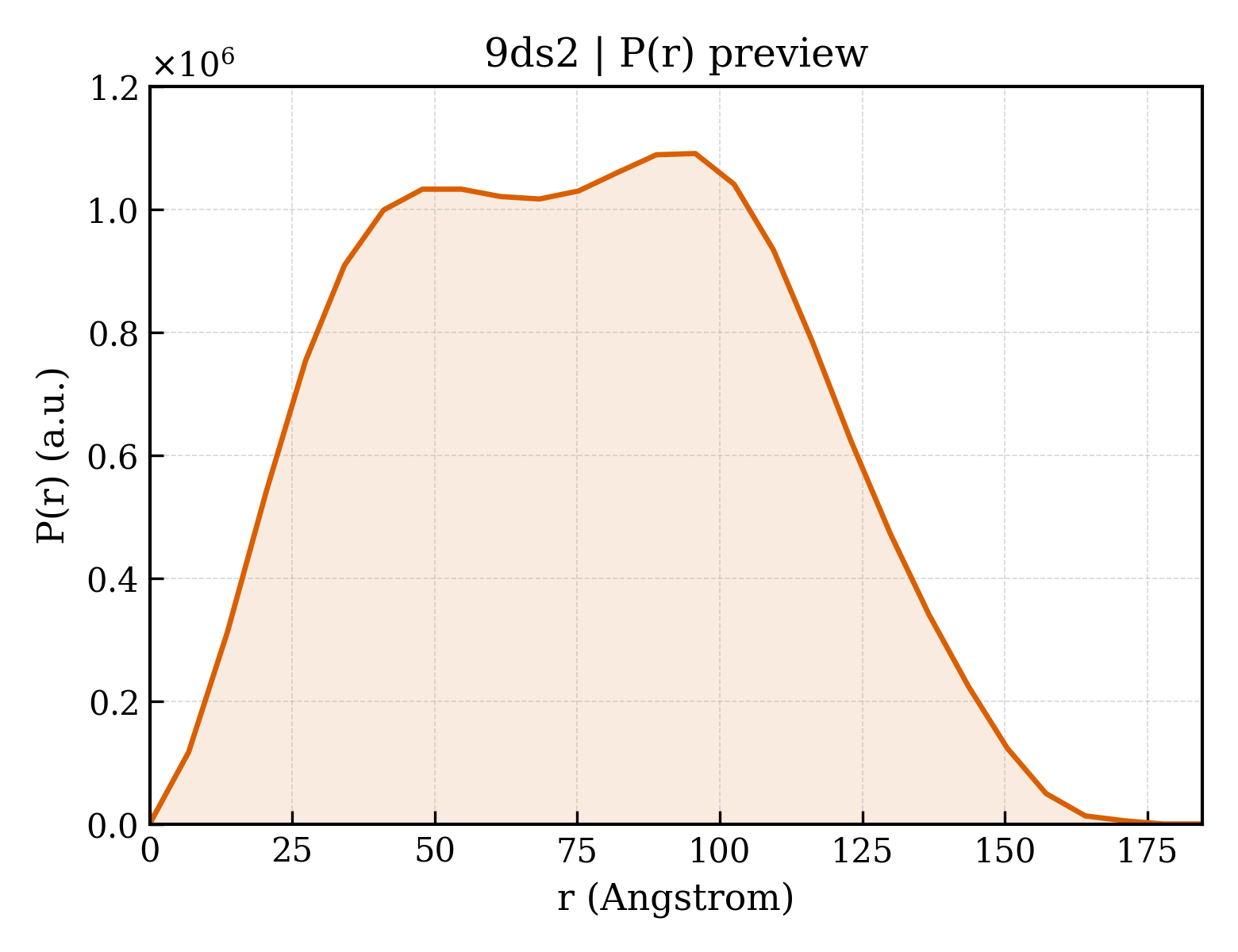

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	184.6 Å
Rg (real space) rg_real	58.78 Å
Rg uncertainty (real space) rg_real_error	1.85 Å
I(0) (real space) i0_real	1.4280e+09
I(0) uncertainty (real space) i0_real_error	2.8880e+07
Rg (reciprocal space) rg_reciprocal	58.87 Å
I(0) (reciprocal space) i0_reciprocal	1428000000.0000
Solution quality estimate total_estimate	0.8489
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	95.7 Å
Skewness Skewness skewness	0.098
Kurtosis Kurtosis kurtosis	-0.835
Angular range angular_range	— – 0.1350 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	92310000.0000
Real-space data points n_real_points	28
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.936; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.985; Smooth: 0.237

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Hemagglutinin HA1 chai
Molecular weight formula_weight	36384.0 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,A,E
Atom count atom_count	21985

DPGDTLCIGYHANNSTDTVDTVLEKNVTVTHSVNLLEDKHNGKLCKLRGVAPLHLGKCNIAGWILGNPECESLSTASSWSYIVETPSSDNGTCYPGDFIDYEELREQLSSVSSFERFEIFPKTSSWPNHDSNKGVTAACPHAGAKSFYKNLIWLVKKGNSYPKLSKSYINDKGKEVLVLWGIHHPSTSADQQSLYQNADTYVFVGGSRYSKKFKPEIAIRPKVRDQEGRMNYYWTLVEPGDKITFEATGNLVVPRYAFAMERNAGSGIIISDTPVHDCNTTCQTPKGAINTSLPFQNIHPITIGKCPKYVKSTKLRLATGLRNIPSIQ

来源 Source

来源生物 organism	Influenza A virus
NCBI Class编号 ncbi_taxonomy_id	11320
宿主生物 host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	Hemagglutinin HA2 chain
Molecular weight formula_weight	19992.1 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,B,F

GLFGAIAGFIEGGWTGMVDGWYGYHHQNEQGSGYAADLKSTQNAIDGITNKVNSVIEKMNTQFTAVGKEFNHLEKRIENLNKKVDDGFLDIWTYNAELLVLLENERTLDYHDSNVKNLYEKVRSQLKNNAKEIGNGCFEFYHKCDNTCMESVKNGTYDYPKYSEEAKLNREEIDS

来源 Source

来源生物 organism	Influenza A virus
NCBI Class编号 ncbi_taxonomy_id	11320
宿主生物 host_organism	Trichoplusia ni

Entity 3 Entity 3 polymer

Description description	346-54, Heavy chain
Molecular weight formula_weight	24284.3 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,H,K

QVQLVESGGGVVQPGKSLRLSCAASGFTFSAYGIHWVRQAPGKGLEWVAFISFDGGSKYYADSVKGRFTISRDNSKNTLYVHMNSLRVEDTAVYYCARDRGGKYPPSMGFFDPWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVEPKSCSG

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cricetulus griseus

Entity 4 Entity 4 polymer

Description description	346-54, Light chain
Molecular weight formula_weight	23482.1 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I,J,L

EIVLTQSPPTLSLSPGERATLSCRASQSISNSLAWYQQKPGQAPRLLIYDASNRATGIPARFSGSGFGTDFTLTISSLEPEDCAVYYCQQRNNWPPLTFGGGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cricetulus griseus

Entity 5 Entity 5 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	1

Entity 6 Entity 6 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	7

▶

8. Citations (1)

▶

Unit-cell length a length_a	161.816 Å
Unit-cell length b length_b	313.101 Å
Unit-cell length c length_c	325.522 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	I 21 21 21
Space-group number int_tables_number	24
Crystal system crystal_system	—

Resolution resolution	3.290 Å
Low-resolution limit resolution_low	47.820 Å
R factor r_factor	0.2461
R_work r_work	0.2444
R_free r_free	0.2794

fit	/app/data/saxs_computation/ds/9ds2/9ds2.fit
pddf	/app/data/pr_computation/ds/9ds2/9ds2.pr.out
profile	/app/data/saxs_computation/ds/9ds2/9ds2.dat
