SAXSdb — 9c1l

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9c1l
沉积日期 deposition_date	2024-05-29
结构标题 title	Rhesus rotavirus (VP1 structure at 2.65 Angstrom resolution)
关键词 keywords	Rotavirus, non-enveloped virus, viral particle, VIRAL PROTEIN; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	91.50 Å
回转半径 Rg (电子) rg_electron	91.79 Å
零角强度 I(0) i0	14939000000.00
分子量 molecular_weight	1057300.0 kDa
排除体积 excluded_volume	1330400 Å³
包络体积 envelope_volume	2024000 Å³
水化壳体积 shell_volume	190470 Å³
包络直径 envelope_diameter	318.4 Å
壳层 Rg shell_rg	76.62 Å
包络 Rg envelope_rg	92.44 Å
形状 Rg shape_rg	91.87 Å
总 Rg total_rg	91.35 Å
总原子数 total_atoms	149101
残基数 n_residues	9103
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	246.7 Å
Rg (实空间) rg_real	87.51 Å
Rg 误差 (实空间) rg_real_error	0.82 Å
I(0) (实空间) i0_real	1.4310e+10
I(0) 误差 (实空间) i0_real_error	2.8170e+08
Rg (倒空间) rg_reciprocal	89.60 Å
I(0) (倒空间) i0_reciprocal	14850000000.0000
解质量估计 total_estimate	0.9162
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	101.6 Å
偏度 Skewness skewness	0.233
峰度 Kurtosis kurtosis	-0.618
角度范围 angular_range	— – 0.0850 Å⁻¹
当前正则化参数 α current_alpha	0.8748
最高正则化参数 α highest_alpha	418500000.0000
实空间数据点数 n_real_points	18
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.999; Stabil: 0.972; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	Inner capsid protein VP2
分子量 formula_weight	103426.0 kDa
来源方法 src_method	man
拷贝数 entity_count	10

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H,I,J
原子数 atom_count	149101

MAYRKRGARRETNLKQDDRMQEKEENKNVNTNSENKNATKPQLSEKVLSQKEEVITDNQEEIKIADEVKKSNKEESKQLLEVLKTKEEHQKEVQYEILQKTIPTFEPKESILKKLEDIKPEQVKKQTKLFRIFEPRQLPVYRANGEKELRNRWYWKLKRDTLPDGDYDVREYFLNLYDQVLTEMPDYLLLKDMAVENKNSRDAGKVVDSETAAICDAIFQDEETEGVVRRFIAEMRQRVQADRNVVNYPSILHPIDHAFNEYFLQHQLVEPLNNDIIFNYIPERIRNDVNYILNMDRNLPSTARYIRPNLLQDRLNLHDNFESLWDTITTSNYILARSVVPDLKELVSTEAQIQKMSQDLQLEALTIQSETQFLTGINSQAANDCFKTLIAAMLSQRTMSLDFVTTNYMSLISGMWLLTVVPNDMFIRESLVACQLAIINTIIYPAFGMQRMHYRNGDPQTPFQIAEQQIQNFQVANWLHFVNNNQFRQVVIDGVLNQVLNDNIRNGHVVNQLMEALMQLSRQQFPTMPVDYKRSIQRGILLLSNRLGQLVDLTRLLAYNYETLMACITMNMQHVQTLTTEKLQLTSVTSLCMLIGNATVIPSPQTLFHYYNVNVNFHSNYNERINDAVAIITAANRLNLYQKKMKSIVEDFLKRLQIFDISRVPDDQMYRLRDRLRLLPVEIRRLDIFNLILMNMEQIERASDKIAQGVIIAYRDMQLERDEMYGYVNIARNLDGFQQINLEELMRTGDYAQITNMLLNNQPVALVGALPFITDSSVISLVAKLDATVFAQIVKLRKVDTLKPILYKINSDSNDFYLVANYDWVPTSTTKVYKQIPQQFDFRASMHMLTSNLTFTVYSDLLAFVSADTVEPINAVAFDNMRIMNEL

来源 Source

来源生物 organism	Simian rotavirus A strain RRV
NCBI 分类编号 ncbi_taxonomy_id	444185
宿主生物 host_organism	Simian rotavirus A strain RRV

Entity 2 polymer

描述 description	RNA-directed RNA polymerase
分子量 formula_weight	125276.3 kDa
EC 编号 ec_number	2.7.7.48
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P

MGKYNLILSEYLSFIYNSQSAVQIPIYYSSNSELENRCIEFHSKCLENSKNGLSLKKLFVEYSDVIENATLLSILSYSYDKYNAVERKLVKYAKGKPLEADLTVNELDYENNKITSELFPTAEEYTDLLMDPAILTSLSSNLNAVMFWLEKHENDVAEKLKIYKRRLDLFTIVASTVNKYGVPRHNAKYRYEYEVMKDKPYYLVTWANSSIEMLMSVFSHEDYLIARELIVLSYSNRSTLAKLVSSPMSILVALVDINGTFITNEELELEFSNKYVRAIVPDQTFDELKQMLDNMRKAGLTDIPKMIQDWLVDCSIEKFPLMAKIYSWSFHVGFRKQKMLDAALDQLKTEYTEDVDDEMYREYTMLIRDEVVKMLEEPVKHDDHLLQDSELAGLLSMSSASNGESRQLKFGRKTIFSTKKNMHVMDDMANGRYTPGIIPPVNVDKPIPLGRRDVPGRRTRIIFILPYEYFIAQHAVVEKMLIYAKHTREYAEFYSQSNQLLSYGDVTRFLSNNSMVLYTDVSQWDSSQHNTQPFRKGIIMGLDMLANMTNDARVIQTLNLYKQTQINLMDSYVQIPDGNVIKKIQYGAVASGEKQTKAANSIANLALIKTVLSRISNKYSFATKIIRVDGDDNYAVLQFNTEVTKQMVQDVSNDVRETYARMNTKVKALVSTVGIEIAKRYIAGGKIFFRAGINLLNNEKKGQSTQWDQAAVLYSNYIVNRLRGFETDREFILTKIMQMTSVAITGSLRLFPSERVLTTNSTFKVFDSEDFIIEYGTTDDEVYIQRAFMSLSSQKSGIADEIAASSTFKNYVSRLSEQLLFSKNNIVSRGIALTEKAKLNSYAPISLEKRRAQISALLTMLQKPVTFKSSKITINDILRDIKPFFTVNEAHLPIQYQKFMPTLPDNVQYIIQCIGSRTYQIEDDGSKSAISRLISKYSVYKPSIEELYKVISLHENEIQLYLISLGIPKIDADTYVGSKIYSQDKYRILESYVYNLLSINYGCYQLFDFNSPDLEKLIRIPFKGKIPAVTFILHLYAKLEVINHAIKNGSWISLFCNYPKSEMIKLWKKMWNITSLRSPYTNANFFQD

来源 Source

来源生物 organism	Simian rotavirus A strain RRV
NCBI 分类编号 ncbi_taxonomy_id	444185
宿主生物 host_organism	Simian rotavirus A strain RRV

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	2.65 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	469892

fit	/app/data/saxs_computation/c1/9c1l/9c1l.fit
pddf	/app/data/pr_computation/c1/9c1l/9c1l.pr.out
profile	/app/data/saxs_computation/c1/9c1l/9c1l.dat

Rhesus rotavirus (VP1 structure at 2.65 Angstrom resolution)

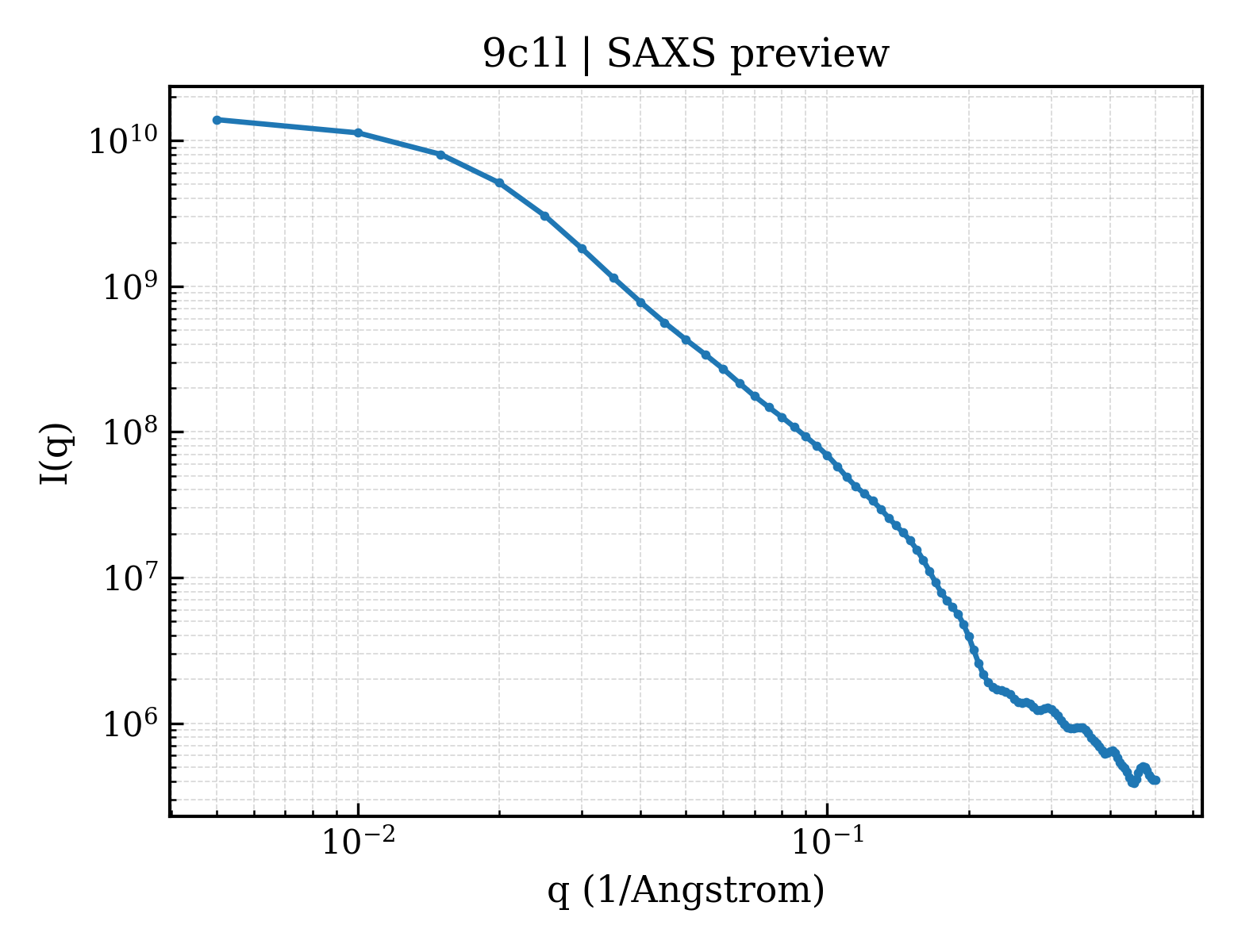

SAXS 散射曲线 SAXS Profile

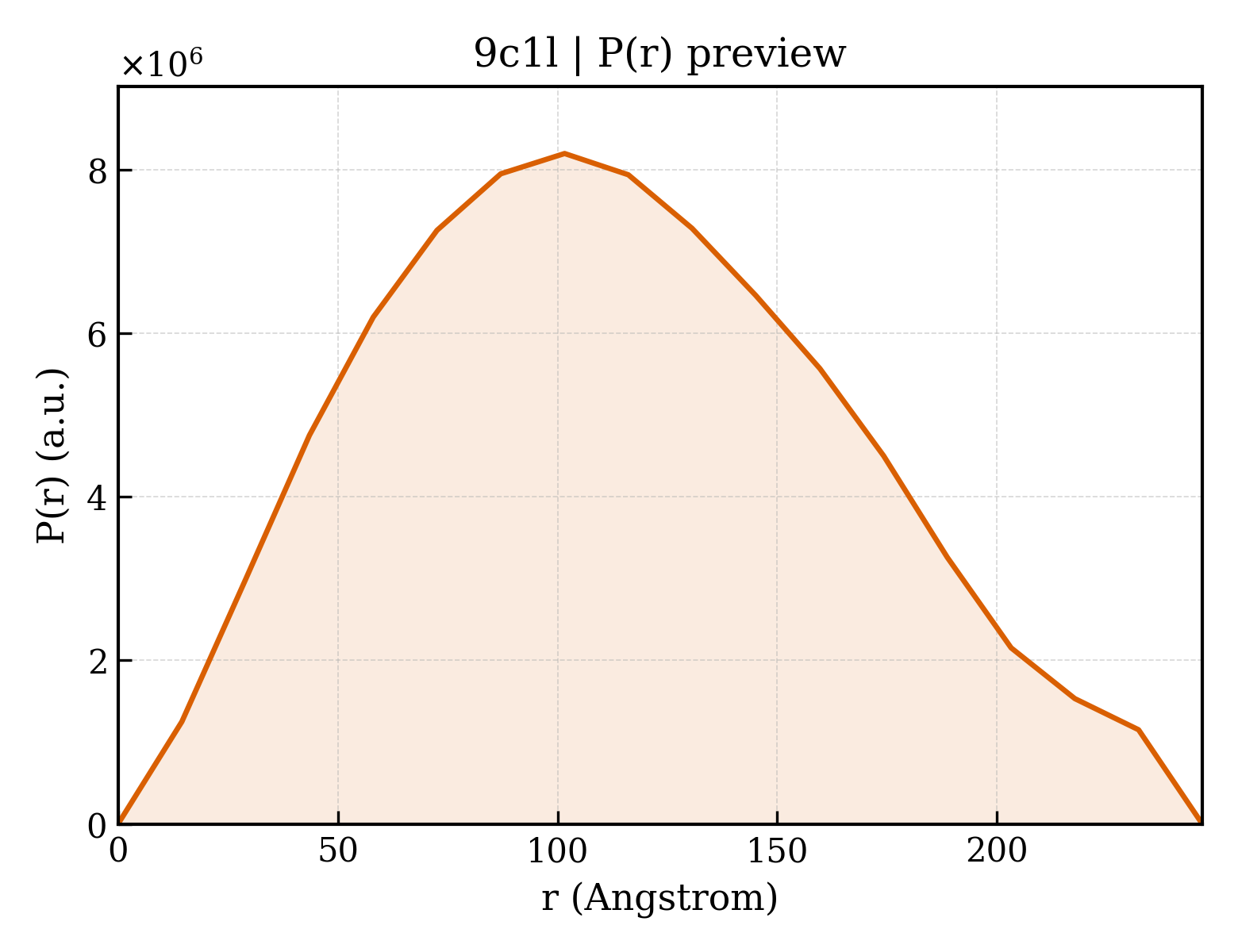

P(r) 距离分布 P(r) Distribution
