1. Protein Identity and Related Structures Protein Identity & Related Structures

Low-density lipoprotein receptor-related protein 2

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Homooligomer Protein × 2 其他Polymer 12 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–4655 Chain B； UniProt 1–4655	Not recorded	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 9 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 3 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 23	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9CWM	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2M0P Solution structure of the tenth complement type repeat of human megalin Deposited 2012-11-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1103–1148（46 aa）	Not recorded	CA CALCIUM ION × 1	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 0.2；Pressure ambient NMR sample composition 0.6 mM [U-100% 13C; U-100% 15N] CR10, 100 mM sodium chloride, 50 mM calcium chloride, 50 mM TRIS, 0.1 mM DSS, 0.1 % sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.6 mM [U-100% 13C; U-100% 15N] CR10, 50 mM calcium chloride, 100 mM sodium chloride, 50 mM TRIS, 0.1 mM DSS, 0.1 % sodium azide, 100% D2O \| 100% D2O	Resolution not provided
9I3V Cryo-EM structure of the human LRP2 ectodomain Deposited 2025-01-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: decameric	Chain A 1–4423（4423 aa） Chain B 1–4423（4423 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 19 NGA 2-acetamido-2-deoxy-beta-D-galactopyranose × 9 CA CALCIUM ION × 25 NI NICKEL (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 6.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.51 Å
9QAW CryoEM structure of the human LRP2 receptor ectodomain in complex with LRPAP1 Deposited 2025-02-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: 12-meric	Chain A 1–4423（4423 aa） Chain B 1–4423（4423 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 19 BMA beta-D-mannopyranose × 2 NGA 2-acetamido-2-deoxy-beta-D-galactopyranose × 7 CA CALCIUM ION × 25 NI NICKEL (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.34 Å

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	LRP2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–4655； UniProt 1–4655 Author chain B； PDBConstruct 1–4655； UniProt 1–4655

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9cwm
Deposition date deposition_date	2024-07-29
Structure title title	Cryo-EM structure of human Low-density lipoprotein receptor-related protein 2
Keywords keywords	human, kidney, Low-density lipoprotein receptor-related protein 2, LRP2, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	91.80 Å
Radius of gyration Rg (electron density) rg_electron	91.77 Å
Forward intensity I(0) i0	10655200000.00
Molecular weight molecular_weight	829100.0 kDa
Excluded volume excluded_volume	1015200 Å³
Envelope volume envelope_volume	1986000 Å³
Hydration-shell volume shell_volume	184960 Å³
Envelope diameter envelope_diameter	275.9 Å
Shell Rg shell_rg	84.47 Å
Envelope Rg envelope_rg	85.59 Å
Shape Rg shape_rg	91.77 Å
Total Rg total_rg	91.68 Å
Total atoms total_atoms	58072
Residues n_residues	7387
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	337.7 Å
Rg (real space) rg_real	97.12 Å
Rg uncertainty (real space) rg_real_error	3.00 Å
I(0) (real space) i0_real	1.0750e+10
I(0) uncertainty (real space) i0_real_error	2.5000e+08
Rg (reciprocal space) rg_reciprocal	91.93 Å
I(0) (reciprocal space) i0_reciprocal	10660000000.0000
Solution quality estimate total_estimate	0.8968
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	99.3 Å
Skewness Skewness skewness	0.421
Kurtosis Kurtosis kurtosis	-0.061
Angular range angular_range	— – 0.0850 Å⁻¹
Current regularization parameter α current_alpha	0.9554
Highest regularization parameter α highest_alpha	334600000.0000
Real-space data points n_real_points	18
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.859; Stabil: 0.831; Sysdev: 1.000; Positv: 1.000; Valcen: 0.975; Smooth: 0.656

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Low-density lipoprotein receptor-related protein 2
Molecular weight formula_weight	522502.6 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	58072

MDRGPAAVACTLLLALVACLAPASGQECDSAHFRCGSGHCIPADWRCDGTKDCSDDADEIGCAVVTCQQGYFKCQSEGQCIPNSWVCDQDQDCDDGSDERQDCSQSTCSSHQITCSNGQCIPSEYRCDHVRDCPDGADENDCQYPTCEQLTCDNGACYNTSQKCDWKVDCRDSSDEINCTEICLHNEFSCGNGECIPRAYVCDHDNDCQDGSDEHACNYPTCGGYQFTCPSGRCIYQNWVCDGEDDCKDNGDEDGCESGPHDVHKCSPREWSCPESGRCISIYKVCDGILDCPGREDENNTSTGKYCSMTLCSALNCQYQCHETPYGGACFCPPGYIINHNDSRTCVEFDDCQIWGICDQKCESRPGRHLCHCEEGYILERGQYCKANDSFGEASIIFSNGRDLLIGDIHGRSFRILVESQNRGVAVGVAFHYHLQRVFWTDTVQNKVFSVDINGLNIQEVLNVSVETPENLAVDWVNNKIYLVETKVNRIDMVNLDGSYRVTLITENLGHPRGIAVDPTVGYLFFSDWESLSGEPKLERAFMDGSNRKDLVKTKLGWPAGVTLDMISKRVYWVDSRFDYIETVTYDGIQRKTVVHGGSLIPHPFGVSLFEGQVFFTDWTKMAVLKANKFTETNPQVYYQASLRPYGVTVYHSLRQPYATNPCKDNNGGCEQVCVLSHRTDNDGLGFRCKCTFGFQLDTDERHCIAVQNFLIFSSQVAIRGIPFTLSTQEDVMVPVSGNPSFFVGIDFDAQDSTIFFSDMSKHMIFKQKIDGTGREILAANRVENVESLAFDWISKNLYWTDSHYKSISVMRLADKTRRTVVQYLNNPRSVVVHPFAGYLFFTDWFRPAKIMRAWSDGSHLLPVINTTLGWPNGLAIDWAASRLYWVDAYFDKIEHSTFDGLDRRRLGHIEQMTHPFGLAIFGEHLFFTDWRLGAIIRVRKADGGEMTVIRSGIAYILHLKSYDVNIQTGSNACNQPTHPNGDCSHFCFPVPNFQRVCGCPYGMRLASNHLTCEGDPTNEPPTEQCGLFSFPCKNGRCVPNYYLCDGVDDCHDNSDEQLCGTLNNTCSSSAFTCGHGECIPAHWRCDKRNDCVDGSDEHNCPTHAPASCLDTQYTCDNHQCISKNWVCDTDNDCGDGSDEKNCNSTETCQPSQFNCPNHRCIDLSFVCDGDKDCVDGSDEVGCVLNCTASQFKCASGDKCIGVTNRCDGVFDCSDNSDEAGCPTRPPGMCHSDEFQCQEDGICIPNFWECDGHPDCLYGSDEHNACVPKTCPSSYFHCDNGNCIHRAWLCDRDNDCGDMSDEKDCPTQPFRCPSWQWQCLGHNICVNLSVVCDGIFDCPNGTDESPLCNGNSCSDFNGGCTHECVQEPFGAKCLCPLGFLLANDSKTCEDIDECDILGSCSQHCYNMRGSFRCSCDTGYMLESDGRTCKVTASESLLLLVASQNKIIADSVTSQVHNIYSLVENGSYIVAVDFDSISGRIFWSDATQGKTWSAFQNGTDRRVVFDSSIILTETIAIDWVGRNLYWTDYALETIEVSKIDGSHRTVLISKNLTNPRGLALDPRMNEHLLFWSDWGHHPRIERASMDGSMRTVIVQDKIFWPCGLTIDYPNRLLYFMDSYLDYMDFCDYNGHHRRQVIASDLIIRHPYALTLFEDSVYWTDRATRRVMRANKWHGGNQSVVMYNIQWPLGIVAVHPSKQPNSVNPCAFSRCSHLCLLSSQGPHFYSCVCPSGWSLSPDLLNCLRDDQPFLITVRQHIIFGISLNPEVKSNDAMVPIAGIQNGLDVEFDDAEQYIYWVENPGEIHRVKTDGTNRTVFASISMVGPSMNLALDWISRNLYSTNPRTQSIEVLTLHGDIRYRKTLIANDGTALGVGFPIGITVDPARGKLYWSDQGTDSGVPAKIASANMDGTSVKTLFTGNLEHLECVTLDIEEQKLYWAVTGRGVIERGNVDGTDRMILVHQLSHPWGIAVHDSFLYYTDEQYEVIERVDKATGANKIVLRDNVPNLRGLQVYHRRNAAESSNGCSNNMNACQQICLPVPGGLFSCACATGFKLNPDNRSCSPYNSFIVVSMLSAIRGFSLELSDHSETMVPVAGQGRNALHVDVDVSSGFIYWCDFSSSVASDNAIRRIKPDGSSLMNIVTHGIGENGVRGIAVDWVAGNLYFTNAFVSETLIEVLRINTTYRRVLLKVTVDMPRHIVVDPKNRYLFWADYGQRPKIERSFLDCTNRTVLVSEGIVTPRGLAVDRSDGYVYWVDDSLDIIARIRINGENSEVIRYGSRYPTPYGITVFENSIIWVDRNLKKIFQASKEPENTEPPTVIRDNINWLRDVTIFDKQVQPRSPAEVNNNPCLENNGGCSHLCFALPGLHTPKCDCAFGTLQSDGKNCAISTENFLIFALSNSLRSLHLDPENHSPPFQTINVERTVMSLDYDSVSDRIYFTQNLASGVGQISYATLSSGIHTPTVIASGIGTADGIAFDWITRRIYYSDYLNQMINSMAEDGSNRTVIARVPKPRAIVLDPCQGYLYWADWDTHAKIERATLGGNFRVPIVNSSLVMPSGLTLDYEEDLLYWVDASLQRIERSTLTGVDREVIVNAAVHAFGLTLYGQYIYWTDLYTQRIYRANKYDGSGQIAMTTNLLSQPRGINTVVKNQKQQCNNPCEQFNGGCSHICAPGPNGAECQCPHEGNWYLANNRKHCIVDNGERCGASSFTCSNGRCISEEWKCDNDNDCGDGSDEMESVCALHTCSPTAFTCANGRCVQYSYRCDYYNDCGDGSDEAGCLFRDCNATTEFMCNNRRCIPREFICNGVDNCHDNNTSDEKNCPDRTCQSGYTKCHNSNICIPRVYLCDGDNDCGDNSDENPTYCTTHTCSSSEFQCASGRCIPQHWYCDQETDCFDASDEPASCGHSERTCLADEFKCDGGRCIPSEWICDGDNDCGDMSDEDKRHQCQNQNCSDSEFLCVNDRPPDRRCIPQSWVCDGDVDCTDGYDENQNCTRRTCSENEFTCGYGLCIPKIFRCDRHNDCGDYSDERGCLYQTCQQNQFTCQNGRCISKTFVCDEDNDCGDGSDELMHLCHTPEPTCPPHEFKCDNGRCIEMMKLCNHLDDCLDNSDEKGCGINECHDPSISGCDHNCTDTLTSFYCSCRPGYKLMSDKRTCVDIDECTEMPFVCSQKCENVIGSYICKCAPGYLREPDGKTCRQNSNIEPYLIFSNRYYLRNLTIDGYFYSLILEGLDNVVALDFDRVEKRLYWIDTQRQVIERMFLNKTNKETIINHRLPAAESLAVDWVSRKLYWLDARLDGLFVSDLNGGHRRMLAQHCVDANNTFCFDNPRGLALHPQYGYLYWADWGHRAYIGRVGMDGTNKSVIISTKLEWPNGITIDYTNDLLYWADAHLGYIEYSDLEGHHRHTVYDGALPHPFAITIFEDTIYWTDWNTRTVEKGNKYDGSNRQTLVNTTHRPFDIHVYHPYRQPIVSNPCGTNNGGCSHLCLIKPGGKGFTCECPDDFRTLQLSGSTYCMPMCSSTQFLCANNEKCIPIWWKCDGQKDCSDGSDELALCPQRFCRLGQFQCSDGNCTSPQTLCNAHQNCPDGSDEDRLLCENHHCDSNEWQCANKRCIPESWQCDTFNDCEDNSDEDSSHCASRTCRPGQFRCANGRCIPQAWKCDVDNDCGDHSDEPIEECMSSAHLCDNFTEFSCKTNYRCIPKWAVCNGVDDCRDNSDEQGCEERTCHPVGDFRCKNHHCIPLRWQCDGQNDCGDNSDEENCAPRECTESEFRCVNQQCIPSRWICDHYNDCGDNSDERDCEMRTCHPEYFQCTSGHCVHSELKCDGSADCLDASDEADCPTRFPDGAYCQATMFECKNHVCIPPYWKCDGDDDCGDGSDEELHLCLDVPCNSPNRFRCDNNRCIYSHEVCNGVDDCGDGTDETEEHCRKPTPKPCTEYEYKCGNGHCIPHDNVCDDADDCGDWSDELGCNKGKERTCAENICEQNCTQLNEGGFICSCTAGFETNVFDRTSCLDINECEQFGTCPQHCRNTKGSYECVCADGFTSMSDRPGKRCAAEGSSPLLLLPDNVRIRKYNLSSERFSEYLQDEEYIQAVDYDWDPKDIGLSVVYYTVRGEGSRFGAIKRAYIPNFESGRNNLVQEVDLKLKYVMQPDGIAVDWVGRHIYWSDVKNKRIEVAKLDGRYRKWLISTDLDQPAAIAVNPKLGLMFWTDWGKEPKIESAWMNGEDRNILVFEDLGWPTGLSIDYLNNDRIYWSDFKEDVIETIKYDGTDRRVIAKEAMNPYSLDIFEDQLYWISKEKGEVWKQNKFGQGKKEKTLVVNPWLTQVRIFHQLRYNKSVPNLCKQICSHLCLLRPGGYSCACPQGSSFIEGSTTECDAAIELPINLPPPCRCMHGGNCYFDETDLPKCKCPSGYTGKYCEMAFSKGISPGTTAVAVLLTILLIVVIGALAIAGFFHYRRTGSLLPALPKLPSLSSLVKPSENGNGVTFRSGADLNMDIGVSGFGPETAIDRSMAMSEDFVMEMGKQPIIFENPMYSARDSAVKVVQPIQVTVSENVDNKNYGSPINPSEIVPETNPTSPAADGTQVTKWNLFKRKSKQTTNFENPIYAQMENEQKESVAATPPPSPSLPAKPKPPSRRDPTPTYSATEDTFKDTANLVKEDSEV

Entity 2 Entity 2 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	9

Entity 3 Entity 3 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	23

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.30 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	111811

fit	/app/data/saxs_computation/cw/9cwm/9cwm.fit
pddf	/app/data/pr_computation/cw/9cwm/9cwm.pr.out
profile	/app/data/saxs_computation/cw/9cwm/9cwm.dat

Cryo-EM structure of human Low-density lipoprotein receptor-related protein 2

1. Protein Identity and Related Structures Protein Identity & Related Structures

Low-density lipoprotein receptor-related protein 2

State in the Current Structure

Other States of the Same Protein in the Database

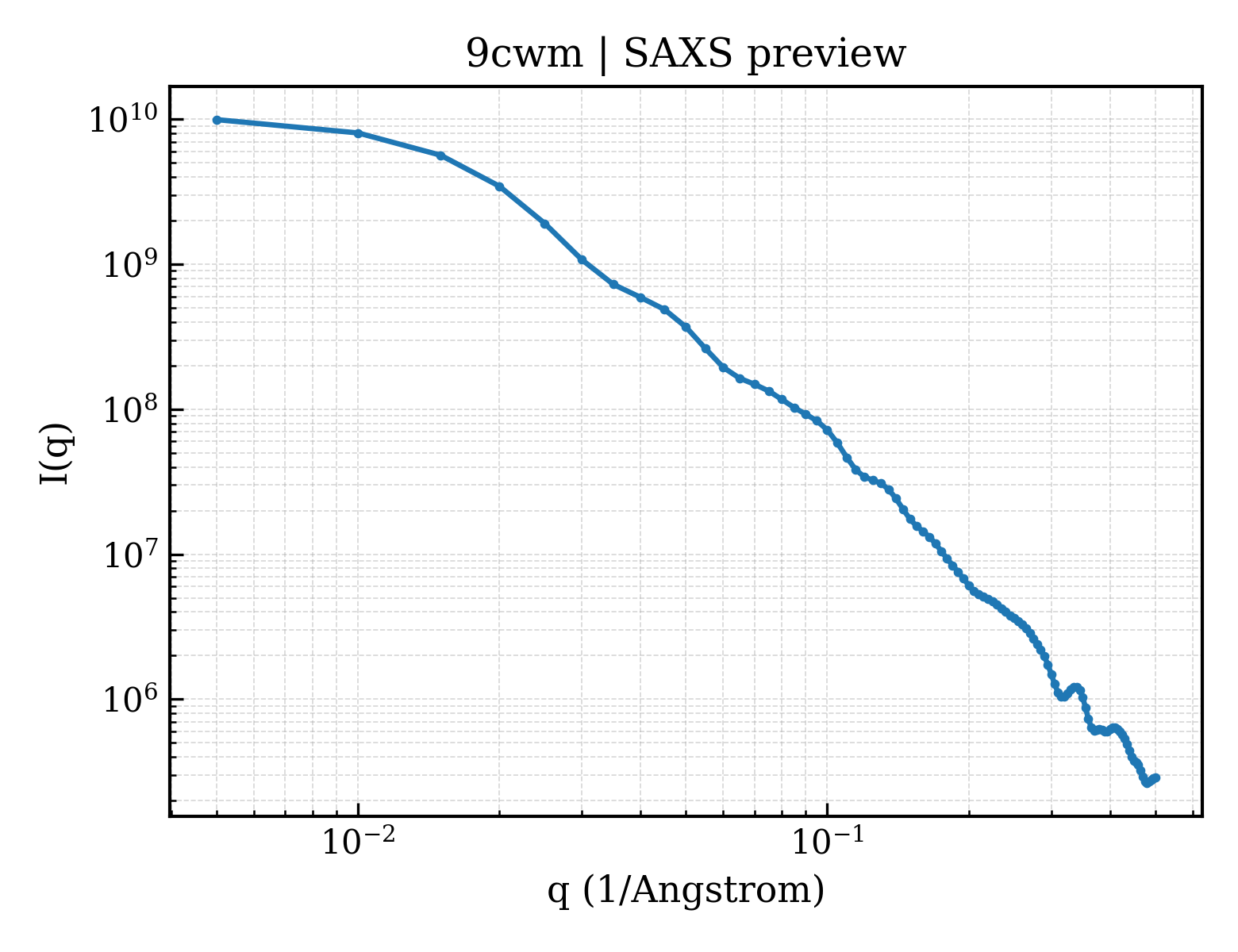

SAXS scattering curve SAXS Profile
