SAXSdb — 9du1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Peptidyl-prolyl cis-trans isomerase FKBP1A

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	Bromodomain-containing protein 9 × 4 （Q9H8M2） ;4-[4-{cyclopropyl[(1-methyl-1H-pyrazol-4-yl)methyl]amino}-6-({1-[(2R)-2-{[(2S)-1-(3,3-dimethyl-2-oxopentanoyl)piperidine-2-carbonyl]amino}-4-(4-methoxyphenyl)butanoyl]piperidin-4-yl}amino)-1,3,5-triazin-2-yl]-N-ethylpiperazine-1-carboxamide ; × 4 GLYCEROL × 1 water × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FKB1A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–109； UniProt 1–108 Author chain B； PDBConstruct 2–109； UniProt 1–108 Author chain C； PDBConstruct 2–109； UniProt 1–108 Author chain D； PDBConstruct 2–109； UniProt 1–108

Bromodomain-containing protein 9

OrganismNot specified

UniProt Q9H8M2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	Peptidyl-prolyl cis-trans isomerase FKBP1A × 4 （P62942） ;4-[4-{cyclopropyl[(1-methyl-1H-pyrazol-4-yl)methyl]amino}-6-({1-[(2R)-2-{[(2S)-1-(3,3-dimethyl-2-oxopentanoyl)piperidine-2-carbonyl]amino}-4-(4-methoxyphenyl)butanoyl]piperidin-4-yl}amino)-1,3,5-triazin-2-yl]-N-ethylpiperazine-1-carboxamide ; × 4 GLYCEROL × 1 water × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BRD9_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain E； PDBConstruct 6–116； UniProt 130–240 Author chain F； PDBConstruct 6–116； UniProt 130–240 Author chain G； PDBConstruct 6–116； UniProt 130–240 Author chain H； PDBConstruct 6–116； UniProt 130–240

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9du1
Deposition date deposition_date	2024-10-02
Last revision last_revision	2025-10-08
Structure title title	Co-crystal structure of the ternary complex of human FKBP12, BRD9 bromo domain and Compound 1
Keywords keywords	FKBP12, BRD9, bromo domain, glue degrader, LIGASE; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9du1__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9du1__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

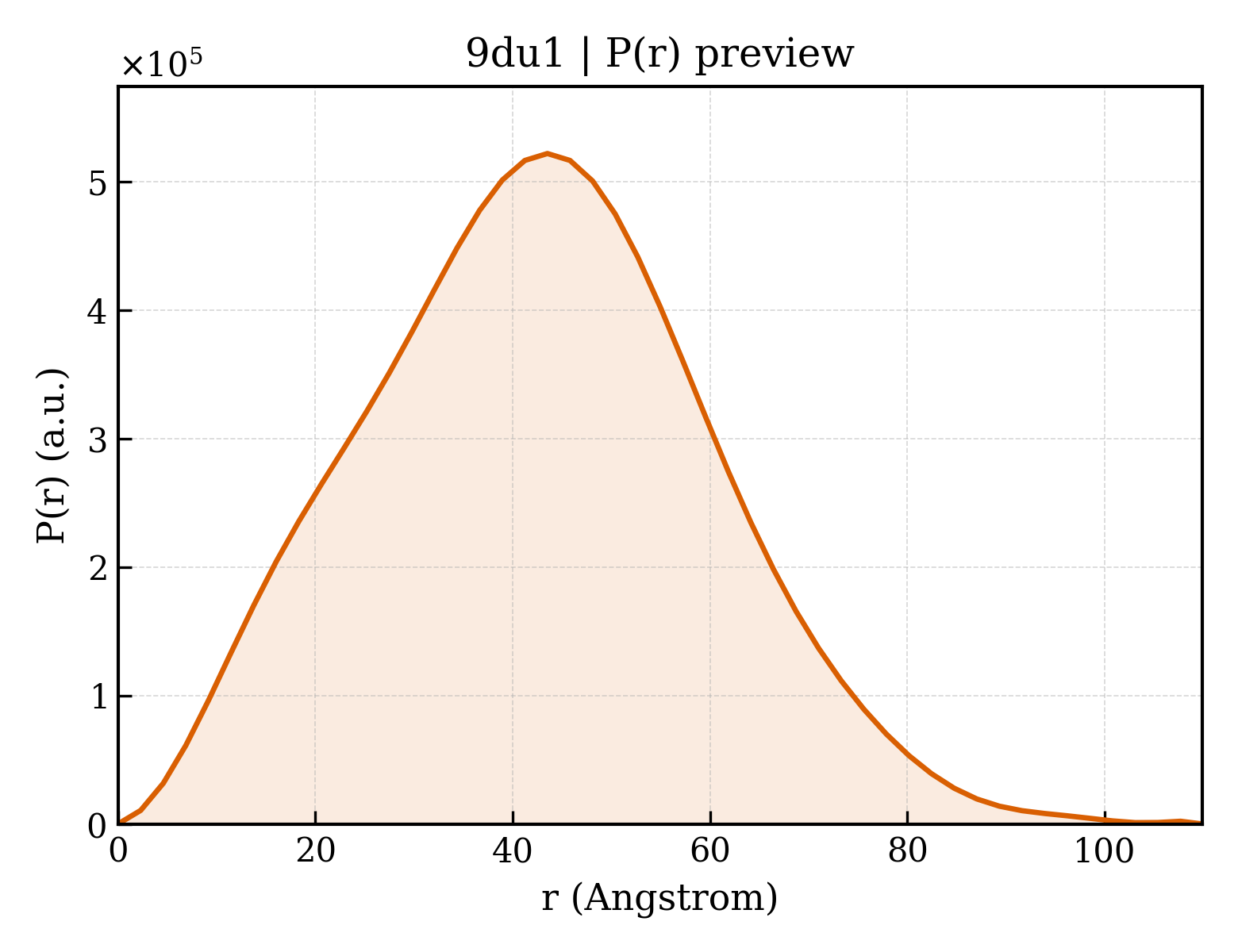

9du1__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.80 Å
Rg (electron density)	32.11 Å
Total Rg	32.74 Å
Atom count	6901
Residues	841
Excluded volume	122410 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9du1__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Peptidyl-prolyl cis-trans isomerase FKBP1A
Molecular weight formula_weight	12054.8 kDa
EC 编号 ec_number	5.2.1.8
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	7707

SMGVQVETISPGDGRTFPKRGQTCVVHYTGMLEDGKKFDSSRDRNKPFKFMLGKQEVIRGWEEGVAQMSVGQRAKLTISPDYAYGATGHPGIIPPHATLVFDVELLKLE

Entity 2 Entity 2 polymer

Description description	Bromodomain-containing protein 9
Molecular weight formula_weight	13323.5 kDa
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F,G,H

GPLGSRTQPAENESTPIQQLLEHFLRQLQRKDPHGFFAFPVTDAIAPGYSMIIKHPMDFGTMKDKIVANEYKSVTEFKADFKLMCDNAMTYNRPDTVYYKLAKKILHAGFKMMSKQ

Entity 3 Entity 3 non-polymer

Description description	;4-[4-{cyclopropyl[(1-methyl-1H-pyrazol-4-yl)methyl]amino}-6-({1-[(2R)-2-{[(2S)-1-(3,3-dimethyl-2-oxopentanoyl)piperidine-2-carbonyl]amino}-4-(4-methoxyphenyl)butanoyl]piperidin-4-yl}amino)-1,3,5-triazin-2-yl]-N-ethylpiperazine-1-carboxamide ;
Molecular weight formula_weight	912.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	791

▶

Unit-cell length a length_a	59.163 Å
Unit-cell length b length_b	97.512 Å
Unit-cell length c length_c	100.002 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	93.69 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.010 Å
Low-resolution limit resolution_low	59.040 Å
R factor r_factor	0.2254
R_work r_work	0.2236
R_free r_free	0.2588
