SAXSdb — 9e7t

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Dot/Icm T4SS effector PieF

Legionella pneumophila

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 3	CCR4-NOT transcription complex subunit 1 × 1 （A5YKK6） SDH7p Mitochondrial protein involved in assembly of succinate dehydrogenase,CCR4-NOT transcription complex subunit 7 × 1 （A0A0L8VUM0,Q9UIV1） MAGNESIUM ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0AAN5PHN6_LEGPN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 26–150； UniProt 1–125

CCR4-NOT transcription complex subunit 1

Homo sapiens

UniProt A5YKK6

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 3	Dot/Icm T4SS effector PieF × 1 （A0AAN5PHN6） SDH7p Mitochondrial protein involved in assembly of succinate dehydrogenase,CCR4-NOT transcription complex subunit 7 × 1 （A0A0L8VUM0,Q9UIV1） MAGNESIUM ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CNOT1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 30–254； UniProt 1093–1317

SDH7p Mitochondrial protein involved in assembly of succinate dehydrogenase,CCR4-NOT transcription complex subunit 7

Homo sapiens

UniProt A0A0L8VUM0

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 3	Dot/Icm T4SS effector PieF × 1 （A0AAN5PHN6） CCR4-NOT transcription complex subunit 1 × 1 （A5YKK6） MAGNESIUM ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A0L8VUM0_9SACH
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 21–115； UniProt 1–95

SDH7p Mitochondrial protein involved in assembly of succinate dehydrogenase,CCR4-NOT transcription complex subunit 7

Homo sapiens

UniProt Q9UIV1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 3	Dot/Icm T4SS effector PieF × 1 （A0AAN5PHN6） CCR4-NOT transcription complex subunit 1 × 1 （A5YKK6） MAGNESIUM ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CNOT7_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 127–411； UniProt 1–285

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9e7t
Deposition date deposition_date	2024-11-04
Last revision last_revision	2025-07-23
Structure title title	Cryo-EM structure of NOT1:NOT7:PieF
Keywords keywords	PieF, mRNA decay, deadenylation, CCR4-NOT, host-pathogen interactions, GENE REGULATION; GENE REGULATION
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9e7t__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

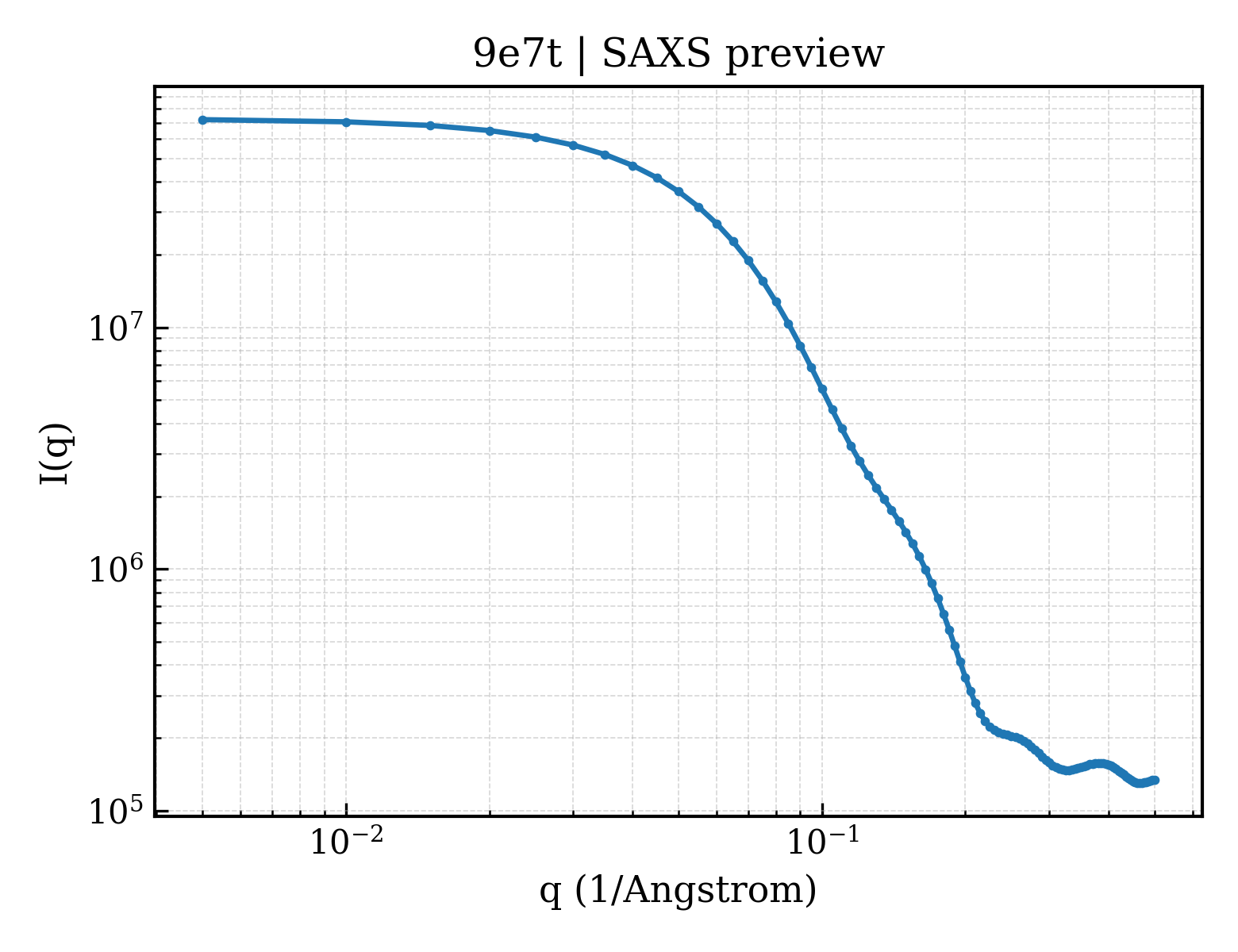

9e7t__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

9e7t__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.81 Å
Rg (electron density)	27.91 Å
Total Rg	28.65 Å
Atom count	4840
Residues	597
Excluded volume	86937 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9e7t__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Dot/Icm T4SS effector PieF
Molecular weight formula_weight	16568.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4842

MGSSHHHHHHSSGTGSGENLYFQGHMKRLIICNGNKLTVCTQAISSGGIVEKYTPIFSLTKESDNELTLELSGVARGYYIIPSELTSSQARAAHLITLLTRAEESQTTDMHKILNSFVSGKITSGSMFNFENDGSFKREPEEAYNLINKI

Source Source

Source organism organism	Legionella pneumophila
NCBI taxonomy ID ncbi_taxonomy_id	446
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	CCR4-NOT transcription complex subunit 1
Molecular weight formula_weight	29237.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MGSSHHHHHHSSGTGSGLEVLFQGPHMLEENIQEKIAFIFNNLSQSNMTQKVEELKETVKEEFMPWVSQYLVMKRVSIEPNFHSLYSNFLDTLKNPEFNKMVLNETYRNIKVLLTSDKAAANFSDRSLLKNLGHWLGMITLAKNKPILHTDLDVKSLLLEAYVKGQQELLYVVPFVAKVLESSIRSVVFRPPNPWTMAIMNVLAELHQEHDLKLNLKFEIEVLCKNLALDINELKPGNLLKDKDRLKNLDEQLS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	SDH7p Mitochondrial protein involved in assembly of succinate dehydrogenase,CCR4-NOT transcription complex subunit 7
Molecular weight formula_weight	47134.9 kDa
EC 编号 ec_number	3.1.13.4
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MGSSHHHHHHSSGLVPRGSHMSDSEVNQEAKPEVKPEVKPETHINLKVSDGSSEIFFKIKKTTPLRRLMEAFAKRQGKEMDSLRFLYDGIRIQADQTPEDLDMEDNDIIEAHREQTGGSENLYFQGMPAATVDHSQRICEVWACNLDEEMKKIRQVIRKYNYVAMDTEFPGVVARPIGEFRSNADYQYQLLRCNVDLLKIIQLGLTFMNEQGEYPPGTSTWQFNFKFNLTEDMYAQDSIELLTTSGIQFKKHEEEGIETQYFAELLMTSGVVLCEGVKWLSFHSGYDFGYLIKILTNSNLPEEELDFFEILRLFFPVIYDVKYLMKSCKNLKGGLQEVAEQLELERIGPQHQAGSDSLLTGMAFFKMREMFFEDHIDDAKYCGHLYGLGSGSSYVQNGTGNAYEEEANKQS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	2

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.80 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	417581
