SAXSdb — 9ecv

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9ecv
沉积日期 deposition_date	2024-11-15
最后修订 last_revision	2025-09-24
结构标题 title	CryoEM Structure Of Respiratory Syncytial Virus Polymerase in complex with Novel Non-Nucleoside Inhibitor Compound 16
关键词 keywords	Non-Nucleoside Inhibitor, complex, Polymerase, RSV, VIRAL PROTEIN, TRANSFERASE-INHIBITOR complex; VIRAL PROTEIN,TRANSFERASE/INHIBITOR
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	37.92 Å
回转半径 Rg (电子) rg_electron	37.08 Å
零角强度 I(0) i0	1078680000.00
分子量 molecular_weight	179000.0 kDa
排除体积 excluded_volume	173340 Å³
包络体积 envelope_volume	321060 Å³
水化壳体积 shell_volume	69349 Å³
包络直径 envelope_diameter	129.0 Å
壳层 Rg shell_rg	45.55 Å
包络 Rg envelope_rg	36.33 Å
形状 Rg shape_rg	37.05 Å
总 Rg total_rg	37.50 Å
总原子数 total_atoms	13554
残基数 n_residues	1673
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	118.5 Å
Rg (实空间) rg_real	37.66 Å
Rg 误差 (实空间) rg_real_error	0.72 Å
I(0) (实空间) i0_real	1.0790e+09
I(0) 误差 (实空间) i0_real_error	1.7600e+07
Rg (倒空间) rg_reciprocal	37.82 Å
I(0) (倒空间) i0_reciprocal	1079000000.0000
解质量估计 total_estimate	0.8904
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	115.7 Å
偏度 Skewness skewness	0.129
峰度 Kurtosis kurtosis	-0.433
角度范围 angular_range	— – 0.2100 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	96410000.0000
实空间数据点数 n_real_points	43
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.902; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.971; Smooth: 0.893

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	RNA-directed RNA polymerase L
分子量 formula_weight	254482.8 kDa
EC 编号 ec_number	2.7.7.48,3.6.1.-,2.7.7.88,2.1.1.375
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	13558

MGSWSHPQFEKGSGSGSSWSHPQFEKGSGSLVPRGSMDPIINGNSANVYLTDSYLKGVISFSECNALGSYIFNGPYLKNDYTNLISRQNPLIEHMNLKKLNITQSLISKYHKGEIKLEEPTYFQSLLMTYKSMTSSEQIATTNLLKKIIRRAIEISDVKVYAILNKLGLKEKDKIKSNNGQDEDNSVITTIIKDDILSAVKDNQSHLKADKNHSTKQKDTIKTTLLKKLMCSMQHPPSWLIHWFNLYTKLNNILTQYRSNEVKNHGFTLIDNQTLSGFQFILNQYGCIVYHKELKRITVTTYNQFLTWKDISLSRLNVCLITWISNCLNTLNKSLGLRCGFNNVILTQLFLYGDCILKLFHNEGFYIIKEVEGFIMSLILNITEEDQFRKRFYNSMLNNITDAANKAQKNLLSRVCHTLLDKTVSDNIINGRWIILLSKFLKLIKLAGDNNLNNLSELYFLFRIFGHPMVDERQAMDAVKINCNETKFYLLSSLSMLRGAFIYRIIKGFVNNYNRWPTLRNAIVLPLRWLTYYKLNTYPSLLELTERDLIVLSGLRFYREFRLPKKVDLEMIINDKAISPPKNLIWTSFPRNYMPSHIQNYIEHEKLKFSESDKSRRVLEYYLRDNKFNECDLYNCVVNQSYLNNPNHVVSLTGKERELSVGRMFAMQPGMFRQVQILAEKMIAENILQFFPESLTRYGDLELQKILELKAGISNKSNRYNDNYNNYISKCSIITDLSKFNQAFRYETSCICSDVLDELHGVQSLFSWLHLTIPHVTIICTYRHAPPYIGDHIVDLNNVDEQSGLYRYHMGGIEGWCQKLWTIEAISLLDLISLKGKFSITALINGDNQSIDISKPIRLMEGQTHAQADYLLALNSLKLLYKEYAGIGHKLKGTETYISRDMQFMSKTIQHNGVYYPASIKKVLRVGPWINTILDDFKVSLESIGSLTQELEYRGESLLCSLIFRNVWLYNQIALQLKNHALCNNKLYLDILKVLKHLKTFFNLDNIDTALTLYMNLPMLFGGGDPNLLYRSFYRRTPDFLTEAIVHSVFILSYYTNHDLKDKLQDLSDDRLNKFLTCIITFDKNPNAEFVTLMRDPQALGSERQAKITSEINRLAVTEVLSTAPNKIFSKSAQHYTTTEIDLNDIMQNIEPTYPHGLRVVYESLPFYKAEKIVNLISGTKSITNILEKTSAIDLTDIDRATEMMRKNITLLIRILPLDCNRDKREILSMENLSITELSKYVRERSWSLSNIVGVTSPSIMYTMDIKYTTSTISSGIIIEKYNVNSLTRGERGPTKPWVGSSTQEKKTMPVYNRQVLTKKQRDQIDLLAKLDWVYASIDNKDEFMEELSIGTLGLTYEKAKKLFPQYLSVNYLHRLTVSSRPCEFPASIPAYRTTNYHFDTSPINRILTEKYGDEDIDIVFQNCISFGLSLMSVVEQFTNVCPNRIILIPKLNEIHLMKPPIFTGDVDIHKLKQVIQKQHMFLPDKISLTQYVELFLSNKTLKSGSHVNSNLILAHKISDYFHNTYILSTNLAGHWILIIQLMKDSKGIFEKDWGEGYITDHMFINLKVFFNAYKTYLLCFHKGYGKAKLECDMNTSDLLCVLELIDSSYWKSMSKVFLEQKVIKYILSQDASLHRVKGCHSFKLWFLKRLNVAEFTVCPWVVNIDYHPTHMKAILTYIDLVRMGLINIDRIHIKNKHKFNDEFYTSNLFYINYNFSDNTHLLTKHIRIANSELENNYNKLYHPTPETLENILANPIKSNDKKTLNDYCIGKNVDSIMLPLLSNKKLIKSSAMIRTNYSKQDLYNLFPMVVIDRIIDHSGNTAKSNQLYTTTSHQISLVHNSTSLYCMLPWHHINRFNFVFSSTGCKISIEYILKDLKIKDPNCIAFIGEGAGNLLLRTVVELHPDIRYIYRSLKDCNDHSLPIEFLRLYNGHINIDYGENLTIPATDATNNIHWSYLHIKFAEPISLFVCDAELSVTVNWSKIIIEWSKHVRKCKYCSSVNKCMLIVKYHAQDDIDFKLDNITILKTYVCLGSKLKGSEVYLVLTIGPANIFPVFNVVQNAKLILSRTKNFIMPKKADKESIDANIKSLIPFLCYPITKKGINTALSKLKSVVSGDILSYSIAGRNEVFSNKLINHKHMNILKWFNHVLNFRSTELNYNHLYMVESTYPYLSELLNSLTTNELKKLIKITGSLLYNFHNE

来源 Source

来源生物 organism	human respiratory syncytial virus
NCBI 分类编号 ncbi_taxonomy_id	11250
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 polymer

描述 description	Phosphoprotein
分子量 formula_weight	29032.8 kDa
突变 mutation	I171V variant
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,C,D,E

MEKFAPEFHGEDANNRATKFLESIKGKFTSPKDPKKKDSIISVNSIDIEVTKESPITSNSTIINPTNETDDTAGNKPNYQRKPLVSFKEDPTPSDNPFSKLYKETIETFDNNEEESSYSYEEINDQTNDNITARLDRIDEKLSEILGMLHTLVVASAGPTSARDGIRDAMVGLREEMIEKIRTEALMTNDRLEAMARLRNEESEKMAKDTSDEVSLNPTSEKLNNLLEGNDSDNDLSLEDFKGENLYFQGHHHHHH

来源 Source

来源生物 organism	human respiratory syncytial virus
NCBI 分类编号 ncbi_taxonomy_id	11250
宿主生物 host_organism	Spodoptera frugiperda

Entity 3 polymer

描述 description	Compound 16
分子量 formula_weight	513.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

XFX

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.79 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	1127112

fit	/app/data/saxs_computation/ec/9ecv/9ecv.fit
pddf	/app/data/pr_computation/ec/9ecv/9ecv.pr.out
profile	/app/data/saxs_computation/ec/9ecv/9ecv.dat

CryoEM Structure Of Respiratory Syncytial Virus Polymerase in complex with Novel Non-Nucleoside Inhibitor Compound 16

SAXS 散射曲线 SAXS Profile

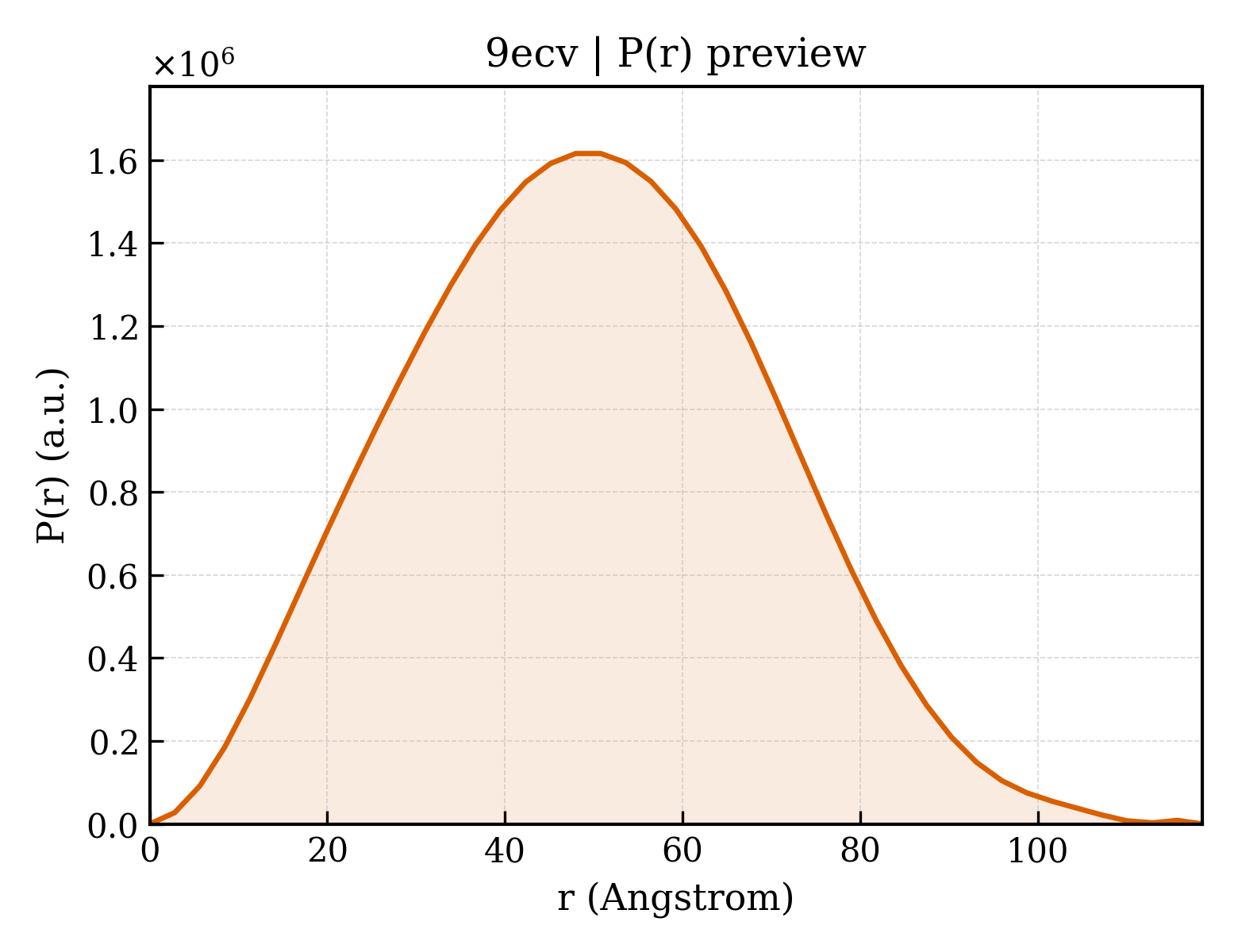

P(r) 距离分布 P(r) Distribution
