SAXSdb — 9n36

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

RNA-directed RNA polymerase L

human respiratory syncytial virus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Phosphoprotein × 4 （P03421） 5-(5-bromo-1-methyl-2-oxo-1,2-dihydrospiro[indole-3,4'-piperidin]-1'-yl)-3-chloropyridine-2-carbonitrile × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	L_HRSVA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 37–2201； UniProt 1–2165

Phosphoprotein

human respiratory syncytial virus

UniProt P03421

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	RNA-directed RNA polymerase L × 1 （P28887） 5-(5-bromo-1-methyl-2-oxo-1,2-dihydrospiro[indole-3,4'-piperidin]-1'-yl)-3-chloropyridine-2-carbonitrile × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PHOSP_HRSVA
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–241； UniProt 1–241 Author chain C； PDBConstruct 1–241； UniProt 1–241 Author chain D； PDBConstruct 1–241； UniProt 1–241 Author chain E； PDBConstruct 1–241； UniProt 1–241

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9n36
Deposition date deposition_date	2025-01-30
Structure title title	CryoEM structure Of Respiratory Syncytial Virus Polymerase with novel non-nucleoside inhibitor compound 22
Keywords keywords	Non-Nucleoside Inhibitor, complex, Polymerase, RSV, VIRAL PROTEIN, TRANSFERASE-INHIBITOR complex; TRANSFERASE/INHIBITOR
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9n36__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9n36__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

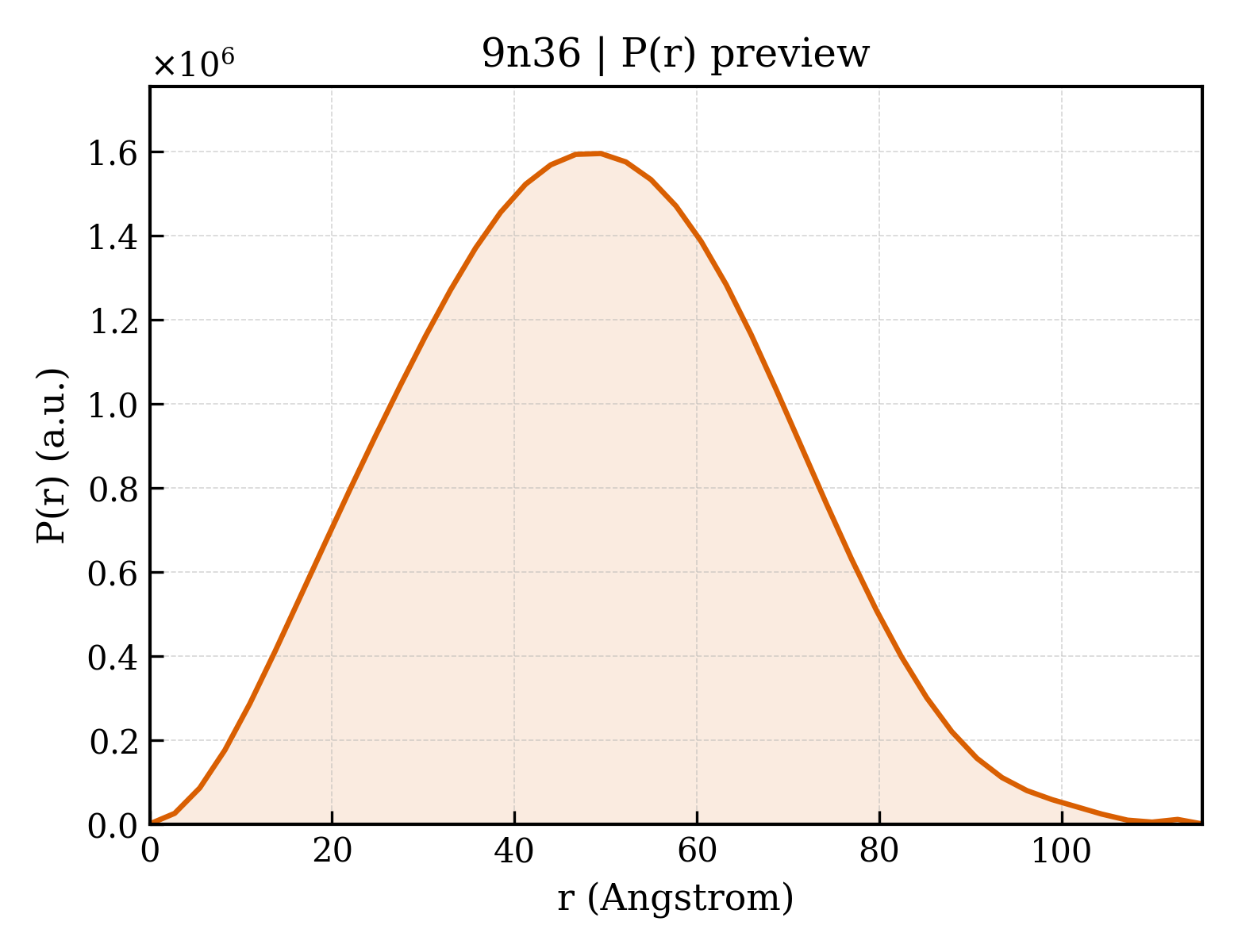

9n36__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	37.35 Å
Rg (electron density)	36.43 Å
Total Rg	37.09 Å
Atom count	13328
Residues	1643
Excluded volume	239970 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9n36__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	RNA-directed RNA polymerase L
Molecular weight formula_weight	254482.8 kDa
EC 编号 ec_number	2.7.7.48,3.6.1.-,2.7.7.88,2.1.1.375
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	13328

MGSWSHPQFEKGSGSGSSWSHPQFEKGSGSLVPRGSMDPIINGNSANVYLTDSYLKGVISFSECNALGSYIFNGPYLKNDYTNLISRQNPLIEHMNLKKLNITQSLISKYHKGEIKLEEPTYFQSLLMTYKSMTSSEQIATTNLLKKIIRRAIEISDVKVYAILNKLGLKEKDKIKSNNGQDEDNSVITTIIKDDILSAVKDNQSHLKADKNHSTKQKDTIKTTLLKKLMCSMQHPPSWLIHWFNLYTKLNNILTQYRSNEVKNHGFTLIDNQTLSGFQFILNQYGCIVYHKELKRITVTTYNQFLTWKDISLSRLNVCLITWISNCLNTLNKSLGLRCGFNNVILTQLFLYGDCILKLFHNEGFYIIKEVEGFIMSLILNITEEDQFRKRFYNSMLNNITDAANKAQKNLLSRVCHTLLDKTVSDNIINGRWIILLSKFLKLIKLAGDNNLNNLSELYFLFRIFGHPMVDERQAMDAVKINCNETKFYLLSSLSMLRGAFIYRIIKGFVNNYNRWPTLRNAIVLPLRWLTYYKLNTYPSLLELTERDLIVLSGLRFYREFRLPKKVDLEMIINDKAISPPKNLIWTSFPRNYMPSHIQNYIEHEKLKFSESDKSRRVLEYYLRDNKFNECDLYNCVVNQSYLNNPNHVVSLTGKERELSVGRMFAMQPGMFRQVQILAEKMIAENILQFFPESLTRYGDLELQKILELKAGISNKSNRYNDNYNNYISKCSIITDLSKFNQAFRYETSCICSDVLDELHGVQSLFSWLHLTIPHVTIICTYRHAPPYIGDHIVDLNNVDEQSGLYRYHMGGIEGWCQKLWTIEAISLLDLISLKGKFSITALINGDNQSIDISKPIRLMEGQTHAQADYLLALNSLKLLYKEYAGIGHKLKGTETYISRDMQFMSKTIQHNGVYYPASIKKVLRVGPWINTILDDFKVSLESIGSLTQELEYRGESLLCSLIFRNVWLYNQIALQLKNHALCNNKLYLDILKVLKHLKTFFNLDNIDTALTLYMNLPMLFGGGDPNLLYRSFYRRTPDFLTEAIVHSVFILSYYTNHDLKDKLQDLSDDRLNKFLTCIITFDKNPNAEFVTLMRDPQALGSERQAKITSEINRLAVTEVLSTAPNKIFSKSAQHYTTTEIDLNDIMQNIEPTYPHGLRVVYESLPFYKAEKIVNLISGTKSITNILEKTSAIDLTDIDRATEMMRKNITLLIRILPLDCNRDKREILSMENLSITELSKYVRERSWSLSNIVGVTSPSIMYTMDIKYTTSTISSGIIIEKYNVNSLTRGERGPTKPWVGSSTQEKKTMPVYNRQVLTKKQRDQIDLLAKLDWVYASIDNKDEFMEELSIGTLGLTYEKAKKLFPQYLSVNYLHRLTVSSRPCEFPASIPAYRTTNYHFDTSPINRILTEKYGDEDIDIVFQNCISFGLSLMSVVEQFTNVCPNRIILIPKLNEIHLMKPPIFTGDVDIHKLKQVIQKQHMFLPDKISLTQYVELFLSNKTLKSGSHVNSNLILAHKISDYFHNTYILSTNLAGHWILIIQLMKDSKGIFEKDWGEGYITDHMFINLKVFFNAYKTYLLCFHKGYGKAKLECDMNTSDLLCVLELIDSSYWKSMSKVFLEQKVIKYILSQDASLHRVKGCHSFKLWFLKRLNVAEFTVCPWVVNIDYHPTHMKAILTYIDLVRMGLINIDRIHIKNKHKFNDEFYTSNLFYINYNFSDNTHLLTKHIRIANSELENNYNKLYHPTPETLENILANPIKSNDKKTLNDYCIGKNVDSIMLPLLSNKKLIKSSAMIRTNYSKQDLYNLFPMVVIDRIIDHSGNTAKSNQLYTTTSHQISLVHNSTSLYCMLPWHHINRFNFVFSSTGCKISIEYILKDLKIKDPNCIAFIGEGAGNLLLRTVVELHPDIRYIYRSLKDCNDHSLPIEFLRLYNGHINIDYGENLTIPATDATNNIHWSYLHIKFAEPISLFVCDAELSVTVNWSKIIIEWSKHVRKCKYCSSVNKCMLIVKYHAQDDIDFKLDNITILKTYVCLGSKLKGSEVYLVLTIGPANIFPVFNVVQNAKLILSRTKNFIMPKKADKESIDANIKSLIPFLCYPITKKGINTALSKLKSVVSGDILSYSIAGRNEVFSNKLINHKHMNILKWFNHVLNFRSTELNYNHLYMVESTYPYLSELLNSLTTNELKKLIKITGSLLYNFHNE

Source Source

Source organism organism	human respiratory syncytial virus
NCBI taxonomy ID ncbi_taxonomy_id	11250
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Phosphoprotein
Molecular weight formula_weight	29032.8 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,C,D,E

MEKFAPEFHGEDANNRATKFLESIKGKFTSPKDPKKKDSIISVNSIDIEVTKESPITSNSTIINPTNETDDTAGNKPNYQRKPLVSFKEDPTPSDNPFSKLYKETIETFDNNEEESSYSYEEINDQTNDNITARLDRIDEKLSEILGMLHTLVVASAGPTSARDGIRDAMVGLREEMIEKIRTEALMTNDRLEAMARLRNEESEKMAKDTSDEVSLNPTSEKLNNLLEGNDSDNDLSLEDFKGENLYFQGHHHHHH

Source Source

Source organism organism	human respiratory syncytial virus
NCBI taxonomy ID ncbi_taxonomy_id	11250
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 non-polymer

Description description	5-(5-bromo-1-methyl-2-oxo-1,2-dihydrospiro[indole-3,4'-piperidin]-1'-yl)-3-chloropyridine-2-carbonitrile
Molecular weight formula_weight	431.7 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.72 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	1546578
