SAXSdb — 9ew8

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Bcl-2-related protein A1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	1-[(2R)-2-phenylpyrrolidin-1-yl]propan-1-one × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	B2LA1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–152； UniProt 1–151

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9ew8
Deposition date deposition_date	2024-04-03
Last revision last_revision	2025-04-16
Structure title title	Discovery of a Series of Covalent, Cell Active Bfl-1 Inhibitors
Keywords keywords	Bfl-1, Bcl-2-related protein A1, covalent, APOPTOSIS; APOPTOSIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9ew8__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9ew8__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

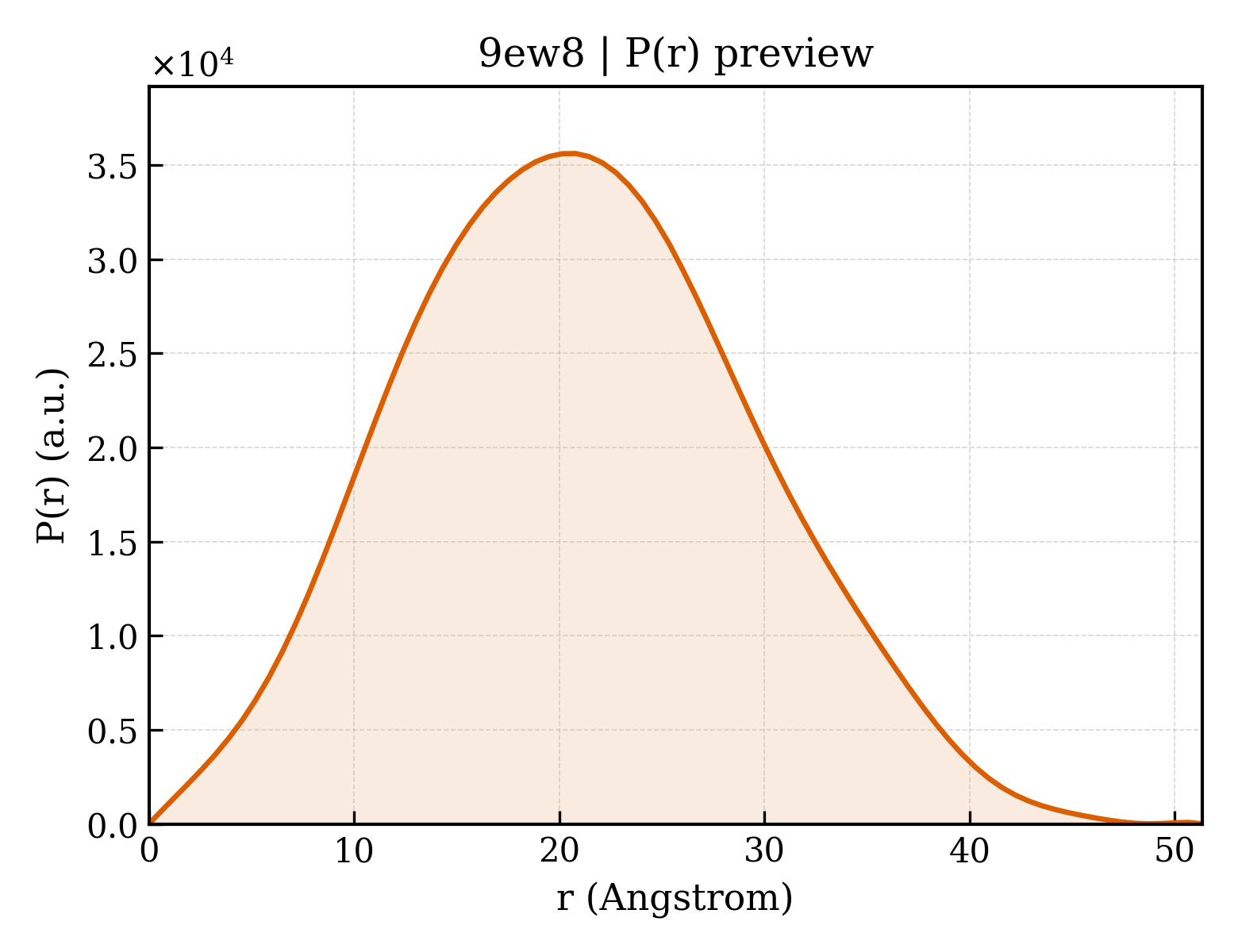

9ew8__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	16.38 Å
Rg (electron density)	14.87 Å
Total Rg	16.14 Å
Atom count	1213
Residues	149
Excluded volume	21696 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9ew8__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Bcl-2-related protein A1
Molecular weight formula_weight	17442.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1306

GMTDCEFGYIYRLAQDYLQCVLQIPQPGSGPSKTSRVLQNVAFSVQKEVEKNLKSCLDNVNVVSVDTARTLFNQVMEKEFEDGIINWGRIVTIFAFEGILIKKLLRQQIAPDVDTYKEISYFVAEFIMNNTGEWIRQNGGWENGFVKKFEPK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	1-[(2R)-2-phenylpyrrolidin-1-yl]propan-1-one
Molecular weight formula_weight	203.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	75

▶

Unit-cell length a length_a	39.910 Å
Unit-cell length b length_b	42.960 Å
Unit-cell length c length_c	42.980 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	101.86 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.488 Å
Low-resolution limit resolution_low	39.060 Å
R factor r_factor	0.2245
R_work r_work	0.2221
R_free r_free	0.2710

Discovery of a Series of Covalent, Cell Active Bfl-1 Inhibitors
