SAXSdb — 5uul

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Bcl-2-related protein A1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–151	Fragment：UNP residues 1-151	Bcl-2-binding component 3 × 1 （Q9BXH1） SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；1.8 M ammonium sulfate, 0.1 M MES pH 7.0	Resolution 1.33 Å R-free 0.155

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5UUL	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2VM6 Human Bcl2-A1 in complex with Bim-BH3 peptide Deposited 2008-01-23	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–149（149 aa） Fragment：RESIDUES 1-149	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.8；293 K；0.1M BIS, TRIS PH 5.8, 2M AMSO4	Resolution 2.20 Å R-free 0.250
3I1H Crystal structure of human BFL-1 in complex with BAK BH3 peptide Deposited 2009-06-26	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–151（151 aa） Fragment：residues 1-151	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.8；298 K；1.5 M sodium malonate, pH 5.8 protein 1.67 mg/ml, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.238
3MQP Crystal Structure of human BFL-1 in complex with NOXA BH3 peptide, Northeast Structural Genomics Consortium Target HR2930 Deposited 2010-04-28	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–151（151 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.4；296 K；Protein solution: 100mM NaCl, 5mM DTT, 0.02% NaN3, 10mM Tris-HCl (pH 7.5) . Reservoir solution: 1.5 M Sodium Malonate, 0.1 M sodium Acetate, VAPOR DIFFUSION, HANGING DROP, temperature 296K	Resolution 2.24 Å R-free 0.230
4ZEQ Crystal Structure of human BFL-1 in complex with tBid BH3 peptide, Northeast Structural Genomics Consortium Target HX9247 Deposited 2015-04-20	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–151（151 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；295 K；Sodium Malonate	Resolution 1.80 Å R-free 0.239
5UUK Human Bfl-1 in complex with a Bfl-1-specific selected peptide Deposited 2017-02-17	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–151（151 aa） Fragment：UNP residues 1-151	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；1.8 M ammonium sulfate, 0.1 M MES pH 7.0	Resolution 1.20 Å R-free 0.163
5UUP Human Bfl-1 covalently cross-linked to an electrophilic variant of a Bfl-1-specific selected peptide Deposited 2017-02-17	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–151（151 aa） Fragment：UNP residues 1-151	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；1.8 M ammonium sulfate, 0.1 M MES pH 7.0	Resolution 1.73 Å R-free 0.206
5WHH Crystal Structure of Bcl-2-related protein A1 in complex with stapled peptide (AQ7)T(0EH)LRRFGD(MK8)INFRQ(NH2) Deposited 2017-07-17	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–151（151 aa）	Mutation：C4S, C19S	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；PEG3350 20%, 0.2M Sodium malonate	Resolution 2.38 Å R-free 0.293
5WHI Crystal Structure of Bcl-2-related protein A1 Deposited 2017-07-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–151（151 aa） Fragment：BFL1	Mutation：C4S, C19S	CAD CACODYLIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；PEG2000	Resolution 1.69 Å R-free 0.233
6E3I Human Bfl-1 in complex with the Bfl-1-specific designed peptide srt.F4 Deposited 2018-07-14	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–151（151 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；1.8 M ammonium sulfate, 0.1 M MES pH 7.0	Resolution 1.48 Å R-free 0.173
6E3J Human Bfl-1 in complex with the Bfl-1-specific designed peptide srt.F10 Deposited 2018-07-14	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–151（151 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；1.8 M ammonium sulfate, 0.1 M MES pH 7.0	Resolution 1.48 Å R-free 0.178
6MBB Human Bfl-1 in complex with the designed peptide dF1 Deposited 2018-08-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–151（151 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；1.8 M ammonium sulfate, 0.1 M MES pH 6.5	Resolution 1.59 Å R-free 0.196
6MBC Human Bfl-1 in complex with the designed peptide dF4 Deposited 2018-08-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–151（151 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；1.8 - 2.0 M NH4SO4, 50 mM MES pH 6.5	Resolution 1.75 Å R-free 0.212
6RJP Bfl-1 in complex with alpha helical peptide Deposited 2019-04-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–149（149 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；0.1 M sodium acetate pH 4.6 16% (w/v) PEG smear high	Resolution 2.57 Å R-free 0.266
6RJP Bfl-1 in complex with alpha helical peptide Deposited 2019-04-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–149（149 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；0.1 M sodium acetate pH 4.6 16% (w/v) PEG smear high	Resolution 2.57 Å R-free 0.266
6VO4 Crystal Structure Analysis of BFL1 Deposited 2020-01-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–151（151 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；3.5M Sodium formate, pH 7.0	Resolution 1.74 Å R-free 0.283
8RPO BFL1 in complex with a reversible covalent ligand Deposited 2024-01-16	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–151（151 aa）	Not recorded	A1H2C (~{E})-2-cyano-3-(2-dimethylphosphorylphenyl)-~{N}-[[1-[4-(trifluoromethyl)phenyl]cyclopropyl]methyl]prop-2-enamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；sodium citrate 0.3M, PCTP pH 6	Resolution 1.79 Å R-free 0.262
9EW8 Discovery of a Series of Covalent, Cell Active Bfl-1 Inhibitors Deposited 2024-04-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–151（151 aa）	Not recorded	A1H7Q 1-[(2R)-2-phenylpyrrolidin-1-yl]propan-1-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.85M sodium citrate, 0.1M PCTP pH 6	Resolution 1.49 Å R-free 0.271
9FKY Discovery of a Series of Covalent, Cell Active Bfl-1 Inhibitors Deposited 2024-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–151（151 aa）	Not recorded	A1IDP ~{N}-[4-[(1~{R},3~{R})-3-azanylcyclopentyl]oxyphenyl]-~{N}-[(1~{S})-1-[3-cyano-4-(trifluoromethyl)phenyl]ethyl]propanamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；310 K；PCPT 0.1M pH 5, Na3 Cit 1.1M	Resolution 1.56 Å R-free 0.237
9FKY Discovery of a Series of Covalent, Cell Active Bfl-1 Inhibitors Deposited 2024-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–151（151 aa）	Not recorded	A1IDP ~{N}-[4-[(1~{R},3~{R})-3-azanylcyclopentyl]oxyphenyl]-~{N}-[(1~{S})-1-[3-cyano-4-(trifluoromethyl)phenyl]ethyl]propanamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；310 K；PCPT 0.1M pH 5, Na3 Cit 1.1M	Resolution 1.56 Å R-free 0.237
9FKZ Discovery of a Series of Covalent, Cell Active Bfl-1 Inhibitors Deposited 2024-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–151（151 aa）	Not recorded	A1IDO ~{N}-[4-[(1~{R},3~{R})-3-azanylcyclopentyl]oxyphenyl]-~{N}-[(4-chlorophenyl)methyl]prop-2-enamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；310 K；Na3 Cit 1M, PCPT 0.1M pH 7	Resolution 1.68 Å R-free 0.339
9FL0 Discovery of a Series of Covalent, Cell Active Bfl-1 Inhibitors Deposited 2024-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–151（151 aa）	Not recorded	A1IDG ~{N}-[(4-chlorophenyl)methyl]-~{N}-(4-fluorophenyl)prop-2-enamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；310 K；PCPT 0.1M pH 7, Na3 Cit 1M	Resolution 1.94 Å R-free 0.281
9FL0 Discovery of a Series of Covalent, Cell Active Bfl-1 Inhibitors Deposited 2024-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–151（151 aa）	Not recorded	A1IDG ~{N}-[(4-chlorophenyl)methyl]-~{N}-(4-fluorophenyl)prop-2-enamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；310 K；PCPT 0.1M pH 7, Na3 Cit 1M	Resolution 1.94 Å R-free 0.281
9GIP BFL1 covalently bound to inhibitor compound 7 Deposited 2024-08-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–151（151 aa）	Not recorded	A1ILY ~{N}-[4-[(1~{R},3~{R})-3-azanylcyclopentyl]oxyphenyl]-~{N}-[(1~{S})-1-(4-chlorophenyl)ethyl]propanamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.71；293 K；Protein:ligand complex at ~4mg/ml in 20 mM HEPES pH 7.5, 150 mM NaCl, 5% glycerol, 2 mM TCEP, 1%DMSO. 150nL mixed with 150nL of well solution, 0.1M PCPT* pH 8.71, Na3 Citrate 0.93 M. *PCPT = Sodium propionate, sodium cacodylate trihydrate, bis-tris propane buffer system. Using STPLabtech Mosquito.	Resolution 1.46 Å R-free 0.249
9GIQ BFL1 covalently bound to inhibitor compound 13 Deposited 2024-08-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–151（151 aa）	Not recorded	BUD (2S,3S)-butane-2,3-diol × 1 A1ILV ~{N}-[4-[(1~{R},3~{R})-3-azanylcyclopentyl]oxyphenyl]-~{N}-[(1~{S})-1-(4-chlorophenyl)-3-methyl-3-oxidanyl-butyl]propanamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.5；293 K；Protein:ligand complex at ~4mg/ml in 20 mM HEPES pH 7.5, 150 mM NaCl, 5% glycerol, 2 mM TCEP, 1%DMSO. 150nL mixed with 150nL of well solution, 0.1M PCPT* pH 9.50, Na3 Citrate 0.60 M. *PCPT = Sodium propionate, sodium cacodylate trihydrate, bis-tris propane buffer system. Using STPLabtech Mosquito.	Resolution 1.42 Å R-free 0.257
9GIR BFL1 covalently bound to inhibitor compound 39 Deposited 2024-08-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–151（151 aa）	Not recorded	A1ILX ~{N}-[4-[(1~{R},3~{R})-3-[[(3~{R})-1,1-bis(oxidanylidene)thiolan-3-yl]carbamoylamino]cyclopentyl]oxy-3-chloranyl-phenyl]-~{N}-[(1~{S})-1-(4-chlorophenyl)ethyl]propanamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.71；293 K；Protein:ligand complex at ~4mg/ml in 20 mM HEPES pH 7.5, 150 mM NaCl, 5% glycerol, 2 mM TCEP, 1%DMSO. 150nL mixed with 150nL of well solution, 0.1M PCPT* pH 4.78, Na3 Citrate 0.60 M. *PCPT = Sodium propionate, sodium cacodylate trihydrate, bis-tris propane buffer system. Using STPLabtech Mosquito.	Resolution 1.07 Å R-free 0.210
9GIS BFL1 covalently bound to inhibitor compound 17 Deposited 2024-08-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–151（151 aa）	Not recorded	A1ILU ~{N}-[(1~{S})-1-(4-chlorophenyl)ethyl]-~{N}-[4-[(1~{R},3~{R})-3-[[(3~{S})-pyrrolidin-3-yl]carbamoylamino]cyclopentyl]oxyphenyl]propanamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.93；293 K；Protein:ligand complex at ~4mg/ml in 20 mM HEPES pH 7.5, 150 mM NaCl, 5% glycerol, 2 mM TCEP, 1%DMSO. 150nL mixed with 150nL of well solution, 0.1M PCPT* pH 7.93, Na3 Citrate 0.60 M. *PCPT = Sodium propionate, sodium cacodylate trihydrate, bis-tris propane buffer system. Using STPLabtech Mosquito.	Resolution 1.39 Å R-free 0.254
9GIS BFL1 covalently bound to inhibitor compound 17 Deposited 2024-08-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–151（151 aa）	Not recorded	A1ILU ~{N}-[(1~{S})-1-(4-chlorophenyl)ethyl]-~{N}-[4-[(1~{R},3~{R})-3-[[(3~{S})-pyrrolidin-3-yl]carbamoylamino]cyclopentyl]oxyphenyl]propanamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.93；293 K；Protein:ligand complex at ~4mg/ml in 20 mM HEPES pH 7.5, 150 mM NaCl, 5% glycerol, 2 mM TCEP, 1%DMSO. 150nL mixed with 150nL of well solution, 0.1M PCPT* pH 7.93, Na3 Citrate 0.60 M. *PCPT = Sodium propionate, sodium cacodylate trihydrate, bis-tris propane buffer system. Using STPLabtech Mosquito.	Resolution 1.39 Å R-free 0.254
9GIT BFL1 covalently bound to inhibitor compound 43 Deposited 2024-08-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–151（151 aa）	Not recorded	A1ILW (3~{S})-3-[[4-[(1~{R},3~{R})-3-[[(3~{R})-1,1-bis(oxidanylidene)thiolan-3-yl]carbamoylamino]cyclopentyl]oxy-3-fluoranyl-phenyl]-propanoyl-amino]-3-(4-chlorophenyl)propanamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.14；293 K；Protein:ligand complex at ~4mg/ml in 20 mM HEPES pH 7.5, 150 mM NaCl, 5% glycerol, 2 mM TCEP, 1%DMSO. 150nL mixed with 150nL of well solution, 0.1M PCPT* pH 7.14, Na3 Citrate 0.92 M. *PCPT = Sodium propionate, sodium cacodylate trihydrate, bis-tris propane buffer system. Using STPLabtech Mosquito.	Resolution 1.15 Å R-free 0.212
9S6M Structure of BFL1 in complex with a covalent inhibitor, alternative series, cmpd25 Deposited 2025-08-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–151（151 aa）	Not recorded	A1JL2 (1~{R},2~{R})-2-azanyl-~{N}-[4-[(1~{R})-1-[propanoyl-[4-(trifluoromethyloxy)phenyl]amino]ethyl]phenyl]cyclopentane-1-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；Crystallization of adducted protein was carried out using a 2D optimization grid, (sodium citrate 0.6-1.1 M, vs PCTP buffer, 0.1 M pH 4.5-9.5). 300 nL drops (150 nL protein, 150 nL mother liquor) were incubated at 293 K in a sitting drop vapour diffusion format, dispensed using a Mosquito (SPT Labtech) and SWISSCI MRC 2-drop plates	Resolution 1.43 Å R-free 0.214
9S6M Structure of BFL1 in complex with a covalent inhibitor, alternative series, cmpd25 Deposited 2025-08-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–151（151 aa）	Not recorded	A1JL2 (1~{R},2~{R})-2-azanyl-~{N}-[4-[(1~{R})-1-[propanoyl-[4-(trifluoromethyloxy)phenyl]amino]ethyl]phenyl]cyclopentane-1-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；Crystallization of adducted protein was carried out using a 2D optimization grid, (sodium citrate 0.6-1.1 M, vs PCTP buffer, 0.1 M pH 4.5-9.5). 300 nL drops (150 nL protein, 150 nL mother liquor) were incubated at 293 K in a sitting drop vapour diffusion format, dispensed using a Mosquito (SPT Labtech) and SWISSCI MRC 2-drop plates	Resolution 1.43 Å R-free 0.214

25 other PDB entries and 30 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	B2LA1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–152； UniProt 1–151

Bcl-2-binding component 3

OrganismNot specified

UniProt Q9BXH1

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 132–154	Fragment：UNP residues 132-154 Non-standard monomer：Yes (specific site not provided by mmCIF)	Bcl-2-related protein A1 × 1 （Q16548） SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；1.8 M ammonium sulfate, 0.1 M MES pH 7.0	Resolution 1.33 Å R-free 0.155

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5UUL	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2M04 Solution structure of BCL-xL in complex with PUMA BH3 peptide Deposited 2012-10-19	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 130–154（25 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298.1 K；Ionic strength (raw mmCIF value) 50；Pressure ambient NMR sample composition 0.9 mM [U-100% 13C; U-100% 15N; U-95% 2H; Ile,Leu,Val C1H3] BCL-xL, 0.9 mM PUMA BH3, 92% H2O/8% D2O \| 92% H2O/8% D2O NMR sample composition 0.9 mM [U-100% 13C; U-100% 15N] BCL-xL, 0.9 mM PUMA BH3, 92% H2O/8% D2O \| 92% H2O/8% D2O	Resolution not provided
4HNJ Crystallographic structure of BCL-xL domain-swapped dimer in complex with PUMA BH3 peptide at 2.9A resolution Deposited 2012-10-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 130–154（25 aa） Fragment：BH3 domain peptide	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；291 K；0.2 M CaCl2, 0.1 M NaOAc, 20% V/V isopropanol, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.90 Å R-free 0.254
6QFM Structure of human Mcl-1 in complex with PUMA BH3 peptide Deposited 2019-01-10	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 127–149（23 aa）	Not recorded	ZN ZINC ION × 3 CL CHLORIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；100 mM imidazole buffer pH 7.0, 50 mM zinc acetate and 20-25% polyethylene glycol (PEG) 3350	Resolution 2.00 Å R-free 0.261
6QG8 Structure of human Bcl-2 in complex with PUMA BH3 peptide Deposited 2019-01-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 127–149（23 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；284 K；from 0.2M MgCl2, 25% PegMME 2k, 0.1M Na Acetate buffer pH 5.5	Resolution 1.90 Å R-free 0.216
6TQP Structural insight into tanapoxvirus mediated inhibition of apoptosis Deposited 2019-12-17	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 130–155（26 aa）	Not recorded	NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.1 M Potassium thiocyanate, 30% PEG 2000MME	Resolution 1.85 Å R-free 0.218
7DVD The crystal structure of p53 DNA binding domain and PUMA complex Deposited 2021-01-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 136–150（15 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293.15 K；0.1 M Tris (pH 7.0) 20% (w/w) PEG-200 MME	Resolution 2.59 Å R-free 0.318
7P0S ORF virus encoded Bcl-2 homolog ORFV125 in complex with Puma BH3 peptide Deposited 2021-06-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 130–155（26 aa） Chain U 130–155（26 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M Magnesium acetate, 25% PEG 3350	Resolution 2.50 Å R-free 0.286
7P9W Epstein-Barr virus encoded apoptosis regulator BHRF1 in complex with Puma BH3 Deposited 2021-07-28	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 130–155（26 aa）	Not recorded	PO4 PHOSPHATE ION × 3 EDO 1,2-ETHANEDIOL × 6 NH4 AMMONIUM ION × 1 PDO 1,3-PROPANDIOL × 2 MG MAGNESIUM ION × 5 CL CHLORIDE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.4 M Ammonium phosphate monobasic	Resolution 2.00 Å R-free 0.257
7QTX Kaposi sarcoma associated herpes virus (KSHV) encoded apoptosis inhibitor, KsBcl-2 in complex with Puma BH3 Deposited 2022-01-17	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 130–155（26 aa）	Not recorded	BR BROMIDE ION × 3 EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.2 M sodium bromide, 0.1 M Bis-tris propane pH 6.5, 20% PEG 3350	Resolution 2.12 Å R-free 0.257

9 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	BBC3_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 2–24； UniProt 132–154

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5uul
Deposition date deposition_date	2017-02-17
Structure title title	Human Bfl-1 in complex with PUMA BH3
Keywords keywords	Apoptosis Regulatory Proteins, Protein Binding, Protein Structure, Proto-Oncogene, BCL2A1, BCL2 related protein A1, APOPTOSIS; APOPTOSIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	17.03 Å
Radius of gyration Rg (electron density) rg_electron	15.48 Å
Forward intensity I(0) i0	7808180.00
Molecular weight molecular_weight	20353.0 kDa
Excluded volume excluded_volume	25462 Å³
Envelope volume envelope_volume	28843 Å³
Hydration-shell volume shell_volume	15385 Å³
Envelope diameter envelope_diameter	51.9 Å
Shell Rg shell_rg	21.67 Å
Envelope Rg envelope_rg	15.91 Å
Shape Rg shape_rg	15.42 Å
Total Rg total_rg	16.74 Å
Total atoms total_atoms	2842
Residues n_residues	175
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

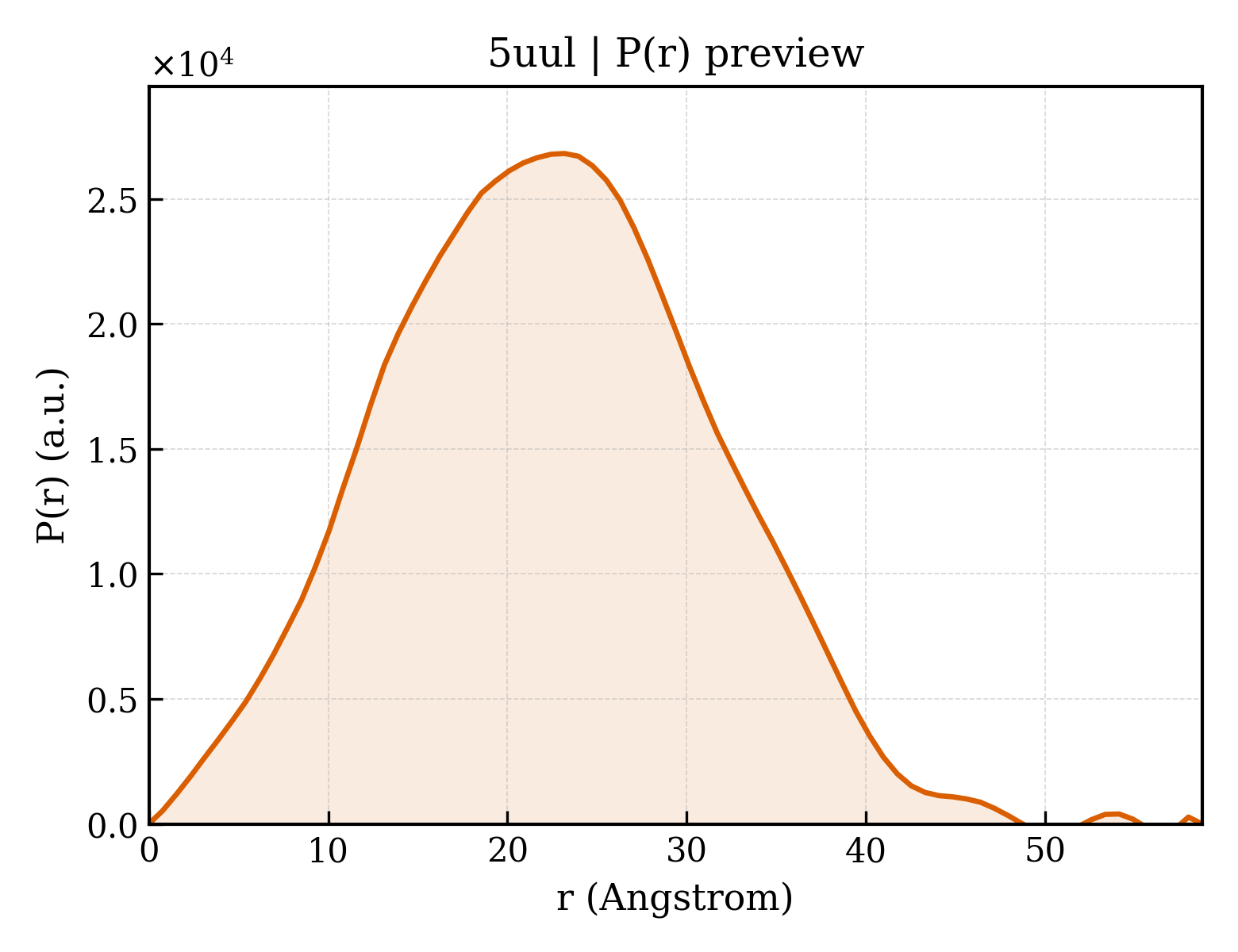

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	58.8 Å
Rg (real space) rg_real	16.90 Å
Rg uncertainty (real space) rg_real_error	0.43 Å
I(0) (real space) i0_real	7.8080e+06
I(0) uncertainty (real space) i0_real_error	9.6710e+04
Rg (reciprocal space) rg_reciprocal	16.91 Å
I(0) (reciprocal space) i0_reciprocal	7808000.0000
Solution quality estimate total_estimate	0.5977
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	23.2 Å
Skewness Skewness skewness	0.090
Kurtosis Kurtosis kurtosis	-0.419
Angular range angular_range	— – 0.4650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1655000.0000
Real-space data points n_real_points	77
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.667; Stabil: 0.997; Sysdev: 0.257; Positv: 1.000; Valcen: 1.000; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Bcl-2-related protein A1
Molecular weight formula_weight	17442.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3152

GMTDCEFGYIYRLAQDYLQCVLQIPQPGSGPSKTSRVLQNVAFSVQKEVEKNLKSCLDNVNVVSVDTARTLFNQVMEKEFEDGIINWGRIVTIFAFEGILIKKLLRQQIAPDVDTYKEISYFVAEFIMNNTGEWIRQNGGWENGFVKKFEPK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Bcl-2-binding component 3
Molecular weight formula_weight	2819.1 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

XQWAREIGAQLRRMADDLNAQYERX

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	147

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	5uulA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	437 — Apoptosis Regulator Bcl-x
Homologous superfamily homologous superfamily	10 — Blc2-like

▶

8. Citations (1)

▶

Unit-cell length a length_a	43.213 Å
Unit-cell length b length_b	43.428 Å
Unit-cell length c length_c	47.384 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	114.39 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.330 Å
Low-resolution limit resolution_low	43.154 Å
R factor r_factor	0.1338
R_work r_work	0.1325
R_free r_free	0.1552

fit	/app/data/saxs_computation/uu/5uul/5uul.fit
pddf	/app/data/pr_computation/uu/5uul/5uul.pr.out
profile	/app/data/saxs_computation/uu/5uul/5uul.dat
