7p9w

Epstein-Barr virus encoded apoptosis regulator BHRF1 in complex with Puma BH3

Method: X-RAY DIFFRACTION D_max: 51.5 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Apoptosis regulator BHRF1

Epstein-Barr virus (strain B95-8)

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–160	Not recorded	Bcl-2-binding component 3, isoforms 1/2 × 1 （Q9BXH1） PO4 PHOSPHATE ION × 3 EDO 1,2-ETHANEDIOL × 6 NH4 AMMONIUM ION × 1 PDO 1,3-PROPANDIOL × 2 MG MAGNESIUM ION × 5 CL CHLORIDE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；0.4 M Ammonium phosphate monobasic	Resolution 2.00 Å R-free 0.257

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7P9W	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1Q59 Solution Structure of the BHRF1 Protein From Epstein-Barr Virus, a Homolog of Human Bcl-2 Deposited 2003-08-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–160（160 aa） Fragment：BH1 and BH2 domains	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.5；303 K；Ionic strength (raw mmCIF value) 20mM；Pressure ambient NMR sample composition U-15N,13C 0.5-1.0 mM BHRF1-EBV-BCL2 , containing 20 mM Tris (pH 7.5) and 2 mM 2H-dithiothreitol \| 90% H2O/10%2H2O	Resolution not provided
2V6Q Crystal Structure of a BHRF-1 : Bim BH3 complex Deposited 2007-07-20	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–160（160 aa） Fragment：RESIDUES 1-160	Not recorded	BR BROMIDE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions pH 4；0.1 M MALIC ACID PH 4.0, 1.7 M NABR, 0.1 M GUANIDINE HCL	Resolution 2.70 Å R-free 0.249
2WH6 Crystal structure of anti-apoptotic BHRF1 in complex with the Bim BH3 domain Deposited 2009-05-01	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–160（160 aa） Fragment：BCL-2, RESIDUES 1-160	Not recorded	BR BROMIDE ION × 9 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 4；0.1 M MALIC ACID PH 4 1.25 M NABR	Resolution 1.50 Å R-free 0.205
2XPX Crystal structure of BHRF1:Bak BH3 complex Deposited 2010-08-31	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–160（160 aa） Fragment：BCL-2, RESIDUES 1-160	Not recorded	NO3 NITRATE ION × 4 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.4；1.6 M NANO3, 50 MM MALIC ACID PH 4.4	Resolution 2.05 Å R-free 0.217
7P33 Epstein-Barr virus encoded Bcl-2 homolog BHRF-1 in complex with Bid BH3 peptide Deposited 2021-07-07	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–160（160 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.4M Ammonium phosphate mono basic	Resolution 2.79 Å R-free 0.274
7P33 Epstein-Barr virus encoded Bcl-2 homolog BHRF-1 in complex with Bid BH3 peptide Deposited 2021-07-07	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–160（160 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.4M Ammonium phosphate mono basic	Resolution 2.79 Å R-free 0.274
7P33 Epstein-Barr virus encoded Bcl-2 homolog BHRF-1 in complex with Bid BH3 peptide Deposited 2021-07-07	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–160（160 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.4M Ammonium phosphate mono basic	Resolution 2.79 Å R-free 0.274
7P33 Epstein-Barr virus encoded Bcl-2 homolog BHRF-1 in complex with Bid BH3 peptide Deposited 2021-07-07	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–160（160 aa）	Not recorded	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.4M Ammonium phosphate mono basic	Resolution 2.79 Å R-free 0.274
7P33 Epstein-Barr virus encoded Bcl-2 homolog BHRF-1 in complex with Bid BH3 peptide Deposited 2021-07-07	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 1–160（160 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.4M Ammonium phosphate mono basic	Resolution 2.79 Å R-free 0.274
8SM5 Crystal Structure of BHRF1 from Epstein Barr Virus in complex with BID BH3 peptide Deposited 2023-04-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–157（156 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277.15 K；0.1 mM NaC2H3O2 pH 5.0, 1.6 mM HCOONa	Resolution 2.61 Å R-free 0.260
8SM5 Crystal Structure of BHRF1 from Epstein Barr Virus in complex with BID BH3 peptide Deposited 2023-04-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 2–157（156 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277.15 K；0.1 mM NaC2H3O2 pH 5.0, 1.6 mM HCOONa	Resolution 2.61 Å R-free 0.260
8SM5 Crystal Structure of BHRF1 from Epstein Barr Virus in complex with BID BH3 peptide Deposited 2023-04-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 2–157（156 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277.15 K；0.1 mM NaC2H3O2 pH 5.0, 1.6 mM HCOONa	Resolution 2.61 Å R-free 0.260
8SM5 Crystal Structure of BHRF1 from Epstein Barr Virus in complex with BID BH3 peptide Deposited 2023-04-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 2–157（156 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277.15 K；0.1 mM NaC2H3O2 pH 5.0, 1.6 mM HCOONa	Resolution 2.61 Å R-free 0.260
8SM5 Crystal Structure of BHRF1 from Epstein Barr Virus in complex with BID BH3 peptide Deposited 2023-04-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain I 2–157（156 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277.15 K；0.1 mM NaC2H3O2 pH 5.0, 1.6 mM HCOONa	Resolution 2.61 Å R-free 0.260

6 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	EAR_EBVB9
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 14–173； UniProt 1–160

Bcl-2-binding component 3, isoforms 1/2

OrganismNot specified

UniProt Q9BXH1

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 130–155	Not recorded	Apoptosis regulator BHRF1 × 1 （P03182） PO4 PHOSPHATE ION × 3 EDO 1,2-ETHANEDIOL × 6 NH4 AMMONIUM ION × 1 PDO 1,3-PROPANDIOL × 2 MG MAGNESIUM ION × 5 CL CHLORIDE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；0.4 M Ammonium phosphate monobasic	Resolution 2.00 Å R-free 0.257

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 7P9W	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2M04 Solution structure of BCL-xL in complex with PUMA BH3 peptide Deposited 2012-10-19	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 130–154（25 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298.1 K；Ionic strength (raw mmCIF value) 50；Pressure ambient NMR sample composition 0.9 mM [U-100% 13C; U-100% 15N; U-95% 2H; Ile,Leu,Val C1H3] BCL-xL, 0.9 mM PUMA BH3, 92% H2O/8% D2O \| 92% H2O/8% D2O NMR sample composition 0.9 mM [U-100% 13C; U-100% 15N] BCL-xL, 0.9 mM PUMA BH3, 92% H2O/8% D2O \| 92% H2O/8% D2O	Resolution not provided
4HNJ Crystallographic structure of BCL-xL domain-swapped dimer in complex with PUMA BH3 peptide at 2.9A resolution Deposited 2012-10-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 130–154（25 aa） Fragment：BH3 domain peptide	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；291 K；0.2 M CaCl2, 0.1 M NaOAc, 20% V/V isopropanol, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.90 Å R-free 0.254
5UUL Human Bfl-1 in complex with PUMA BH3 Deposited 2017-02-17	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 132–154（23 aa） Fragment：UNP residues 132-154	Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；1.8 M ammonium sulfate, 0.1 M MES pH 7.0	Resolution 1.33 Å R-free 0.155
6QFM Structure of human Mcl-1 in complex with PUMA BH3 peptide Deposited 2019-01-10	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 127–149（23 aa）	Not recorded	ZN ZINC ION × 3 CL CHLORIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；100 mM imidazole buffer pH 7.0, 50 mM zinc acetate and 20-25% polyethylene glycol (PEG) 3350	Resolution 2.00 Å R-free 0.261
6QG8 Structure of human Bcl-2 in complex with PUMA BH3 peptide Deposited 2019-01-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 127–149（23 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；284 K；from 0.2M MgCl2, 25% PegMME 2k, 0.1M Na Acetate buffer pH 5.5	Resolution 1.90 Å R-free 0.216
6TQP Structural insight into tanapoxvirus mediated inhibition of apoptosis Deposited 2019-12-17	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 130–155（26 aa）	Not recorded	NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.1 M Potassium thiocyanate, 30% PEG 2000MME	Resolution 1.85 Å R-free 0.218
7DVD The crystal structure of p53 DNA binding domain and PUMA complex Deposited 2021-01-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 136–150（15 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293.15 K；0.1 M Tris (pH 7.0) 20% (w/w) PEG-200 MME	Resolution 2.59 Å R-free 0.318
7P0S ORF virus encoded Bcl-2 homolog ORFV125 in complex with Puma BH3 peptide Deposited 2021-06-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 130–155（26 aa） Chain U 130–155（26 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M Magnesium acetate, 25% PEG 3350	Resolution 2.50 Å R-free 0.286
7QTX Kaposi sarcoma associated herpes virus (KSHV) encoded apoptosis inhibitor, KsBcl-2 in complex with Puma BH3 Deposited 2022-01-17	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 130–155（26 aa）	Not recorded	BR BROMIDE ION × 3 EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.2 M sodium bromide, 0.1 M Bis-tris propane pH 6.5, 20% PEG 3350	Resolution 2.12 Å R-free 0.257

9 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	BBC3_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–26； UniProt 130–155

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

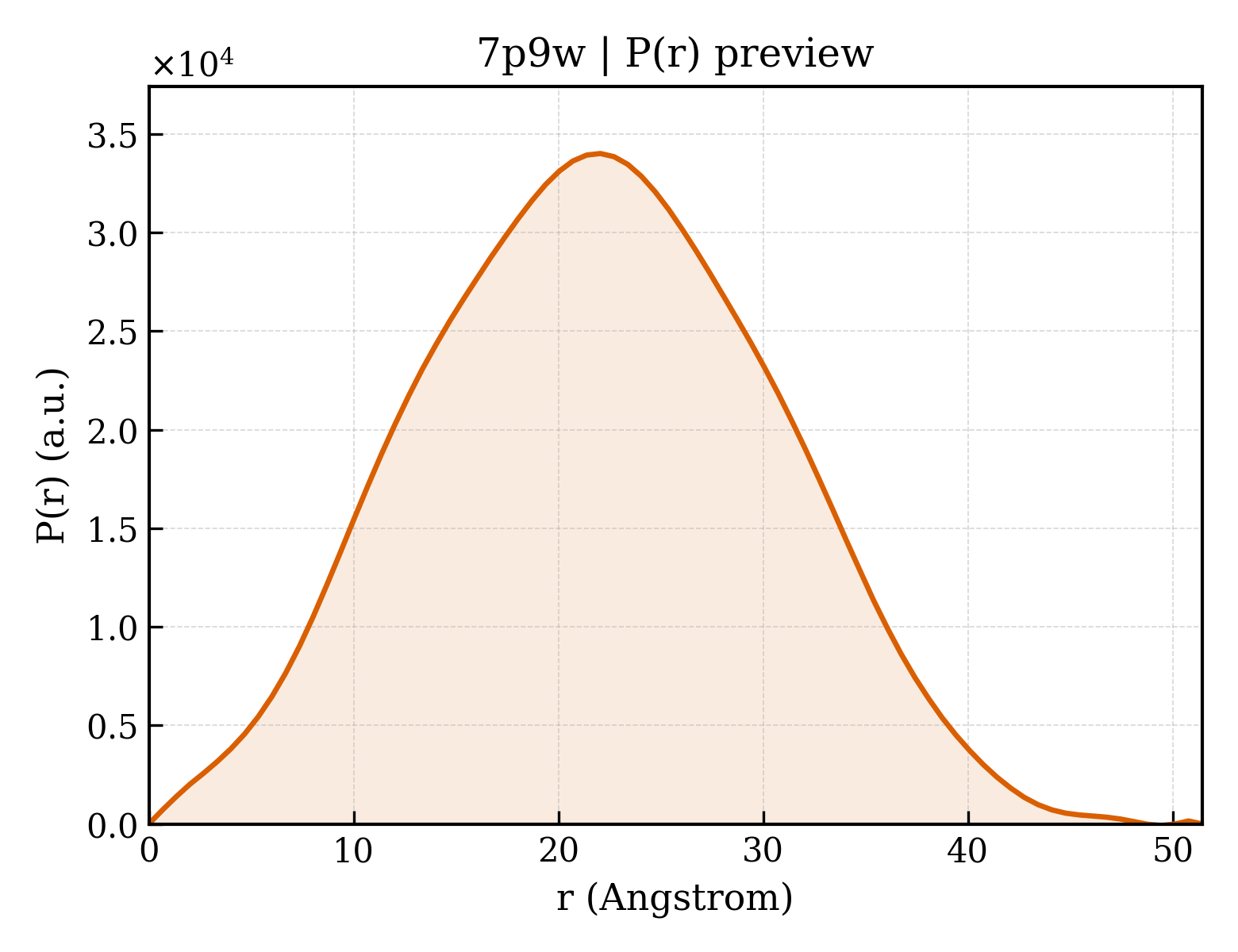

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7p9w
Deposition date deposition_date	2021-07-28
Structure title title	Epstein-Barr virus encoded apoptosis regulator BHRF1 in complex with Puma BH3
Keywords keywords	BHRF-1, Bcl-2, Epstein-Barr virus, Apoptosis; APOPTOSIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.75 Å
Radius of gyration Rg (electron density) rg_electron	15.27 Å
Forward intensity I(0) i0	9519880.00
Molecular weight molecular_weight	21315.0 kDa
Excluded volume excluded_volume	26025 Å³
Envelope volume envelope_volume	29488 Å³
Hydration-shell volume shell_volume	15792 Å³
Envelope diameter envelope_diameter	49.8 Å
Shell Rg shell_rg	21.78 Å
Envelope Rg envelope_rg	15.60 Å
Shape Rg shape_rg	15.26 Å
Total Rg total_rg	16.34 Å
Total atoms total_atoms	2836
Residues n_residues	175
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	51.5 Å
Rg (real space) rg_real	16.62 Å
Rg uncertainty (real space) rg_real_error	0.26 Å
I(0) (real space) i0_real	9.5200e+06
I(0) uncertainty (real space) i0_real_error	1.1440e+05
Rg (reciprocal space) rg_reciprocal	16.64 Å
I(0) (reciprocal space) i0_reciprocal	9520000.0000
Solution quality estimate total_estimate	0.8179
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	22.1 Å
Skewness Skewness skewness	0.058
Kurtosis Kurtosis kurtosis	-0.448
Angular range angular_range	— – 0.4750 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	2310000.0000
Real-space data points n_real_points	78
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.885; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.976; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	Apoptosis regulator BHRF1
Molecular weight formula_weight	19848.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2892

MGSHHHHHHSQDPMAYSTREILLALCIRDSRVHGNGTLHPVLELAARETPLRLSPEDTVVLRYHVLLEEIIERNSETFTETWNRFITHTEHVDLDFNSVFLEIFHRGDPSLGRALAWMAWCMHACRTLCCNQSTPYYVVDLSVRGMLEASEGLDGWIHQQGGWSTLIEDNIPG

来源 Source

来源生物 organism	Epstein-Barr virus (strain B95-8)
通用名 common_name	HHV-4, Human herpesvirus 4
NCBI Class编号 ncbi_taxonomy_id	10377
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Bcl-2-binding component 3, isoforms 1/2
Molecular weight formula_weight	3210.5 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

EEQWAREIGAQLRRMADDLNAQYERR

Entity 3 Entity 3 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 5 Entity 5 non-polymer

Description description	AMMONIUM ION
Molecular weight formula_weight	18.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	1,3-PROPANDIOL
Molecular weight formula_weight	76.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 8 Entity 8 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 9 Entity 9 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	56

▶

8. Citations (1)

▶

Unit-cell length a length_a	62.772 Å
Unit-cell length b length_b	62.772 Å
Unit-cell length c length_c	92.592 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	trigonal

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	35.247 Å
R factor r_factor	0.2214
R_work r_work	0.2197
R_free r_free	0.2569

fit	/app/data/saxs_computation/p9/7p9w/7p9w.fit
pddf	/app/data/pr_computation/p9/7p9w/7p9w.pr.out
profile	/app/data/saxs_computation/p9/7p9w/7p9w.dat
