2wh6

Crystal structure of anti-apoptotic BHRF1 in complex with the Bim BH3 domain

Method: X-RAY DIFFRACTION D_max: 51.1 Å Quality: EXCELLENT

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

EARLY ANTIGEN PROTEIN R

Epstein-barr virus strain ag876

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–160	Fragment：BCL-2, RESIDUES 1-160	BCL-2-LIKE PROTEIN 11 × 1 （O43521） BR BROMIDE ION × 9 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 4；0.1 M MALIC ACID PH 4 1.25 M NABR	Resolution 1.50 Å R-free 0.205

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2WH6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1Q59 Solution Structure of the BHRF1 Protein From Epstein-Barr Virus, a Homolog of Human Bcl-2 Deposited 2003-08-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–160（160 aa） Fragment：BH1 and BH2 domains	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.5；303 K；Ionic strength (raw mmCIF value) 20mM；Pressure ambient NMR sample composition U-15N,13C 0.5-1.0 mM BHRF1-EBV-BCL2 , containing 20 mM Tris (pH 7.5) and 2 mM 2H-dithiothreitol \| 90% H2O/10%2H2O	Resolution not provided
2V6Q Crystal Structure of a BHRF-1 : Bim BH3 complex Deposited 2007-07-20	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–160（160 aa） Fragment：RESIDUES 1-160	Not recorded	BR BROMIDE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions pH 4；0.1 M MALIC ACID PH 4.0, 1.7 M NABR, 0.1 M GUANIDINE HCL	Resolution 2.70 Å R-free 0.249
2XPX Crystal structure of BHRF1:Bak BH3 complex Deposited 2010-08-31	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–160（160 aa） Fragment：BCL-2, RESIDUES 1-160	Not recorded	NO3 NITRATE ION × 4 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.4；1.6 M NANO3, 50 MM MALIC ACID PH 4.4	Resolution 2.05 Å R-free 0.217
7P33 Epstein-Barr virus encoded Bcl-2 homolog BHRF-1 in complex with Bid BH3 peptide Deposited 2021-07-07	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–160（160 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.4M Ammonium phosphate mono basic	Resolution 2.79 Å R-free 0.274
7P33 Epstein-Barr virus encoded Bcl-2 homolog BHRF-1 in complex with Bid BH3 peptide Deposited 2021-07-07	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–160（160 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.4M Ammonium phosphate mono basic	Resolution 2.79 Å R-free 0.274
7P33 Epstein-Barr virus encoded Bcl-2 homolog BHRF-1 in complex with Bid BH3 peptide Deposited 2021-07-07	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–160（160 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.4M Ammonium phosphate mono basic	Resolution 2.79 Å R-free 0.274
7P33 Epstein-Barr virus encoded Bcl-2 homolog BHRF-1 in complex with Bid BH3 peptide Deposited 2021-07-07	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–160（160 aa）	Not recorded	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.4M Ammonium phosphate mono basic	Resolution 2.79 Å R-free 0.274
7P33 Epstein-Barr virus encoded Bcl-2 homolog BHRF-1 in complex with Bid BH3 peptide Deposited 2021-07-07	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 1–160（160 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.4M Ammonium phosphate mono basic	Resolution 2.79 Å R-free 0.274
7P9W Epstein-Barr virus encoded apoptosis regulator BHRF1 in complex with Puma BH3 Deposited 2021-07-28	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–160（160 aa）	Not recorded	PO4 PHOSPHATE ION × 3 EDO 1,2-ETHANEDIOL × 6 NH4 AMMONIUM ION × 1 PDO 1,3-PROPANDIOL × 2 MG MAGNESIUM ION × 5 CL CHLORIDE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.4 M Ammonium phosphate monobasic	Resolution 2.00 Å R-free 0.257
8SM5 Crystal Structure of BHRF1 from Epstein Barr Virus in complex with BID BH3 peptide Deposited 2023-04-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–157（156 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277.15 K；0.1 mM NaC2H3O2 pH 5.0, 1.6 mM HCOONa	Resolution 2.61 Å R-free 0.260
8SM5 Crystal Structure of BHRF1 from Epstein Barr Virus in complex with BID BH3 peptide Deposited 2023-04-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 2–157（156 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277.15 K；0.1 mM NaC2H3O2 pH 5.0, 1.6 mM HCOONa	Resolution 2.61 Å R-free 0.260
8SM5 Crystal Structure of BHRF1 from Epstein Barr Virus in complex with BID BH3 peptide Deposited 2023-04-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 2–157（156 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277.15 K；0.1 mM NaC2H3O2 pH 5.0, 1.6 mM HCOONa	Resolution 2.61 Å R-free 0.260
8SM5 Crystal Structure of BHRF1 from Epstein Barr Virus in complex with BID BH3 peptide Deposited 2023-04-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 2–157（156 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277.15 K；0.1 mM NaC2H3O2 pH 5.0, 1.6 mM HCOONa	Resolution 2.61 Å R-free 0.260
8SM5 Crystal Structure of BHRF1 from Epstein Barr Virus in complex with BID BH3 peptide Deposited 2023-04-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain I 2–157（156 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277.15 K；0.1 mM NaC2H3O2 pH 5.0, 1.6 mM HCOONa	Resolution 2.61 Å R-free 0.260

6 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	EAR_EBV
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 14–173； UniProt 1–160

BCL-2-LIKE PROTEIN 11

OrganismNot specified

UniProt O43521

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 51–76	Fragment：BH3, RESIDUES 51-72	EARLY ANTIGEN PROTEIN R × 1 （P03182） BR BROMIDE ION × 9 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 4；0.1 M MALIC ACID PH 4 1.25 M NABR	Resolution 1.50 Å R-free 0.205

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 2WH6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1F95 SOLUTION STRUCTURE OF DYNEIN LIGHT CHAIN 8 (DLC8) AND BIM PEPTIDE COMPLEX Deposited 2000-07-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 108–116（9 aa） Fragment：DLC8 BINDING REGION Chain D 108–116（9 aa） Fragment：DLC8 BINDING REGION	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；303 K；Ionic strength (raw mmCIF value) 100mM；Pressure ambient NMR sample composition 1.5mM DLC8/Bim peptide complex 15N; 100mM phosphate buffer; 10mM DTT; 90% H2O and 10% D2O \| 90% H2O and 10% D2O NMR sample composition 1.5mM DLC8/Bim peptide complex 15N,13C; 100mM phosphate buffer; 10mM DTT; 90% H2O and 10% D2O \| 90% H2O and 10% D2O NMR sample composition 1.5mM DLC8/Bim peptide complex ; 100mM phosphate buffer; 10mM DTT; 99.9% D2O \| 99.9% D2O	Resolution not provided
2K7W BAX Activation is Initiated at a Novel Interaction Site Deposited 2008-08-27	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 145–164（20 aa） Fragment：BIM BH3 domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；305 K；Ionic strength (raw mmCIF value) 50；Pressure ambient NMR sample composition 0.1-0.2 mM [U-99% 15N] protein, 0.1-0.2 mM peptide, 90% H2O/10%D20 \| 90% H2O/10%D20	Resolution not provided
2NL9 Crystal structure of the Mcl-1:Bim BH3 complex Deposited 2006-10-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 141–166（26 aa）	Not recorded	ZN ZINC ION × 7 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.75；298 K；0.2M zinc acetate, 0.2M imidazole, 2mM TCEP, pH 5.75, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.55 Å R-free 0.203
2NL9 Crystal structure of the Mcl-1:Bim BH3 complex Deposited 2006-10-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain B 141–166（26 aa）	Not recorded	ZN ZINC ION × 28 CL CHLORIDE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.75；298 K；0.2M zinc acetate, 0.2M imidazole, 2mM TCEP, pH 5.75, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.55 Å R-free 0.203
2NL9 Crystal structure of the Mcl-1:Bim BH3 complex Deposited 2006-10-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain B 141–166（26 aa）	Not recorded	ZN ZINC ION × 28 CL CHLORIDE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.75；298 K；0.2M zinc acetate, 0.2M imidazole, 2mM TCEP, pH 5.75, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.55 Å R-free 0.203
2V6Q Crystal Structure of a BHRF-1 : Bim BH3 complex Deposited 2007-07-20	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 141–166（26 aa） Fragment：RESIDUES 141-166	Not recorded	BR BROMIDE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions pH 4；0.1 M MALIC ACID PH 4.0, 1.7 M NABR, 0.1 M GUANIDINE HCL	Resolution 2.70 Å R-free 0.249
2VM6 Human Bcl2-A1 in complex with Bim-BH3 peptide Deposited 2008-01-23	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 141–165（25 aa） Fragment：RESIDUES 141-165	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.8；293 K；0.1M BIS, TRIS PH 5.8, 2M AMSO4	Resolution 2.20 Å R-free 0.250
2YQ6 Structure of Bcl-xL bound to BimSAHB Deposited 2012-11-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 147–164（18 aa） Fragment：BH3 DOMAIN, RESIDUES 14-31	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	GOL GLYCEROL × 14	X-RAY DIFFRACTION X-ray crystallization conditions 15 % (W/V) PEG 400, 5 % PEG 3000, 10 % GLYCEROL AND 0.1 M MES PH 6.5.	Resolution 1.80 Å R-free 0.201
2YQ7 Structure of Bcl-xL bound to BimLOCK Deposited 2012-11-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 147–164（18 aa） Fragment：BH3 DOMAIN, RESIDUES 147-164	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions 15 % (W/V) PEG 400, 5 % PEG 3000, 10 % GLYCEROL AND 0.1 M MES PH 6.5.	Resolution 1.90 Å R-free 0.208
3D7V Crystal structure of Mcl-1 in complex with an Mcl-1 selective BH3 ligand Deposited 2008-05-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 141–166（26 aa） Fragment：Bim BH3	Mutation：L62A, F69A	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.75；298 K；0.2M Zinc Acetate, 0.2M Imidazole, pH 5.75, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.03 Å R-free 0.241
3FDL Bim BH3 peptide in complex with Bcl-xL Deposited 2008-11-26	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 141–166（26 aa） Fragment：BH3 domain, UNP residues 141-166	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；1M Sodium citrate, 0.1M Sodium cacodylate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.78 Å R-free 0.208
3FDL Bim BH3 peptide in complex with Bcl-xL Deposited 2008-11-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 141–166（26 aa） Fragment：BH3 domain, UNP residues 141-166	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；1M Sodium citrate, 0.1M Sodium cacodylate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.78 Å R-free 0.208
3IO8 BimL12F in complex with Bcl-xL Deposited 2009-08-14	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 141–166（26 aa） Fragment：BH3 peptide, residues 141-166	Mutation：L152P	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；0.02M Zinc Acetate 2.5M Sodium Chloride 0.1M Imidazole, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.30 Å R-free 0.231
3IO8 BimL12F in complex with Bcl-xL Deposited 2009-08-14	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 141–166（26 aa） Fragment：BH3 peptide, residues 141-166	Mutation：L152P	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；0.02M Zinc Acetate 2.5M Sodium Chloride 0.1M Imidazole, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.30 Å R-free 0.231
3IO9 BimL12Y in complex with Mcl-1 Deposited 2009-08-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 141–166（26 aa） Fragment：BH3 peptide, residues 141-166	Mutation：L152P	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.75；298 K；0.15M zinc acetate, 0.15 M imidizole, pH 5.75, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.40 Å R-free 0.251
3KJ0 Mcl-1 in complex with Bim BH3 mutant I2dY Deposited 2009-11-02	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 143–165（23 aa） Fragment：BH3 region of BIM (UNP 1-23)	Mutation：I6Y	TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1 M Tris, 45% MPD, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.70 Å R-free 0.224
3KJ1 Mcl-1 in complex with Bim BH3 mutant I2dA Deposited 2009-11-02	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 143–163（21 aa） Fragment：BH3 region of BIM (UNP 1-21)	Mutation：I6A	ZN ZINC ION × 5 ACT ACETATE ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.1 M Imidazole, 0.2 M Zinc Acetate, 16% PEG 400, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.95 Å R-free 0.213
3KJ1 Mcl-1 in complex with Bim BH3 mutant I2dA Deposited 2009-11-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain B 143–163（21 aa） Fragment：BH3 region of BIM (UNP 1-21)	Mutation：I6A	ZN ZINC ION × 20 ACT ACETATE ION × 4 CL CHLORIDE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.1 M Imidazole, 0.2 M Zinc Acetate, 16% PEG 400, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.95 Å R-free 0.213
3KJ2 Mcl-1 in complex with Bim BH3 mutant F4aE Deposited 2009-11-02	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 143–163（21 aa） Fragment：BH3 region of Bim (UNP 1-21)	Mutation：F17E	ZN ZINC ION × 4 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.1 M Imidazole, 0.2 M Zinc Acetate, 2% PEG 3350, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.35 Å R-free 0.247
3KJ2 Mcl-1 in complex with Bim BH3 mutant F4aE Deposited 2009-11-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain B 143–163（21 aa） Fragment：BH3 region of Bim (UNP 1-21)	Mutation：F17E	ZN ZINC ION × 16 ACT ACETATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.1 M Imidazole, 0.2 M Zinc Acetate, 2% PEG 3350, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.35 Å R-free 0.247
4B4S Crystal Structure of a pro-survival Bcl-2:Bim BH3 complex Deposited 2012-08-01	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 51–76（26 aa） Fragment：RESIDUES 51-76	Not recorded	PG4 TETRAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；0.1 M MGCL2, 20 % PEG 400, 20 % PEG 3350, 0.1 M TRIS PH 8.0	Resolution 1.90 Å R-free 0.220
4D2M Vaccinia Virus F1L bound to Bim BH3 Deposited 2014-05-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain B 141–166（26 aa） Fragment：RESIDUES 141-166 Chain D 141–166（26 aa） Fragment：RESIDUES 141-166	Not recorded	MRD (4R)-2-METHYLPENTANE-2,4-DIOL × 2 CL CHLORIDE ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.2；0.2M KCL, 15 % PEG400, 1.44 % MPD AND 0.1M AMMONIUM CITRATE PH 6.2.	Resolution 2.10 Å R-free 0.255
4QVF Crystal structure of Bcl-xL in complex with BIM BH3 domain Deposited 2014-07-15	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 141–166（26 aa） Fragment：UNP residues 141-166	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；291 K；17.5% PEG 8000, 0.2M NaCl, 0.1M phosphate citrate pH 4.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.53 Å R-free 0.230
4UF3 Deerpox virus DPV022 in complex with Bim BH3 Deposited 2014-12-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 141–166（26 aa） Fragment：BH3, UNP RESIDUES 141-166	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.5；17% PEG 8000, 0.2M MES PH 5.5, 0.2M AMMONIUM SULPHATE	Resolution 2.70 Å R-free 0.221
4ZIE Crystal Structure of core/latch dimer of Bax in complex with BimBH3 Deposited 2015-04-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 141–166（26 aa） Fragment：BH3 motif, UNP RESIDUES 141-166	Not recorded	EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9；277 K；PEG6000, bicine	Resolution 1.80 Å R-free 0.229
4ZIF Crystal Structure of core/latch dimer of Bax in complex with BimBH3mini Deposited 2015-04-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 141–160（20 aa） Fragment：BH3 motif, unp residues 141-160	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；Tri-sodium citrate, Sodium cacodylate	Resolution 2.40 Å R-free 0.255
4ZIH Crystal Structure of core/latch dimer of Bax in complex with BimBH3mini Deposited 2015-04-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 141–160（20 aa） Fragment：BH3 motif, unp residues 141-160	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；Tri-sodium citrate, Sodium cacodylate	Resolution 2.50 Å R-free 0.233
5AGW Bcl-2 alpha beta-1 complex Deposited 2015-02-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 146–166（21 aa） Fragment：RESIDUES 148-166	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；0.02M CACL2, 0.1M MOPS PH7.0, 10% 2-PROPANOL	Resolution 2.69 Å R-free 0.272
5AGW Bcl-2 alpha beta-1 complex Deposited 2015-02-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 146–166（21 aa） Fragment：RESIDUES 148-166	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；0.02M CACL2, 0.1M MOPS PH7.0, 10% 2-PROPANOL	Resolution 2.69 Å R-free 0.272
5AGX Bcl-2 alpha beta-1 LINEAR complex Deposited 2015-02-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 146–166（21 aa） Fragment：BIM BH3, RESIDUES 146-166	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；PH 7.0	Resolution 2.24 Å R-free 0.245
5AGX Bcl-2 alpha beta-1 LINEAR complex Deposited 2015-02-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 146–166（21 aa） Fragment：BIM BH3, RESIDUES 146-166	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；PH 7.0	Resolution 2.24 Å R-free 0.245
5C3G Crystal structure of Bcl-xl bound to BIM-MM Deposited 2015-06-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 56–76（21 aa） Fragment：UNP residues 56-76	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；12% Peg 1500, 0.1M Sodium Acetate pH 5.5, 2.5M NaCl, 1.5% MPD	Resolution 2.45 Å R-free 0.274
5VWV Bak core latch dimer in complex with Bim-BH3 - Cubic Deposited 2017-05-23	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 141–165（25 aa） Fragment：UNP residues 141-165	Mutation：W147R, Y163T	TFA trifluoroacetic acid × 1 EDO 1,2-ETHANEDIOL × 6 CL CHLORIDE ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；281 K；18 % glycerol, 21.6 % PEG (poly-ethylene glycol) 1500 and 0.5 % ethyl acetate	Resolution 1.90 Å R-free 0.177
5VWV Bak core latch dimer in complex with Bim-BH3 - Cubic Deposited 2017-05-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 141–165（25 aa） Fragment：UNP residues 141-165	Mutation：W147R, Y163T	TFA trifluoroacetic acid × 2 EDO 1,2-ETHANEDIOL × 12 CL CHLORIDE ION × 2 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；281 K；18 % glycerol, 21.6 % PEG (poly-ethylene glycol) 1500 and 0.5 % ethyl acetate	Resolution 1.90 Å R-free 0.177
5VWW Bak core latch dimer in complex with Bim-RT - Tetragonal Deposited 2017-05-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 141–166（26 aa） Fragment：UNP residues 141-166 Chain D 141–166（26 aa） Fragment：UNP residues 141-166	Mutation：W147R, Y163T Mutation：W147R, Y163T	MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 BR BROMIDE ION × 2 IMD IMIDAZOLE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；281 K；12.5 % MPD (2-methyl-2,4-pentanediol), 38 mM imidazole pH 6.5, 12.5 % PEG 1000, 12.5 % PEG 3350, 30 mM sodium fluoride, 30 mM sodium iodide, 62 mM sodium MES pH 6.5 and 30 mM sodium bromide	Resolution 2.80 Å R-free 0.281
5VWX Bak core latch dimer in complex with Bim-h0-h3Glt Deposited 2017-05-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 142–164（23 aa） Fragment：UNP residues 142-164 Chain D 142–164（23 aa） Fragment：UNP residues 142-164	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；281 K；200 mM calcium acetate, 30 % PEG 400 and 100 mM sodium acetate-acetic acid pH 5.0	Resolution 2.49 Å R-free 0.305
5VWY Bak core latch dimer in complex with Bim-h3Pc-RT Deposited 2017-05-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 141–166（26 aa） Fragment：UNP residues 141-166	Mutation：W147R, Y163T Non-standard monomer：Yes (specific site not provided by mmCIF)	PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；277 K；15.8 % PEG 8000, 50 mM potassium dihydrogen phosphate, and 22.7 % glycerol	Resolution 1.55 Å R-free 0.216
5VWZ Bak in complex with Bim-h3Pc Deposited 2017-05-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 141–166（26 aa） Fragment：UNP residues 141-166 Chain D 141–166（26 aa） Fragment：UNP residues 141-166	Mutation：W147R, Y163T Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：W147R, Y163T Non-standard monomer：Yes (specific site not provided by mmCIF)	1PG 2-(2-{2-[2-(2-METHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHOXY)-ETHANOL × 2 NH4 AMMONIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；281 K；10 % PEG 20000, 20 % PEG MME 550, 38 mM Imidazole pH 6.5, 20 mM ammonium acetate, 20 mM potassium sodium tartrate, 20 mM sodium formate, 62 mM sodium MES pH 6.5, 20 mM trisodium citrate, and 20 mM sodium oxamate	Resolution 1.62 Å R-free 0.191
5VX0 Bak in complex with Bim-h3Glg Deposited 2017-05-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 141–166（26 aa） Fragment：UNP residues 141-166 Chain D 141–166（26 aa） Fragment：UNP residues 141-166	Mutation：W147R, Y163T Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：W147R, Y163T Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 6 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；281 K；200 mM magnesium chloride, 25 % PEG 3350, and 100 mM bis-tris chloride (pH 6.5)	Resolution 1.60 Å R-free 0.200
5VX2 Mcl-1 in complex with Bim-h3Pc-RT Deposited 2017-05-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 141–166（26 aa） Fragment：UNP residues 141-166 Chain D 141–166（26 aa） Fragment：UNP residues 141-166	Mutation：W147R, Y163T Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：W147R, Y163T Non-standard monomer：Yes (specific site not provided by mmCIF)	EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；281 K；20 % PEG 3000, 100 mM trisodium citrate buffered with citric acid pH 5.5	Resolution 1.85 Å R-free 0.210
5VX3 Bcl-xL in complex with Bim-h3Pc-RT Deposited 2017-05-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 141–166（26 aa） Fragment：UNP residues 141-166 Chain F 141–166（26 aa） Fragment：UNP residues 141-166	Mutation：W147R, Y163T Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：W147R, Y163T Non-standard monomer：Yes (specific site not provided by mmCIF)	EDO 1,2-ETHANEDIOL × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；273 K；200 mM magnesium chloride, 20 % PEG 6000, and 100 mM sodium MES pH 6	Resolution 1.95 Å R-free 0.243
5VX3 Bcl-xL in complex with Bim-h3Pc-RT Deposited 2017-05-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 141–166（26 aa） Fragment：UNP residues 141-166 Chain H 141–166（26 aa） Fragment：UNP residues 141-166	Mutation：W147R, Y163T Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：W147R, Y163T Non-standard monomer：Yes (specific site not provided by mmCIF)	EDO 1,2-ETHANEDIOL × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；273 K；200 mM magnesium chloride, 20 % PEG 6000, and 100 mM sodium MES pH 6	Resolution 1.95 Å R-free 0.243
5WOS Structural and functional insights into Canarypox Virus CNP058 regulation of apoptosis Deposited 2017-08-02	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 141–166（26 aa） Fragment：BH3 domain (UNP residues 141-166)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；0.2 M calcium chloride dihydrate, 0.1 M MES pH 6.0, 20% w/v PEG6000	Resolution 2.45 Å R-free 0.245
6QFI Structure of human Mcl-1 in complex with BIM BH3 peptide Deposited 2019-01-10	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 141–166（26 aa）	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.75；293 K；0.2M zinc acetate, 0.2M Imidazole pH 5.75	Resolution 2.40 Å R-free 0.236
6RJP Bfl-1 in complex with alpha helical peptide Deposited 2019-04-29	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 147–163（17 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；0.1 M sodium acetate pH 4.6 16% (w/v) PEG smear high	Resolution 2.57 Å R-free 0.266
6RJP Bfl-1 in complex with alpha helical peptide Deposited 2019-04-29	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 147–163（17 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；293 K；0.1 M sodium acetate pH 4.6 16% (w/v) PEG smear high	Resolution 2.57 Å R-free 0.266
6TQQ Structural insight into tanapoxvirus mediated inhibition of apoptosis Deposited 2019-12-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 141–166（26 aa）	Not recorded	NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；0.1 M MIB pH 8.0, 25% PEG 1500	Resolution 3.00 Å R-free 0.276
6X8O BimBH3 peptide tetramer Deposited 2020-06-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 141–166（26 aa） Chain B 141–166（26 aa） Chain C 141–166（26 aa） Chain D 141–166（26 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	SCN THIOCYANATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；20% PEG600, 0.05 M Tris-HCl, 0.15 M potassium thiocyanate, 0.5% CHAPS	Resolution 1.31 Å R-free 0.168
8T5E De novo design of high-affinity protein binders to bioactive helical peptides Deposited 2023-06-13	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 141–166（26 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4；293 K；0.1 M Citric acid pH 2.5, 20% (w/v) PEG 6000	Resolution 3.00 Å R-free 0.264

38 other PDB entries and 49 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	B2L11_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–26； UniProt 51–76

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

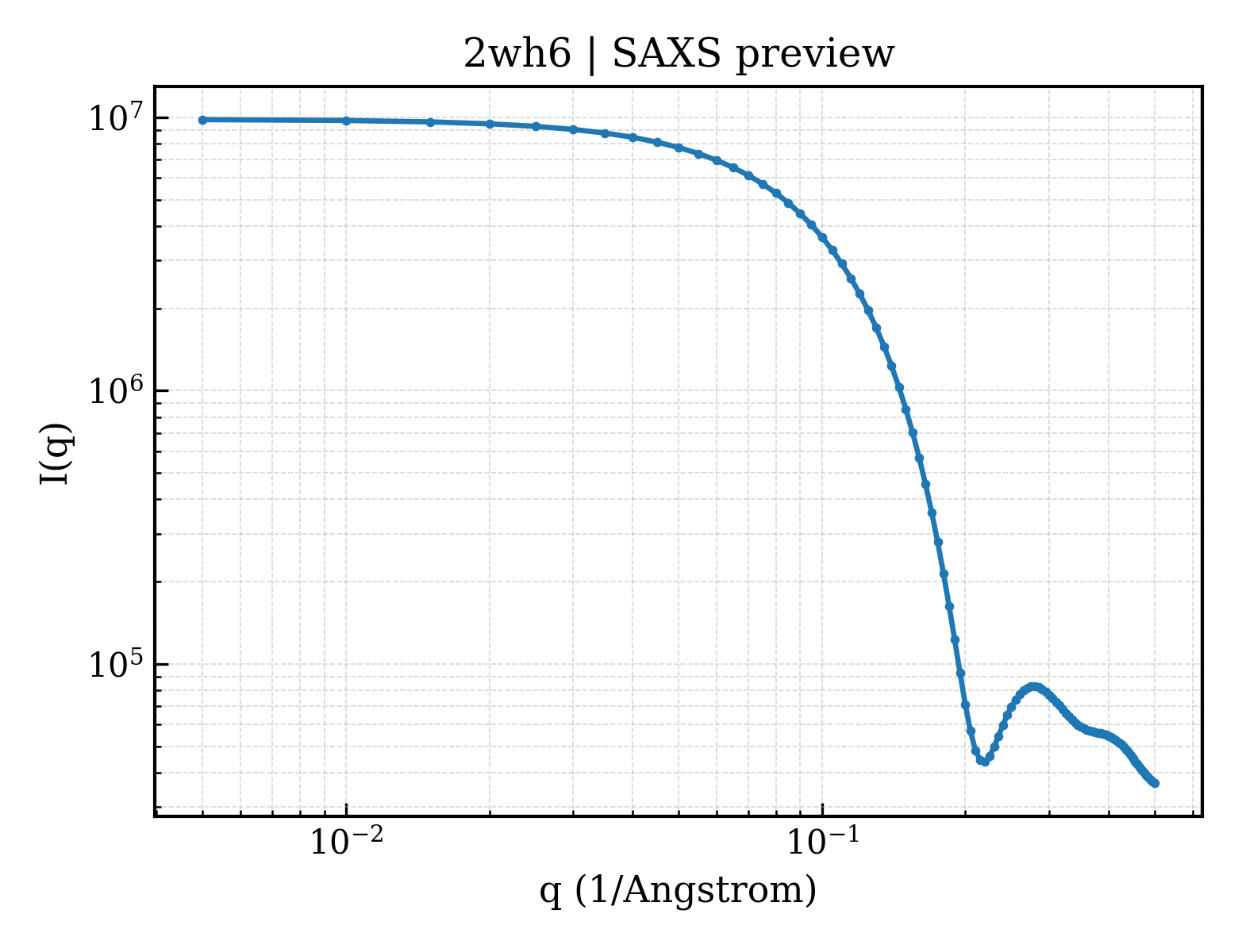

SAXS scattering curve SAXS Profile

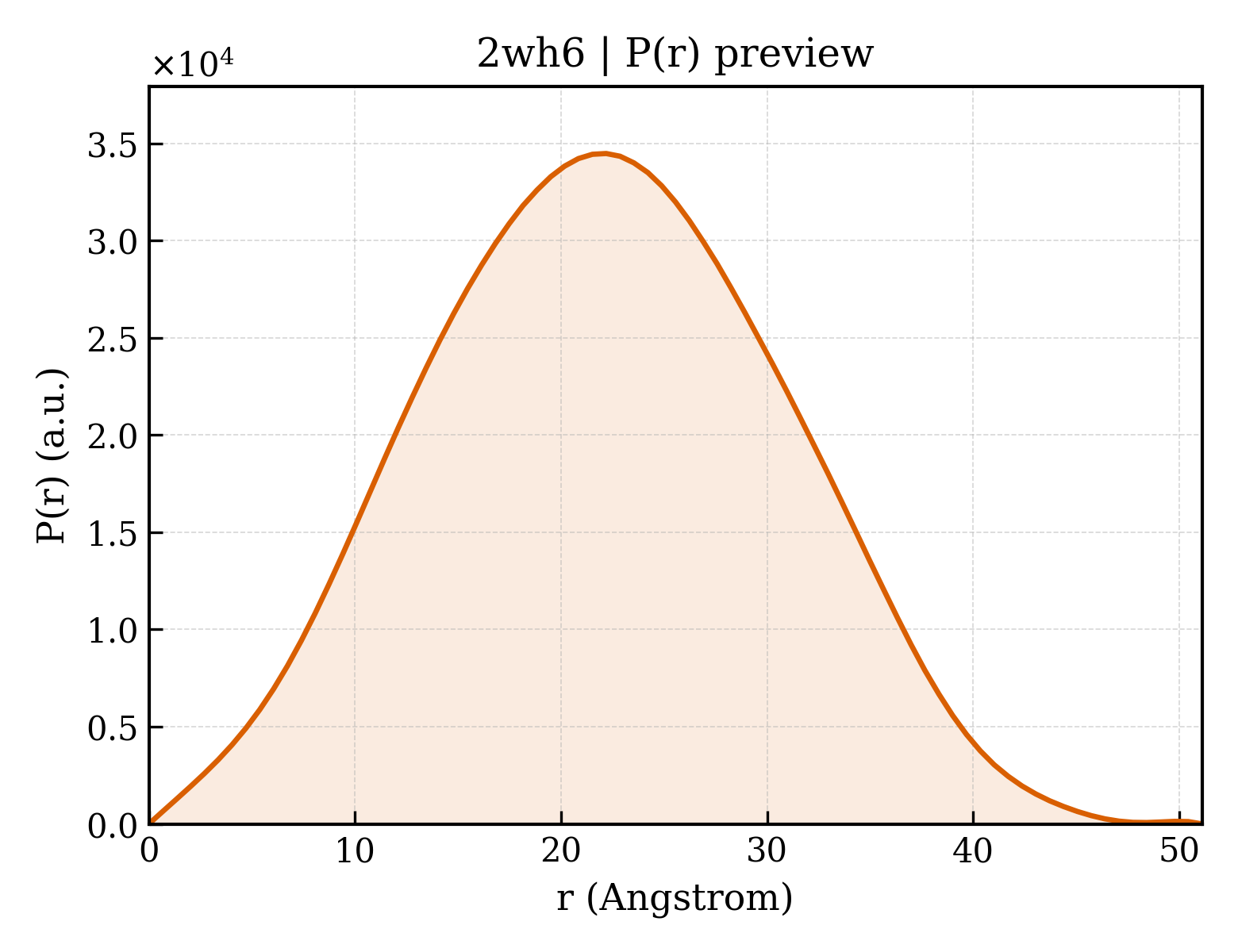

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2wh6
Deposition date deposition_date	2009-05-01
Structure title title	Crystal structure of anti-apoptotic BHRF1 in complex with the Bim BH3 domain
Keywords keywords	MITOCHONDRION, EARLY PROTEIN, TRANSMEMBRANE, VIRAL PROTEIN, APOPTOSIS; APOPTOSIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.90 Å
Radius of gyration Rg (electron density) rg_electron	15.34 Å
Forward intensity I(0) i0	9836060.00
Molecular weight molecular_weight	21592.0 kDa
Excluded volume excluded_volume	26144 Å³
Envelope volume envelope_volume	29121 Å³
Hydration-shell volume shell_volume	15637 Å³
Envelope diameter envelope_diameter	50.3 Å
Shell Rg shell_rg	21.75 Å
Envelope Rg envelope_rg	15.59 Å
Shape Rg shape_rg	15.27 Å
Total Rg total_rg	16.54 Å
Total atoms total_atoms	1478
Residues n_residues	179
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	51.1 Å
Rg (real space) rg_real	16.76 Å
Rg uncertainty (real space) rg_real_error	0.18 Å
I(0) (real space) i0_real	9.8360e+06
I(0) uncertainty (real space) i0_real_error	1.0260e+05
Rg (reciprocal space) rg_reciprocal	16.78 Å
I(0) (reciprocal space) i0_reciprocal	9836000.0000
Solution quality estimate total_estimate	0.9012
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	22.2 Å
Skewness Skewness skewness	0.057
Kurtosis Kurtosis kurtosis	-0.457
Angular range angular_range	— – 0.4700 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	2029000.0000
Real-space data points n_real_points	77
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.914; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.975; Smooth: 0.996

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	EARLY ANTIGEN PROTEIN R
Molecular weight formula_weight	19848.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1607

MGSHHHHHHSQDPMAYSTREILLALCIRDSRVHGNGTLHPVLELAARETPLRLSPEDTVVLRYHVLLEEIIERNSETFTETWNRFITHTEHVDLDFNSVFLEIFHRGDPSLGRALAWMAWCMHACRTLCCNQSTPYYVVDLSVRGMLEASEGLDGWIHQQGGWSTLIEDNIPG

来源 Source

来源生物 organism	Epstein-barr virus strain ag876
NCBI Class编号 ncbi_taxonomy_id	82830
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	BCL-2-LIKE PROTEIN 11
Molecular weight formula_weight	3274.7 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

DMRPEIWIAQELRRIGDEFNAYYARR

Entity 3 Entity 3 non-polymer

Description description	BROMIDE ION
Molecular weight formula_weight	79.9 kDa
Source method src_method	syn
Copy count entity_count	9

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	115

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	2wh6A00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	437 — Apoptosis Regulator Bcl-x
Homologous superfamily homologous superfamily	10 — Blc2-like

▶

8. Citations (1)

▶

Unit-cell length a length_a	62.747 Å
Unit-cell length b length_b	62.747 Å
Unit-cell length c length_c	92.383 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	1.500 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1990
R_work r_work	0.1980
R_free r_free	0.2050

fit	/app/data/saxs_computation/wh/2wh6/2wh6.fit
pddf	/app/data/pr_computation/wh/2wh6/2wh6.pr.out
profile	/app/data/saxs_computation/wh/2wh6/2wh6.dat

Crystal structure of anti-apoptotic BHRF1 in complex with the Bim BH3 domain

1. Protein Identity and Related Structures Protein Identity & Related Structures

EARLY ANTIGEN PROTEIN R

State in the Current Structure

Other States of the Same Protein in the Database

BCL-2-LIKE PROTEIN 11

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 water

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
