9fyq

Cryo-EM structure of native SV2A in complex with TeNT-Hc, gangliosides and Pro-Macrobody 5

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Synaptic vesicle glycoprotein 2A

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 3 其他Polymer 2	Tetanus toxin heavy chain × 1 （P04958） Pro-Macrobody 5,Maltose/maltodextrin-binding periplasmic protein × 1 （P0AEX9） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 omega-undecylenyl-beta-D-maltopyranoside × 1 ;(2~{R},4~{R},5~{S},6~{S})-2-[(2~{R},3~{R})-3-[(2~{R},3~{S},4~{S},6~{S})-6-[(2~{S},3~{S},4~{R},5~{S},6~{S})-3-[(2~{R},3~{R},4~{R},5~{S},6~{R})-3-acetamido-6-(hydroxymethyl)-4,5-bis(oxidanyl)oxan-2-yl]oxy-2-(hydroxymethyl)-6-[(2~{R},3~{R},4~{R},5~{R},6~{S})-2-(hydroxymethyl)-6-[2-(octadecanoylamino)-3-oxidanyl-octadec-4-enoxy]-4,5-bis(oxidanyl)oxan-3-yl]oxy-5-oxidanyl-oxan-4-yl]oxy-3-azanyl-6-carboxy-4-oxidanyl-oxan-2-yl]-2,3-bis(oxidanyl)propoxy]-5-azanyl-4-oxidanyl-6-[(1~{R},2~{S})-1,2,3-tris(oxidanyl)propyl]oxane-2-carboxylic acid ; × 1 ;(2~{S},4~{S},5~{R},6~{S})-5-acetamido-2-[(2~{R},3~{R},4~{R},5~{S},6~{R})-2-[(2~{R},3~{R},4~{S},5~{R},6~{S})-2-[(2~{R},3~{S},4~{R},5~{R},6~{R})-4-[(2~{S},4~{S},5~{S},6~{S})-5-acetamido-2-carboxy-4-oxidanyl-6-[(1~{S},2~{R})-1,2,3-tris(oxidanyl)propyl]oxan-2-yl]oxy-6-[(2~{R},3~{S},4~{R},5~{R},6~{R})-6-[2-(docosanoylamino)-3-oxidanyl-octadec-4-enoxy]-2-(hydroxymethyl)-4,5-bis(oxidanyl)oxan-3-yl]oxy-2-(hydroxymethyl)-5-oxidanyl-oxan-3-yl]oxy-6-(hydroxymethyl)-5-oxidanyl-3-(2-oxidanylidenepropyl)oxan-4-yl]oxy-6-(hydroxymethyl)-3,5-bis(oxidanyl)oxan-4-yl]oxy-4-oxidanyl-6-[(1~{R},2~{R})-1,2,3-tris(oxidanyl)propyl]oxane-2-carboxylic acid ; × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A836APF1_SHEEP
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–742； UniProt 1–742

Tetanus toxin heavy chain

Clostridium tetani E88

UniProt P04958

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 3 其他Polymer 2	Synaptic vesicle glycoprotein 2A × 1 （A0A836APF1） Pro-Macrobody 5,Maltose/maltodextrin-binding periplasmic protein × 1 （P0AEX9） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 omega-undecylenyl-beta-D-maltopyranoside × 1 ;(2~{R},4~{R},5~{S},6~{S})-2-[(2~{R},3~{R})-3-[(2~{R},3~{S},4~{S},6~{S})-6-[(2~{S},3~{S},4~{R},5~{S},6~{S})-3-[(2~{R},3~{R},4~{R},5~{S},6~{R})-3-acetamido-6-(hydroxymethyl)-4,5-bis(oxidanyl)oxan-2-yl]oxy-2-(hydroxymethyl)-6-[(2~{R},3~{R},4~{R},5~{R},6~{S})-2-(hydroxymethyl)-6-[2-(octadecanoylamino)-3-oxidanyl-octadec-4-enoxy]-4,5-bis(oxidanyl)oxan-3-yl]oxy-5-oxidanyl-oxan-4-yl]oxy-3-azanyl-6-carboxy-4-oxidanyl-oxan-2-yl]-2,3-bis(oxidanyl)propoxy]-5-azanyl-4-oxidanyl-6-[(1~{R},2~{S})-1,2,3-tris(oxidanyl)propyl]oxane-2-carboxylic acid ; × 1 ;(2~{S},4~{S},5~{R},6~{S})-5-acetamido-2-[(2~{R},3~{R},4~{R},5~{S},6~{R})-2-[(2~{R},3~{R},4~{S},5~{R},6~{S})-2-[(2~{R},3~{S},4~{R},5~{R},6~{R})-4-[(2~{S},4~{S},5~{S},6~{S})-5-acetamido-2-carboxy-4-oxidanyl-6-[(1~{S},2~{R})-1,2,3-tris(oxidanyl)propyl]oxan-2-yl]oxy-6-[(2~{R},3~{S},4~{R},5~{R},6~{R})-6-[2-(docosanoylamino)-3-oxidanyl-octadec-4-enoxy]-2-(hydroxymethyl)-4,5-bis(oxidanyl)oxan-3-yl]oxy-2-(hydroxymethyl)-5-oxidanyl-oxan-3-yl]oxy-6-(hydroxymethyl)-5-oxidanyl-3-(2-oxidanylidenepropyl)oxan-4-yl]oxy-6-(hydroxymethyl)-3,5-bis(oxidanyl)oxan-4-yl]oxy-4-oxidanyl-6-[(1~{R},2~{R})-1,2,3-tris(oxidanyl)propyl]oxane-2-carboxylic acid ; × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TETX_CLOTE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 29–469； UniProt 875–1315

Pro-Macrobody 5,Maltose/maltodextrin-binding periplasmic protein

Escherichia coli (strain K12)

UniProt P0AEX9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 3 其他Polymer 2	Synaptic vesicle glycoprotein 2A × 1 （A0A836APF1） Tetanus toxin heavy chain × 1 （P04958） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 omega-undecylenyl-beta-D-maltopyranoside × 1 ;(2~{R},4~{R},5~{S},6~{S})-2-[(2~{R},3~{R})-3-[(2~{R},3~{S},4~{S},6~{S})-6-[(2~{S},3~{S},4~{R},5~{S},6~{S})-3-[(2~{R},3~{R},4~{R},5~{S},6~{R})-3-acetamido-6-(hydroxymethyl)-4,5-bis(oxidanyl)oxan-2-yl]oxy-2-(hydroxymethyl)-6-[(2~{R},3~{R},4~{R},5~{R},6~{S})-2-(hydroxymethyl)-6-[2-(octadecanoylamino)-3-oxidanyl-octadec-4-enoxy]-4,5-bis(oxidanyl)oxan-3-yl]oxy-5-oxidanyl-oxan-4-yl]oxy-3-azanyl-6-carboxy-4-oxidanyl-oxan-2-yl]-2,3-bis(oxidanyl)propoxy]-5-azanyl-4-oxidanyl-6-[(1~{R},2~{S})-1,2,3-tris(oxidanyl)propyl]oxane-2-carboxylic acid ; × 1 ;(2~{S},4~{S},5~{R},6~{S})-5-acetamido-2-[(2~{R},3~{R},4~{R},5~{S},6~{R})-2-[(2~{R},3~{R},4~{S},5~{R},6~{S})-2-[(2~{R},3~{S},4~{R},5~{R},6~{R})-4-[(2~{S},4~{S},5~{S},6~{S})-5-acetamido-2-carboxy-4-oxidanyl-6-[(1~{S},2~{R})-1,2,3-tris(oxidanyl)propyl]oxan-2-yl]oxy-6-[(2~{R},3~{S},4~{R},5~{R},6~{R})-6-[2-(docosanoylamino)-3-oxidanyl-octadec-4-enoxy]-2-(hydroxymethyl)-4,5-bis(oxidanyl)oxan-3-yl]oxy-2-(hydroxymethyl)-5-oxidanyl-oxan-3-yl]oxy-6-(hydroxymethyl)-5-oxidanyl-3-(2-oxidanylidenepropyl)oxan-4-yl]oxy-6-(hydroxymethyl)-3,5-bis(oxidanyl)oxan-4-yl]oxy-4-oxidanyl-6-[(1~{R},2~{R})-1,2,3-tris(oxidanyl)propyl]oxane-2-carboxylic acid ; × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MALE_ECOLI
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain D； PDBConstruct 128–487； UniProt 33–392

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9fyq
Deposition date deposition_date	2024-07-03
Structure title title	Cryo-EM structure of native SV2A in complex with TeNT-Hc, gangliosides and Pro-Macrobody 5
Keywords keywords	synaptic vesicles, MFS transporter, neurotransmission, clostridial neurotoxins, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9fyq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9fyq__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

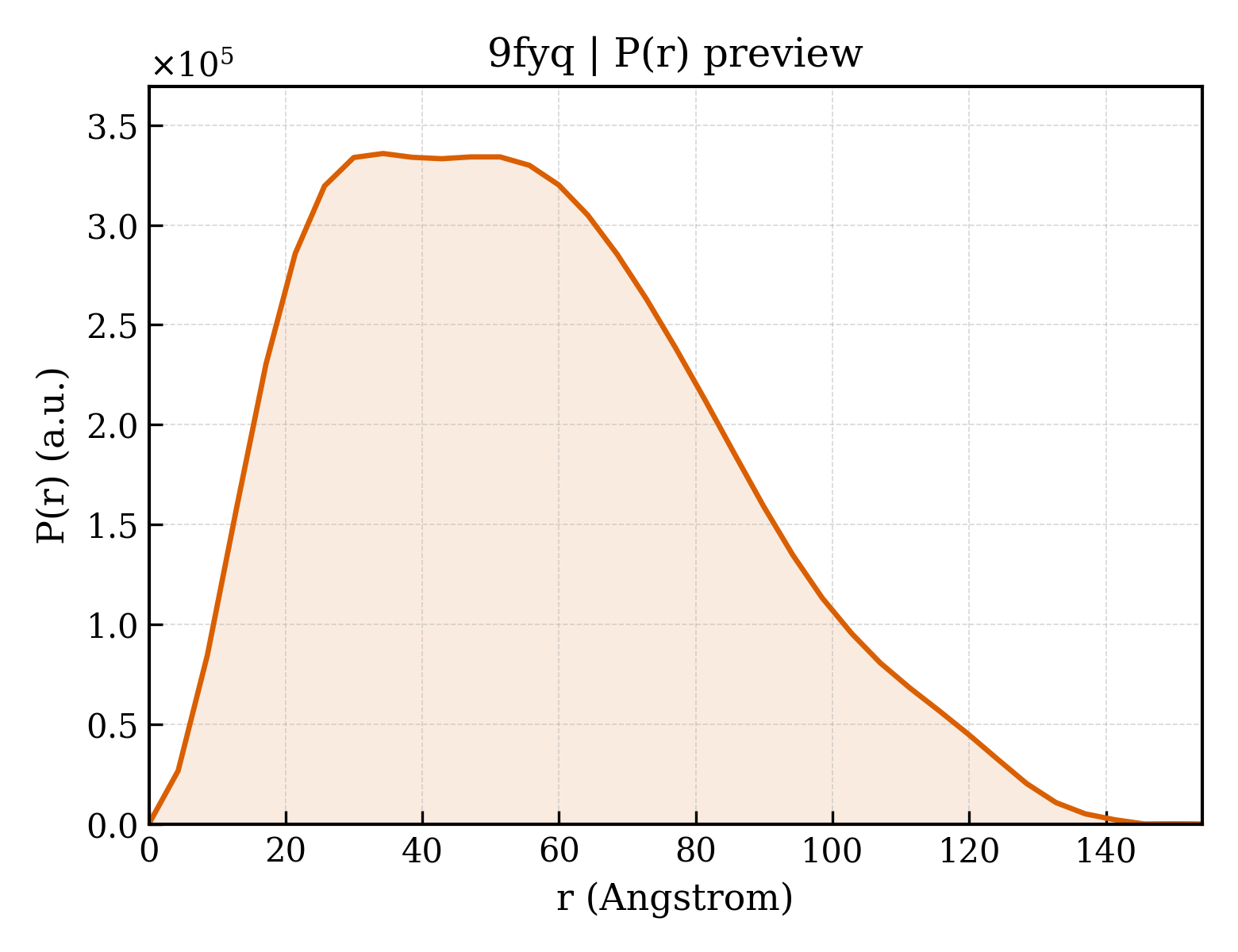

9fyq__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	43.43 Å
Rg (electron density)	43.55 Å
Total Rg	43.86 Å
Atom count	14368
Residues	1121
Excluded volume	163680 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9fyq__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Synaptic vesicle glycoprotein 2A
Molecular weight formula_weight	82640.9 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	14368

MEEGFRDRAAFIRGAKDIAKEVKKHAAKKVVKGLDRVQDEYSRRSYSRFEEEDDDDDFPAPADGYYRGEGAQDEEEGGASSDATEGHDEDDEIYEGEYQGIPRAESGGKGERMADGAPLAGVRGGLGDGEGPPGGRGEAQRRKEREELAQQYEAILRECGHGRFQWTLYFVLGLALMADGVEVFVVGFVLPSAEKDMCLSDSNKGMLGLIVYLGMMVGAFLWGGLADRLGRRQCLLISLSVNSVFAFFSSFVQGYGTFLFCRLLSGVGIGGSIPIVFSYFSEFLAQEKRGEHLSWLCMFWMIGGVYAAAMAWAIIPHYGWSFQMGSAYQFHSWRVFVLVCAFPSVFAIGALTTQPESPRFFLENGKHDEAWMVLKQVHDTNMRAKGHPERVFSVTHIKTIHQEDELIEIQSDTGAWYQRWGVRALSLGGQVWGNFLSCFGPEYRRITLMMMGVWFTMSFSYYGLTVWFPDMIRHLQAVDYAARTKVFPGERVEHVTFNFTLENQIHRGGQYFNDKFIGLRLKSVSFEDSLFEECYFEDVTSSNTFFRNCTFINTVFYNTDLFEYKFVNSRLVNSTFLHNKEGCPLDVTGTGEGAYMVYFVSFLGTLAVLPGNIVSALLMDKIGRLRMLAGSSVMSCVSCFFLSFGNSESAMIALLCLFGGVSIASWNALDVLTVELYPSDKRTTAFGFLNALCKLAAVLGISIFTSFVGITKAAPILFASAALALGSSLALKLPETRGQVLQ

Entity 2 Entity 2 polymer

Description description	Tetanus toxin heavy chain
Molecular weight formula_weight	53718.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MGKHHHHHHHHHHGSASLEVLFQGPSHMEDIDVILKKSTILNLDINNDIISDISGFNSSVITYPDAQLVPGINGKAIHLVNNESSEVIVHKAMDIEYNDMFNNFTVSFWLRVPKVSASHLEQYGTNEYSIISSMKKHSLSIGSGWSVSLKGNNLIWTLKDSAGEVRQITFRDLPDKFNAYLANKWVFITITNDRLSSANLYINGVLMGSAEITGLGAIREDNNITLKLDRCNNNNQYVSIDKFRIFCKALNPKEIEKLYTSYLSITFLRDFWGNPLRYDTEYYLIPVASSSKDVQLKNITDYMYLTNAPSYTNGKLNIYYRRLYNGLKFIIKRYTPNNEIDSFVKSGDFIKLYVSYNNNEHIVGYPKDGNAFNNLDRILRVGYNAPGIPLYKKMEAVKLRDLKTYSVQLKLYDDKNASLGLVGTHNGQIGNDPNRDILIASNWYFNHLKDKILGCDWYFVPTDEGWTND

Source Source

Source organism organism	Clostridium tetani E88
NCBI taxonomy ID ncbi_taxonomy_id	212717
Host organism host_organism	Escherichia coli K-12

Entity 3 Entity 3 polymer

Description description	Pro-Macrobody 5,Maltose/maltodextrin-binding periplasmic protein
Molecular weight formula_weight	53674.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

GPSQVQLVESGGGLVQAGGSLRLSCAASGRTFSRFIMGWFRQAPGKEREFVAAVGKSGDTTYYADSMSGRFAISRDNAKNTVYLQMISLKPEDTAVYYCAADSSYFYHTHESEYDYWGQGTQVTVPPLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLEEKFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPDKAFQDKLYPFTWDAVRYNGKLIAYPIAVEALSLIYNKDLLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIAADGGYAFKYENGKYDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGETAMTINGPWAWSNIDTSKVNYGVTVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFLENYLLTDEGLEAVNKDKPLGAVALKSYEEELAKDPRIAATMENAQKGEIMPNIPQMSAFWYAVRTAVINAASGRQTVDEALKDAQTPGA

Source Source

Source organism organism	Escherichia coli (strain K12)
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli K-12

Entity 4 Entity 4 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	570.5 kDa
Source method src_method	man
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	omega-undecylenyl-beta-D-maltopyranoside
Molecular weight formula_weight	494.6 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	;(2~{R},4~{R},5~{S},6~{S})-2-[(2~{R},3~{R})-3-[(2~{R},3~{S},4~{S},6~{S})-6-[(2~{S},3~{S},4~{R},5~{S},6~{S})-3-[(2~{R},3~{R},4~{R},5~{S},6~{R})-3-acetamido-6-(hydroxymethyl)-4,5-bis(oxidanyl)oxan-2-yl]oxy-2-(hydroxymethyl)-6-[(2~{R},3~{R},4~{R},5~{R},6~{S})-2-(hydroxymethyl)-6-[2-(octadecanoylamino)-3-oxidanyl-octadec-4-enoxy]-4,5-bis(oxidanyl)oxan-3-yl]oxy-5-oxidanyl-oxan-4-yl]oxy-3-azanyl-6-carboxy-4-oxidanyl-oxan-2-yl]-2,3-bis(oxidanyl)propoxy]-5-azanyl-4-oxidanyl-6-[(1~{R},2~{S})-1,2,3-tris(oxidanyl)propyl]oxane-2-carboxylic acid ;
Molecular weight formula_weight	1591.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 non-polymer

Description description	;(2~{S},4~{S},5~{R},6~{S})-5-acetamido-2-[(2~{R},3~{R},4~{R},5~{S},6~{R})-2-[(2~{R},3~{R},4~{S},5~{R},6~{S})-2-[(2~{R},3~{S},4~{R},5~{R},6~{R})-4-[(2~{S},4~{S},5~{S},6~{S})-5-acetamido-2-carboxy-4-oxidanyl-6-[(1~{S},2~{R})-1,2,3-tris(oxidanyl)propyl]oxan-2-yl]oxy-6-[(2~{R},3~{S},4~{R},5~{R},6~{R})-6-[2-(docosanoylamino)-3-oxidanyl-octadec-4-enoxy]-2-(hydroxymethyl)-4,5-bis(oxidanyl)oxan-3-yl]oxy-2-(hydroxymethyl)-5-oxidanyl-oxan-3-yl]oxy-6-(hydroxymethyl)-5-oxidanyl-3-(2-oxidanylidenepropyl)oxan-4-yl]oxy-6-(hydroxymethyl)-3,5-bis(oxidanyl)oxan-4-yl]oxy-4-oxidanyl-6-[(1~{R},2~{R})-1,2,3-tris(oxidanyl)propyl]oxane-2-carboxylic acid ;
Molecular weight formula_weight	1893.2 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.25 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	89713
