9ghh

Staphylococcus aureus FusB bound to the large subunit of the S. aureus 70S ribosome (FusB-Sa70S:LSU)

Method: ELECTRON MICROSCOPY D_max: 293.2 Å Quality: EXCELLENT

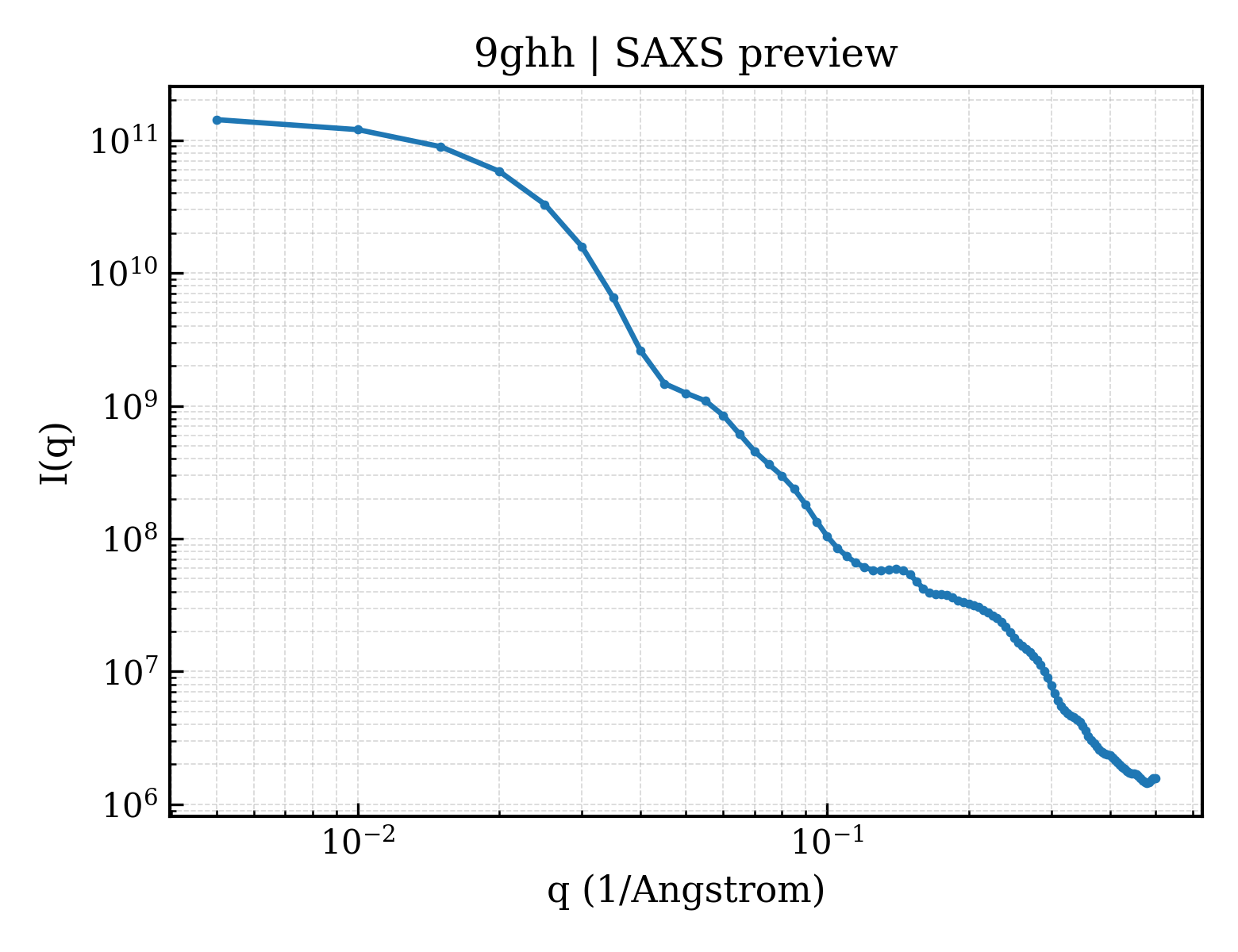

SAXS 散射曲线 SAXS Profile

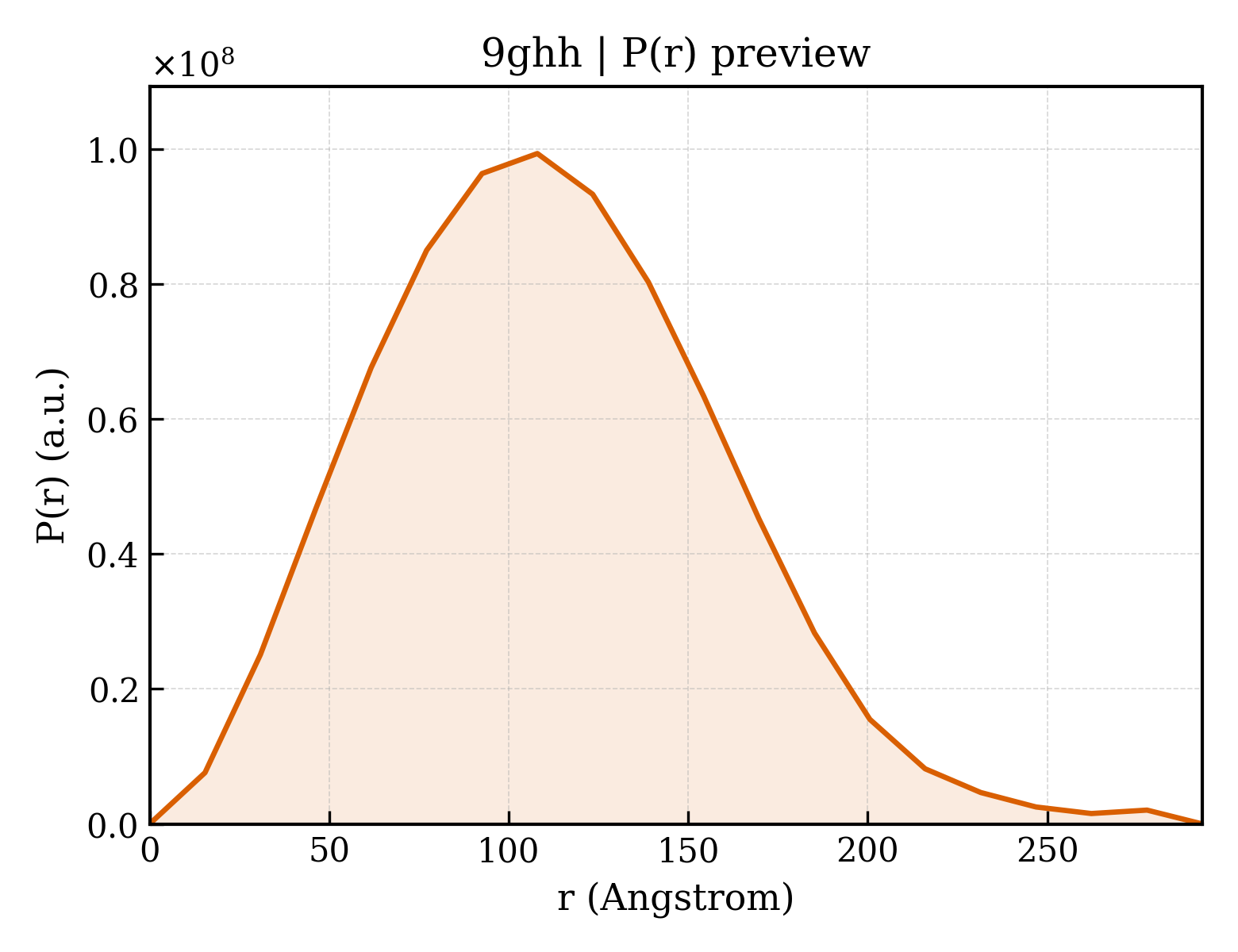

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9ghh
沉积日期 deposition_date	2024-08-15
结构标题 title	Staphylococcus aureus FusB bound to the large subunit of the S. aureus 70S ribosome (FusB-Sa70S:LSU)
关键词 keywords	RIBOSOME, fusidic acid, EF-G, antibiotic, FusB; RIBOSOME
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	83.20 Å
回转半径 Rg (电子) rg_electron	83.90 Å
零角强度 I(0) i0	150956000000.00
分子量 molecular_weight	2153400.0 kDa
排除体积 excluded_volume	2213900 Å³
包络体积 envelope_volume	3810900 Å³
水化壳体积 shell_volume	348450 Å³
包络直径 envelope_diameter	278.4 Å
壳层 Rg shell_rg	97.59 Å
包络 Rg envelope_rg	82.23 Å
形状 Rg shape_rg	83.96 Å
总 Rg total_rg	83.85 Å
总原子数 total_atoms	144755
残基数 n_residues	10316
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	293.2 Å
Rg (实空间) rg_real	85.51 Å
Rg 误差 (实空间) rg_real_error	1.76 Å
I(0) (实空间) i0_real	1.4980e+11
I(0) 误差 (实空间) i0_real_error	3.5040e+09
Rg (倒空间) rg_reciprocal	84.51 Å
I(0) (倒空间) i0_reciprocal	151500000000.0000
解质量估计 total_estimate	0.9045
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	108.0 Å
偏度 Skewness skewness	0.391
峰度 Kurtosis kurtosis	0.071
角度范围 angular_range	— – 0.0950 Å⁻¹
当前正则化参数 α current_alpha	1.1630
最高正则化参数 α highest_alpha	10810000000.0000
实空间数据点数 n_real_points	20
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.765; Stabil: 0.909; Sysdev: 1.000; Positv: 1.000; Valcen: 0.961; Smooth: 0.787

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (57)

Entity 1 polymer

描述 description	50S ribosomal protein L28
分子量 formula_weight	6995.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1
原子数 atom_count	144758

MGKQCFVTGRKASTGNRRSHALNSTKRRWNANLQKVRILVDGKPKKVWVSARALKSGKVTRV

Entity 2 polymer

描述 description	50S ribosomal protein L29
分子量 formula_weight	8105.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	2

MKAKEIRDLTTSEIEEQIKSSKEELFNLRFQLATGQLEETARIRTVRKTIARLKTVAREREIEQSKANQ

Entity 3 polymer

描述 description	50S ribosomal protein L30
分子量 formula_weight	6565.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	3

MAKLQITLTRSVIGRPETQRKTVEALGLKKTNSSVVVEDNPAIRGQINKVKHLVTVEEK

Entity 4 polymer

描述 description	50S ribosomal protein L31 type B
分子量 formula_weight	9737.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	4

MKQGIHPEYHQVIFLDTTTNFKFLSGSTKTSSEMMEWEDGKEYPVIRLDISSDSHPFYTGRQKFAAADGRVERFNKKFGLKSNN

Entity 5 polymer

描述 description	Large ribosomal subunit protein bL32
分子量 formula_weight	6500.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	5

MAVPKRRTSKTRKNKRRTHFKISVPGMTECPNCGEYKLSHRVCKNCGSYNGEEVAAK

Entity 6 polymer

描述 description	Large ribosomal subunit protein bL33A
分子量 formula_weight	5944.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	6

MRVNVTLACTECGDRNYITTKNKRNNPERIEMKKYCPRLNKYTLHRETK

Entity 7 polymer

描述 description	50S ribosomal protein L34
分子量 formula_weight	5454.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	7

MVKRTYQPNKRKHSKVHGFRKRMSTKNGRKVLARRRRKGRKVLSA

Entity 8 polymer

描述 description	50S ribosomal protein L35
分子量 formula_weight	7722.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	8

MPKMKTHRGAAKRVKRTASGQLKRSRAFTSHLFANKSTKQKRQLRKARLVSKSDMKRVKQLLAYKK

Entity 9 polymer

描述 description	50S ribosomal protein L36
分子量 formula_weight	4318.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	9

MKVRPSVKPICEKCKVIKRKGKVMVICENPKHKQRQG

Entity 10 polymer

描述 description	23S rRNA
分子量 formula_weight	946782.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	A

GAUUAAGUUAUUAAGGGCGCACGGUGGAUGCCUUGGCACUAGAAGCCGAUGAAGGACGUUACUAACGACGAUAUGCUUUGGGGAGCUGUAAGUAAGCUUUGAUCCAGAGAUUUCCGAAUGGGGAAACCCAGCAUGAGUUAUGUCAUGUUAUCGAUAUGUGAAUACAUAGCAUAUCAGAAGGCACACCCGGAGAACUGAAACAUCUUAGUACCCGGAGGAAGAGAAAGAAAAUUCGAUUCCCUUAGUAGCGGCGAGCGAAACGGGAAGAGCCCAAACCAACAAGCUUGCUUGUUGGGGUUGUAGGACACUCUAUACGGAGUUACAAAGGACGACAUUAGACGAAUCAUCUGGAAAGAUGAAUCAAAGAAGGUAAUAAUCCUGUAGUCGAAAAUGUUGUCUCUCUUGAGUGGAUCCUGAGUACGACGGAGCACGUGAAAUUCCGUCGGAAUCUGGGAGGACCAUCUCCUAAGGCUAAAUACUCUCUAGUGACCGAUAGUGAACCAGUACCGUGAGGGAAAGGUGAAAAGCACCCCGGAAGGGGAGUGAAAUAGAACCUGAAACCGUGUGCUUACAAGUAGUCAGAGCCCGUUAAUGGGUGAUGGCGUGCCUUUUGUAGAAUGAACCGGCGAGUUACGAUUUGAUGCAAGGUUAAGCAGUAAAUGUGGAGCCGUAGCGAAAGCGAGUCUGAAUAGGGCGUUUAGUAUUUGGUCGUAGACCCGAAACCAGGUGAUCUACCCUUGGUCAGGUUGAAGUUCAGGUAACACUGAAUGGAGGACCGAACCGACUUACGUUGAAAAGUGAGCGGAUGAACUGAGGGUAGCGGAGAAAUUCCAAUCGAACCUGGAGAUAGCUGGUUCUCUCCGAAAUAGCUUUAGGGCUAGCCUCAAGUGAUGAUUAUUGGAGGUAGAGCACUGUUUGGACGAGGGGCCCCUCUCGGGUUACCGAAUUCAGACAAACUCCGAAUGCCAAUUAAUUUAACUUGGGAGUCAGAACAUGGGUGAUAAGGUCCGUGUUCGAAAGGGAAACAGCCCAGACCACCAGCUAAGGUCCCAAAAUAUAUGUUAAGUGGAAAAGGAUGUGGCGUUGCCCAGACAACUAGGAUGUUGGCUUAGAAGCAGCCAUCAUUUAAAGAGUGCGUAAUAGCUCACUAGUCGAGUGACACUGCGCCGAAAAUGUACCGGGGCUAAACAUAUUACCGAAGCUGUGGAUUGUCCUUUGGACAAUGGUAGGAGAGCGUUCUAAGGGCGUUGAAGCAUGAUCGUAAGGACAUGUGGAGCGCUUAGAAGUGAGAAUGCCGGUGUGAGUAGCGAAAGACGGGUGAGAAUCCCGUCCACCGAUUGACUAAGGUUUCCAGAGGAAGGCUCGUCCGCUCUGGGUUAGUCGGGUCCUAAGCUGAGGCCGACAGGCGUAGGCGAUGGAUAACAGGUUGAUAUUCCUGUACCACCUAUAAUCGUUUUAAUCGAUGGGGGGACGCAGUAGGAUAGGCGAAGCGUGCGAUUGGAUUGCACGUCUAAGCAGUAAGGCUGAGUAUUAGGCAAAUCCGGUACUCGUUAAGGCUGAGCUGUGAUGGGGAGAAGACAUUGUGUCUUCGAGUCGUUGAUUUCACACUGCCGAGAAAAGCCUCUAGAUAGAAAAUAGGUGCCCGUACCGCAAACCGACACAGGUAGUCAAGAUGAGAAUUCUAAGGUGAGCGAGCGAACUCUCGUUAAGGAACUCGGCAAAAUGACCCCGUAACUUCGGGAGAAGGGGUGCUCUUUAGGGUUAACGCCCAGAAGAGCCGCAGUGAAUAGGCCCAAGCGACUGUUUAUCAAAAACACAGGUCUCUGCUAAACCGUAAGGUGAUGUAUAGGGGCUGACGCCUGCCCGGUGCUGGAAGGUUAAGAGGAGUGGUUAGCUUCUGCGAAGCUACGAAUCGAAGCCCCAGUAAACGGCGGCCGUAACXAUAACGGUCCUAAGGUAGCGAAAUUCCUUGUCGGGUAAGUUCCGACCCGCACGAAAGGCGUAACGAUUUGGGCACUGUCUCAACGAGAGACUCGGUGAAAUCAUAGUACCUGUGAAGAUGCAGGUUACCCGCGACAGGACGGAAAGACCCCGUGGAGCUUUACUGUAGCCUGAUAUUGAAAUUCGGCACAGCUUGUACAGGAUAGGUAGGAGCCUUUGAAACGUGAGCGCUAGCUUACGUGGAGGCGCUGGUGGGAUACUACCCUAGCUGUGUUGGCUUUCUAACCCGCACCACUUAUCGUGGUGGGAGACAGUGUCAGGCGGGCAGUUUGACUGGGGCGGUCGCCUCCUAAAAGGUAACGGAGGCGCUCAAAGGUUCCCUCAGAAUGGUUGGAAAUCAUUCAUAGAGUGUAAAGGCAUAAGGGAGCUUGACUGCGAGACCUACAAGUCGAGCAGGGUCGAAAGACGGACUUAGUGAUCCGGUGGUUCCGCAUGGAAGGGCCAUCGCUCAACGGAUAAAAGCUACCCCGGGGAUAACAGGCUUAUCUCCCCCAAGAGUUCACAUCGACGGGGAGGUUUGGCACCUCGAUGUCGGCUCAUCGCAUCCUGGGGCUGUAGUCGGUCCCAAGGGUUGGGCUGUUCGCCCAUUAAAGCGGUACGCGAGCUGGGUUCAGAACGUCGUGAGACAGUUCGGUCCCUAUCCGUCGUGGGCGUAGGAAAUUUGAGAGGAGCUGUCCUUAGUACGAGAGGACCGGGAUGGACAUACCUCUGGUGUACCAGUUGUCGUGCCAACGGCAUAGCUGGGUAGCUAUGUGUGGACGGGAUAAGUGCUGAAAGCAUCUAAGCAUGAAGCCCCCCUCAAGAUGAGAUUUCCCAACUUCGGUUAUAAGAUCCCUCAAAGAUGAUGAGGUUAAUAGGUUCGAGGUGGAAGCAUGGUGACAUGUGGAGCUGACGAAUACUAAUCGAUCGAAGACUUAAUCAA

Entity 11 polymer

描述 description	5S rRNA
分子量 formula_weight	36974.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	B

UCUGGUGACUAUAGCAAGGAGGUCACACCUGUUCCCAUGCCGAACACAGAAGUUAAGCUCCUUAGCGUCGAUGGUAGUCGAACUUACGUUCCGCUAGAGUAGAACGUUGCCAGGC

Entity 12 polymer

描述 description	Far1
分子量 formula_weight	25225.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MKTMIYPHQYNYIRSVILRLKNVYKTVNDKETVKVIQSETYNDINEIFGHIDDDIEESLKVLMNIRLSNKEIEAILNKFLEYVVPFELPSPQKLQKVFKKVKKIKIPQFEEYDLKVSSFVGWNELASNRKYIIYYDEKKQLKGLYGEISNQVVKGFCTICNKESNVSLFMKKSKTNSDGQYVKKGDYICRDSIHCNKQLTDINQFYNFIDKLD

来源 Source

来源生物 organism	Staphylococcus aureus
NCBI 分类编号 ncbi_taxonomy_id	1280
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 13 polymer

描述 description	E-site tRNA
分子量 formula_weight	24802.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	D,F

CGCGGGGUGGAGCAGCCUGGUAGCUCGUCGGGCUCAUAACCCGAAGGUCGUCGGUUCAAAUCCGGCCCCCGCAACCA

Entity 14 polymer

描述 description	50S ribosomal protein L2
分子量 formula_weight	30217.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MAIKKYKPITNGRRNMTSLDFAEITKTTPEKSLLKPLPKKAGRNNQGKLTVRHHGGGHKRQYRVIDFKRNKDGINAKVDSIQYDPNRSANIALVVYADGEKRYIIAPKGLEVGQIVESGAEADIKVGNALPLQNIPVGTVVHNIELKPGKGGQIARSAGASAQVLGKEGKYVLIRLRSGEVRMILSTCRATIGQVGNLQHELVNVGKAGRSRWKGIRPTVRGSVMNPNDHPHGGGEGRAPIGRPSPMSPWGKPTLGKKTRRGKKSSDKLIVRGRKKK

Entity 15 polymer

描述 description	50S ribosomal protein L3
分子量 formula_weight	23760.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MTKGILGRKIGMTQVFGENGELIPVTVVEAKENVVLQKKTVEVDGYNAIQVGFEDKKAYKKDAKSNKYANKPAEGHAKKADAAPKRFIREFRNVDVDAYEVGQEVSVDTFVAGDVIDVTGVSKGKGFQGAIKRHGQSRGPMSHGSHFHRAPGSVGMASDASRVFKGQKMPGRMGGNTVTVQNLEVVQVDTENKVILVKGNVPGPKKGLVEIRTSIKKGNK

Entity 16 polymer

描述 description	50S ribosomal protein L4
分子量 formula_weight	22495.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MANYDVLKLDGTKSGSIELSDAVFGIEPNNSVLFEAINLQRASLRQGTHAVKNRSAVSGGGRKPWKQKGTGRARQGTIRAPQWRGGGIVFGPTPRSYAYKMPKKMRRLALRSALSFKAQENGLTVVDAFNFEAPKTKEFKNVLSTLEQPKKVLVVTENEDVNVELSARNIPGVQVTTAQGLNVLDITNADSLVITEAAAKKVEEVLG

Entity 17 polymer

描述 description	50S ribosomal protein L5
分子量 formula_weight	20296.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MNRLKEKFNTEVTENLMKKFNYSSVMEVPKIDKIVVNMGVGDAVQNSKVLDNAVEELELITGQKPLVTKAKKSIATFRLREGMPIGAKVTLRGERMYEFLDKLISVSLPRVRDFQGVSKKAFDGRGNYTLGVKEQLIFPEIDYDKVSKVRGMDIVIVTTANTDEEARELLANFGMPFRK

Entity 18 polymer

描述 description	50S ribosomal protein L6
分子量 formula_weight	19818.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MSRVGKKIIDIPSDVTVTFDGNHVTVKGPKGELSRTLNERMTFKQEENTIEVVRPSDSKEDRTNHGTTRALLNNMVQGVSQGYVKVLELVGVGYRAQMQGKDLILNVGYSHPVEIKAEENITFSVEKNTVVKVEGISKEQVGALASNIRSVRPPEPYKGKGIRYQGEYVRRKEGKTGK

Entity 19 polymer

描述 description	50S ribosomal protein L13
分子量 formula_weight	16359.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MRQTFMANESNIERKWYVIDAEGQTLGRLSSEVASILRGKNKVTYTPHVDTGDYVIVINASKIEFTGNKETDKVYYRHSNHPGGIKSITAGELRRTNPERLIENSIKGMLPSTRLGEKQGKKLFVYGGAEHPHAAQQPENYELRG

Entity 20 polymer

描述 description	50S ribosomal protein L14
分子量 formula_weight	13157.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

MIQQETRLKVADNSGAREVLTIKVLGGSGRKTANIGDVIVCTVKNATPGGVVKKGDVVKAVIVRTKSGVRRNDGSYIKFDENACVIIRDDKGPRGTRIFGPVARELREGNFMKIVSLAPEVL

Entity 21 polymer

描述 description	50S ribosomal protein L15
分子量 formula_weight	15628.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O

MKLHELKPAEGSRKERNRVGRGVATGNGKTSGRGHKGQKARSGGGVRPGFEGGQLPLFRRLPKRGFTNINRKEYAIVNLDQLNKFEDGTEVTPALLVESGVVKNEKSGIKILGNGSLDKKLTVKAHKFSASAAEAIDAKGGAHEVI

Entity 22 polymer

描述 description	50S ribosomal protein L16
分子量 formula_weight	16274.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P

MLLPKRVKYRRQHRPKTTGRSKGGNYVTFGEFGLQATTTSWITSRQIESARIAMTRYMKRGGKVWIKIFPHTPYTKKPLEVRMGAGKGAVEGWIAVVKPGRILFEVAGVSEEVAREALRLASHKLPVKTKFVKREELGGETNES

Entity 23 polymer

描述 description	50S ribosomal protein L17
分子量 formula_weight	13771.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q

MGYRKLGRTSDQRKAMLRDLATSLIISERIETTEARAKEVRSVVEKLITLGKKGDLASRRNAAKTLRNVEILNEDETTQTALQKLFGEIAERYTERQGGYTRILKQGPRRGDGAESVIIELV

Entity 24 polymer

描述 description	50S ribosomal protein L18
分子量 formula_weight	13124.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R

MISKIDKNKVRLKRHARVRTNLSGTAEKPRLNVYRSNKHIYAQIIDDNKGVTLAQASSKDSDIATTATKVELATKVGEAIAKKAADKGIKEIVFDRGGYLYHGRVKALAEAARESGLEF

Entity 25 polymer

描述 description	50S ribosomal protein L19
分子量 formula_weight	13392.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S

MTNHKLIEAVTKSQLRTDLPSFRPGDTLRVHVRIIEGTRERIQVFEGVVIKRRGGGVSETFTVRKISSGVGVERTFPLHTPKIEKIEVKRRGKVRRAKLYYLRSLRGKAARIQEIR

Entity 26 polymer

描述 description	50S ribosomal protein L20
分子量 formula_weight	13720.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T

MPRVKGGTVTRARRKKTIKLAKGYFGSKHTLYKVAKQQVMKSGQYAFRDRRQRKRDFRKLWITRINAAARQHEMSYSRLMNGLKKAGIDINRKMLSEIAISDEKAFAQLVTKAKDALK

Entity 27 polymer

描述 description	50S ribosomal protein L21
分子量 formula_weight	11354.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U

MFAIIETGGKQIKVEEGQEIFVEKLDVNEGDTFTFDKVLFVGGDSVKVGAPTVEGATVTATVNKQGRGKKITVFTYKRRKNSKRKKGHRQPYTKLTIDKINA

Entity 28 polymer

描述 description	50S ribosomal protein L22
分子量 formula_weight	12857.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V

MEAKAVARTIRIAPRKVRLVLDLIRGKNAAEAIAILKLTNKASSPVIEKVLMSALANAEHNYDMNTDELVVKEAYANEGPTLKRFRPRAQGRASAINKRTSHITIVVSDGKEEAKEA

Entity 29 polymer

描述 description	50S ribosomal protein L23
分子量 formula_weight	10625.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	W

MEARDILKRPVITEKSSEAMAEDKYTFDVDTRVNKTQVKMAVEEIFNVKVASVNIMNYKPKKKRMGRYQGYTNKRRKAIVTLKEGSIDLFN

Entity 30 polymer

描述 description	50S ribosomal protein L24
分子量 formula_weight	11561.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	X

MHIKKGDNVKVIAGKDKGKEGKVIATLPKKDRVVVEGVNIMKKHQKPTQLNPEGGILETEAAIHVSNVQLLDPKTNEPTRVGYKFVDGKKVRIAKKSGEEIKSNN

Entity 31 polymer

描述 description	50S ribosomal protein L25
分子量 formula_weight	23810.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Y

MASLKSIIRQGKQTRSDLKQLRKSGKVPAVVYGYGTKNVSVKVDEVEFIKVIREVGRNGVIELGVGSKTIKVMVADYQFDPLKNQITHIDFLAINMSEERTVEVPVQLVGEAVGAKEGGVVEQPLFNLEVTATPDNIPEAIEVDITELNINDSLTVADVKVTGDFKIENDSAESVVTVVAPTEEPTEEEIEAMEGEQQTEEPEVVGESKEDEEKTEE

Entity 32 polymer

描述 description	50S ribosomal protein L27
分子量 formula_weight	10334.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Z

MLKLNLQFFASKKGVSSTKNGRDSESKRLGAKRADGQFVTGGSILYRQRGTKIYPGENVGRGGDDTLFAKIDGVVKFERKGRDKKQVSVYAVAE

Entity 33 polymer

描述 description	16S rRNA
分子量 formula_weight	503117.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	a

UUUUAUGGAGAGUUUGAUCCUGGCUCAGGAUGAACGCUGGCGGCGUGCCUAAUACAUGCAAGUCGAGCGAACGGACGAGAAGCUUGCUUCUCUGAUGUUAGCGGCGGACGGGUGAGUAACACGUGGAUAACCUACCUAUAAGACUGGGAUAACUUCGGGAAACCGGAGCUAAUACCGGAUAAUAUUUUGAACCGCAUGGUUCAAAAGUGAAAGACGGUCUUGCUGUCACUUAUAGAUGGAUCCGCGCUGCAUUAGCUAGUUGGUAAGGUAACGGCUUACCAAGGCAACGAUGCAUAGCCGACCUGAGAGGGUGAUCGGCCACACUGGAACUGAGACACGGUCCAGACUCCUACGGGAGGCAGCAGUAGGGAAUCUUCCGCAAUGGGCGAAAGCCUGACGGAGCAACGCCGCGUGAGUGAUGAAGGUCUUCGGAUCGUAAAACUCUGUUAUUAGGGAAGAACAUAUGUGUAAGUAACUGUGCACAUCUUGACGGUACCUAAUCAGAAAGCCACGGCUAACUACGUGCCAGCAGCCGCGGUAAUACGUAGGUGGCAAGCGUUAUCCGGAAUUAUUGGGCGUAAAGCGCGCGUAGGCGGUUUUUUAAGUCUGAUGUGAAAGCCCACGGCUCAACCGUGGAGGGUCAUUGGAAACUGGAAAACUUGAGUGCAGAAGAGGAAAGUGGAAUUCCAUGUGUAGCGGUGAAAUGCGCAGAGAUAUGGAGGAACACCAGUGGCGAAGGCGACUUUCUGGUCUGUAACUGACGCUGAUGUGCGAAAGCGUGGGGAUCAAACAGGAUUAGAUACCCUGGUAGUCCACGCCGUAAACGAUGAGUGCUAAGUGUUAGGGGGUUUCCGCCCCUUAGUGCUGCAGCUAACGCAUUAAGCACUCCGCCUGGGGAGUACGACCGCAAGGUUGAAACUCAAAGGAAUUGACGGGGACCCGCACAAGCGGUGGAGCAUGUGGUUUAAUUCGAAGCAACGCGAAGAACCUUACCAAAUCUUGACAUCCUUUGACAACUCUAGAGAUAGAGCCUUCCCCUUCGGGGGACAAAGUGACAGGUGGUGCAUGGUUGUCGUCAGCUCGUGUCGUGAGAUGUUGGGUUAAGUCCCGCAACGAGCGCAACCCUUAAGCUUAGUUGCCAUCAUUAAGUUGGGCACUCUAAGUUGACUGCCGGUGACAAACCGGAGGAAGGUGGGGAUGACGUCAAAUCAUCAUGCCCCUUAUGAUUUGGGCUACACACGUGCUACAAUGGACAAUACAAAGGGCAGCGAAACCGCGAGGUCAAGCAAAUCCCAUAAAGUUGUUCUCAGUUCGGAUUGUAGUCUGCAACUCGACUACAUGAAGCUGGAAUCGCUAGUAAUCGUAGAUCAGCAUGCUACGGUGAAUACGUUCCCGGGUCUUGUACACACCGCCCGUCACACCACGAGAGUUUGUAACACCCGAAGCCGGUGGAGUAACCUUUUAGGAGCUAGCCGUCGAAGGUGGGACAAAUGAUUGGGGUGAAGUCGUAACAAGGUAGCCGUAUCGGAAGGUGCGGCUGGAUCACCUCCUUUCU

Entity 34 polymer

描述 description	mRNA
分子量 formula_weight	7889.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	b

GGCAAGGAGGUAAAAAUGGCAAAA

Entity 35 polymer

描述 description	30S ribosomal protein S2
分子量 formula_weight	29136.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	c

MAVISMKQLLEAGVHFGHQTRRWNPKMKKYIFTERNGIYIIDLQKTVKKVDEAYNFLKQVSEDGGQVLFVGTKKQAQESVKSEAERAGQFYINQRWLGGLLTNYKTISKRIKRISEIEKMEEDGLFEVLPKKEVVELKKEYDRLIKFLGGIRDMKSMPQALFVVDPRKERNAIAEARKLNIPIVGIVDTNCDPDEIDYVIPANDDAIRAVKLLTAKMADAILEGQQGVSNEEVAAEQNIDLDEKEKSEETEATEE

Entity 36 polymer

描述 description	30S ribosomal protein S3
分子量 formula_weight	24143.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	d

MGQKINPIGLRVGIIRDWEAKWYAEKDFASLLHEDLKIRKFIDNELKEASVSHVEIERAANRINIAIHTGKPGMVIGKGGSEIEKLRNKLNALTDKKVHINVIEIKKVDLDARLVAENIARQLENRASFRRVQKQAITRAMKLGAKGIKTQVSGRLGGADIARAEQYSEGTVPLHTLRADIDYAHAEADTTYGKLGVKVWIYRGEVLPTKNTSGGGK

Entity 37 polymer

描述 description	30S ribosomal protein S4
分子量 formula_weight	23051.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	e

MARFRGSNWKKSRRLGISLSGTGKELEKRPYAPGQHGPNQRKKLSEYGLQLREKQKLRYLYGMTERQFRNTFDIAGKKFGVHGENFMILLASRLDAVVYSLGLARTRRQARQLVNHGHILVDGKRVDIPSYSVKPGQTISVREKSQKLNIIVESVEINNFVPEYLNFDADSLTGTFVRLPERSELPAEINEQLIVEYYSR

Entity 38 polymer

描述 description	30S ribosomal protein S5
分子量 formula_weight	17770.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	f

MARREEETKEFEERVVTINRVAKVVKGGRRFRFTALVVVGDKNGRVGFGTGKAQEVPEAIKKAVEAAKKDLVVVPRVEGTTPHTITGRYGSGSVFMKPAAPGTGVIAGGPVRAVLELAGITDILSKSLGSNTPINMVRATIDGLQNLKNAEDVAKLRGKTVEELYN

Entity 39 polymer

描述 description	30S ribosomal protein S6
分子量 formula_weight	11613.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	g

MRTYEVMYIVRPNIEEDAKKALVERFNGILATEGAEVLEAKDWGKRRLAYEINDFKDGFYNIVRVKSDNNKATDEFQRLAKISDDIIRYMVIREDEDK

Entity 40 polymer

描述 description	30S ribosomal protein S7
分子量 formula_weight	17826.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	h

MPRKGSVPKRDVLPDPIHNSKLVTKLINKIMLDGKRGTAQRILYSAFDLVEQRSGRDALEVFEEAINNIMPVLEVKARRVGGSNYQVPVEVRPERRTTLGLRWLVNYARLRGEKTMEDRLANEILDAANNTGGAVKKREDTHKMAEANKAFAHYRW

Entity 41 polymer

描述 description	30S ribosomal protein S8
分子量 formula_weight	14854.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	i

MTMTDPIADMLTRVRNANMVRHEKLELPASNIKKEIAEILKSEGFIKNVEYVEDDKQGVLRLFLKYGQNDERVITGLKRISKPGLRVYAKASEMPKVLNGLGIALVSTSEGVITDKEARKRNVGGEIIAYVW

Entity 42 polymer

描述 description	30S ribosomal protein S9
分子量 formula_weight	14857.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	j

MTLAQVEYRGTGRRKNSVARVRLVPGEGNITVNNRDVREYLPFESLILDLNQPFDVTETKGNYDVLVNVHGGGFTGQAQAIRHGIARALLEADPEYRGSLKRAGLLTRDPRMKERKKPGLKAARRSPQFSKR

Entity 43 polymer

描述 description	Small ribosomal subunit protein uS10
分子量 formula_weight	11598.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	k

MAKQKIRIRLKAYDHRVIDQSAEKIVETAKRSGADVSGPIPLPTEKSVYTIIRAVHKYKDSREQFEQRTHKRLIDIVNPTPKTVDALMGLNLPSGVDIEIKL

Entity 44 polymer

描述 description	30S ribosomal protein S11
分子量 formula_weight	13908.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	l

MARKQVSRKRRVKKNIENGVAHIRSTFNNTIVTITDEFGNALSWSSAGALGFKGSKKSTPFAAQMASETASKSAMEHGLKTVEVTVKGPGPGRESAIRALQSAGLEVTAIRDVTPVPHNGCRPPKRRRV

Entity 45 polymer

描述 description	30S ribosomal protein S12
分子量 formula_weight	15320.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	m

MPTINQLVRKPRQSKIKKSDSPALNKGFNSKKKKFTDLNSPQKRGVCTRVGTMTPKKPNSALRKYARVRLSNNIEINAYIPGIGHNLQEHSVVLVRGGRVKDLPGVRYHIVRGALDTSGVDGRRQGRSLYGTKKPKN

Entity 46 polymer

描述 description	30S ribosomal protein S13
分子量 formula_weight	13747.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	n

MARIAGVDIPREKRVVISLTYIYGIGTSTAQKILEEANVSADTRVKDLTDDELGRIREVVDGYKVEGDLRRETNLNIKRLMEISSYRGIRHRRGLPVRGQKTKNNARTRKGPVKTVANKKK

Entity 47 polymer

描述 description	30S ribosomal protein S14 type Z
分子量 formula_weight	7317.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	o

MAKTSMVAKQQKKQKYAVREYTRCERCGRPHSVYRKFKLCRICFRELAYKGQIPGVRKASW

Entity 48 polymer

描述 description	30S ribosomal protein S15
分子量 formula_weight	10634.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	p

MAISQERKNEIIKEYRVHETDTGSPEVQIAVLTAEINAVNEHLRTHKKDHHSRRGLLKMVGRRRHLLNYLRSKDIQRYRELIKSLGIRR

Entity 49 polymer

描述 description	30S ribosomal protein S16
分子量 formula_weight	10253.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	q

MAVKIRLTRLGSKRNPFYRIVVADARSPRDGRIIEQIGTYNPTSANAPEIKVDEALALKWLNDGAKPTDTVHNILSKEGIMKKFDEQKKAK

Entity 50 polymer

描述 description	30S ribosomal protein S17
分子量 formula_weight	10196.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	r

MSERNDRKVYVGKVVSDKMDKTITVLVETYKTHKLYGKRVKYSKKYKTHDENNSAKLGDIVKIQETRPLSATKRFRLVEIVEESVII

Entity 51 polymer

描述 description	30S ribosomal protein S18
分子量 formula_weight	9332.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	s

MAGGPRRGGRRRKKVCYFTANGITHIDYKDTELLKRFISERGKILPRRVTGTSAKYQRMLTTAIKRSRHMALLPYVKEEQ

Entity 52 polymer

描述 description	30S ribosomal protein S19
分子量 formula_weight	10639.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	t

MARSIKKGPFVDEHLMKKVEAQEGSEKKQVIKTWSRRSTIFPNFIGHTFAVYDGRKHVPVYVTEDMVGHKLGEFAPTRTFKGHVADDKKTRR

Entity 53 polymer

描述 description	30S ribosomal protein S20
分子量 formula_weight	9039.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	u

MANIKSAIKRVKTTEKAEARNISQKSAMRTAVKNAKTAVSNNADNKNELVSLAVKLVDKAAQSNLIHSNKADRIKSQLMTANK

Entity 54 polymer

描述 description	30S ribosomal protein S21
分子量 formula_weight	6994.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	v

MSKTVVRKNESLEDALRRFKRSVSKSGTIQEVRKREFYEKPSVKRKKKSEAARKRKFK

Entity 55 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 56 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	145

Entity 57 non-polymer

描述 description	1,4-DIAMINOBUTANE
分子量 formula_weight	88.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.700 Å
最低分辨率 resolution_low	2.700 Å
R 因子 r_factor	—
R_work r_work	0.3978
R_free r_free	—

分辨率 resolution	2.70 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	15167

fit	/app/data/saxs_computation/gh/9ghh/9ghh.fit
pddf	/app/data/pr_computation/gh/9ghh/9ghh.pr.out
profile	/app/data/saxs_computation/gh/9ghh/9ghh.dat

Staphylococcus aureus FusB bound to the large subunit of the S. aureus 70S ribosome (FusB-Sa70S:LSU)

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

精修参数 Refinement

冷冻电镜 EM 3D

5. 实体与聚合体信息 (57)

Entity 1 polymer

聚合体 Polymer

Entity 2 polymer

聚合体 Polymer

Entity 3 polymer

聚合体 Polymer

Entity 4 polymer

聚合体 Polymer

Entity 5 polymer

聚合体 Polymer

Entity 6 polymer

聚合体 Polymer

Entity 7 polymer

聚合体 Polymer

Entity 8 polymer

聚合体 Polymer

Entity 9 polymer

聚合体 Polymer

Entity 10 polymer

聚合体 Polymer

Entity 11 polymer

聚合体 Polymer

Entity 12 polymer

聚合体 Polymer

来源 Source

Entity 13 polymer

聚合体 Polymer

Entity 14 polymer

聚合体 Polymer

Entity 15 polymer

聚合体 Polymer

Entity 16 polymer

聚合体 Polymer

Entity 17 polymer

聚合体 Polymer

Entity 18 polymer

聚合体 Polymer

Entity 19 polymer

聚合体 Polymer

Entity 20 polymer

聚合体 Polymer

Entity 21 polymer

聚合体 Polymer

Entity 22 polymer

聚合体 Polymer

Entity 23 polymer

聚合体 Polymer

Entity 24 polymer

聚合体 Polymer

Entity 25 polymer

聚合体 Polymer

Entity 26 polymer

聚合体 Polymer

Entity 27 polymer

聚合体 Polymer

Entity 28 polymer

聚合体 Polymer

Entity 29 polymer

聚合体 Polymer

Entity 30 polymer

聚合体 Polymer

Entity 31 polymer

聚合体 Polymer

Entity 32 polymer

聚合体 Polymer

Entity 33 polymer

聚合体 Polymer

Entity 34 polymer
