9ghd

Escherichia coli 70S ribosome in complex with Staphylococcus aureus FusB-EF-G (FusB-EF-G-70S*)

Method: ELECTRON MICROSCOPY D_max: 293.9 Å Quality: EXCELLENT

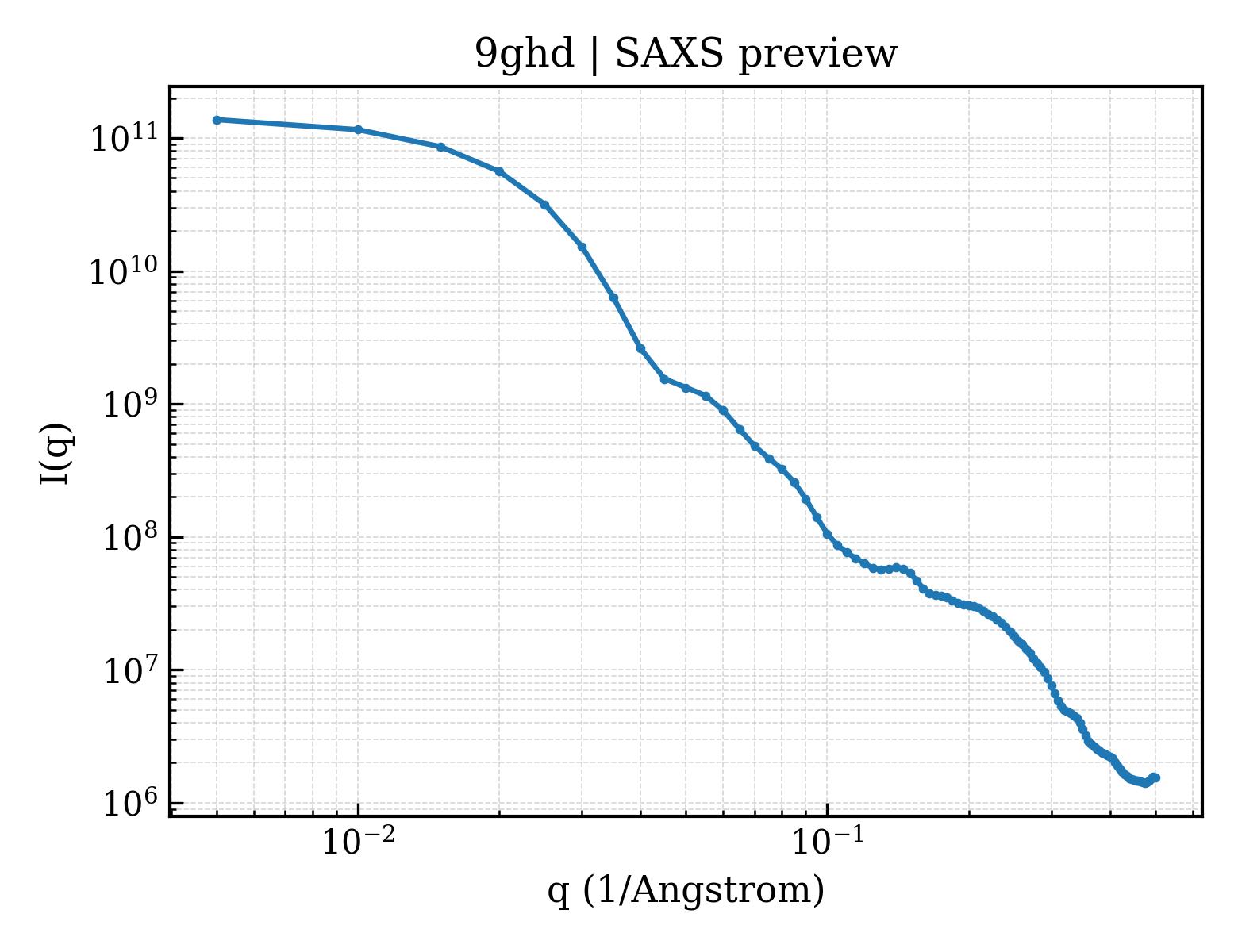

SAXS 散射曲线 SAXS Profile

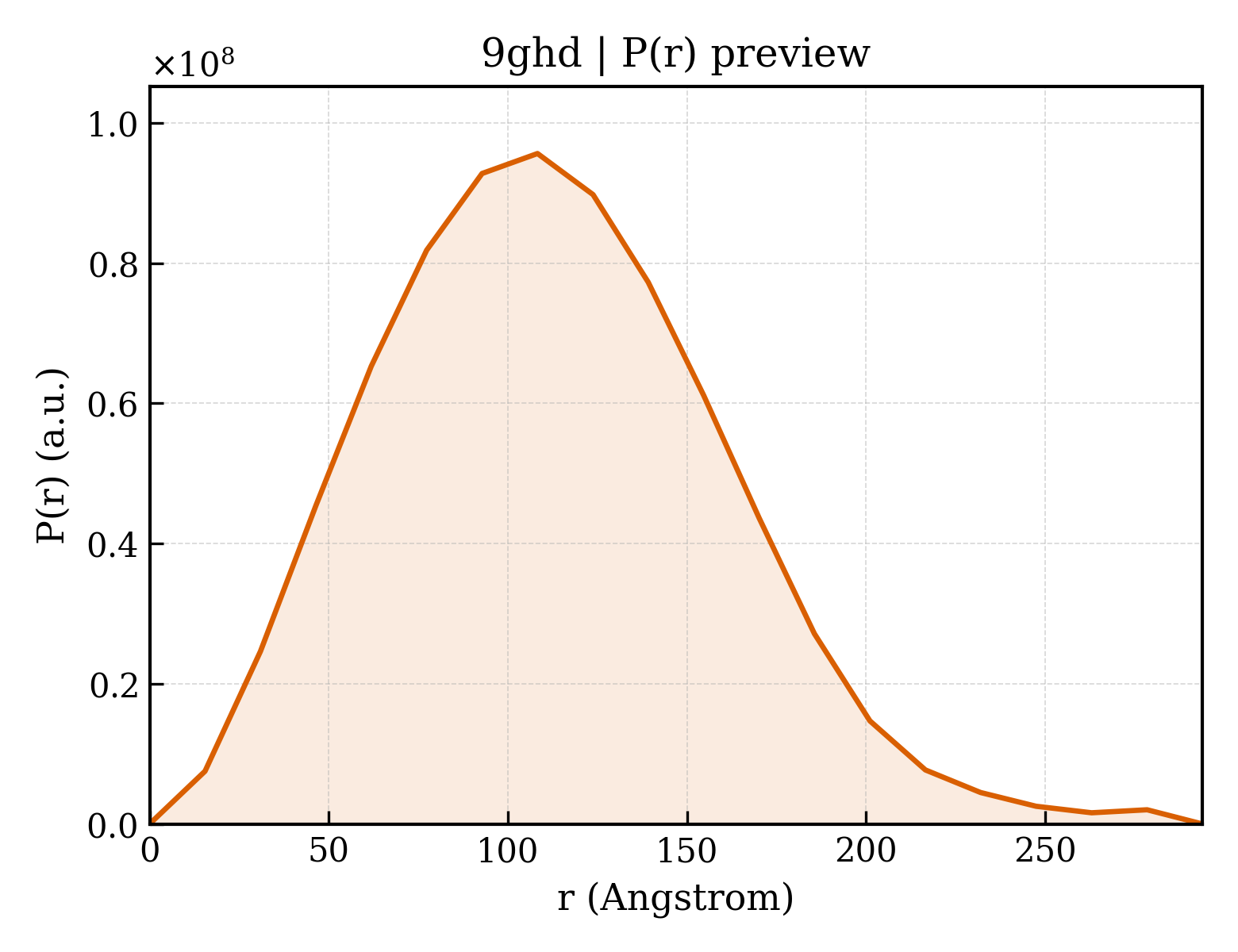

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9ghd
沉积日期 deposition_date	2024-08-15
结构标题 title	Escherichia coli 70S ribosome in complex with Staphylococcus aureus FusB-EF-G (FusB-EF-G-70S*)
关键词 keywords	RIBOSOME, fusidic acid, EF-G, antibiotic; RIBOSOME
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	83.24 Å
回转半径 Rg (电子) rg_electron	83.98 Å
零角强度 I(0) i0	145760000000.00
分子量 molecular_weight	2139300.0 kDa
排除体积 excluded_volume	2212700 Å³
包络体积 envelope_volume	3791100 Å³
水化壳体积 shell_volume	345760 Å³
包络直径 envelope_diameter	273.0 Å
壳层 Rg shell_rg	98.18 Å
包络 Rg envelope_rg	82.15 Å
形状 Rg shape_rg	84.06 Å
总 Rg total_rg	83.89 Å
总原子数 total_atoms	143666
残基数 n_residues	10406
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	293.9 Å
Rg (实空间) rg_real	85.67 Å
Rg 误差 (实空间) rg_real_error	1.65 Å
I(0) (实空间) i0_real	1.4480e+11
I(0) 误差 (实空间) i0_real_error	3.0670e+09
Rg (倒空间) rg_reciprocal	84.55 Å
I(0) (倒空间) i0_reciprocal	146300000000.0000
解质量估计 total_estimate	0.9055
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	108.3 Å
偏度 Skewness skewness	0.394
峰度 Kurtosis kurtosis	0.084
角度范围 angular_range	— – 0.0950 Å⁻¹
当前正则化参数 α current_alpha	1.1480
最高正则化参数 α highest_alpha	8830000000.0000
实空间数据点数 n_real_points	20
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.767; Stabil: 0.906; Sysdev: 1.000; Positv: 1.000; Valcen: 0.963; Smooth: 0.800

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (59)

Entity 1 polymer

描述 description	Large ribosomal subunit protein bL33
分子量 formula_weight	6388.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	0
原子数 atom_count	143666

MAKGIREKIKLVSSAGTGHFYTTTKNKRTKPEKLELKKFDPVVRQHVIYKEAKIK

Entity 2 polymer

描述 description	Large ribosomal subunit protein bL34
分子量 formula_weight	5397.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1

MKRTFQPSVLKRNRSHGFRARMATKNGRQVLARRRAKGRARLTVSK

Entity 3 polymer

描述 description	50S ribosomal protein L35
分子量 formula_weight	7313.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	2

MPKIKTVRGAAKRFKKTGKGGFKHKHANLRHILTKKATKRKRHLRPKAMVSKGDLGLVIACLPYA

Entity 4 polymer

描述 description	50S ribosomal protein L36
分子量 formula_weight	4377.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	3

MKVRASVKKLCRNCKIVKRDGVIRVICSAEPKHKQRQG

Entity 5 polymer

描述 description	50S ribosomal protein L31
分子量 formula_weight	7887.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	4

MKKDIHPKYEEITASCSCGNVMKIRSTVGHDLNLDVCSKCHPFFTGKQRDVATGGRVDRFNKRFNIPGSK

Entity 6 polymer

描述 description	mRNA
分子量 formula_weight	7889.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	9

GGCAAGGAGGUAAAAAUGGCAAAA

Entity 7 polymer

描述 description	16S rRNA
分子量 formula_weight	503697.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	A

AAAUUGAAGAGUUUGAUCAUGGCUCAGAUUGAACGCUGGCGGCAGGCCUAACACAUGCAAGUCGAACGGUAACAGGAAGAAGCUUGCUUCUUUGCUGACGAGUGGCGGACGGGUGAGUAAUGUCUGGGAAACUGCCUGAUGGAGGGGGAUAACUACUGGAAACGGUAGCUAAUACCGCAUAACGUCGCAAGACCAAAGAGGGGGACCUUCGGGCCUCUUGCCAUCGGAUGUGCCCAGAUGGGAUUAGCUAGUAGGUGGGGUAACGGCUCACCUAGGCGACGAUCCCUAGCUGGUCUGAGAGGAUGACCAGCCACACUGGAACUGAGACACGGUCCAGACUCCUACGGGAGGCAGCAGUGGGGAAUAUUGCACAAUGGGCGCAAGCCUGAUGCAGCCAUGCCGCGUGUAUGAAGAAGCCCUUCGGGUUGUAAAGUACUUUCAGCGGGGAGGAAGGGAGUAAAGUUAAUACCUUUGCUCAUUGACGUUACCCGCAGAAGAAGCACCGGCUAACUCCGUGCCAGCAGCCGCGGUAAUACGGAGGGUGCAAGCGUUAAUCGGAAUUACUGGGCGUAAAGCGCACGCAGGCGGUUUGUUAAGUCAGAUGUGAAAUCCCCGGGCUCAACCUGGGAACUGCAUCUGAUACUGGCAAGCUUGAGUCUCGUAGAGGGGGGUAGAAUUCCAGGUGUAGCGGUGAAAUGCGUAGAGAUCUGGAGGAAUACCGGUGGCGAAGGCGGCCCCCUGGACGAAGACUGACGCUCAGGUGCGAAAGCGUGGGGAGCAAACAGGAUUAGAUACCCUGGUAGUCCACGCCGUAAACGAUGUCGACUUGGAGGUUGUGCCCUUGAGGCGUGGCUUCCGGAGCUAACGCGUUAAGUCGACCGCCUGGGGAGUACGGCCGCAAGGUUAAAACUCAAAUGAAUUGACGGGGGCCCGCACAAGCGGUGGAGCAUGUGGUUUAAUUCGAUGCAACGCGAAGAACCUUACCUGGUCUUGACAUCCACGGAAGUUUUCAGAGAUGAGAAUGUGCCUUCGGGAACCGUGAGACAGGUGCUGCAUGGCUGUCGUCAGCUCGUGUUGUGAAAUGUUGGGUUAAGUCCCGCAACGAGCGCAACCCUUAUCCUUUGUUGCCAGCGGUCCGGCCGGGAACUCAAAGGAGACUGCCAGUGAUAAACUGGAGGAAGGUGGGGAUGACGUCAAGUCAUCAUGGCCCUUACGACCAGGGCUACACACGUGCUACAAUGGCGCAUACAAAGAGAAGCGACCUCGCGAGAGCAAGCGGACCUCAUAAAGUGCGUCGUAGUCCGGAUUGGAGUCUGCAACUCGACUCCAUGAAGUCGGAAUCGCUAGUAAUCGUGGAUCAGAAUGCCACGGUGAAUACGUUCCCGGGCCUUGUACACACCGCCCGUCACACCAUGGGAGUGGGUUGCAAAAGAAGUAGGUAGCUUAACCUUCGGGAGGGCGCUUACCACUUUGUGAUUCAUGACUGGGGUGAAGUCGUAACAAGGUAACCGUAGGGGAACCUGCGGUUGGAUCACCUCCUUACCUUAAAGAAGC

Entity 8 polymer

描述 description	30S ribosomal protein S2
分子量 formula_weight	26781.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MATVSMRDMLKAGVHFGHQTRYWNPKMKPFIFGARNKVHIINLEKTVPMFNEALAELNKIASRKGKILFVGTKRAASEAVKDAALSCDQFFVNHRWLGGMLTNWKTVRQSIKRLKDLETQSQDGTFDKLTKKEALMRTRELEKLENSLGGIKDMGGLPDALFVIDADHEHIAIKEANNLGIPVFAIVDTNSDPDGVDFVIPGNDDAIRAVTLYLGAVAATVREGRSQDLASQAEESFVEAE

Entity 9 polymer

描述 description	30S ribosomal protein S3
分子量 formula_weight	26031.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MGQKVHPNGIRLGIVKPWNSTWFANTKEFADNLDSDFKVRQYLTKELAKASVSRIVIERPAKSIRVTIHTARPGIVIGKKGEDVEKLRKVVADIAGVPAQINIAEVRKPELDAKLVADSITSQLERRVMFRRAMKRAVQNAMRLGAKGIKVEVSGRLGGAEIARTEWYREGRVPLHTLRADIDYNTSEAHTTYGVIGVKVWIFKGEILGGMAAVEQPEKPAAQPKKQQRKGRK

Entity 10 polymer

描述 description	30S ribosomal protein S4
分子量 formula_weight	23514.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MARYLGPKLKLSRREGTDLFLKSGVRAIDTKCKIEQAPGQHGARKPRLSDYGVQLREKQKVRRIYGVLERQFRNYYKEAARLKGNTGENLLALLEGRLDNVVYRMGFGATRAEARQLVSHKAIMVNGRVVNIASYQVSPNDVVSIREKAKKQSRVKAALELAEQREKPTWLEVDAGKMEGTFKRKPERSDLSADINEHLIVELYSK

Entity 11 polymer

描述 description	30S ribosomal protein S5
分子量 formula_weight	17629.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MAHIEKQAGELQEKLIAVNRVSKTVKGGRIFSFTALTVVGDGNGRVGFGYGKAREVPAAIQKAMEKARRNMINVALNNGTLQHPVKGVHTGSRVFMQPASEGTGIIAGGAMRAVLEVAGVHNVLAKAYGSTNPINVVRATIDGLENMNSPEMVAAKRGKSVEEILGK

Entity 12 polymer

描述 description	30S ribosomal protein S6
分子量 formula_weight	15727.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MRHYEIVFMVHPDQSEQVPGMIERYTAAITGAEGKIHRLEDWGRRQLAYPINKLHKAHYVLMNVEAPQEVIDELETTFRFNDAVIRSMVMRTKHAVTEASPMVKAKDERRERRDDFANETADDAEAGDSEEEEEE

Entity 13 polymer

描述 description	30S ribosomal protein S7
分子量 formula_weight	20055.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MPRRRVIGQRKILPDPKFGSELLAKFVNILMVDGKKSTAESIVYSALETLAQRSGKSELEAFEVALENVRPTVEVKSRRVGGSTYQVPVEVRPVRRNALAMRWIVEAARKRGDKSMALRLANELSDAAENKGTAVKKREDVHRMAEANKAFAHYRWLSLRSFSHQAGASSKQPALGYLN

Entity 14 polymer

描述 description	30S ribosomal protein S8
分子量 formula_weight	14146.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MSMQDPIADMLTRIRNGQAANKAAVTMPSSKLKVAIANVLKEEGFIEDFKVEGDTKPELELTLKYFQGKAVVESIQRVSRPGLRIYKRKDELPKVMAGLGIAVVSTSKGVMTDRAARQAGLGGEIICYVA

Entity 15 polymer

描述 description	30S ribosomal protein S9
分子量 formula_weight	14886.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MAENQYYGTGRRKSSAARVFIKPGNGKIVINQRSLEQYFGRETARMVVRQPLELVDMVEKLDLYITVKGGGISGQAGAIRHGITRALMEYDESLRSELRKAGFVTRDARQVERKKVGLRKARRRPQFSKR

Entity 16 polymer

描述 description	30S ribosomal protein S10
分子量 formula_weight	11755.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MQNQRIRIRLKAFDHRLIDQATAEIVETAKRTGAQVRGPIPLPTRKERFTVLISPHVNKDARDQYEIRTHLRLVDIVEPTEKTVDALMRLDLAAGVDVQISLG

Entity 17 polymer

描述 description	Small ribosomal subunit protein uS11
分子量 formula_weight	13872.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MAKAPIRARKRVRKQVSDGVAHIHASFNNTIVTITDRQGNALGWATAGGSGFRGSRKSTPFAAQVAAERCADAVKEYGIKNLEVMVKGPGPGRESTIRALNAAGFRITNITDVTPIPHDGCRPPKKRRV

Entity 18 polymer

描述 description	30S ribosomal protein S12
分子量 formula_weight	13814.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MATVNQLVRKPRARKVAKSNVPALEACPQKRGVCTRVYTTTPKKPNSALRKVCRVRLTNGFEVTSYIGGEGHNLQEHSVILIRGGRVKXLPGVRYHTVRGALDCSGVKDRKQARSKYGVKRPKA

Entity 19 polymer

描述 description	30S ribosomal protein S13
分子量 formula_weight	13128.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MARIAGINIPDHKHAVIALTSIYGVGKTRSKAILAAAGIAEDVKISELSEGQIDTLRDEVAKFVVEGDLRREISMSIKRLMDLGCYRGLRHRRGLPVRGQRTKTNARTRKGPRKPIKK

Entity 20 polymer

描述 description	30S ribosomal protein S14
分子量 formula_weight	11606.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

MAKQSMKAREVKRVALADKYFAKRAELKAIISDVNASDEDRWNAVLKLQTLPRDSSPSRQRNRCRQTGRPHGFLRKFGLSRIKVREAAMRGEIPGLKKASW

Entity 21 polymer

描述 description	Small ribosomal subunit protein uS15
分子量 formula_weight	10290.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O

MSLSTEATAKIVSEFGRDANDTGSTEVQVALLTAQINHLQGHFAEHKKDHHSRRGLLRMVSQRRKLLDYLKRKDVARYTQLIERLGLRR

Entity 22 polymer

描述 description	30S ribosomal protein S16
分子量 formula_weight	9207.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P

MVTIRLARHGAKKRPFYQVVVADSRNARNGRFIERVGFFNPIASEKEEGTRLDLDRIAHWVGQGATISDRVAALIKEVNKAA

Entity 23 polymer

描述 description	30S ribosomal protein S17
分子量 formula_weight	9724.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q

MTDKIRTLQGRVVSDKMEKSIVVAIERFVKHPIYGKFIKRTTKLHVHDENNECGIGDVVEIRECRPLSKTKSWTLVRVVEKAVL

Entity 24 polymer

描述 description	30S ribosomal protein S18
分子量 formula_weight	9005.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R

MARYFRRRKFCRFTAEGVQEIDYKDIATLKNYITESGKIVPSRITGTRAKYQRQLARAIKRARYLSLLPYTDRHQ

Entity 25 polymer

描述 description	30S ribosomal protein S19
分子量 formula_weight	10455.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S

MPRSLKKGPFIDLHLLKKVEKAVESGDKKPLRTWSRRSTIFPNMIGLTIAVHNGRQHVPVFVTDEMVGHKLGEFAPTRTYRGHAADKKAKKK

Entity 26 polymer

描述 description	30S ribosomal protein S20
分子量 formula_weight	9708.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T

MANIKSAKKRAIQSEKARKHNASRRSMMRTFIKKVYAAIEAGDKAAAQKAFNEMQPIVDRQAAKGLIHKNKAARHKANLTAQINKLA

Entity 27 polymer

描述 description	30S ribosomal protein S21
分子量 formula_weight	8524.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U

MPVIKVRENEPFDVALRRFKRSCEKAGVLAEVRRREFYEKPTTERKRAKASAVKRHAKKLARENARRTRLY

Entity 28 polymer

描述 description	Far1
分子量 formula_weight	25225.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V

MKTMIYPHQYNYIRSVILRLKNVYKTVNDKETVKVIQSETYNDINEIFGHIDDDIEESLKVLMNIRLSNKEIEAILNKFLEYVVPFELPSPQKLQKVFKKVKKIKIPQFEEYDLKVSSFVGWNELASNRKYIIYYDEKKQLKGLYGEISNQVVKGFCTICNKESNVSLFMKKSKTNSDGQYVKKGDYICRDSIHCNKQLTDINQFYNFIDKLD

来源 Source

来源生物 organism	Staphylococcus aureus
NCBI 分类编号 ncbi_taxonomy_id	1280
宿主生物 host_organism	Escherichia coli str. K-12 substr. MG1655

Entity 29 polymer

描述 description	Elongation factor G
分子量 formula_weight	76699.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	W

MAREFSLEKTRNIGIMAHIDAGKTTTTERILYYTGRIHKIGETHEGASQMDWMEQEQDRGITITSAATTAAWEGHRVNIIDTPGHVDFTVEVERSLRVLDGAVTVLDAQSGVEPQTETVWRQATTYGVPRIVFVNKMDKLGANFEYSVSTLHDRLQANAAPIQLPIGAEDEFEAIIDLVEMKCFKYTNDLGTEIEEIEIPEDHLDRAEEARASLIEAVAETSDELMEKYLGDEEISVSELKEAIRQATTNVEFYPVLCGTAFKNKGVQLMLDAVIDYLPSPLDVKPIIGHRASNPEEEVIAKADDSAEFAALAFKVMTDPYVGKLTFFRVYSGTMTSGSYVKNSTKGKRERVGRLLQMHANSRQEIDTVYSGDIAAAVGLKDTGTGDTLCGEKNDIILESMEFPEPVIHLSVEPKSKADQDKMTQALVKLQEEDPTFHAHTDEETGQVIIGGMGELHLDILVDRMKKEFNVECNVGAPMVSYRETFKSSAQVQGKFSRQSGGRGQYGDVHIEFTPNETGAGFEFENAIVGGVVPREYIPSVEAGLKDAMENGVLAGYPLIDVKAKLYDGSYHDVDSSEMAFKIAASLALKEAAKKCDPVILEPMMKVTIEMPEEYMGDIMGDVTSRRGRVDGMEPRGNAQVVNAYVPLSEMFGYATSLRSNTQGRGTYTMYFDHYAEVPKSIAEDIIKKNKGE

来源 Source

来源生物 organism	Staphylococcus aureus
NCBI 分类编号 ncbi_taxonomy_id	1280
宿主生物 host_organism	Escherichia coli str. K-12 substr. MG1655

Entity 30 polymer

描述 description	tRNA
分子量 formula_weight	24802.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	Z

CGCGGGGUGGAGCAGCCUGGUAGCUCGUCGGGCUCAUAACCCGAAGGUCGUCGGUUCAAAUCCGGCCCCCGCAACCA

Entity 31 polymer

描述 description	23S rRNA
分子量 formula_weight	950257.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	a

GGGUUGUGAGGUUAAGCGACUAAGCGUACACGGUGGAUGCCCUGGCAGUCAGAGGCGAUGAAGGACGUGCUAAUCUGCGAUAAGCGUCGGUAAGGUGAUAUGAACCGUUAUAACCGGCGAUUUCCGAAUGGGGAAACCCAGUGUGUUUCGACACACUAUCAUUAACUGAAUCCAUAGGUUAAUGAGGCGAACCGGGGGAACUGAAACAUCUAAGUACCCCGAGGAAAAGAAAUCAACCGAGAUUCCCCCAGUAGCGGCGAGCGAACGGGGAGCAGCCCAGAGCCUGAAUCAGUGUGUGUGUUAGUGGAAGCGUCUGGAAAGGCGCGCGAUACAGGGUGACAGCCCCGUACACAAAAAUGCACAUGCUGUGAGCUCGAUGAGUAGGGCGGGACACGUGGUAUCCUGUCUGAAUAUGGGGGGACCAUCCUCCAAGGCUAAAUACUCCUGACUGACCGAUAGUGAACCAGUACCGUGAGGGAAAGGCGAAAAGAACCCCGGCGAGGGGAGUGAAAAAGAACCUGAAACCGUGUACGUACAAGCAGUGGGAGCACGCUUAGGCGUGUGACUGCGUACCUUUUGUAUAAUGGGUCAGCGACUUAUAUUCUGUAGCAAGGUUAACCGAAUAGGGGAGCCGAAGGGAAACCGAGUCUUAACUGGGCGUUAAGUUGCAGGGUAUAGACCCGAAACCCGGUGAUCUAGCCAUGGGCAGGUUGAAGGUUGGGUAACACUAACUGGAGGACCGAACCGACUAAUGUUGAAAAAUUAGCGGAUGACUUGUGGCUGGGGGUGAAAGGCCAAUCAAACCGGGAGAUAGCUGGUUCUCCCCGAAAGCUAUUUAGGUAGCGCCUCGUGAAUUCAUCUCCGGGGGUAGAGCACUGUUUCGGCAAGGGGGUCAUCCCGACUUACCAACCCGAUGCAAACUGCGAAUACCGGAGAAUGUUAUCACGGGAGACACACGGCGGGUGCUAACGUCCGUCGUGAAGAGGGAAACAACCCAGACCGCCAGCUAAGGUCCCAAAGUCAUGGUUAAGUGGGAAACGAUGUGGGAAGGCCCAGACAGCCAGGAUGUUGGCUUAGAAGCAGCCAUCAUUUAAAGAAAGCGUAAUAGCUCACUGGUCGAGUCGGCCUGCGCGGAAGAUGUAACGGGGCUAAACCAUGCACCGAAGCUGCGGCAGCGACGCUUAUGCGUUGUUGGGUAGGGGAGCGUUCUGUAAGCCUGCGAAGGUGUGCUGUGAGGCAUGCUGGAGGUAUCAGAAGUGCGAAUGCUGACAUAAGUAACGAUAAAGCGGGUGAAAAGCCCGCUCGCCGGAAGACCAAGGGUUCCUGUCCAACGUUAAUCGGGGCAGGGUGAGUCGACCCCUAAGGCGAGGCCGAAAGGCGUAGUCGAUGGGAAACAGGUUAAUAUUCCUGUACUUGGUGUUACUGCGAAGGGGGGACGGAGAAGGCUAUGUUGGCCGGGCGACGGUUGUCCCGGUUUAAGCGUGUAGGCUGGUUUUCCAGGCAAAUCCGGAAAAUCAAGGCUGAGGCGUGAUGACGAGGCACUACGGUGCUGAAGCAACAAAUGCCCUGCUUCCAGGAAAAGCCUCUAAGCAUCAGGUAACAUCAAAUCGUACCCCAAACCGACACAGGUGGUCAGGUAGAGAAUACCAAGGCGCUUGAGAGAACUCGGGUGAAGGAACUAGGCAAAAUGGUGCCGUAACUUCGGGAGAAGGCACGCUGAUAUGUAGGUGAGGUCCCUCGCGGAUGGAGCUGAAAUCAGUCGAAGAUACCAGCUGGCUGCAACUGUUUAUUAAAAACACAGCACUGUGCAAACACGAAAGUGGACGUAUACGGUGUGACGCCUGCCCGGUGCCGGAAGGUUAAUUGAUGGGGUUAGCGCAAGCGAAGCUCUUGAUCGAAGCCCCGGUAAACGGCGGCCGUAACXAUAACGGUCCUAAGGUAGCGAAAUUCCUUGUCGGGUAAGUUCCGACCUGCACGAAUGGCGUAAUGAUGGCCAGGCUGUCUCCACCCGAGACUCAGUGAAAUUGAACUCGCUGUGAAGAUGCAGUGUACCCGCGGCAAGACGGAAAGACCCCGUGAACCUUUACUAUAGCUUGACACUGAACAUUGAGCCUUGAUGUGUAGGAUAGGUGGGAGGCUUUGAAGUGUGGACGCCAGUCUGCAUGGAGCCGACCUUGAAAUACCACCCUUUAAUGUUUGAUGUUCUAACGUUGACCCGUAAUCCGGGUUGCGGACAGUGUCUGGUGGGUAGUUUGACUGGGGCGGUCUCCUCCUAAAGAGUAACGGAGGAGCACGAAGGUUGGCUAAUCCUGGUCGGACAUCAGGAGGUUAGUGCAAUGGCAUAAGCCAGCUUGACUGCGAGCGUGACGGCGCGAGCAGGUGCGAAAGCAGGUCAUAGUGAUCCGGUGGUUCUGAAUGGAAGGGCCAUCGCUCAACGGAUAAAAGGUACUCCGGGGAUAACAGGCUGAUACCGCCCAAGAGUUCAUAUCGACGGCGGUGUUUGGCACCUCGAUGUCGGCUCAUCACAUCCUGGGGCUGAAGUAGGUCCCAAGGGUAUGGCUGUUCGCCAUUUAAAGUGGUACGCGAGCUGGGUUUAGAACGUCGUGAGACAGUUCGGUCCCUAUCUGCCGUGGGCGCUGGAGAACUGAGGGGGGCUGCUCCUAGUACGAGAGGACCGGAGUGGACGCAUCACUGGUGUUCGGGUUGUCAUGCCAAUGGCACUGCCCGGUAGCUAAAUGCGGAAGAGAUAAGUGCUGAAAGCAUCUAAGCACGAAACUUGCCCCGAGAUGAGUUCUCCCUGACCCUUUAAGGGUCCUGAAGGAACGUUGAAGACGACGACGUUGAUAGGCCGGGUGUGUAAGCGCAGCGAUGCGUUGAGCUAACCGGUACUAAUGAACCGUGAGGCUUAACCUUACAACGCCGAAGCUGUU

Entity 32 polymer

描述 description	5S rRNA
分子量 formula_weight	38483.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	b

UGCCUGGCGGCCGUAGCGCGGUGGUCCCACCUGACCCCAUGCCGAACUCAGAAGUGAAACGCCGUAGCGCCGAUGGUAGUGUGGGGUCUCCCCAUGCGAGAGUAGGGAACUGCCAGGCA

Entity 33 polymer

描述 description	50S ribosomal protein L2
分子量 formula_weight	29923.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	c

MAVVKCKPTSPGRRHVVKVVNPELHKGKPFAPLLEKNSKSGGRNNNGRITTRHIGGGHKQAYRIVDFKRNKDGIPAVVERLEYDPNRSANIALVLYKDGERRYILAPKGLKAGDQIQSGVDAAIKPGNTLPMRNIPVGSTVHNVEMKPGKGGQLARSAGTYVQIVARDGAYVTLRLRSGEMRKVEADCRATLGEVGNAEHMLRVLGKAGAARWRGVRPTVRGTAMNPVDHPHGGGEGRNFGKHPVTPWGVQTKGKKTRSNKRTDKFIVRRRSK

Entity 34 polymer

描述 description	50S ribosomal protein L3
分子量 formula_weight	22291.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	d

MIGLVGKKVGMTRIFTEDGVSIPVTVIEVEANRVTQVKDLANDGYRAIQVTTGAKKANRVTKPEAGHFAKAGVEAGRGLWEFRLAEGEEFTVGQSISVELFADVKKVDVTGTSKGKGFAGTVKRWNFRTQDATHGNSLSHRVPGSIGQNQTPGKVFKGKKMAGQMGNERVTVQSLDVVRVDAERNLLLVKGAVPGATGSDLIVKPAVKA

Entity 35 polymer

描述 description	50S ribosomal protein L4
分子量 formula_weight	22121.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	e

MELVLKDAQSALTVSETTFGRDFNEALVHQVVVAYAAGARQGTRAQKTRAEVTGSGKKPWRQKGTGRARSGSIKSPIWRSGGVTFAARPQDHSQKVNKKMYRGALKSILSELVRQDRLIVVEKFSVEAPKTKLLAQKLKDMALEDVLIITGELDENLFLAARNLHKVDVRDATGIDPVSLIAFDKVVMTADAVKQVEEMLA

Entity 36 polymer

描述 description	50S ribosomal protein L5
分子量 formula_weight	20333.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	f

MAKLHDYYKDEVVKKLMTEFNYNSVMQVPRVEKITLNMGVGEAIADKKLLDNAAADLAAISGQKPLITKARKSVAGFKIRQGYPIGCKVTLRGERMWEFFERLITIAVPRIRDFRGLSAKSFDGRGNYSMGVREQIIFPEIDYDKVDRVRGLDITITTTAKSDEEGRALLAAFDFPFRK

Entity 37 polymer

描述 description	50S ribosomal protein L6
分子量 formula_weight	18932.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	g

MSRVAKAPVVVPAGVDVKINGQVITIKGKNGELTRTLNDAVEVKHADNTLTFGPRDGYADGWAQAGTARALLNSMVIGVTEGFTKKLQLVGVGYRAAVKGNVINLSLGFSHPVDHQLPAGITAECPTQTEIVLKGADKQVIGQVAADLRAYRRPEPYKGKGVRYADEVVRTKEAKKK

Entity 38 polymer

描述 description	50S ribosomal protein L9
分子量 formula_weight	15789.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	h

MQVILLDKVANLGSLGDQVNVKAGYARNFLVPQGKAVPATKKNIEFFEARRAELEAKLAEVLAAANARAEKINALETVTIASKAGDEGKLFGSIGTRDIADAVTAAGVEVAKSEVRLPNGVLRTTGEHEVSFQVHSEVFAKVIVNVVAE

Entity 39 polymer

描述 description	50S ribosomal protein L13
分子量 formula_weight	16050.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	i

MKTFTAKPETVKRDWYVVDATGKTLGRLATELARRLRGKHKAEYTPHVDTGDYIIVLNADKVAVTGNKRTDKVYYHHTGHIGGIKQATFEEMIARRPERVIEIAVKGMLPKGPLGRAMFRKLKVYAGNEHNHAAQQPQVLDI

Entity 40 polymer

描述 description	50S ribosomal protein L14
分子量 formula_weight	13565.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	j

MIQEQTMLNVADNSGARRVMCIKVLGGSHRRYAGVGDIIKITIKEAIPRGKVKKGDVLKAVVVRTKKGVRRPDGSVIRFDGNACVLLNNNSEQPIGTRIFGPVTRELRSEKFMKIISLAPEVL

Entity 41 polymer

描述 description	50S ribosomal protein L15
分子量 formula_weight	15008.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	k

MRLNTLSPAEGSKKAGKRLGRGIGSGLGKTGGRGHKGQKSRSGGGVRRGFEGGQMPLYRRLPKFGFTSRKAAITAEIRLSDLAKVEGGVVDLNTLKAANIIGIQIEFAKVILAGEVTTPVTVRGLRVTKGARAAIEAAGGKIEE

Entity 42 polymer

描述 description	Large ribosomal subunit protein uL16
分子量 formula_weight	15343.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	l

MLQPKRTKFRKMHKGRNRGLAQGTDVSFGSFGLKAVGRGRLTARQIEAARRAMTRAVKRQGKIWIRVFPDKPITEKPLAVXXGKGKGNVEYWVALIQPGKVLYEMDGVPEELAREAFKLAAAKLPIKTTFVTKTVM

Entity 43 polymer

描述 description	50S ribosomal protein L17
分子量 formula_weight	14393.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	m

MRHRKSGRQLNRNSSHRQAMFRNMAGSLVRHEIIKTTLPKAKELRRVVEPLITLAKTDSVANRRLAFARTRDNEIVAKLFNELGPRFASRAGGYTRILKCGFRAGDNAPMAYIELVDRSEKAEAAAE

Entity 44 polymer

描述 description	50S ribosomal protein L18
分子量 formula_weight	12794.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	n

MDKKSARIRRATRARRKLQELGATRLVVHRTPRHIYAQVIAPNGSEVLVAASTVEKAIAEQLKYTGNKDAAAAVGKAVAERALEKGIKDVSFDRSGFQYHGRVQALADAAREAGLQF

Entity 45 polymer

描述 description	50S ribosomal protein L19
分子量 formula_weight	13159.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	o

MSNIIKQLEQEQMKQDVPSFRPGDTVEVKVWVVEGSKKRLQAFEGVVIAIRNRGLHSAFTVRKISNGEGVERVFQTHSPVVDSISVKRRGAVRKAKLYYLRERTGKAARIKERLN

Entity 46 polymer

描述 description	50S ribosomal protein L20
分子量 formula_weight	13528.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	p

MARVKRGVIARARHKKILKQAKGYYGARSRVYRVAFQAVIKAGQYAYRDRRQRKRQFRQLWIARINAAARQNGISYSKFINGLKKASVEIDRKILADIAVFDKVAFTALVEKAKAALA

Entity 47 polymer

描述 description	50S ribosomal protein L21
分子量 formula_weight	11586.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	q

MYAVFQSGGKQHRVSEGQTVRLEKLDIATGETVEFAEVLMIANGEEVKIGVPFVDGGVIKAEVVAHGRGEKVKIVKFRRRKHYRKQQGHRQWFTDVKITGISA

Entity 48 polymer

描述 description	50S ribosomal protein L22
分子量 formula_weight	12253.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	r

METIAKHRHARSSAQKVRLVADLIRGKKVSQALDILTYTNKKAAVLVKKVLESAIANAEHNDGADIDDLKVTKIFVDEGPSMKRIMPRAKGRADRILKRTSHITVVVSDR

Entity 49 polymer

描述 description	50S ribosomal protein L23
分子量 formula_weight	11222.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	s

MIREERLLKVLRAPHVSEKASTAMEKSNTIVLKVAKDATKAEIKAAVQKLFEVEVEVVNTLVVKGKVKRHGQRIGRRSDWKKAYVTLKEGQNLDFVGGAE

Entity 50 polymer

描述 description	50S ribosomal protein L24
分子量 formula_weight	11339.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	t

MAAKIRRDDEVIVLTGKDKGKRGKVKNVLSSGKVIVEGINLVKKHQKPVPALNQPGGIVEKEAAIQVSNVAIFNAATGKADRVGFRFEDGKKVRFFKSNSETIK

Entity 51 polymer

描述 description	50S ribosomal protein L25
分子量 formula_weight	10713.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	u

MFTINAEVRKEQGKGASRRLRAANKFPAIIYGGKEAPLAIELDHDKVMNMQAKAEFYSEVLTIVVDGKEIKVKAQDVQRHPYKPKLQHIDFVRA

Entity 52 polymer

描述 description	Large ribosomal subunit protein bL27
分子量 formula_weight	9146.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	v

MAHKKAGGSTRNGRDSEAKRLGVKRFGGESVLAGSIIVRQRGTKFHAGANVGCGRDHTLFAKADGKVKFEVKGPKNRKFISIEAE

Entity 53 polymer

描述 description	50S ribosomal protein L28
分子量 formula_weight	9027.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	w

MSRVCQVTGKRPVTGNNRSHALNATKRRFLPNLHSHRFWVESEKRFVTLRVSAKGMRVIDKKGIDTVLAELRARGEKY

Entity 54 polymer

描述 description	50S ribosomal protein L29
分子量 formula_weight	7286.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	x

MKAKELREKSVEELNTELLNLLREQFNLRMQAASGQLQQSHLLKQVRRDVARVKTLLNEKAGA

Entity 55 polymer

描述 description	50S ribosomal protein L30
分子量 formula_weight	6554.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	y

MAKTIKITQTRSAIGRLPKHKATLLGLGLRRIGHTVEREDTPAIRGMINAVSFMVKVEE

Entity 56 polymer

描述 description	50S ribosomal protein L32
分子量 formula_weight	6463.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	z

MAVQQNKPTRSKRGMRRSHDALTAVTSLSVDKTSGEKHLRHHITADGYYRGRKVIAK

Entity 57 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 58 non-polymer

描述 description	POTASSIUM ION
分子量 formula_weight	39.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	112

Entity 59 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	303

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.410 Å
最低分辨率 resolution_low	2.410 Å
R 因子 r_factor	—
R_work r_work	0.3873
R_free r_free	—

分辨率 resolution	2.41 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	30847

fit	/app/data/saxs_computation/gh/9ghd/9ghd.fit
pddf	/app/data/pr_computation/gh/9ghd/9ghd.pr.out
profile	/app/data/saxs_computation/gh/9ghd/9ghd.dat

Escherichia coli 70S ribosome in complex with Staphylococcus aureus FusB-EF-G (FusB-EF-G-70S*)

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

精修参数 Refinement

冷冻电镜 EM 3D

5. 实体与聚合体信息 (59)

Entity 1 polymer

聚合体 Polymer

Entity 2 polymer

聚合体 Polymer

Entity 3 polymer

聚合体 Polymer

Entity 4 polymer

聚合体 Polymer

Entity 5 polymer

聚合体 Polymer

Entity 6 polymer

聚合体 Polymer

Entity 7 polymer

聚合体 Polymer

Entity 8 polymer

聚合体 Polymer

Entity 9 polymer

聚合体 Polymer

Entity 10 polymer

聚合体 Polymer

Entity 11 polymer

聚合体 Polymer

Entity 12 polymer

聚合体 Polymer

Entity 13 polymer

聚合体 Polymer

Entity 14 polymer

聚合体 Polymer

Entity 15 polymer

聚合体 Polymer

Entity 16 polymer

聚合体 Polymer

Entity 17 polymer

聚合体 Polymer

Entity 18 polymer

聚合体 Polymer

Entity 19 polymer

聚合体 Polymer

Entity 20 polymer

聚合体 Polymer

Entity 21 polymer

聚合体 Polymer

Entity 22 polymer

聚合体 Polymer

Entity 23 polymer

聚合体 Polymer

Entity 24 polymer

聚合体 Polymer

Entity 25 polymer

聚合体 Polymer

Entity 26 polymer

聚合体 Polymer

Entity 27 polymer

聚合体 Polymer

Entity 28 polymer

聚合体 Polymer

来源 Source

Entity 29 polymer

聚合体 Polymer

来源 Source

Entity 30 polymer

聚合体 Polymer

Entity 31 polymer

聚合体 Polymer

Entity 32 polymer

聚合体 Polymer

Entity 33 polymer

聚合体 Polymer
